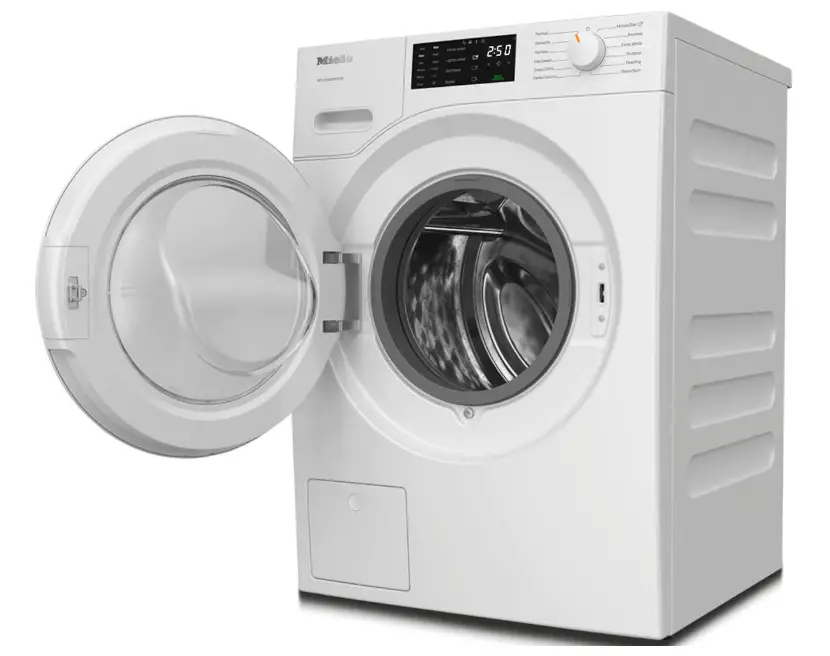

Miele WXD 160 WCS Classic Washing Machine

WXD 160 WCS

The Miele Classic Washing Machine comes with the following

product specifications

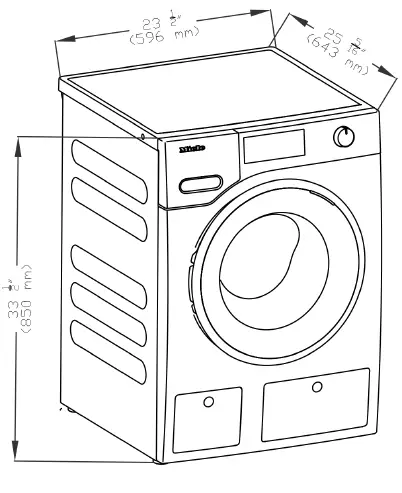

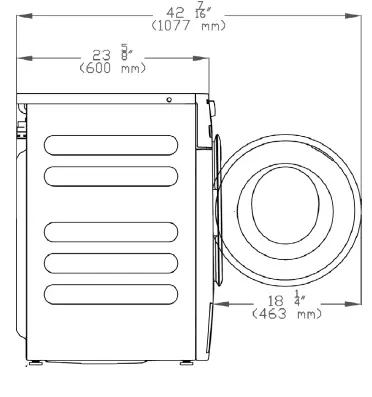

Overall Unit Dimensions: 23 1/2″ (596 mm) W x 33 1/2″ – 34 3/4″ (850 – 882 mm) H x 25 5/16″ (643 mm) D

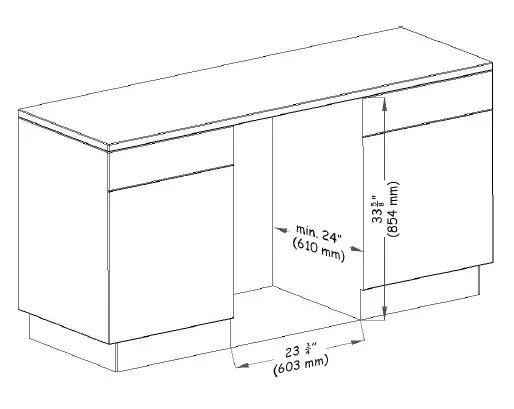

Niche Minimum Cabinet Niche Opening: 23 3/4″ (603 mm) W x 33 5/8″ (854 mm) H x 24″ (610 mm) D
Water Supply Requirements: between 14.5 psi (1 bar) and 145 psi (10 bar)
Water Connection Line: Length of 5 ft 3 in. (1.6 m) with a female 3/4 GHT fitting
Drain Hose (Supplied): Length of 5 ft (1.5 m)
Electrical Requirements: 110 V / 120 V, 60 Hz, 15 Amps
Power Cord: NEMA 5-15 plug, 6 ft 6 in. (2 m)
Shipping Weight: 221 lbs (100 kg)
Shipping Dimensions: 26″ W x 37″ H x 27 3/16″D

The Miele Classic Washing Machine can be installed in a cabinet niche opening that is at least 23 3/4″ (603 mm) wide, 33 5/8″ (854 mm) high and 24″ (610 mm) deep. The water supply line should have a pressure between 14.5 psi (1 bar) and 145 psi (10 bar), and the water connection line should have a length of 5 ft 3 in. (1.6 m) with a female 3/4 GHT fitting. The supplied drain hose has a length of 5 ft (1.5 m). The electrical requirement is 110 V / 120 V, 60 Hz, 15 Amps, and the power cord is a NEMA 5-15 plug with a length of 6 ft 6 in. (2 m).

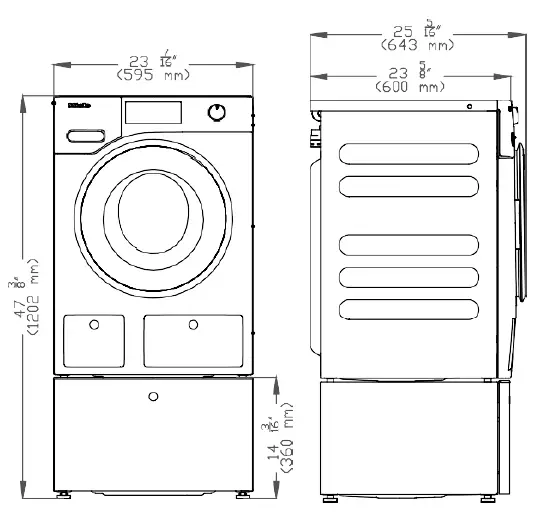

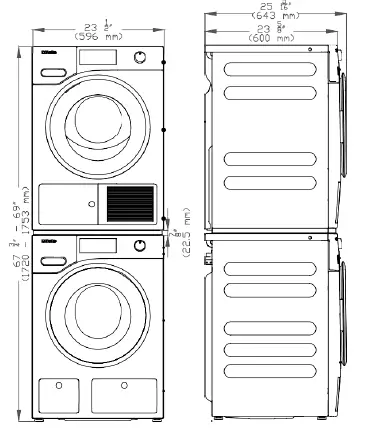

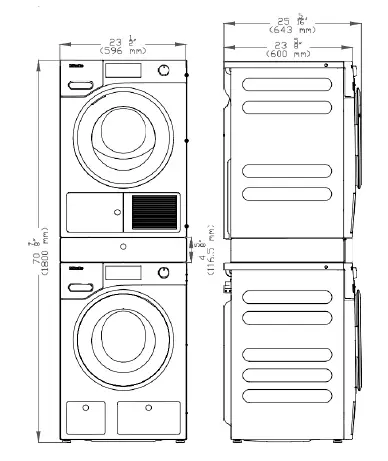

Optional accessories

for the Miele Classic Washing Machine include:

WTV502 Material# 9256140
WTV512 Material# 9351790
WTS510 Material# 9322300

USE

To use the Miele Classic Washing Machine, follow these steps:

Connect the water supply line to the water connection on the back of the machine.
Connect the drain hose to a drain or standpipe.
Plug in the power cord to an electrical outlet.
Select the desired wash cycle and options using the control panel.
Load the machine with clothes and detergent according to the manufacturer’s instructions.
Close the door and start the wash cycle.
After the cycle is complete, remove the clothes and leave the door open to allow for air circulation to prevent mold and mildew growth.

Note: Always refer to the user manual for specific instructions and safety information before using the Miele Classic Washing Machine.

Features

HoneyComb drum (2.26 ft3 capacity; 17.6 lbs)
SoftSteam
DirectSensor user interface
WiFiConn@ct and Mobile Control
CapDos
Add Laundry feature
1600 rpm max spin speed
EnergyStar

SPECIFICATIONS
Overall Unit Dimensions	23¹/2” (596 mm) W x 33¹/2” – 34³/4” (850 – 882 mm) H x 25⁵/16” (643 mm) D
Niche
Minimum Cabinet Niche Opening	23³/4” (603 mm) W x 33⁵/8” (854 mm) H x 24” (610 mm) D

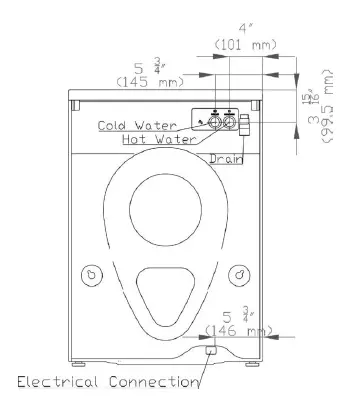

Plumbing
Water Supply Requirements	• Cold or Hot (max 140°F/60°C) water connection • Male 3/4” GHT fitting • Water pressure range 14.5 psi (1 bar) and 145 psi (10 bar)
Water Connection Line	Length: 5 ft 3 in. (1.6 m) Female 3/4” GHT fitting
Drain Hose (Supplied)	Length: 5 ft (1.5 m)
Electrical
Electrical Requirements	110 V / 120 V, 60 Hz, 15 Amps
Power Cord	NEMA 5-15 plug, 6 ft 6 in. (2 m)
Shipping
Shipping Weight	221 lbs (100 kg)
Shipping Dimensions	26” W x 37” H x 27 ³/16”D
