minicam ATEX LED Pod and Aux Light
LED Pods

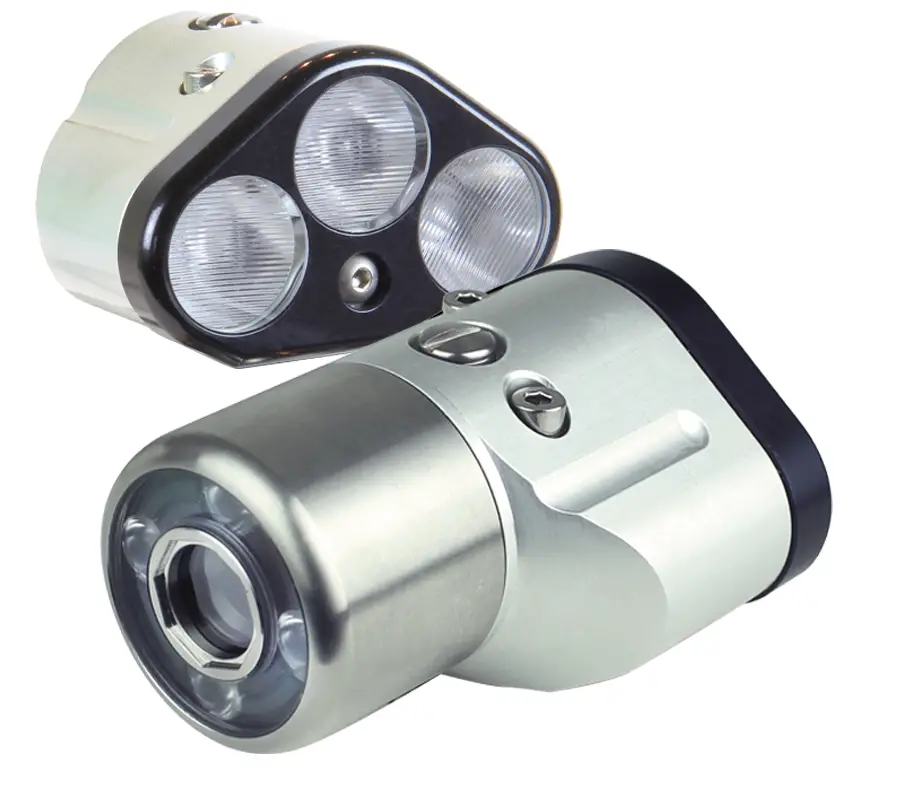

Ultra-bright LED auxiliary light head adds extra illumination for inspections in larger pipe diameters. The twin light pods have manually adjustable arms to give full horizontal 180° rotation and 90° upward rotation. The colour rear view backeye camera aids crawler reversing.
Auxiliary Light
Stainless steel housing features three high powered ultra-bright LED lights and a scratch resistant sapphire glass to protect the lens.
Compatibility
Technical Data
| APB300 – ExZ1 | |
| Pipe Diameter | 300mm upwards |
| Illumination System | 9 High Power LEDs |
| Backeye Camera | YES |
| Pressure Depth Rating | 1 bar (14.50psi) |
| Dimensions | 85 x 150 x 55mm |
| Weight | 480g |
| ALB300 – ExZ1 | |
| Pressure Depth Rating | 1 bar (14.50psi) |
| Dimensions | 84 x 68 x 50mm |
| Weight | 306g |
| Backeye Camera | YES |
| Compatability | Proteus / Proteus Lite |

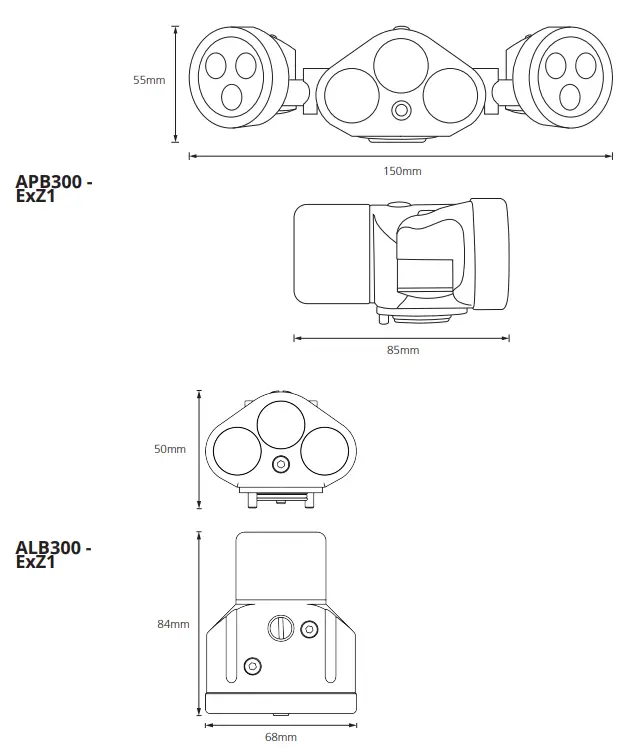

DIMENSION
