APB300/APN300
Instructional Manual
APB300/APN300 LED Pods
LED Pods

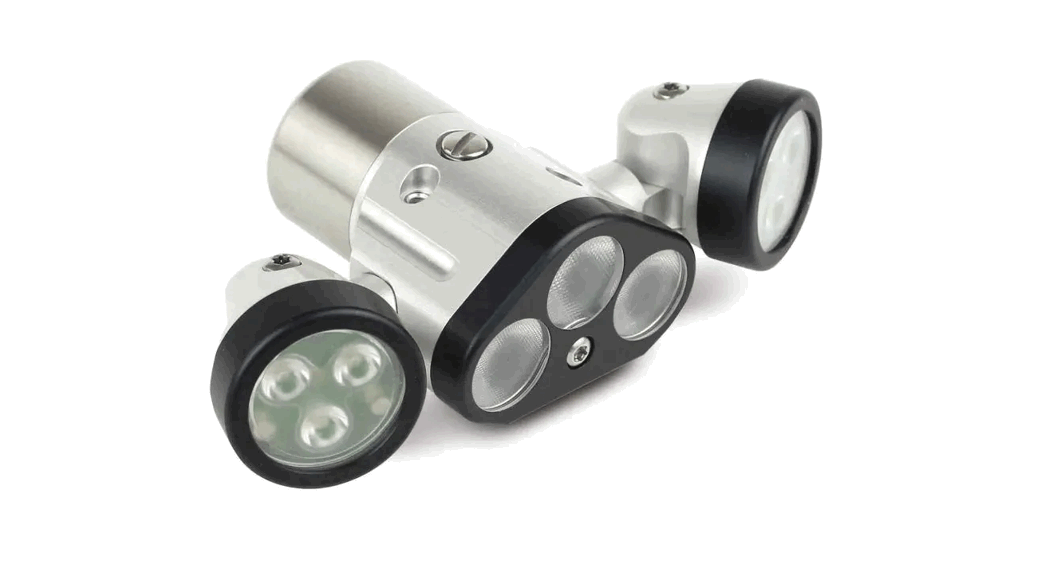

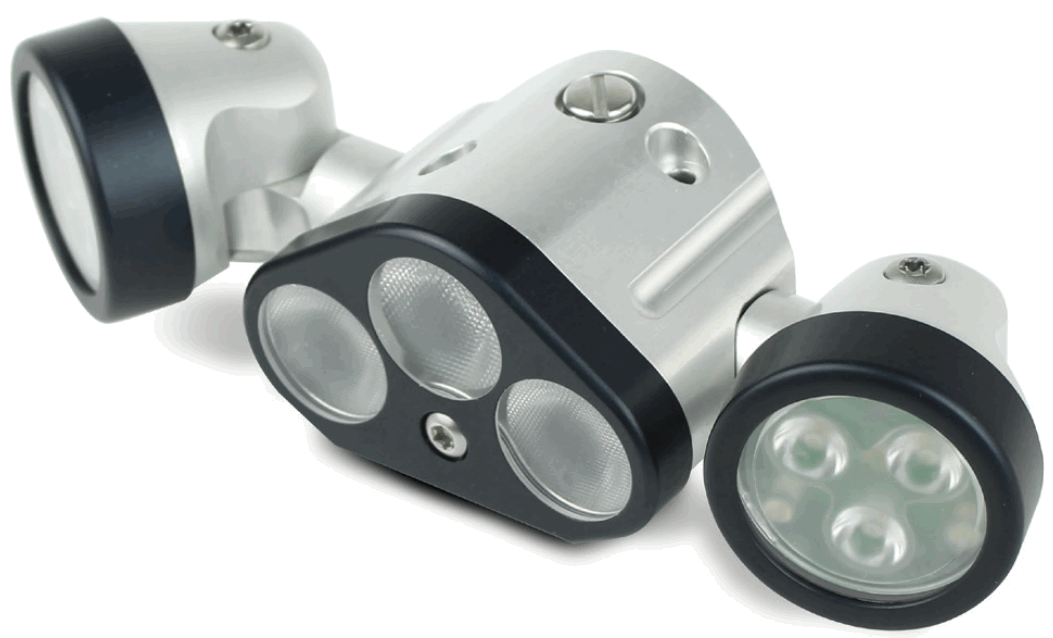

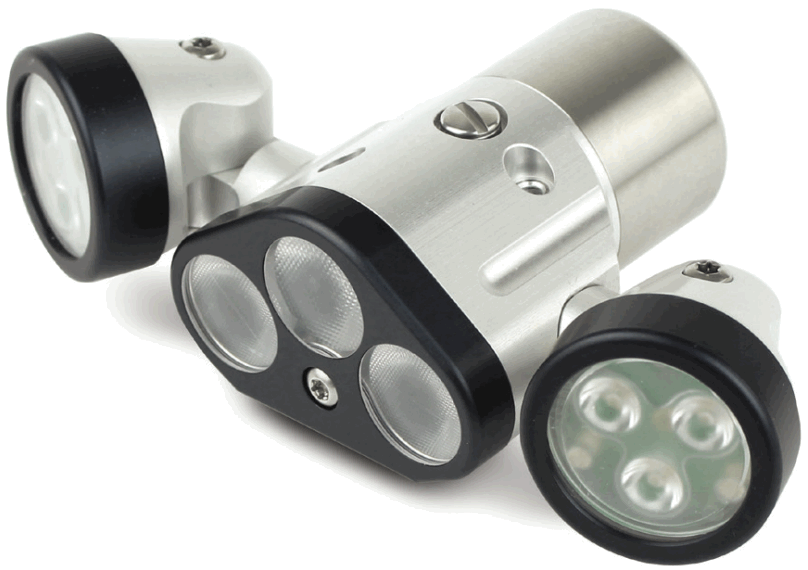

Ultra-bright LED auxiliary light head adds extra illumination for inspections in larger pipe diameters. The twin light pods have manually adjustable arms to give full horizontal 180° rotation and 90° upward rotation. The colour rear view backeye camera aids crawler reversing.
Compatibility
Technical Data
APB300
| Pipe Diameter | 300mm upwards |
| Illumination System | 9 High Power LEDs |
| Backeye Camera | YES |
| Pressure Depth Rating | 1 bar (14.50psi) |

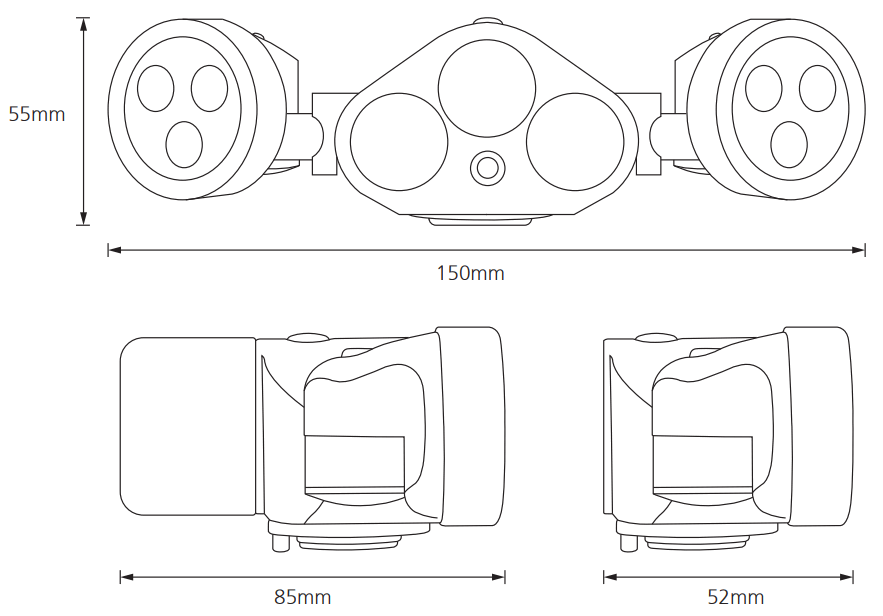

| Dimensions | 85 x 150 x 55mm |
| Weight | 480g |
APN300
| Pipe Diameter | 300mm upwards |
| Illumination System | 9 High Power LEDs |
| Backeye Camera | NO |
| Pressure Depth Rating | 1 bar (14.50psi) |
| Dimensions | 52 x 150 x 55mm |
| Weight | 400g |
LED Pods

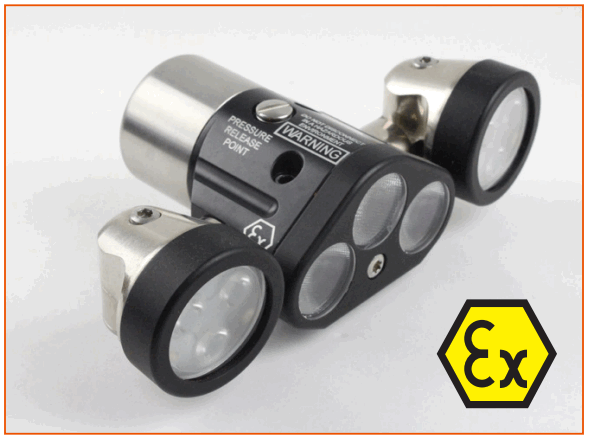

 | Also available in ATEX ZONE 1 ATEX LED Pods are engineered, built and tested for safe use in some of the most dangerour situations without compromising any features of regular LED Pods. |

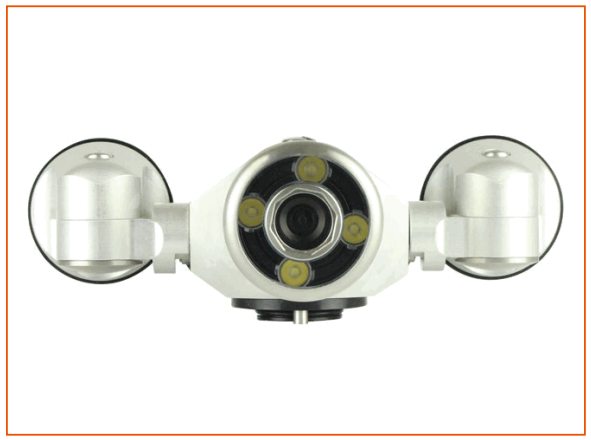

 | Rear View Optional back-eye camera to capture images from behind the crawler. |

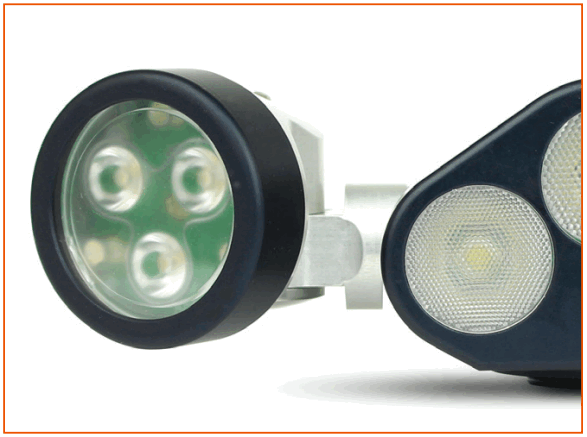

 | LED Lights |
Minicam, Unit 4, Yew Tree Way, Stonecross Park, Golborne, Warrington, WA3 3JD
Tel: + 44 (0) 1942 270524 • Email: [email protected]
www.minicamgroup.com
112021 © 2022 Minicam
Minicam Wastewater Pipeline Inspection and Maintenance Solutions
