CEP300
Instructional Manual
CEP300 Camera Elevation Platform
Camera Elevation Platform
This telescopic elevator quickly attaches to the CRP300 Crawler and can be manually moved up or down to increase inspection capabilities up to 2000mm. Interface for cameras and auxiliary lights.
Compatibility
Technical Data
| Connections | Camera connections (front) Lifter connection (rear) 2x additional lamp connections (side) 1x additional lamp connection with Backeye Camera (top connector) |

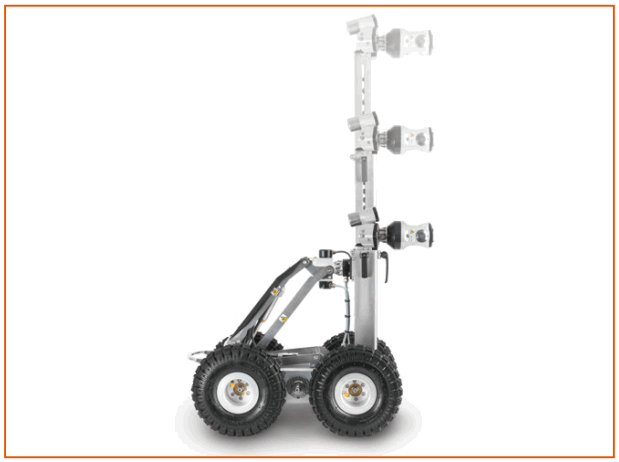

| Top camera position (pipe centre) using with pneumatic balloon wheels | 1090mm |
| Mid camera position (pipe centre) with extended wheels | Approx 830mm |
| Low camera position (pipe centre) with pnuematic wheels | 565mm |

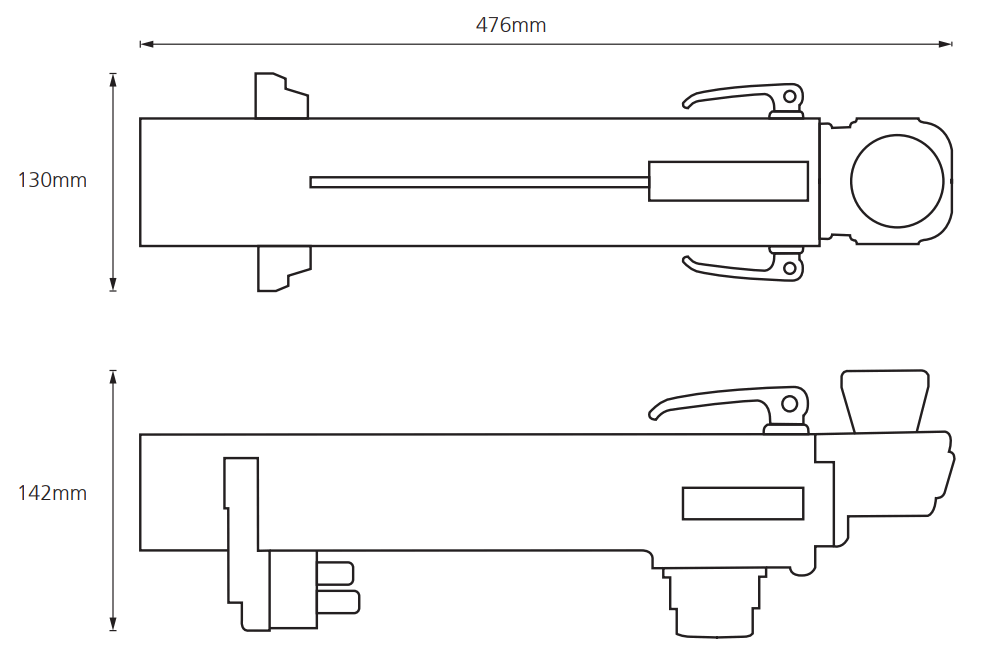

| Dimensions | 142 x 130 x 476mm |
| Weight | 5.7kg |

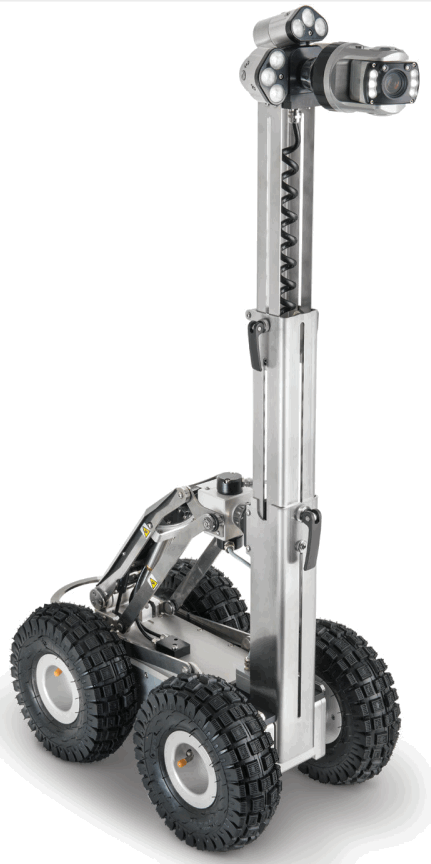

Camera Elevation Platform
 |  |  |

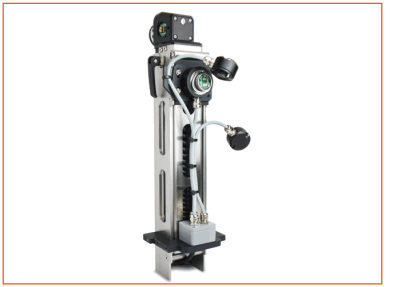

Unattached | Fixing | Extended |
