Quick Start Guide

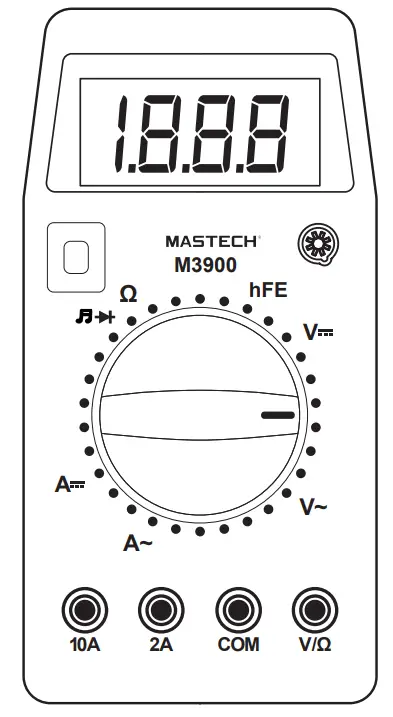

M3900
Digital Multimeter
700019178 MAY 2021 Rev. 1
Specifications are subject to change without notification.
Special attention should be paid when using the test and measurement instrument because improper usage may cause electric shock and damage the equipment.
– Use proper measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
– Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
– When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
– Examine the measuring test leads (if present) before use. Any element of which the insulation deteriorates (even partially), replace them with proper functional test leads.
– Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
– Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test
– Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.
Contents
Specifications
| Range | Resolution | Accuracy |
| 200mV V~ 2V/20V/200V 750V | 100μV 1mV/10mV/100mV 1V | ±(1.2%+3) ±(0.8%+3) ±(1.2%+3) |
V 200mV/2V/20V/200V/1000V | 100μV/1mV/10mV/100mV/1V | ±(0.5%+1) |
| A~ 20μA 200μA/2mA/20mA 200mA/2A 10A | 10nA 0.1μA/1μA/10μA 100μA/1mA 10mA | ±(3.0%+7) ±(1.0%+3) ±(1.8%+3) ±(3.0%+7) |
| A 20μA 200μA/2mA/20mA 200mA/2A 10A | 10nA 0.1μA/1μA/10μA 100μA/1mA 10mA | ±(2.0%+5) ±(0.8%+1) ±(1.2%+1) ±(2.0%+5) |
| Ω 200Ω 2kΩ/20kΩ/200kΩ/2MΩ 20MΩ | 0.1Ω 1Ω/10Ω/100Ω/1kΩ 10kΩ | ±(0.5%+3) ±(0.5%+1) ±(1.0%+2) |
 |  |
 |  |
 |  |
http://www.mastech-group.com/support.php?n=0
USA
MGL AMERICA, INC.
2810 Coliseum Centre Drive,
Ste. 100 Charlotte,
North Carolina 28217 USA
Tel: +1 833-533-5899
Email: [email protected]
SKU Number: M3900CBGLO
