RENESAS FPB-RA2E2 Fast Prototyping Board
Introduction
The FPB-RA2E2 Fast Prototyping Board provides an entry point for evaluation, prototyping and development with the RA2E2 MCU. Moreover, since this board incorporates an emulator circuit, you can use it for designing your own applications without needing to make further investments in tools. This product includes through-holes for pin headers that allow access to all MCU signal pins, allowing easy prototyping with a breadboard.
Package Contents
- FPB-RA2E2 Fast Prototyping Board (RTK7FPA2E2S00001BE)
- Quick Start Guide (this document)
Board Specifications
| Item | Specification |
| Evaluation MCU | Part No: R7FA2E2A74CNK; package: 24-pin HWQFN |
| On-chip memory: 64 KB ROM, 8 KB RAM, 2 KB data flash memory | |
| Board size | Size: 53 mm × 85 mm; thickness: 11.5 mm |
| Power-supply voltage | VCC: 3.3 V to 5.5 V. MCU operation voltage range 1.6 V to 5.5 V |
| Power-supply circuit | USB connector: VBUS (5 V input); VBUS is converted to 3.3 V by LDO |
| 2-pin external power-supply header*1 | |
| Push switch | Reset switch x 1; user switch x 1 |
| LED | Power indicator: green x 1, user: green x 2, On-board Debugger ACT LED: green x 1 |
| USB connector | Connector: Micro USB Type-B |
| Pmod™ connector | Connector: Angle type, 12-pin x 2 |
| Arduino™ connector | Connector: 6-pin x 1, 8-pin x 2, 10-pin x 1 The interface is compatible with Arduino™ UNO R3 |
| MCU header*1 | Header: 32 pins x 2 |
| Emulator | E2 Emulator On-Board programmer / debugger |
This part is not mounted

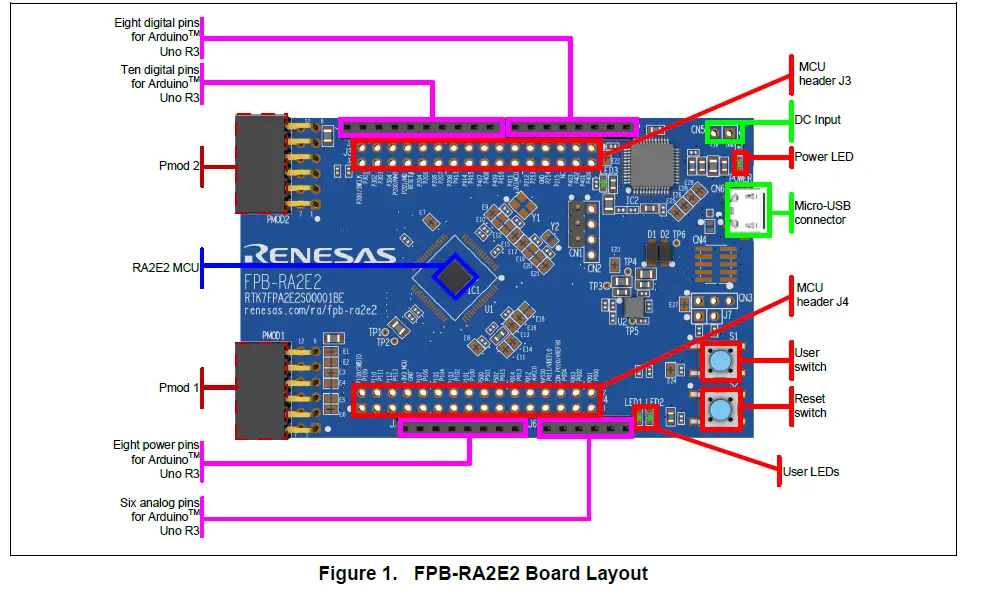

Board Layout

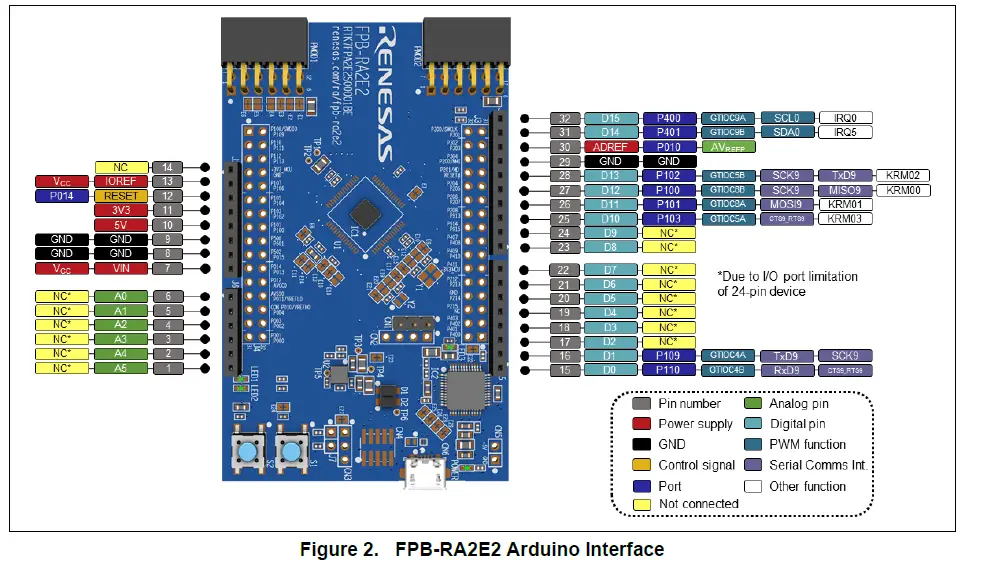

Arduino Interface

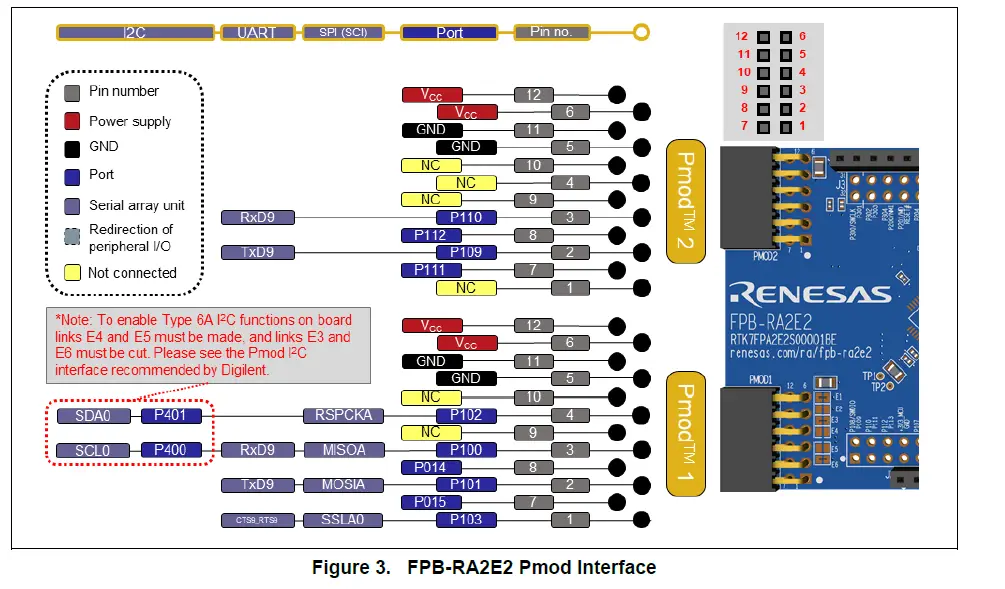

Pmod Interface
The FPB-RA2E2 Fast Prototyping Board has two Pmod connectors. Pmod 1 supports the Type 2A and Type 3A interfaces and can also be configured for Type 6A. Pmod 2 supports Type 3A only.
Note on Using the Board
Before using this board, download the user’s manual from the web site at renesas.com/ra/fpb-ra2e2, and check the full specifications
R20QS0027EG0103 Rev.1.03 May.09.22
