Quick Start Guide Renesas RA Family
FPB-RA2E1 Fast Prototyping Board
Introduction
The FPB-RA2E1 Fast Prototyping Board provides an entry point for evaluation, prototyping, and development with the RA2E1 MCU. Moreover, since this board incorporates an emulator circuit, you can use it for designing your own applications without needing to make further investments in tools. This product includes through-holes for pin headers that allow access to all MCU signal pins, allowing easy prototyping with a breadboard.
Package Contents
- FPB-RA2E1 Fast Prototyping Board (RTK7FPA2E1S00001BE
- Quick Start Guide (this document)
| Item | Specification |
| Evaluation MCU | Part No: R7FA2E1A92DFM; package: 64-pin LFQFP |
| On-chip memory: 128-KB ROM, 16-KB RAM, 4-KB data flash memory | |
| Board size | Size: 53 mm x 85 mm; thickness: 1.6 mm |
| Power-supply voltage | VCC: 3.3 V to 5.5 V. MCU operation voltage range 1.6 V to 5.5 V. |
| Power-supply circuit | USB connector: VBUS (5 V input); VBUS is converted to 3.3 V by LDO. |
| 2-pin external power-supply header*’ | |
| Push switch | Reset switch x 1; user switch x 1 |
| LED | Power indicator: green x 1, user: green x 2, ACT LED: green x 1 |
| USB connector | Connector: Micro USB Type-B |
| Pmod TM connector | Connector: Angle type, 12 pins x 2 |
| ArduinoTM connector | Connector: 6 pins x 1, 8 pins x 2, 10 pins x 1 The interface is compatible with ArduinoTM UNO R3. |
| MCU header.‘ | Header: 32 pins x 2 |
This part is not mounted
Board Layout

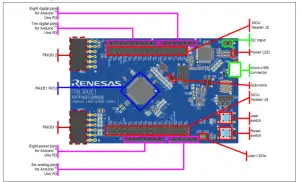

Figure 1. FPB-RA2E1 Board Layout
Arduino Interface

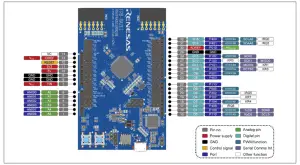

Figure 2. FPB-RA2E1 Arduino Interface
Pmod Interface

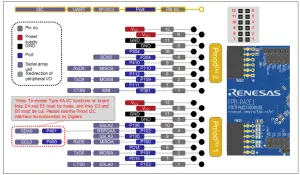

The FPB-RA2E1 Fast Prototyping Board has two Pmod connectors for the Type 2A interface. Pmod 1 can support Type 6A.
7. Note on Using the Board
Before using this board, download the user’s manual from the website at renesas.com/ra/fpb-ra2e1, and check the full specifications.
http://www.renesas.com/ra/fpb-ra2e1
R20QS0023EG0100 Rev.1.00
Jun.17.21
