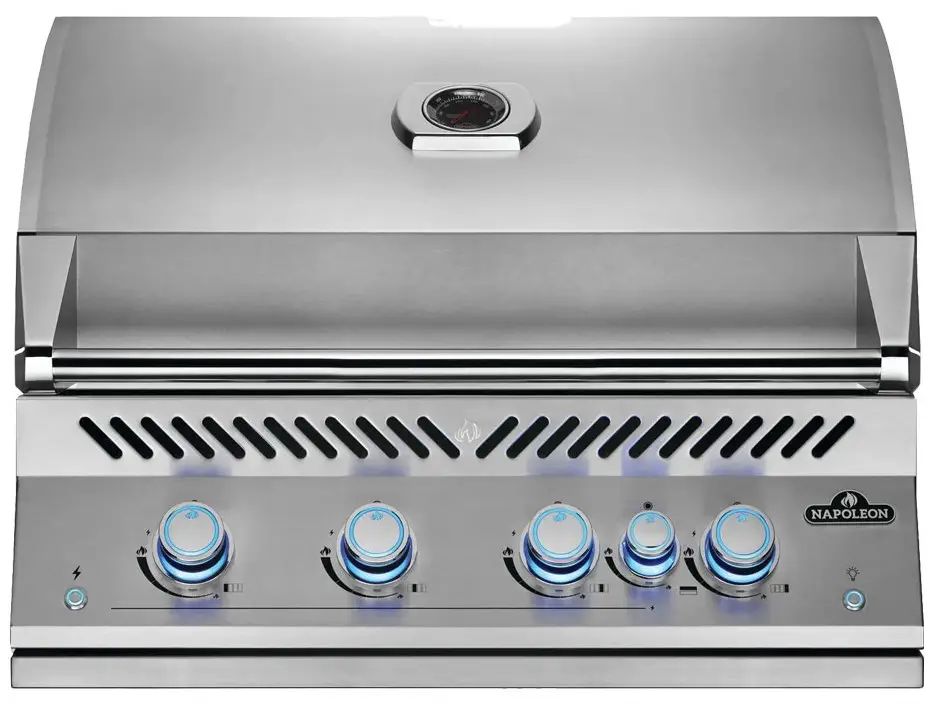

NAPOLEON BIG32 Built In Gas Barbecue

NAPOLEON-BIG32-Built-In-Gas-Barbecue-fig-1

PRODUCT INFORMATION

Welcome to Napoleon! Congratulations on upgrading your grilling game and welcome to the Napoleon family! Register your grill today. We want to be by your side as you live memorable moments.
Ready to assemble your new grill? There may be visual differences between illustrations and model purchased. Remove all parts from packaging before assembling the barbecue. Set up this assembly on a solid, level, and horizontal surface.
These are the tools you’ll need (not included):
- Wrenches
- Screwdrivers

BUILT-IN SERIES Assembled Grill and Burners

The product comes in four models: BIG32, BIG38, BIG44 & BIB10.

Usage Instructions

Remove all parts from packaging before assembling the barbeque.
Set up this assembly on a solid, level, and horizontal surface.
Check that all parts are included in the package before starting assembly.
Follow the assembly instructions carefully.
Use the wrenches and screwdrivers to assemble the grill.
Ensure all parts are tightly secured.
Refer to the user manual for further instructions on using and maintaining the grill.

WELCOME TO NAPOLEON!Congratulations on upgrading your grilling game and welcome to the Napoleon family!
Register your grill today. We want to be by your side as you live memorable moments.

Ready to assemble your new grill?…
There may be visual differences between illustrations and model purchased.

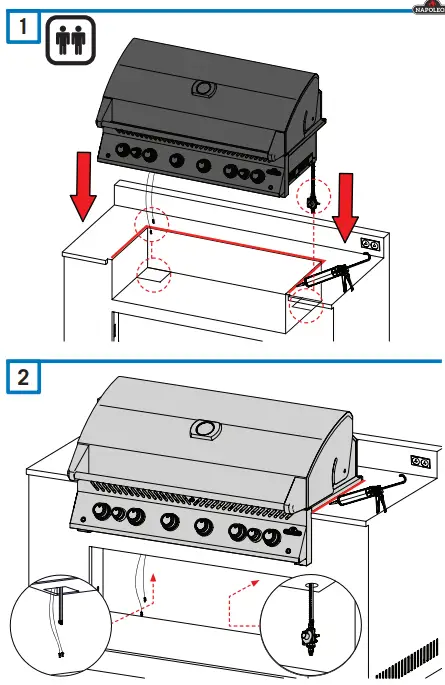

Remove all parts from packaging before assembling the barbeque. ! Set up this assembly on a solid, level and horizontal surface.

NAPOLEON-BIG32-Built-In-Gas-Barbecue-fig-2

These are the tools you’ll need (not included)

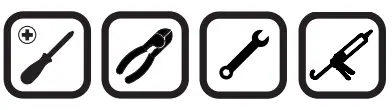

NAPOLEON-BIG32-Built-In-Gas-Barbecue-fig-3

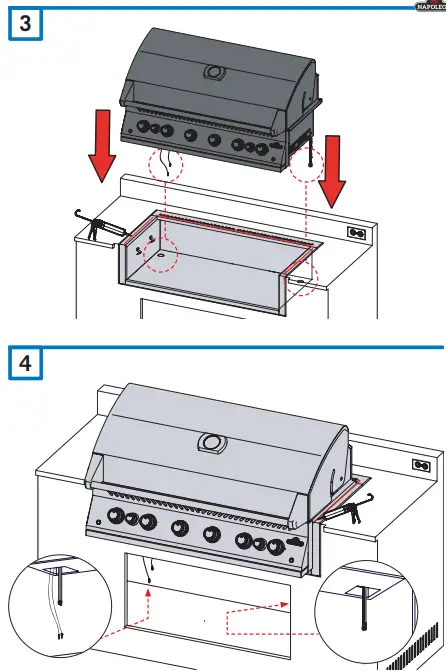

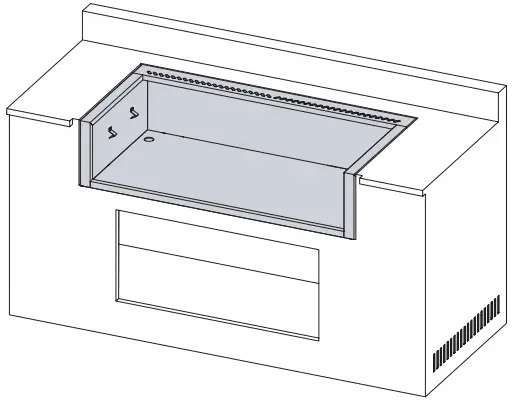

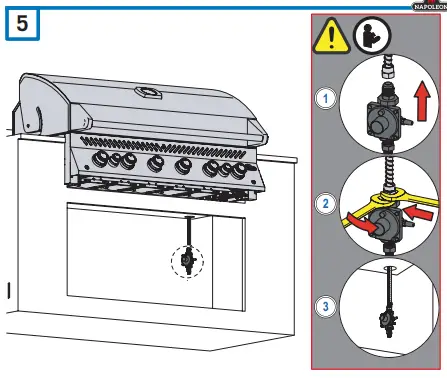

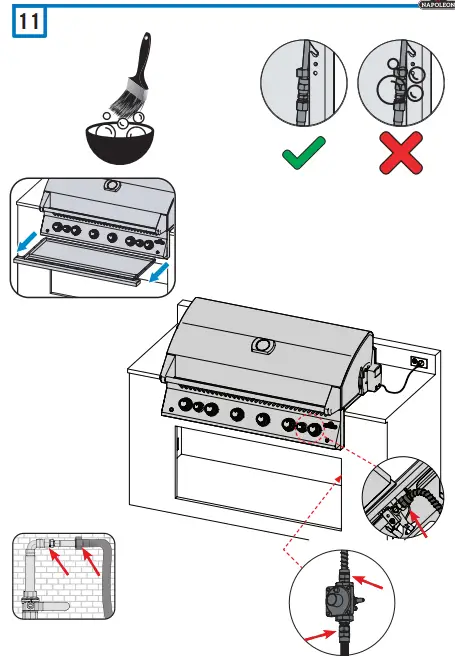

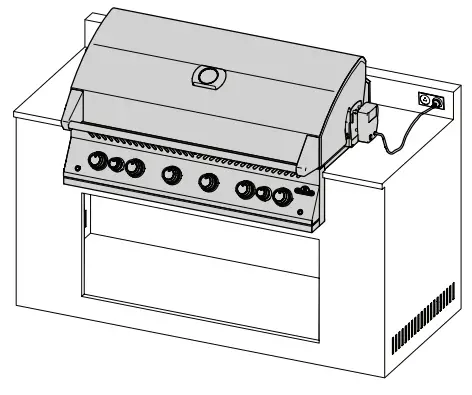

ASSEMBLING GRILL

NAPOLEON-BIG32-Built-In-Gas-Barbecue-fig-4

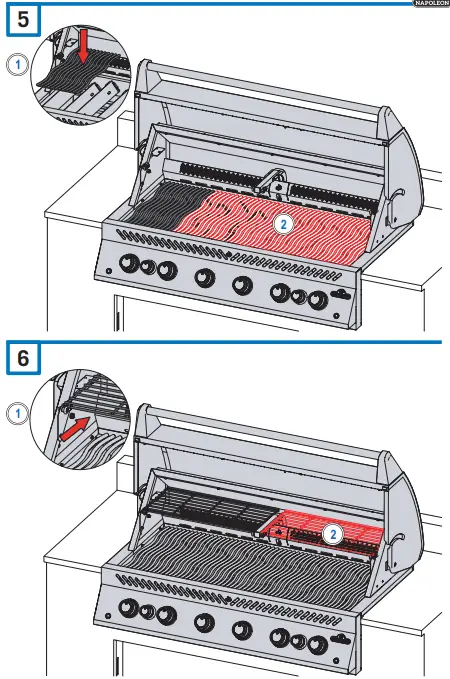

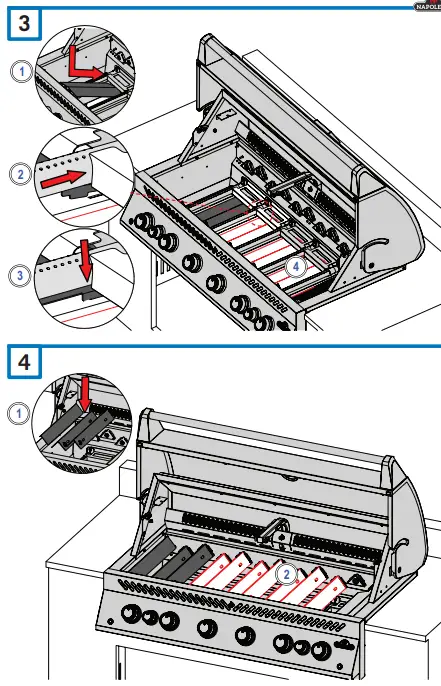

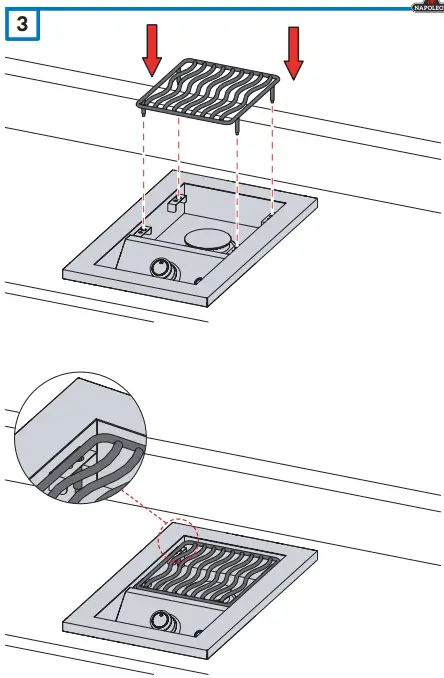

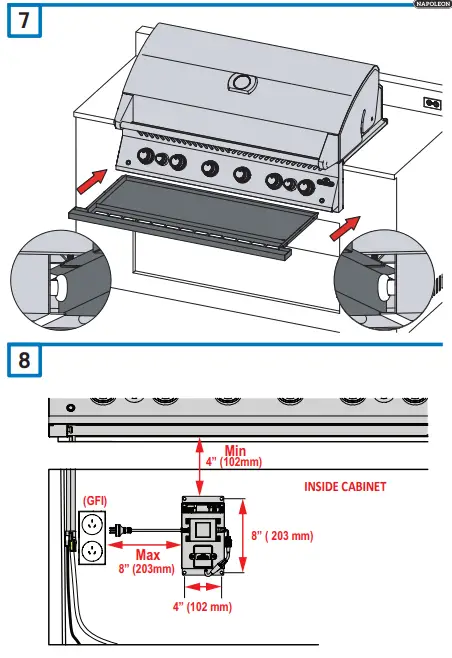

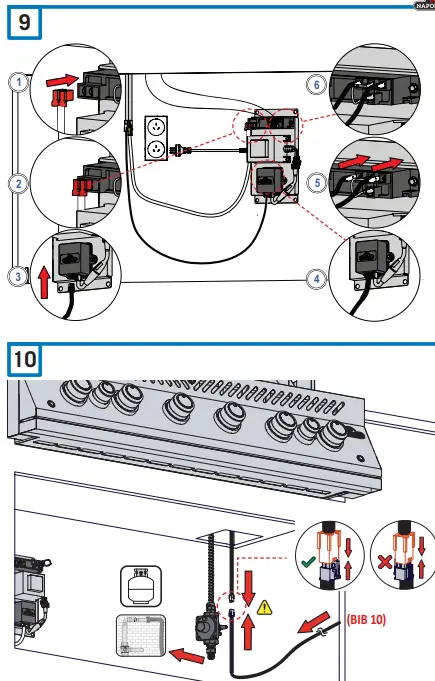

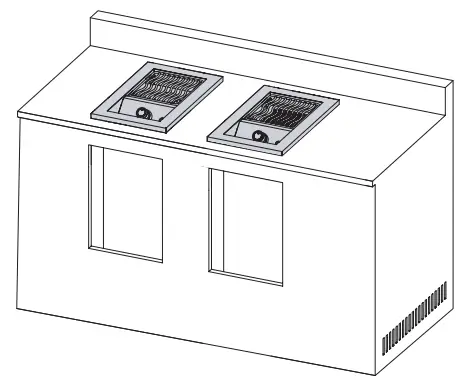

ASSEMBLING BURNER

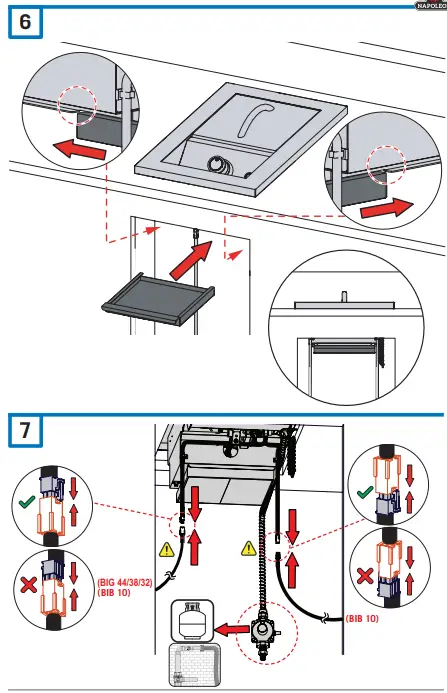

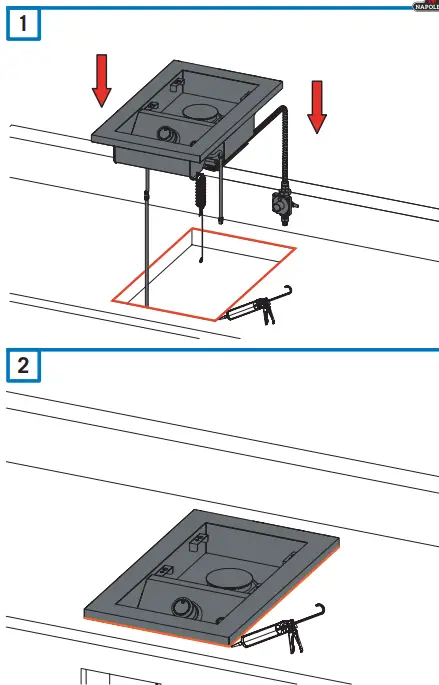

NAPOLEON-BIG32-Built-In-Gas-Barbecue-fig-15

PART LIST

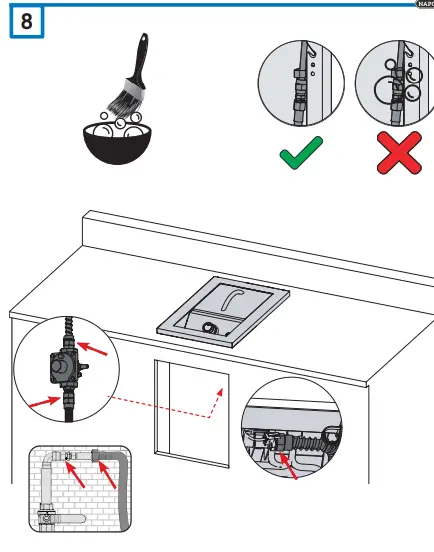

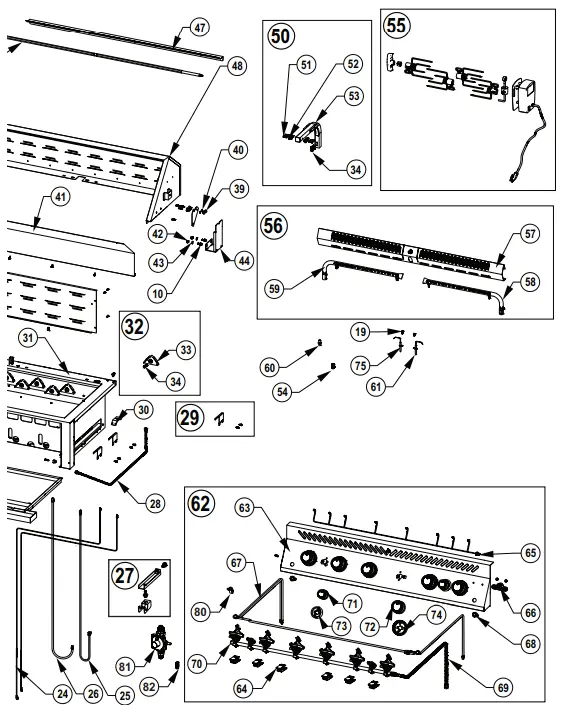

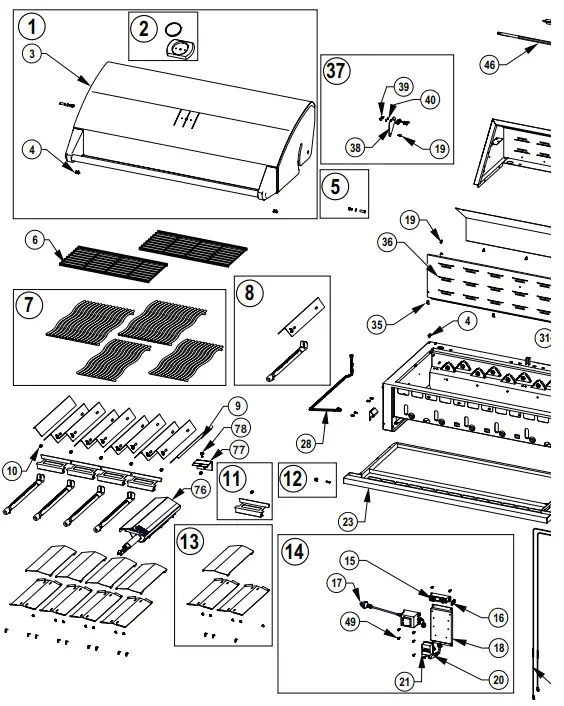

NAPOLEON-BIG32-Built-In-Gas-Barbecue-fig-21

	Part #	BIG32	BIG38	BIG44		Part #	BIG32	BIG38	BIG44
1	N010-1337	x			36	N035-0171	x
	N010-1338		x			N035-0172		x
	N010-1339			x		N035-0173			x
2	S91009	x	x	x	37	N370-1031-SER	x	x	x
3	N010-1340	x			38	N080-0459	x	x	x
	N010-1341		x		39	N450-0052	x	x	x
	N010-1342			x	40	N735-0010	x	x	x
4	N510-0013	x	x	x	41	N585-0153-BK2GL	x
5	N370-1026-SER	x	x	x		N585-0154-BK2GL		x
6	N520-0052	x				N585-0155-BK2GL			x
	N520-0053		x		42	N450-0008	x	x	x
	N520-0054			x	43	N735-0003	x	x	x
7	S83028	x			44	N475-0509	x	x	x
	S83029		x		46	N555-0098	x	x
	S83030			x		N555-0099	x
8	S87019	x	x	x		N555-0100		x
9	N305-0119		x	x		N555-0101			x
	N305-0122	x				N555-0105			x
10	N570-0038	x	x	x	47	N215-0028	x
11	S87018	x	x	x		N215-0029		x
12	N370-1021-SER	x	x	x		N215-0030			x
13	N370-1030-SER	x	x	x	48	N010-1334	x
14	N370-1101-SER	x	x	x		N010-1335		x
15	N357-0022	x	x	x		N010-1336			x
16	N750-0034	x	x	x	50	N370-1022-SER			x
17	N707-0022	x	x	x	51	N570-0134	x	x	x
18	N475-0532	x	x	x	52	N045-0001	x	x	x
19	N570-0008	x	x	x	53	N010-1369			x
20	N750-0086	x	x	x	54	N255-0071	x	x	x
21	N190-0007	x	x	x	55	N370-1002-AU	x	x
23	N010-1329	x				N370-1003-AU			x
	N010-1330		x		56	N370-1039-SER	x	x
	N010-1331			x		N370-1040-SER			x
24	N750-0038	x	x	x	57	N350-0069	x	x
25	N750-0088	x	x	x		N350-0090			x
26	N750-0087	x	x	x	58	N100-0045	x	x	x
27	N010-1387-SER	x	x	x	59	N100-0063			x
28	N720-0084	x	x		60	N455-0117	n	n	n
	N720-0082			x	61	N240-0034	x	x	x
29	N080-0462-SER	x	x	x	62	N010-1637	n
30	N080-0458	x	x	x		N010-1638		n
31	N010-1317-SER	x				N010-1639			n
	N010-1318-SER		x		63	N475-0617	x
	N010-1319-SER			x		N475-0618		x
32	N370-0822	x	x	x		N475-0619			x
33	N080-0405	x	x	x	64	N160-0048	x	x	x
34	N570-0087	x	x	x	65	N750-0090	x
35	N370-1027-SER	x	x	x		N750-0092		x

	Part #	BIG32	BIG38	BIG44
	N750-0094			x
66	N385-0307-SER	x	x	x
67	N750-0089	x
	N750-0091		x
	N750-0093			x
68	N660-0005	x	x	x
69	N720-0070	x	x	x
70	N010-1344-AU	n
	N010-1346-AU		n
	N010-1348-AU			n
71	N380-0034-CL	x	x	x
72	N380-0035-CL	x	x	x
73	N010-1314	x	x	x
74	N010-1313	x	x	x
75	N240-0044			x
76	N010-1629	x	x	x
77	N080-0389	x	x	x
78	N570-0068	x	x	x
79	N215-0026	x	x	x
80	N080-0478	x	x	x
81	N530-0047	n	n	n
82	W445-0031	n	n	n
	BI-3623-ZCL	ac

Accessories Parts List

	Description	BIG32	BIG38	BIG44
BI-3623-ZCL	Zero Clearance Liner	ac
BI-4223-ZCL	Zero Clearance Liner		ac
BI-4823-ZCL	Zero Clearance Liner			ac
61830	Cover	ac
61836	Cover		ac
61842	Cover			ac
69854	Rotisserie Kit- AU			ac

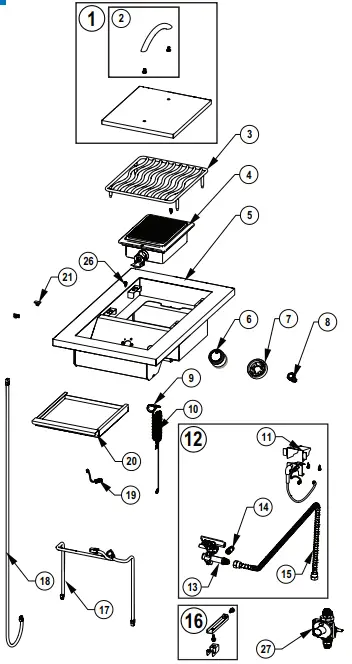

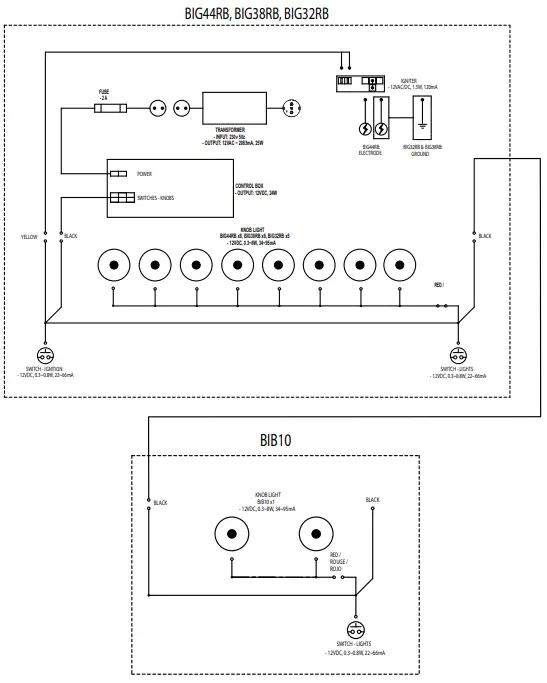

NAPOLEON-BIG32-Built-In-Gas-Barbecue-fig-24

	Part #	BIB10IR	BIB10RT		Part #	BIB10IR	BIB10RT
1	N010-1380	x	x	14	N255-0069		x
2	N325-0049-SER	x	x		N455-0129	n
3	S83031	x	x		N455-0116	p
4	N010-1620	x		15	N720-0070	x	x
	S81008		n	16	N010-1387-SER	x	x
5	N010-1322	x	x	17	N750-0099	x	x
6	N380-0034-CL	x	x	18	N750-0087	x	x
7	N010-1314	x	x	19	N750-0100	x	x
8	N660-0005	x	x	20	N710-0130	x	x
9	N640-0006	x	x	21	N370-1027-SER	x	x
10	N555-0097	x	x	22	N570-0013		x
11	N215-0031	x		23	W615-0043		x
	N080-0454-SER		x	24	N720-0085		x
12	N370-1134		n	25	N455-0128		n
	N370-1135	n		26	N570-0008	x
	N370-1136	p		27	N530-0047	n	n
13	N010-1356-AU		n		N530-0058	p
	N010-1354-AU	n		28	W445-0031	n	n
	N010-1353	p			N255-0026	p
