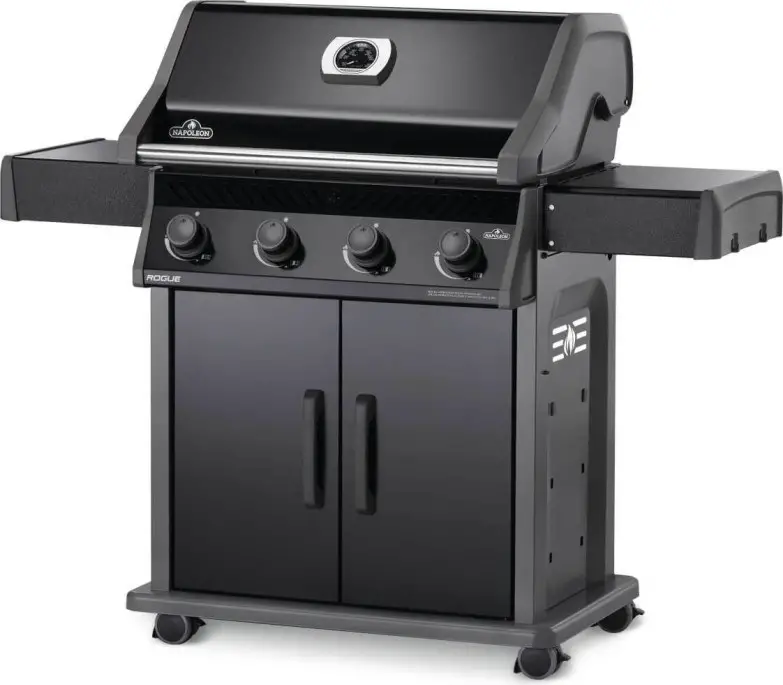

NAPOLEON R525-1 Natural Gas Grill

Product Information

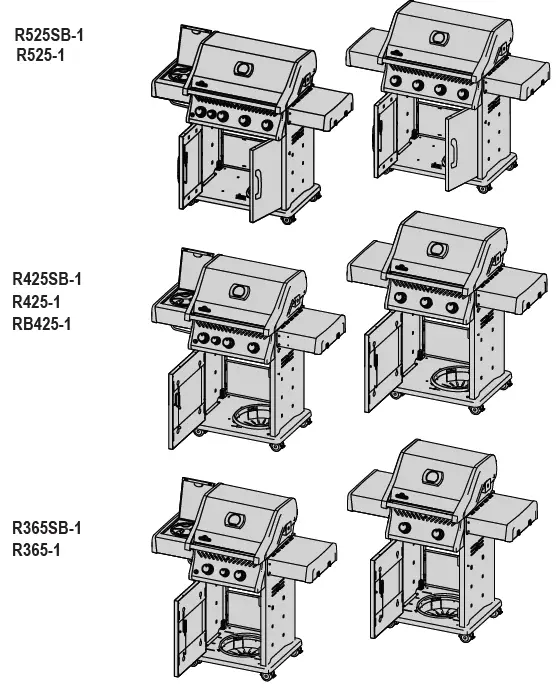

The product is a Napoleon grill. It comes in various models, including R525-1, R525SB-1, R425-1, R425SB-1, RB425-1, R365-1, and R365SB-1. The grill is designed to enhance your grilling experience and provide expert-level results. Please note that there may be visual differences between the illustrations in the user manual and the model you have purchased.

Product Usage Instructions

Before assembling the grill, remove all parts from the packaging.
Set up the assembly on a solid, level, and horizontal surface.
Ensure that you have all the necessary tools for assembly.
Follow the specific assembly instructions for your model, as detailed in the user manual.
Once the grill is assembled, apply the provided serial number.
Refer to the owner’s manual for detailed information on using and maintaining your Napoleon grill.
If you have any feedback or want to register your grill, visit Napoleon.com to write a review and register your product.

Please note that the number of parts and specific instructions may vary depending on the model purchased. For further assistance or clarification, refer to the owner’s manual or contact customer support through Napoleon.com.

WELCOME TO NAPOLEON!
Congratulations on your Napoleon grill! You’ve just upgraded your grilling game.

Ready to assemble your new grill?

There may be visual differences between illustrations and model purchased.
Remove all parts from packaging before assembling the grill.
Set up this assembly on a solid, level and horizontal surface.

Tools not included.

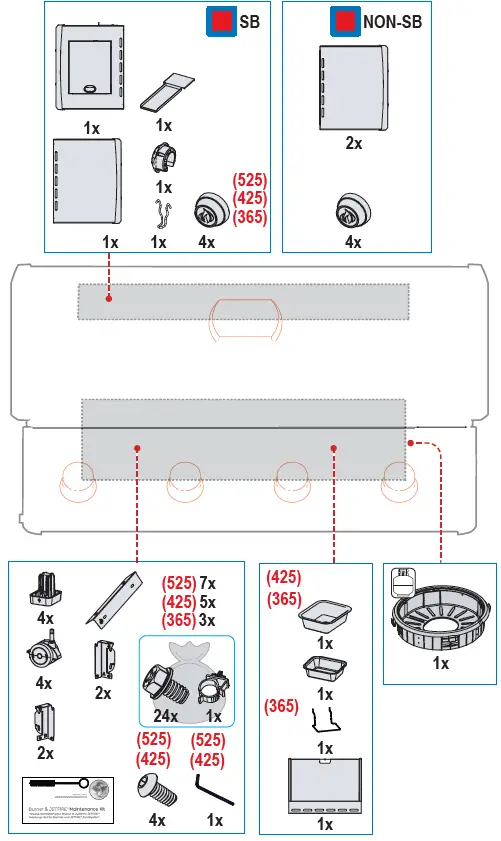

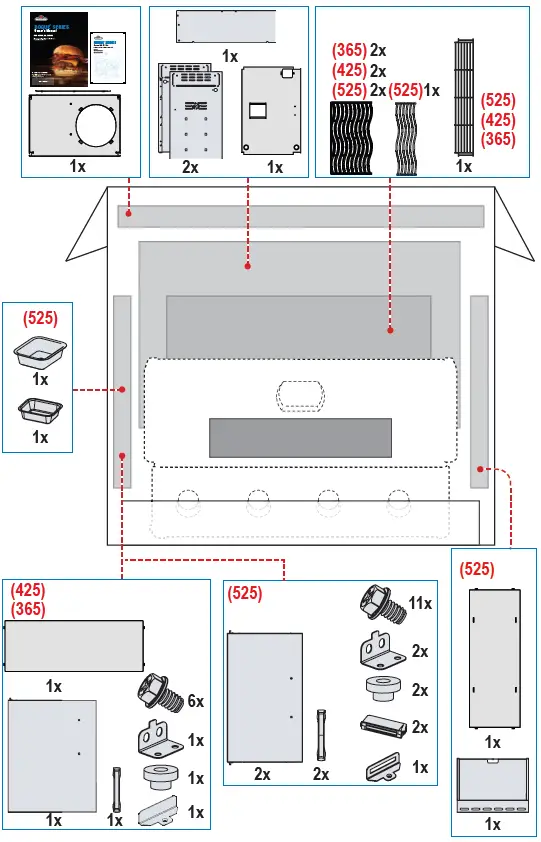

What’s In The Box

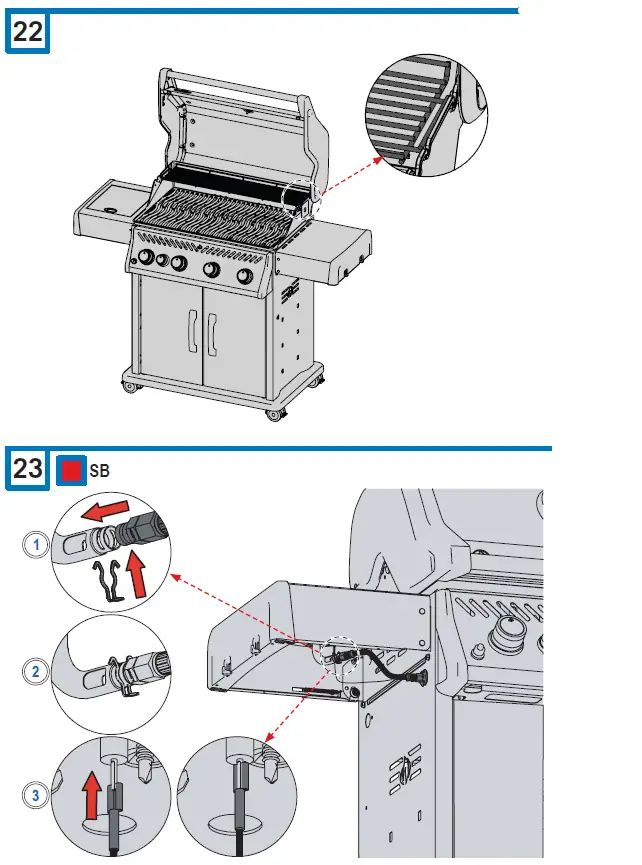

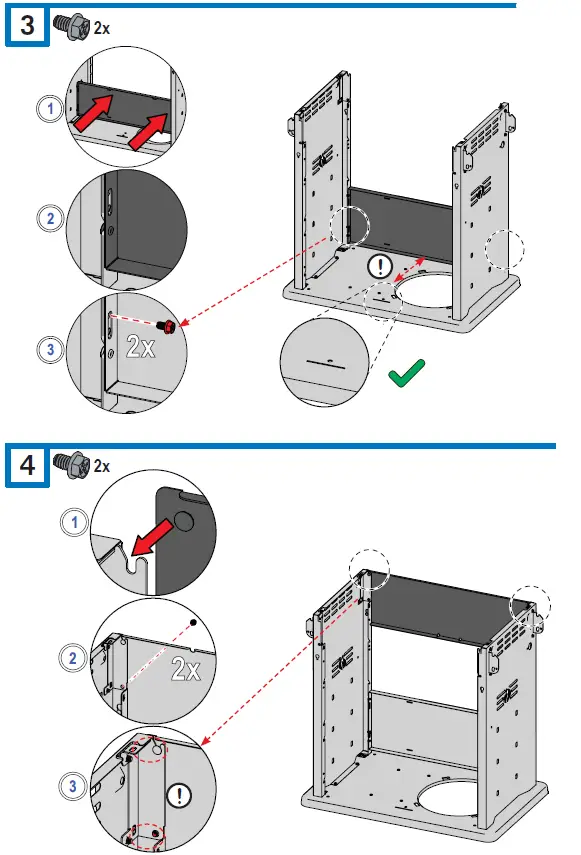

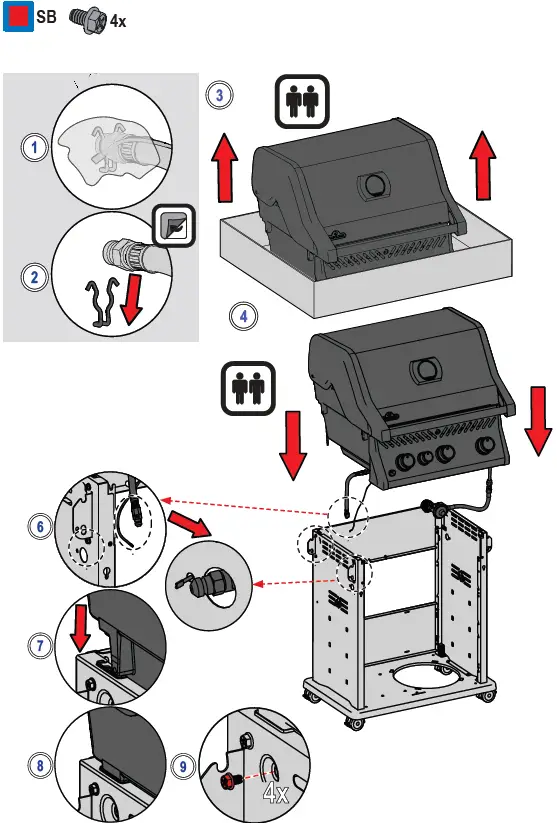

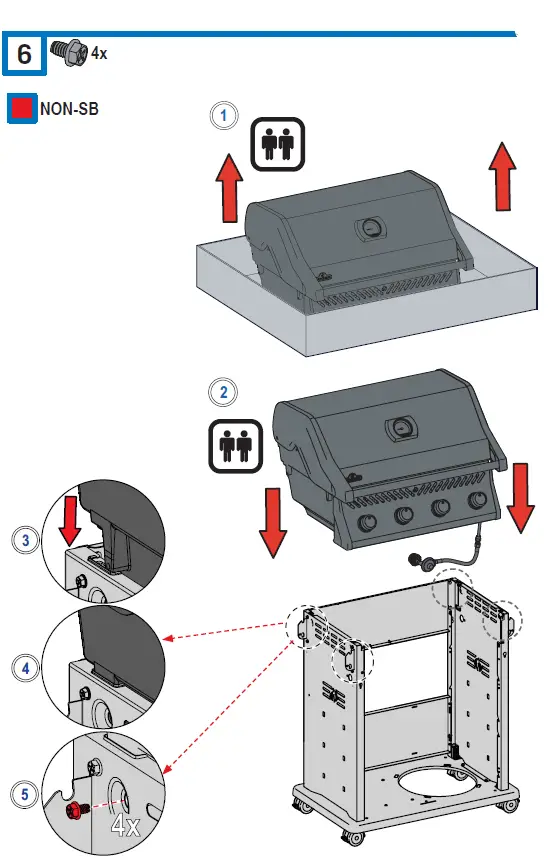

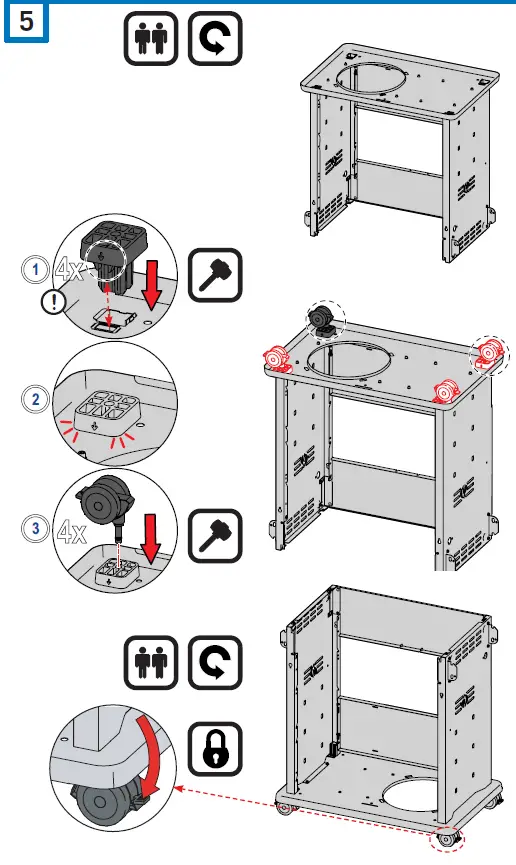

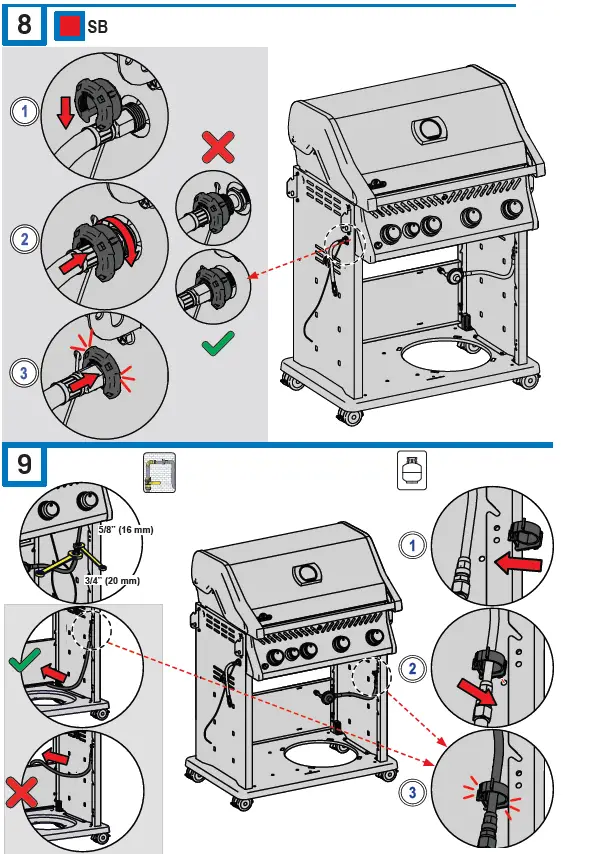

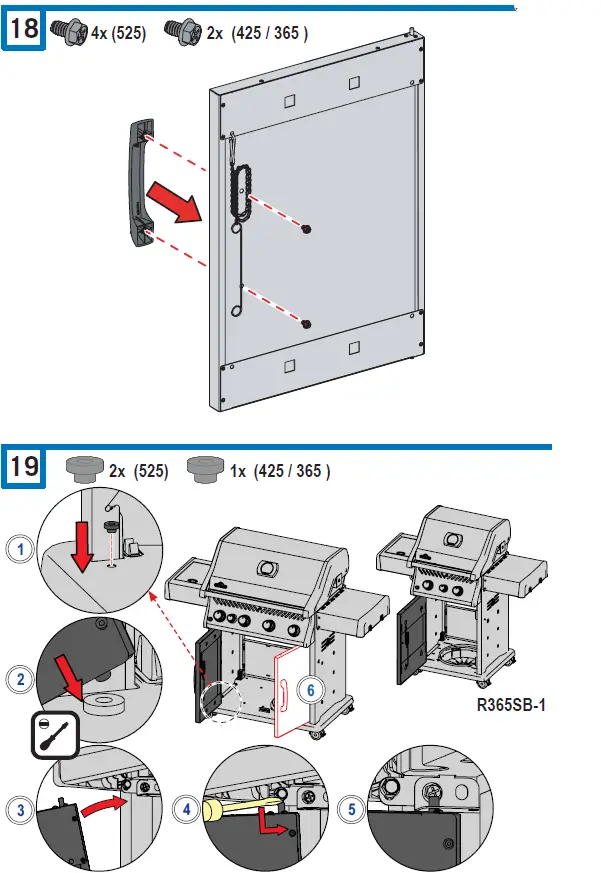

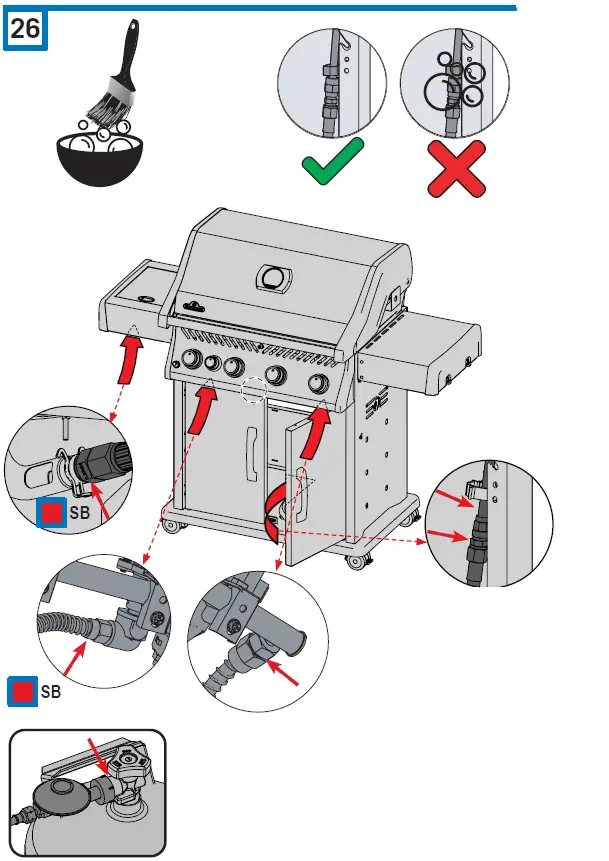

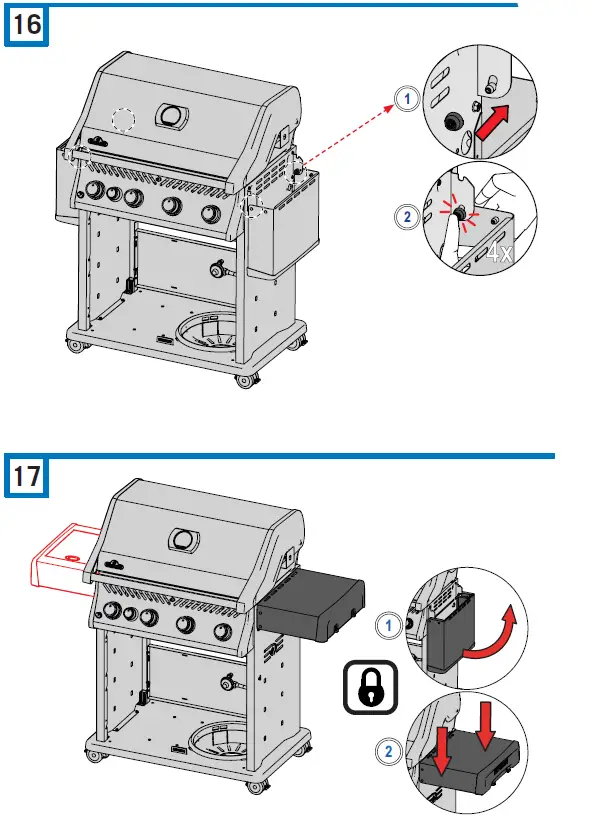

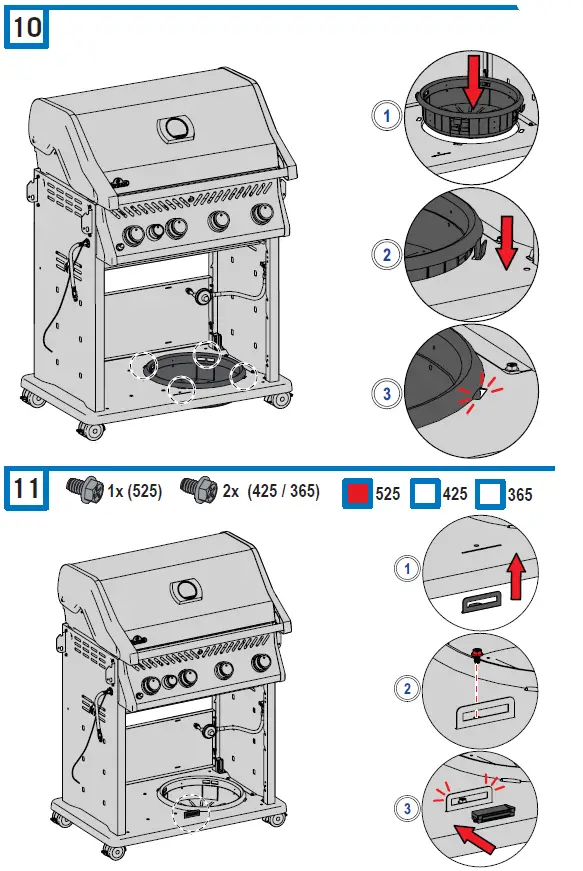

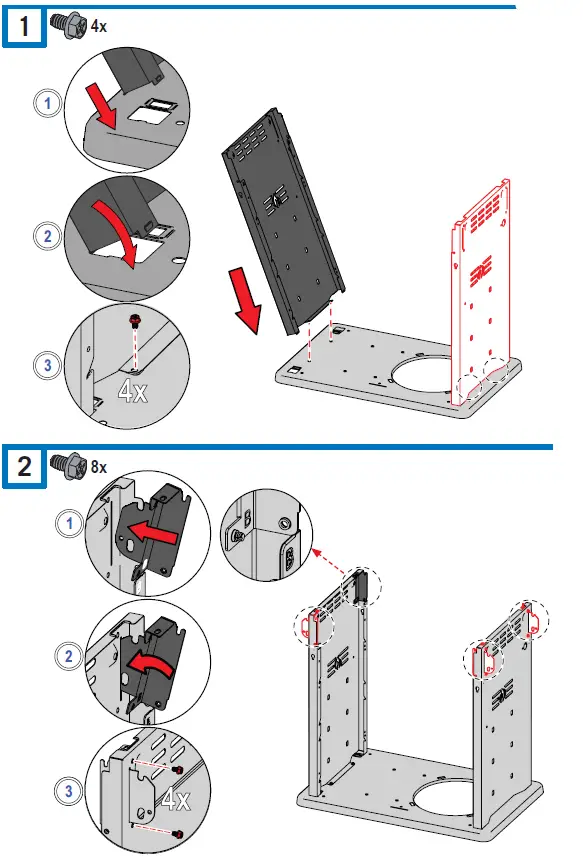

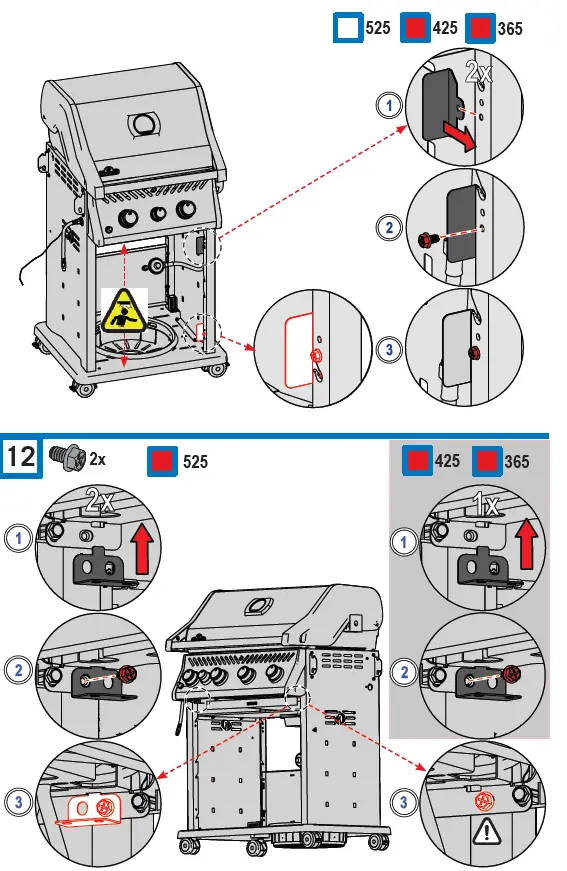

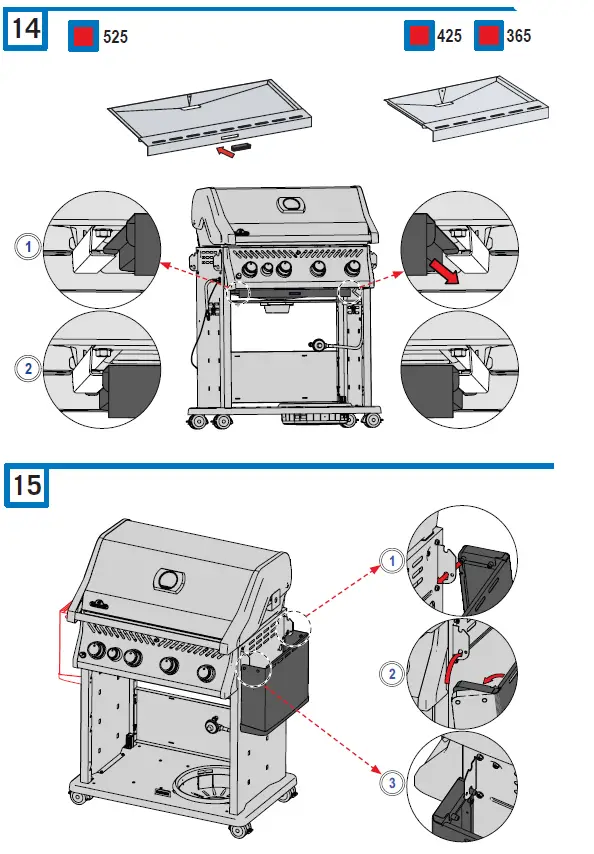

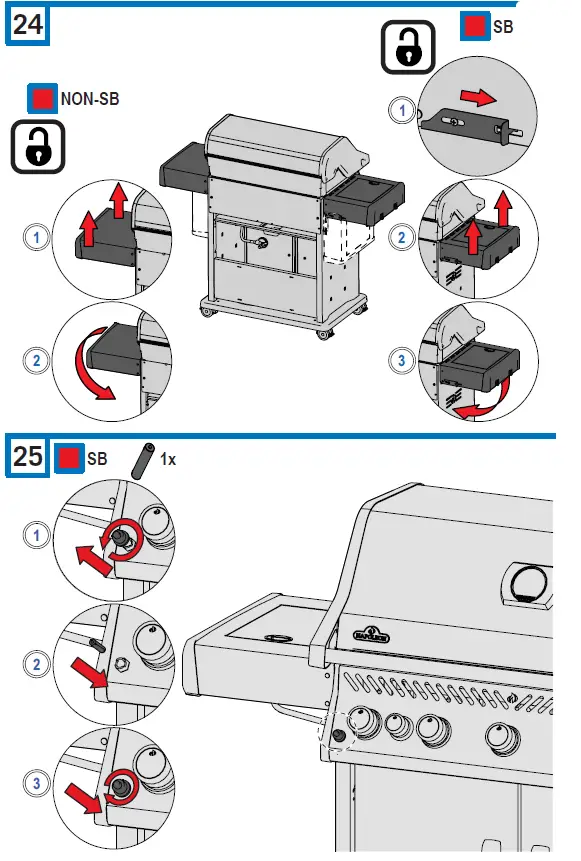

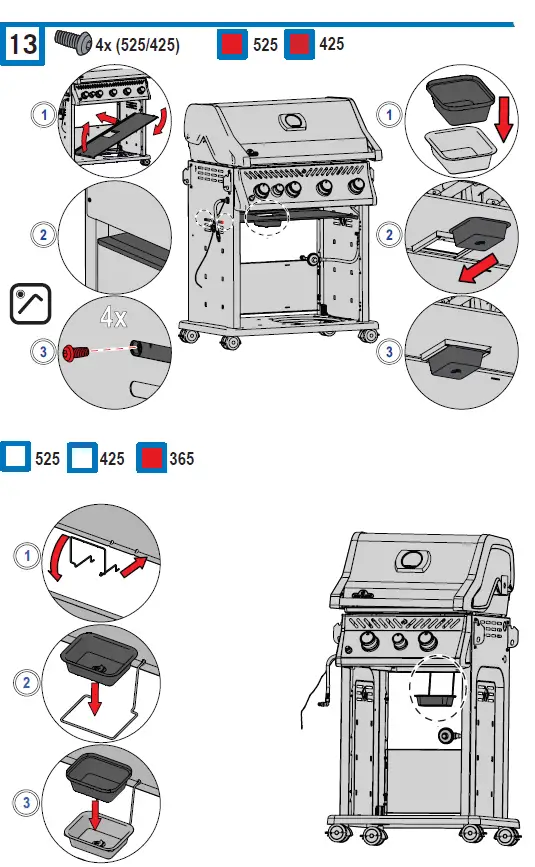

Installation Instruction

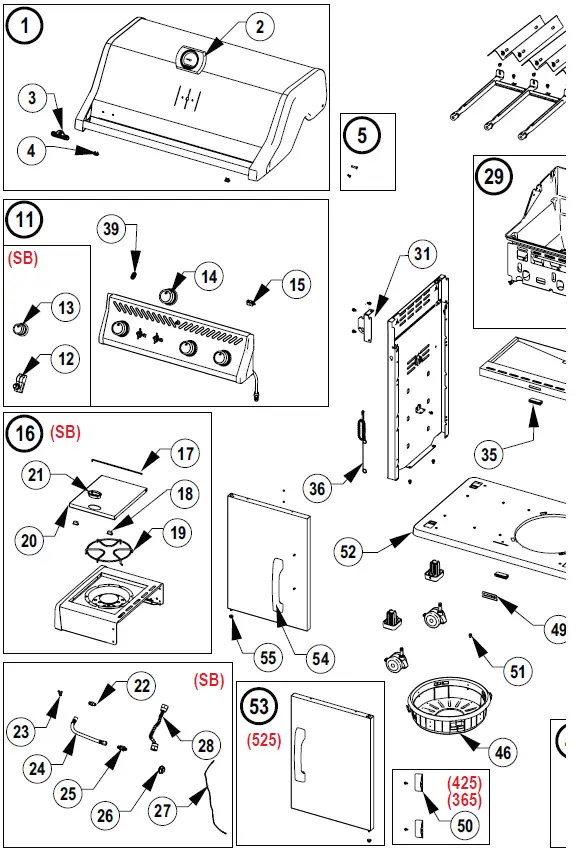

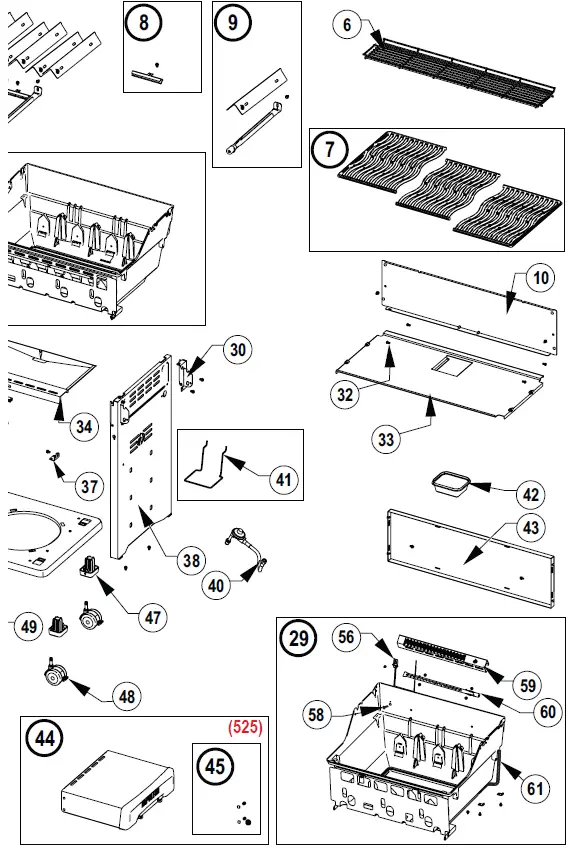

Part List

	Part #	R365	R365SB	R365MK	R425	R425SB	RB425	R525	R525SB
1	N010-0961	x	x
	N010-1316			x
	N010-0874-BK				x	x
	N010-1031-BK						x
	N010-0985-BK							x	x
2	S91003	x	x		x	x	x	x	x
	N685-0004K			x
3	N385-0307-SER	x	x	x	x	x	x	x	x
4	N510-0013	x	x	x	x	x	x	x	x
5	S87014	x	x	x	x	x	x	x	x
6	N520-0051	x	x	x
	N520-0050				x	x	x
	N520-0049							x	x
7	S83015	x	x	x
	S83016	ac	ac	ac
	S83008				x	x	x
	S83013				ac	ac	x
	S83024							x	x
	S83023							ac	ac
8	S87016	x	x	x
	S87010				x	x	x
	S87013							x	x
9	S87001	x	x	x	x	x	x	x	x
10	N200-0126-GY1SG	x	x
	N200-0126-BK1SG			x
	N200-0136-GY1SG				x	x
	N200-0118-GY1SG						x
	N200-0137-GY1SG							x	x
11	N010-1241-SER	x
	N010-1243-SER	x
	N010-1244-SER		x
	N010-1246-SER		x
	N010-1503-SER			x
	N010-1508-SER			x
	N010-1247-SER				x
	N010-1249-SER				x
	N010-1250-SER					x
	N010-1252-SER					x
	N010-1441-SER						x
	N010-1442-SER						x
	N010-1253-SER							x
	N010-1255-SER							x
	N010-1256-SER								x
	N010-1258-SER								x
12	S86002		x			x
	S86003						x
13	N380-0044		x			x	x
14	N380-0043	x	x		x	x	x	x	x
	N380-0043-BK			x
15	N160-0045	x	x	x	x	x	x	x	x
16	N010-1222-SER		x			x	x
17	Z580-0003		x			x

18	Z430-0002		x			x	x
19	Z305-0008		x			x	x
20	N335-0099-BK1HR		x			x	x
21	Z325-0013		x			x	x
22	N455-0091		p			p	p		p
	N455-0058		p			p	p		p
23	N160-0023		x			x	x
24	N345-0023		x			x	x
25	Z255-0002-1		x			x	x
26	N105-0017		x			x	x
27	N750-0016		x			x	x
28	Z720-0003		x
	N720-0079					x	x
29	N010-1030-SER	x	x
	N010-1245-SER			x
	N010-1041-SER				x	x
	N135-0052RB-GY1HT						x
	N010-0999-SER							x	x
30	N080-0364	x	x	x	x	x	x	x	x
31	N080-0365	x	x	x	x	x	x	x	x
32	N570-0126	x	x	x	x	x	x	x	x
33	N585-0145-GY1SG				x	x	x
	N585-0121-GY1SG							x	x
34	N710-0107	x	x	x
	N710-0094				x	x	x
	N710-0108							x	x
35	N430-0002	x	x	x	x	x	x	x	x
36	N555-0097	x	x	x	x	x	x	x	x
37	N080-0378-GY1SG	x	x		x	x		x	x
	N080-0378-BK1SG			x
38	N475-0356-GY1SG	x	x		x	x	x	x	x
	N475-0356-BK1SG			x
39	N255-0027	x	x	x	x	x	x	x	x
40	N530-0032	p	p	p	p	p	p	p	p
	N530-0033	p	p	p	p	p	p	p	p
	N530-0034	p	p	p	p	p	p	p	p
	N530-0035	p	p	p	p	p	p	p	p
	N530-0036	p	p	p	p	p	p	p	p
	N530-0037	p	p	p	p	p	p	p	p
	N530-0038	p	p	p	p	p	p	p	p
	N530-0039	p	p	p	p	p	p	p	p
	N530-0042	p	p	p	p	p	p	p	p
	N530-0043	p	p	p	p	p	p	p	p
	N530-0044	p	p	p	p	p	p	p	p
	N530-0046	p	p	p	p	p	p	p	p
41	N160-0033-GY1SG	x	x
	N160-0033-BK1SG			x
42	N710-0062	x	x	x	x	x	x	x	x
43	N475-0442-GY1SG	x	x
	N475-0442-BK1SG			x
	N475-0363-GY1SG				x	x	x
	N475-0449-GY1SG							x	x

44	N590-0280-SER	x	x		x	x	x	x	x
	N010-1248-SER			x
45	S87015	x	x	x	x	x	x	x	x
46	N370-0845CE	p	p	p	p	p	p	p	p
47	N510-0015	x	x	x	x	x	x	x	x
48	N130-0015	x	x	x	x	x	x	x	x
49	N080-0387-GY1SG						x	x	x
50	N080-0380-GY1SG	x	x		x	x
	N080-0380-BK1SG			x
51	N570-0118	x	x	x	x	x	x	x	x
52	N590-0278-GY1SG	x	x
	N590-0278-BK1SG			x
	N590-0292-GY1SG				x	x	x
	N590-0282-GY1SG							x	x
53	N010-0959-SER	x	x
	N010-1251-SER			x
	N010-0869-BK-SER				x	x	x
	N010-0984-BK-SER							x	x
54	N325-0094-SER	x	x		x	x	x	x	x
	N325-0094-BK0TX- SER			x
55	N105-0011	x	x	x	x	x	x	x
56	N240-0040						x
58	N570-0104						x
59	N350-0087						x
60	N100-0058						x
61	N720-0082						x

Accessories Parts List

Part Number	Description	R365	R365SB	R365MK	R425	R425SB	RB425	R525	R525SB
N590-0261	Condiment Basket	ac	ac		ac	ac	ac	ac	ac
62050	Burner & Jetfire Maintenance Kit	ac	ac	ac	ac	ac	ac	ac	ac
69911	Rotisserie Kit	ac	ac	ac	ac	ac	ac	ac	ac
61365	Cover	ac	ac	ac
61427	Cover				ac	ac	ac
61527	Cover							ac	ac
56365	Cast Iron Griddle	ac	ac	ac				ac	ac
67732	Charcoal Tray	ac	ac	ac	ac	ac	ac	ac	ac
62007	Grease Trays Foil (5 pieces)	ac	ac	ac	ac	ac	ac	ac	ac
S82002	Caster Kit	ac	ac	ac	ac	ac	ac	ac	ac
