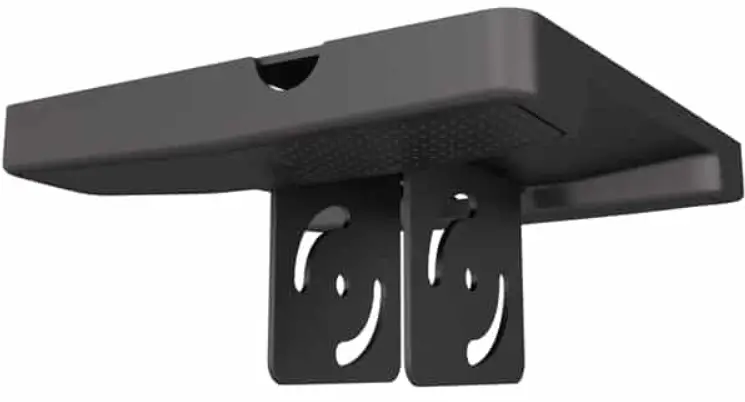

AURORA MOUNTS AFC-CP Ceiling Plate With Plastic Cover

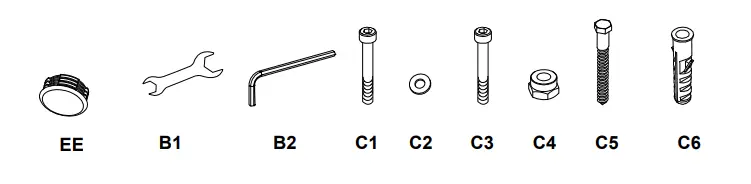

COMPONENT CHECKLIST
| Item | Name | QTY |
| BB | Ceiling Plate | 1 |
| CC | Plastic Cover | 1 |
| EE | End Cap | 1 |
| B1 | Open Wrench | 1 |
| B2 | 6mm Hex Key | 1 |
| C1 | M8x70mm Screw | 3 |
| C2 | M8 Washer | 12 |
| C3 | M8x60mm Screw | 1 |
| C4 | M8 Nut | 4 |
| C5 | Coach Screw | 6 |
| C6 | Plastic Anchor | 6 |

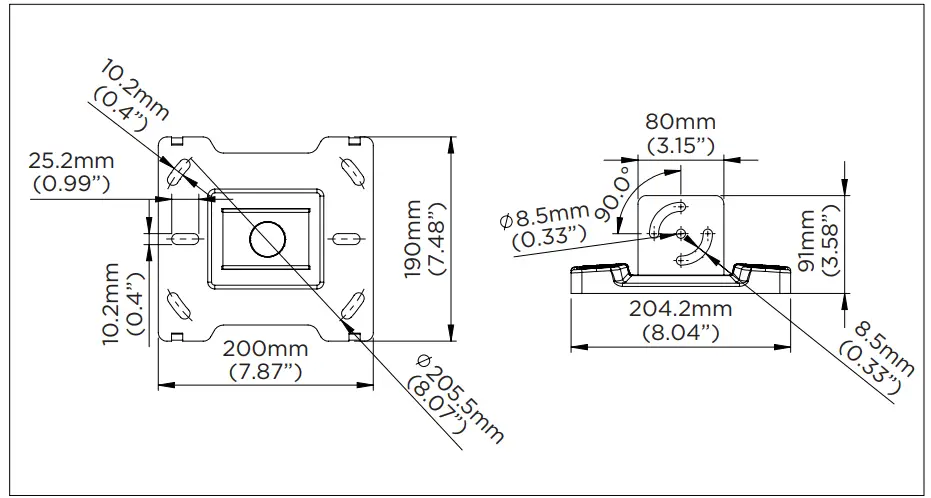

PRODUCT DIMENSION

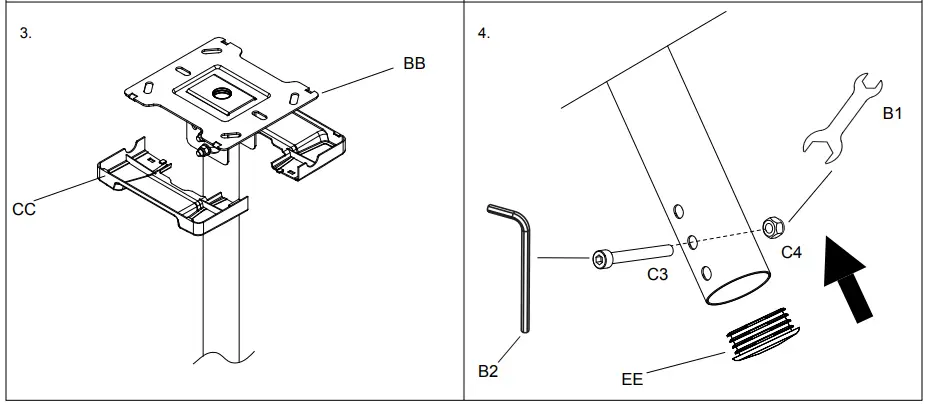

INSTALLATION INSTRUCTION

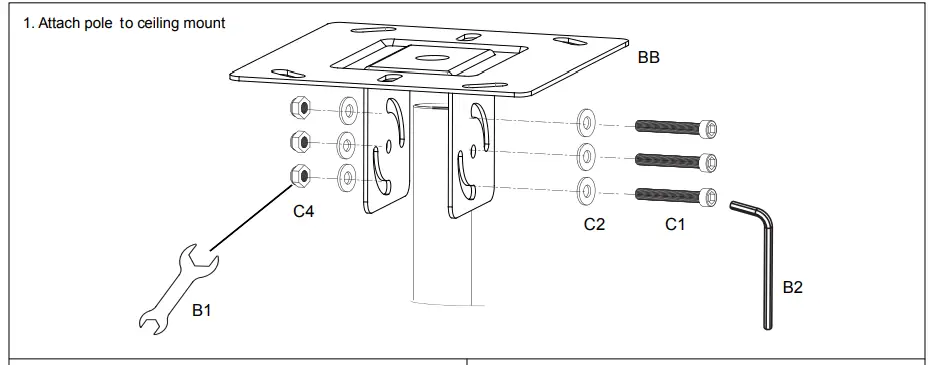

- Attach pole to ceiling mount

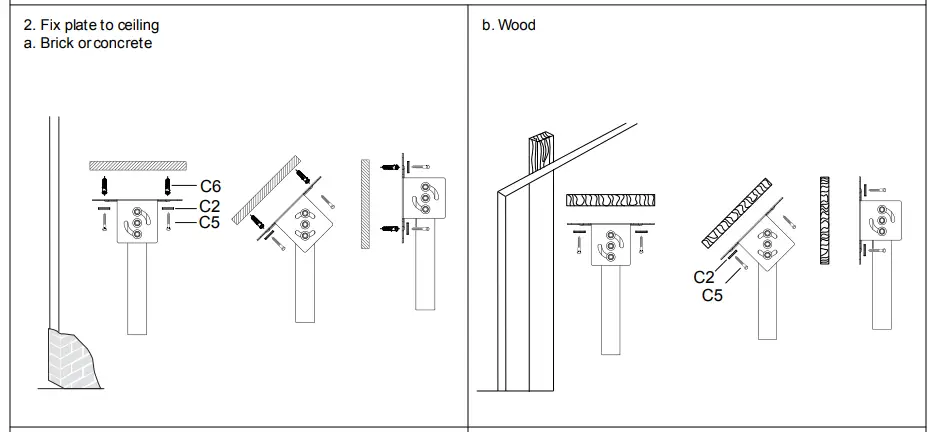

- Fix plate to ceiling
- a: Brick or concrete
- b: Wood
