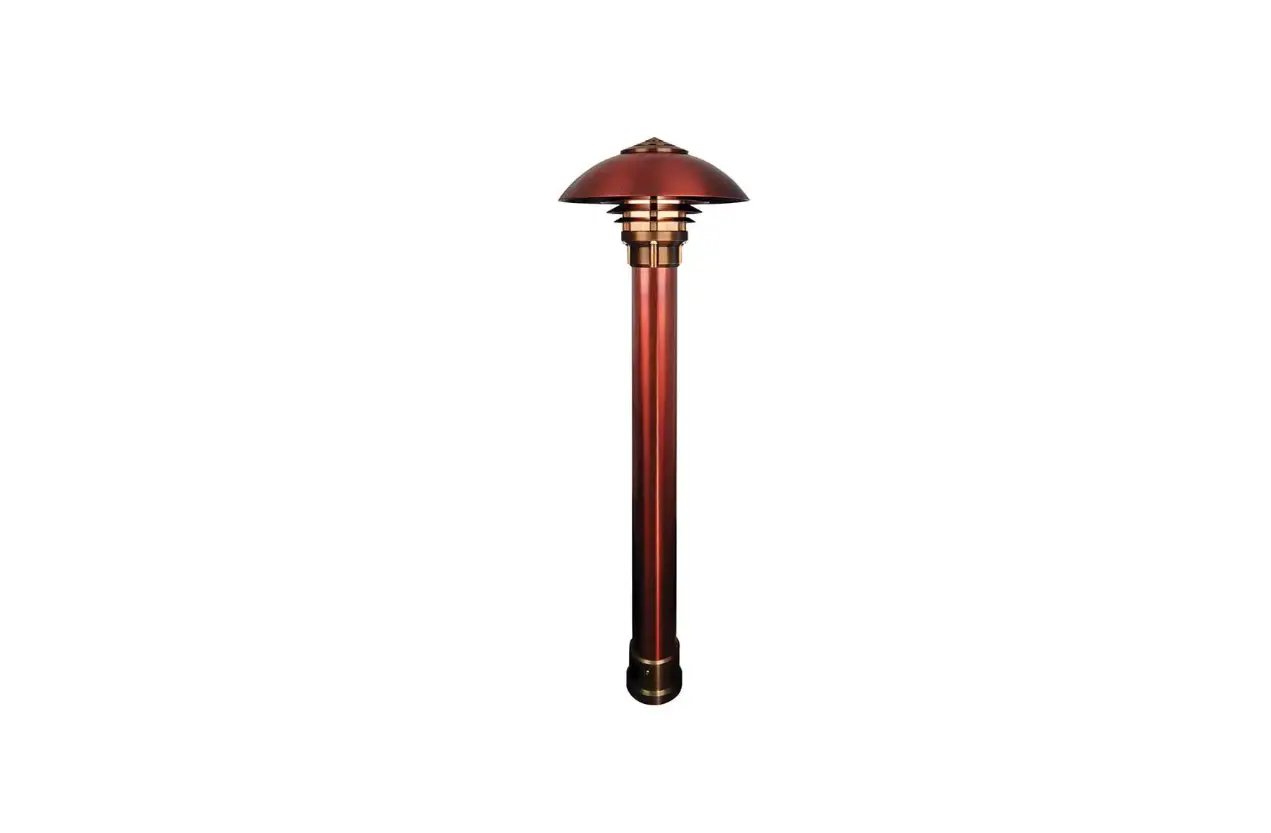

auroralight LBD250 Bollard Mounts
BOLLARD MOUNTS
LBD250
BD250-1/2 Universal 1/2″ Male Adapter (12V)
The 1/2” Adapter is intended for mounting to 1/2″ NPS threaded devices. (Does not include ground stake)
BD250-GS Ground Stake (12V)
The Ground Stake stabilizes our 250 series line of bollards. To be used for ground installations with remote transformer.
BD250-TR Trident Spike (12V)
The Trident Spike stabilizes luminaires when mounted in loose soil with its 4×1/4″ thick mount plate and three 12” stainless steel spikes.

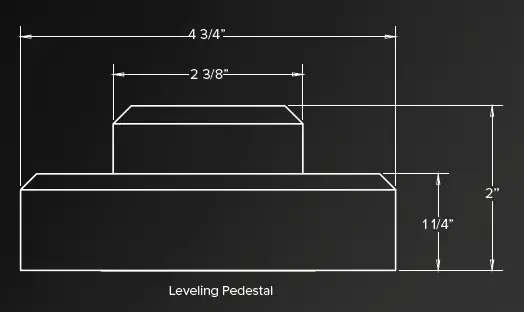

BD250-LP Leveling Pedestal (12V)
The Leveling Pedestal is a perfect solution for installing onto a concrete footing. Equipped with three adjustable leveling feet, this mount corrects uneven surfaces up to 6° off horizontal. Designed to fit over up to three 3/4″ bundled PVC conduits.

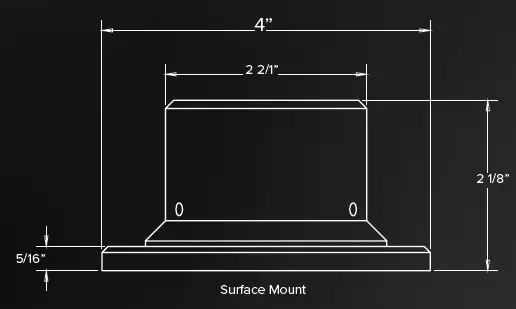

BD250-SM Surface Mount (12V)
The Surface Mount is equipped with stainless steel hardware and an unobtrusive spun copper escutcheon to hide mount screws. For durable installations of up to 30″ high bollards mounted to solid, level surfaces only. Designed to fit over up to three 3/4″ bundled PVC conduits.
DIMENSION
LBD350
BD250-1/2 Universal 1/2” Male Adapter (12V)
The 1/2” Adapter is intended for mounting to 1/2” NPS threaded devices. (Does not include ground stake)
BD250-GS Ground Stake (12V)
The Ground Stake stabilizes our 250 series line of bollards. To be used for ground installations with remote transformer.
BD250-TR Trident Spike (12V)
The Trident Spike stabilizes luminaires when mounted in loose soil with its 4×1/4” thick mount plate and three 12” stainless steel spikes.
BD250-LP Leveling Pedestal (12V)
The Leveling Pedestal is a perfect solution for installing onto a concrete footing. Equipped with three adjustable leveling feet, this mount corrects uneven surfaces up to 6° off horizontal. Designed to fit over up to three 3/4” bundled PVC conduits.
BD250-SM Surface Mount (12V)
The Surface Mount is equipped with stainless steel hardware and an unobtrusive spun copper escutcheon to hide mount screws. For durable installations of up to 30” high bollards mounted to solid, level surfaces only. Designed to fit over up to three 3/4” bundled PVC conduits.Designed to fit over up to three 3/4″ bundled PVC conduits.
DIMENSION
LBD400 BOLLARD MOUNTS

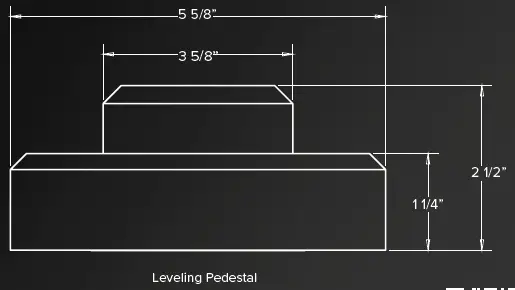

BD400-LP Heavy Duty Leveling Pedestal (120V)
The Leveling Pedestal is a perfect solution for installing onto a concrete footing. Equipped with three adjustable leveling feet this mount corrects uneven surfaces up to 6° off horizontal. This mount is designed to fit over up to three 3/4” bundled PVC conduits. Recommended for concrete installations.

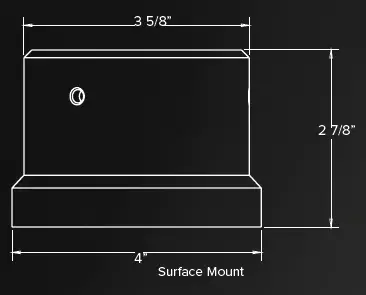

BD400-SM Heavy Duty Surface Mount (120V)
Machined from solid brass the Surface Mount is equipped with stainless steel hardware and a unobtrusive spun copper escutcheon to hide mount screws. For durable installations of up to 48” high bollards mounted to solid, level surfaces only. Designed to fit over up to three 3/4” bundled PVC conduits.
CARLSBAD, CA | PHONE 877 942 1179 | FAX 760 931 2916 | E-MAIL [email protected] | AURORALIGHT.COM
In a continuing product improvement program, Auroralight reserves the right to modify product specifications without notification. © 2020 Auroralight, Inc. Rev 8.5 (2022)
