wiltec 60120 Balcony Railing Stainless Steel 90
| Letter | Name | Figure | Quantity depending on dimensions (㎝) | ||||

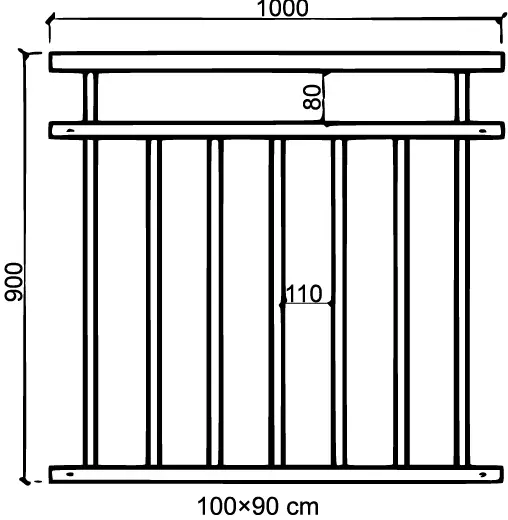

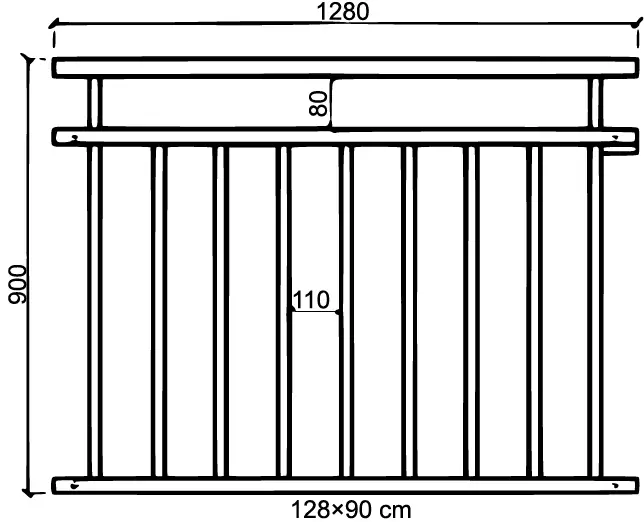

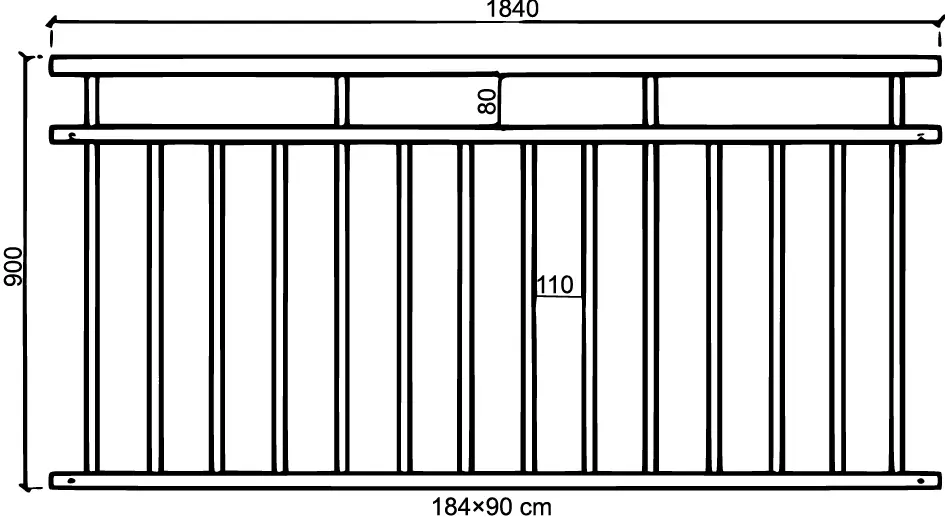

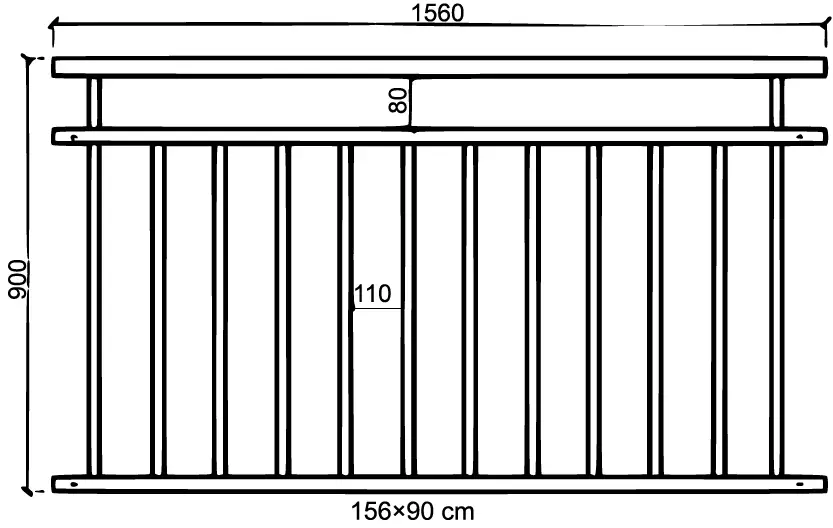

| 100×90 | 128×90 | 156×90 | 184×90 | 225×90 | |||
A | Hand rail |  | 1 | 1 | 1 | 1 | 1 |

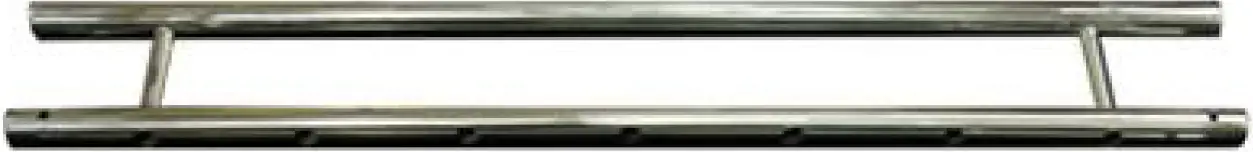

| B | Bottom bar |  | 1 | 1 | 1 | 1 | 1 |

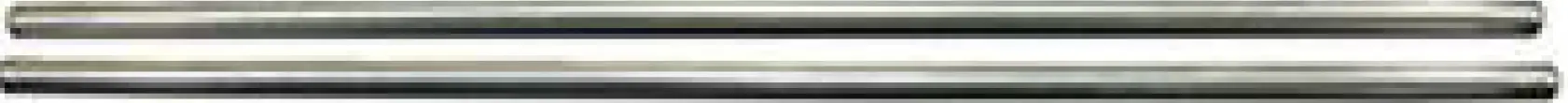

C | Screwing bar |  | 2 | 2 | 2 | 4 | 4 |

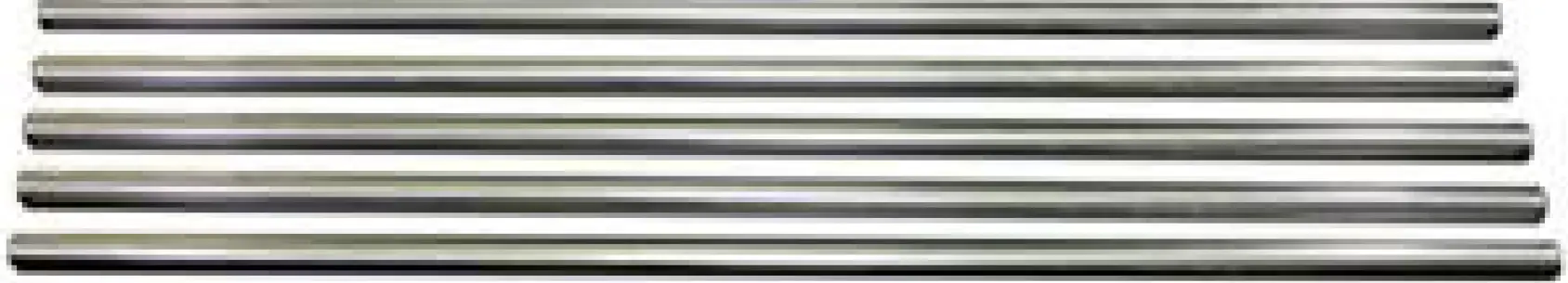

| D | Pipe |  | 5 | 7 | 10 | 10 | 12 |

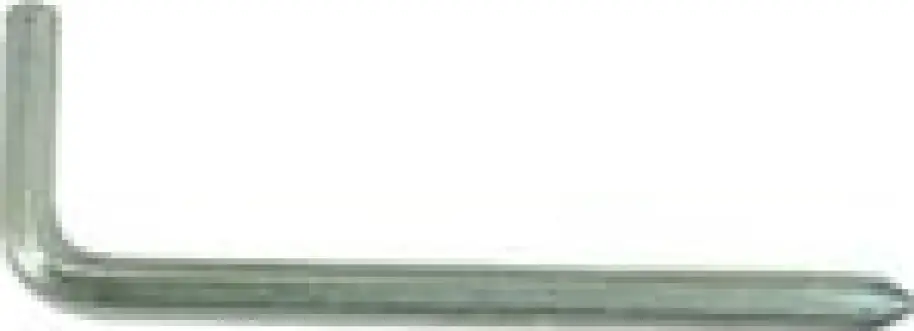

E | Wrench |  | 1 | 1 | 1 | 1 | 1 |

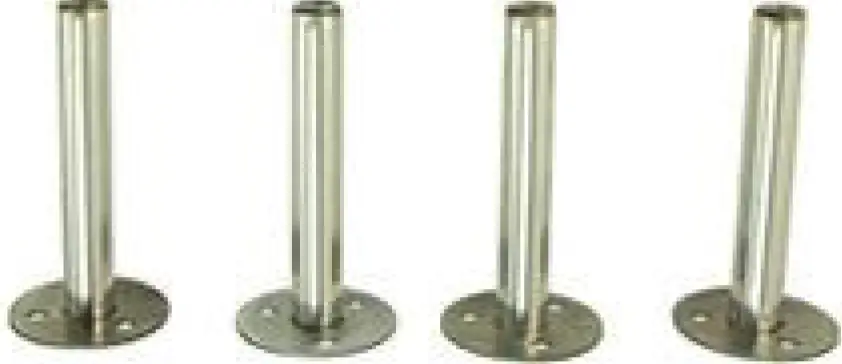

| F | Pedestal |  | 4 | 4 | 4 | 4 | 4 |

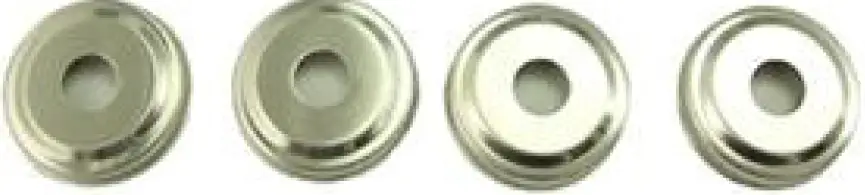

G | Pedestal cover |  | 4 | 4 | 4 | 4 | 4 |

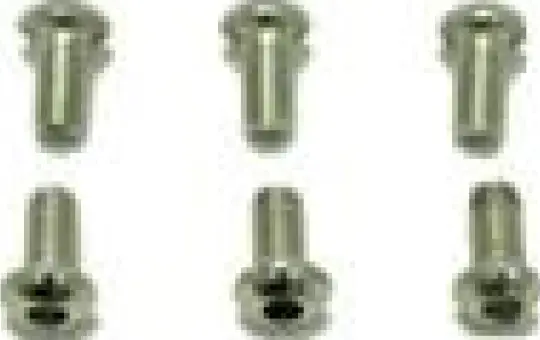

| H | Expansion screw |  | 12 | 12 | 12 | 12 | 12 |
I | Screw |  | 6 | 6 | 6 | 8 | 8 |

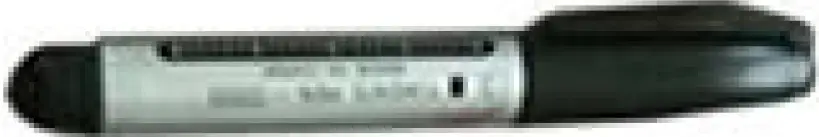

| J | Pen |  | 1 | 1 | 1 | 1 | 1 |
K | Assembly instructions | 1 | 1 | 1 | 1 | 1 | |

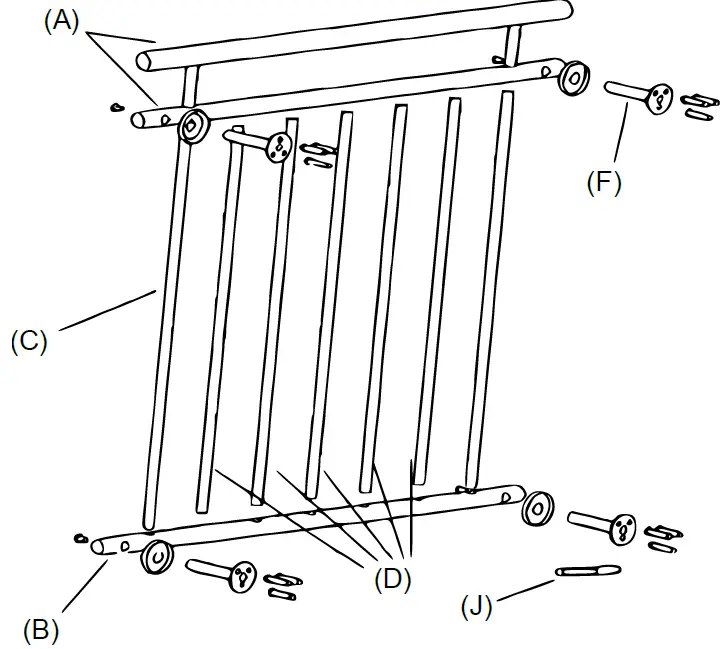

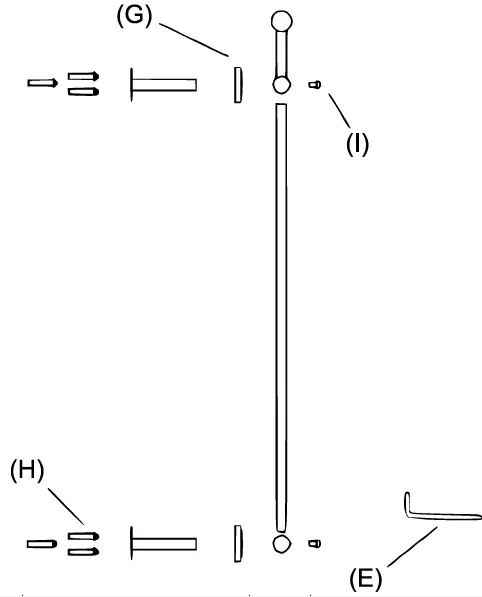

ASSEMBELY INSTRUCTIONS
Letter | Name | Letter | Name |
| E | Wrench (use for screwing) | H | Expansion screw |
G | Pedestal cover | I | Screw |
Letter | Name | Letter | Name |
| A | Hand rail | D | Pipe |
B | Bottom bar | F | Foot |
| C | Screwing bar | J | Pen (use for locating the holes to the wall) |

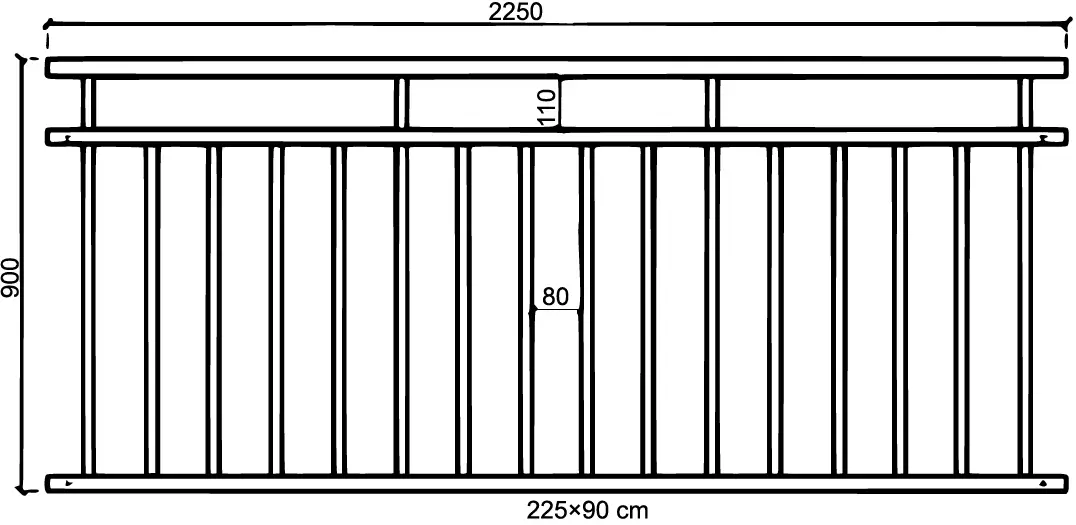

Dimension
Important Note:
Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH.
