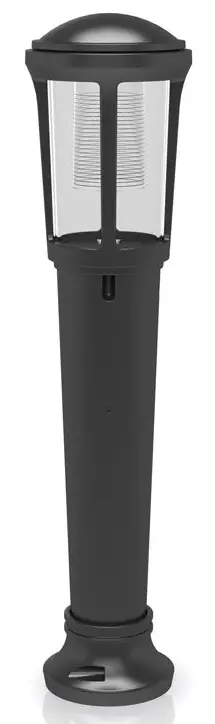

signify Lumec DM50 ClassicStyle Outdoor Urban Bollard

ClassicStyle outdoor urban bollard luminaires feature ClearGuide, a revolutionary, vertically-oriented light engine designed to reduce pixelation and glare

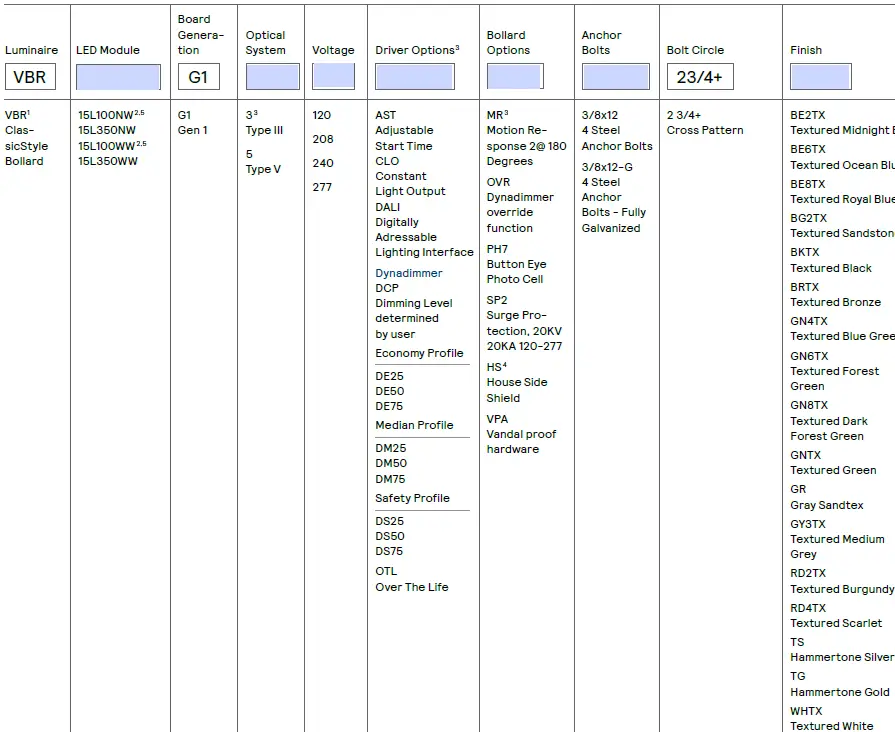

Ordering guide

1. Luminaire always shipped with a dimmable 0-10V driver
2. 0-10 volt and all driver options not available.
3. MR is Not available with Driver nor OVR options.
4. House Side Shield is only available with Type 3.
5. MR Option not available.

Urban Luminaire

Dimensions

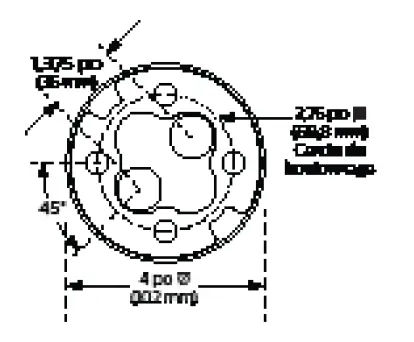

Bolt Circle Pattern

Driver Option Details

Dynadimmer Profiles

• CLO: Pre-set driver to manage the lumen depreciation by adjusting the power given to the LEDs offering the same lighting intensity during the
  the entire lifespan of the LED module.
• AST: Pre-set driver for the progressive start-up of the LED module(s) to optimize energy management and enhance visual comfort at start-up.
• OTL: Pre-set driver to signal the end of life of the LED module(s) for better fixture management.
• DALI: Pre-set driver compatible with the DALI control system.

Motion Response Details

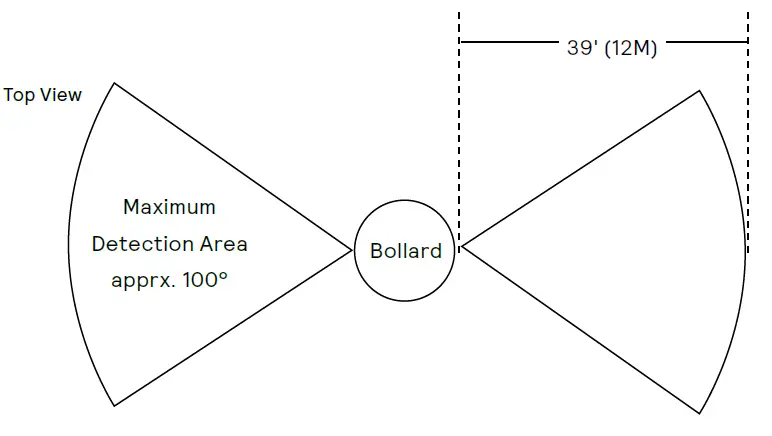

PIR Sensors are able to detect motion in the appropriate patterns shown below

MR
Motion Response Option Detail

Note: Motion Sensors rely on special zonal crossings to detect motion. It is possible for a person to directly approach the bollard motion sensor without crossing between zones until 15′ from the motion sensor. The actual motion detection distance may vary based on specific application characteristics.

Bollard Options Details

HS
House Side Shield Factory installed only.

PH7
Button Eye Photocell

Predicted Lumen Depreciation Data

Predicted performance derived from LED manufacturer’s data and engineering design estimates, based on IESNA LM-80 methodology. Actual experience may vary due to field application conditions.L70 is the predicted time when LED performance depreciates to 70% of initial lumen output. Calculated per IESNA TM21-11. Published L70 hours limited to 6 times actual LED test hours

LED light engine technical information for ClassicStyle Bollard (VBR)

CCT = 4000K nominal (3985K +/- 275K), CRI = 70, System (LED + driver) rated life = 100,000 hrs 1

CCT = 3000K nominal (3045K +/- 175K), CRI = 70, System (LED + driver) rated life = 100,000 hrs 1

1. L70 = 70,000 hrs (at ambient temperature = 25°C)
2. System wattage includes the lamp and the LED driver
3. Equivalence should always be confirmed by a photometric layout

Note: Due to rapid and continuous advances in LED technology, LED luminaire data is subject to change without notice and at the discretion of Signify

Specification

Hood
Built-in the heat sink shall be made from cast aluminum 356 optimizing the Led’s efficiency and life. The product does not use any cooling device with moving parts (only passive cooling device). Hood, globe, and cage are held together with the help of central tubing.
Cage
In a round shape with 4 arms, this cage is a one-piece cast 356 Aluminum alloy 0.250 (6.4mm) minimum thickness, mechanically assembled to the base.
Light Engine
ClearGuide technology, use a light guide to create a clear transparent visual appearance during the day while achieving comfortable uniform light at night. Composed of 4 main components: Heat Sink / LED Module / Optical System / Driver Electrical components are RoHS compliant, LEDs tested by ISO 17025 2005 accredited lab in accordance with IESNA LM 80 guidelines in compliance with EPA ENERGY STAR, extrapolations in accordance with IESNA TM 21. A metal core board ensures greater heat transfer and a longer lifespan.
Globe
Made of one‑piece seamless injection‑molded clear polycarbonate. The globe is assembled between the hood and the cage and is rated IP66. Tested in accordance with CEI 62262 standard, globe is rated IK10.
LED Module
Composed of 15 high-performance white LEDs. Color temperature as per ANSI bin Neutral White, 3000 Kelvin nominal (3045K +/ 175K) or 4000 Kelvin nominal (3985K +/ 275K), CRI 70 Min. 75 Typical.
Optical System
ClearGuide technology (3-5), IES type III-V (asymmetrical symmetrical). Composed of high-performance optical grade molded PMMA (polymethyl methacrylate) acrylic light guide with precision rings provides superior optical control to achieve desired distribution optimized to get the maximum spacing and target lumens. Use of ClearGuide technology optics for optimal light distribution without direct view of the LEDs. This system provides glare control, visual comfort, and facial recognition for safety and creates light designed for vertical uniform illumination to the environment. Performance shall be tested per LM 63, LM 79, and TM 15 (IESNA) certifying its photometric performance. Street side indicated
Driver
High power factor >90%. Electronic driver, operating range 50/60 Hz. Auto adjusting universal voltage input from 120 to 277 VAC rated for both application line to line or line to neutral, Class I, THD <20%. Maximum ambient operating temperature from 40F( 40C) to 130F(55C) degrees. Certified in compliance with UL1310 cULus requirement. Dry and damp location. Values are based on 120 volts. The driver comes with dimming compatible 0-10 volts.
Driver with MR: High power factor >90%. Electronic driver, operating range 50/60 Hz. Auto adjusting universal voltage input from 120 to 277 VAC rated for both application line to line or line to neutral, Class II, THD <20%. Maximum ambient operating temperature from 40F( 40C) to 130F(55C) degrees. Certified in compliance with UL1310 cULus requirement. Dry and damp location. Values based on 120 volt. Driver comes with dimming compatible 0 10 volts.The current supplying the LEDs will be reduced by the driver if the driver experiences internal overheating as a protection to the LEDs and the electrical components. Output is protected from short circuits, voltage overload and current overload. Automatic recovery after correction. Standard built in driver surge protection of 2.5kV (min).
Surge Protection
Surge protector tested in accordance with ANSI/IEEE C62.45 per ANSI/IEEE C62.41.2 Scenario I Category C High Exposure 10kV/10kA waveforms for Line Ground, Line Neutral, and Neutral Ground, and in accordance with U.S. DOE (Department of Energy) MSSLC (Municipal Solid-State Street Lighting Consortium) model specification for LED roadway luminaires electrical immunity requirements for High Test Level 10kV / 10kA.
SP2 Option: Integral surge protector tested in accordance with ANSI/IEEE C62.45 per ANSI/IEEE C62.41.2 Scenario I Category C High Exposure with elevated 20kV/20kA waveforms for Line-Ground, Line-Neutral and Neutral-Ground, and in accordance with U.S. DOE (Department of Energy) MSSLC (Municipal Solid-State Street Lighting Consortium) model specification for LED roadway luminaires electrical immunity requirements for High Test Level 10kV / 10kA.
Access-Mechanism
Two integrated captive screws offer access to the inside of the base by pulling up the bollard’s entire top. This system includes a secured blocking device holding screws in a locking position.
Base
Made of cast aluminum 356, mechanically assembled to the anchor plate.
Base Cover
Two pieces of round base cover made from cast 356 aluminum, mechanically fastened to the base.
Quality Control
The manufacturer must provide written confirmation of its ISO 9001 2008 and ISO 14001 2004 International Quality Standards Certification.
Bollard Options
PH7: Button type photocell. The connection did on-site by others.
MR: Motion Response includes two (2) Panasonic EKMB1203112 Passive Infrared (PIR) sensors to detect motion. When motion is not detected for a 5-minute period, bollards automatically dim to 20% power and light, gradually over a 2-minute period. Once Motion is detected, the bollard immediately ramps to full power and light output until motion is not detected for a 5-minute period. See the end of the document for more information on Motion Response.
SP2: Integral surge protector tested in accordance with ANSI/ IEEE C62.45 per ANSI/IEEE C62.41.2 Scenario I Category C High Exposure with elevated 20kV/20kA waveforms for Line-Ground, Line-Neutral and Neutral-Ground, and in accordance with U.S. DOE (Department of Energy) MSSLC (Municipal Solid-State Street Lighting Consortium) model specification for LED roadway luminaires electrical immunity requirements for High Test Level 10kV / 10kA.
Luminaire Useful Life
Refer to IES files for energy consumption and delivered lumens for each option. Based on ISTMT in situ thermal testing in accordance with UL1598 and UL8750, System Reliability Tool, Advance data, and Lumileds LM-80/TM-21 data, expected to reach 100,000 + hours with >L70 lumen maintenance @ 25°C. Luminaire Useful Life accounts for LED lumen maintenance AND all of these additional factors including LED life, driver life, PCB substrate, solder joints, on/off cycles, burning hours, and corrosion. The entire luminaire is rated for operation in the ambient temperature of -40°C / -40°F up to +35°C / +95°F.
LED products manufacturing standard
The electronic components sensitive to electrostatic discharge (ESD) such as light emitting diodes (LEDs) are assembled in compliance with IEC61340 5 1 and ANSI/ESD S20.20 standards so as to eliminate ESD events that could decrease the useful life of the product.
Quality Control
The manufacturer must provide written confirmation of its ISO 9001 2008 and ISO 14001 2004 International Quality Standards Certification.
Hardware
All exposed screws shall be complete with Ceramic primer‑seal basecoat to reduce seizing of the parts and offers high resistance to corrosion. All seals and sealing devices are made and/or lined with EPDM and/or silicone and/or rubber.
Finish
In accordance with the AAMA 2603 standard. Application of polyester powder coat paint (4 mils/100 microns) with ± 1 mil/24 microns of tolerance. The Thermosetting resins provides a discoloration resistant finish in accordance with the ASTM D2244 standard, as well as luster retention in keeping with the ASTM D523 standard and humidity proof in accordance with the ASTM D2247 standard. The surface treatment achieves a minimum of 2000 hours for salt spray resistant finish in accordance with testing performed and per ASTM B117 standard.
Certifications and Compliance
CSA, cULus Listed for Canada and USA.
Related Families

ClassicStyle Post Top LED (VLR)
