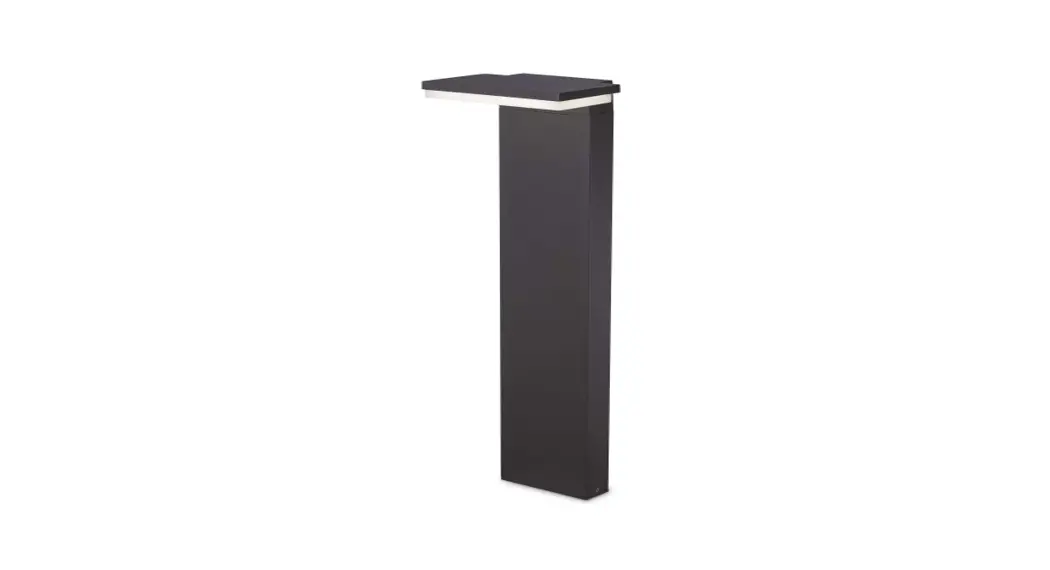

Path Outdoor Ground Mounted Bollard
Owner’s Manual
Path
rev. 21-02-2023

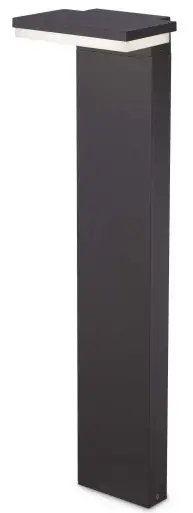

Path Outdoor Ground Mounted Bollard
General info
General infoOutdoor – Floor
Outdoor ground mounted bollard with integrated LED sources and direct light emission
| Ean | 8.0217E+12 |
| Item | PATH PT SQUARE 4000K |
| Installation | Floor |
| Guarantee | 5 years |
| Gross weight | 2.33 kg |
| Volume | 0.016302 m3 |
Technical info
| Net weight | 1.84 kg |
| Insulation class | I |
| Protection index | IP65 |
| Compliance | CE |
| Operating temperature | -15° ~ +45 °C |
| Dimmer | Non-dimmable, On-Off |
| Power output | 220-240 V AC 50/60 Hz |
| Power supply | In-built, included Replaceable (by qualified operators only), electronic |
| Load resistance | IK08 |
Source info
| Integrated source | Integrated LED module |
| Repleaceable source | No |
| Power | LED 10 W |
| Emission | Direct |
| Max consuption | max 10 W |
| Features LED | LED SMD |
| CCT | 4000 K |
| Duration LED (t. 25°c) | 20000 h |
| CRI | > 80 |
| SDCM | 3 |
| Light beam | 105° |
| Light beam flux | 1250 lm |
| Useful light flux | 810 lm |
| Standby power | < 0.50 W |
