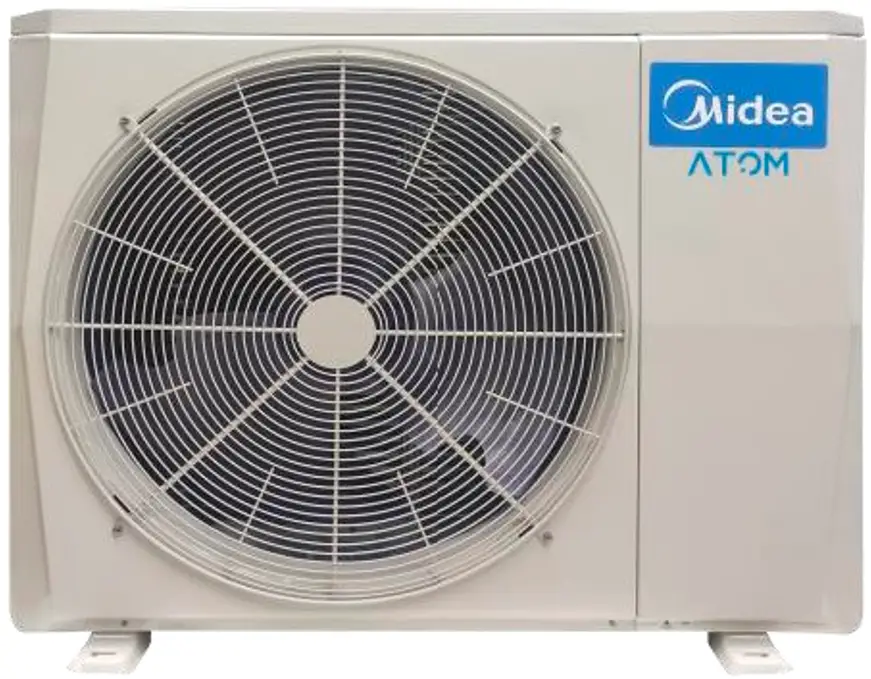

VRF Atom B Outdoor Unit
MDV-V60WDHN1(AtB) – Heat Pump
1-phase, 220-240V, 50/60Hz
MDV-V60WDHN1 VRF Atom B Outdoor Unit
Submittal Data
Job name:
Location:
Tag:
Date:
MDV-V60WDHN1(AtB) Features:
- All flare connections, install in a flash
- 1 to 9 indoor units connection
- Long piping length
- Centralized control with other VRF systems, convenient for unified management
- Wide operation range: cooling – -5°C to 55°C; heating- -15°C to 27°C
Specifications:
| Model | MDV-V60WDHN1(AtB) | ||
| Cooling1 | Capacity | kBtu/h | 59 |
| kW | 17.5 | ||
| Input | kW | 6.12 | |
| HER | kW/ kW | 2.86 | |
| Heating2 | Capacity | kBtu/h | 66 |
| kW | 19.5 | ||
| Input | kW | 5.57 | |
| COP | kW/ kW | 3.50 | |
| Connectable indoor unit | Total capacity | 45~130% of outdoor unit capacity | |
| Quantity | 1~9 | ||
| Compressor | Type | DC inverter | |
| Quantity | 1 | ||
| Fan motor | Type | DC motor | |
| Quantity | 1 | ||
| Outdoor airflow | m3/h | 5300 | |
| Sound pressure level3 | dB(A) | 57 | |
| Net/Packed dimensions (W×H×D) | mm | 1040×865×523 | |
| Packed dimensions (W×H×D) | mm | 1120×980×560 | |
| Net/Gross weight | kg | 91/99 | |
| Refrigerant type/factory charge | kg | R410A/4.6 | |
| Liquid/Gas pipe | mm | Ф9.53/Ф19.1 | |
| Minimum Circuit Amps (MCA) | A | 40 | |
| Recommended Fuse Size (MFA) | A | 40 | |
Notes:
- Indoor temperature 27°CDB, 19°CWB; outdoor temperature 35°CDB; equivalent refrigerant piping length 7.5m with zero level difference.
- Indoor temperature 20°CDB; outdoor temperature 7°CDB, 6°CWB; equivalent refrigerant piping length 7.5m with zero level difference.
- The sound pressure level is measured at 1m in front of the unit and 1.3m above the floor in a semi-anechoic chamber.

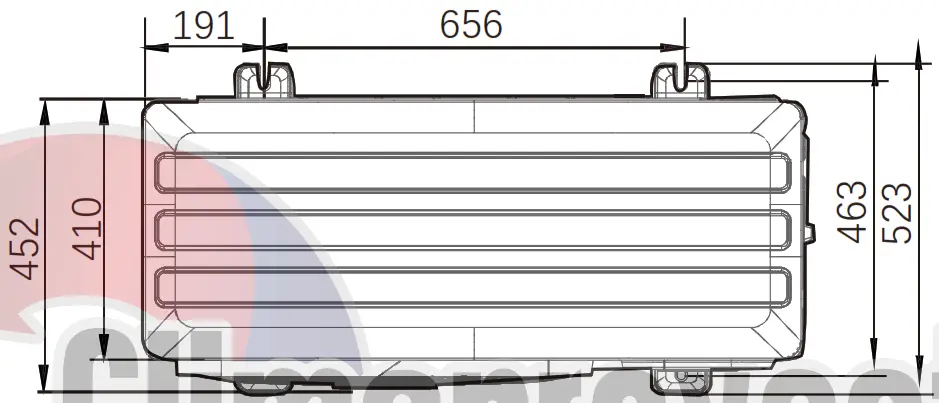

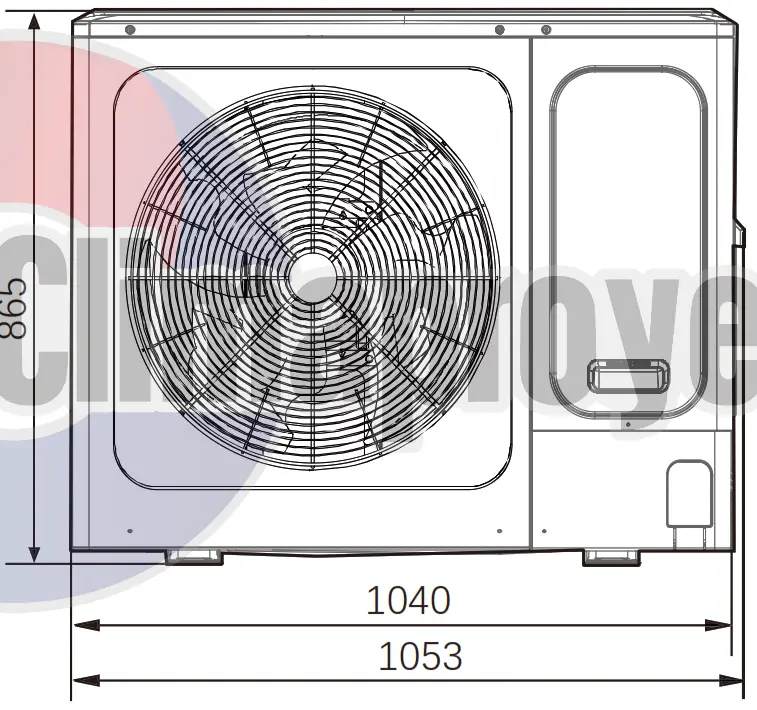

Dimensional Drawing:
Unit (mm)
Product specifications change from time to time as product improvements and developments are released and may vary from those in this document.
