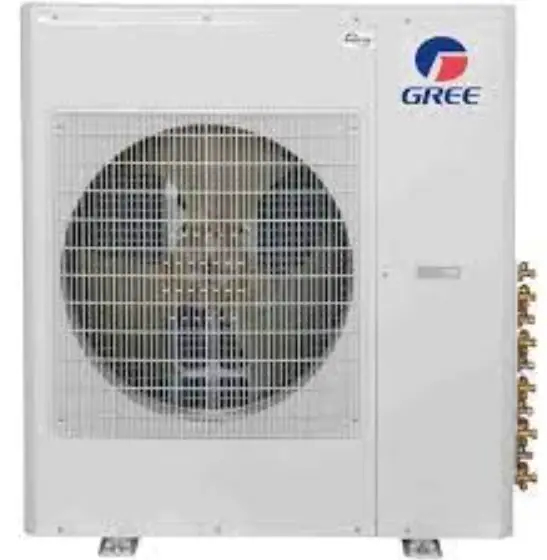

GREE MULTIU42HP230V1DO Outdoor Unit
Thank you for choosing our product.
Please read this Parts Manual carefully before operation and retain it for future reference.
If you lose this Manual, please contact your local distributor or visit www.greecomcomfort.com/resources now to download and file the electronic version.

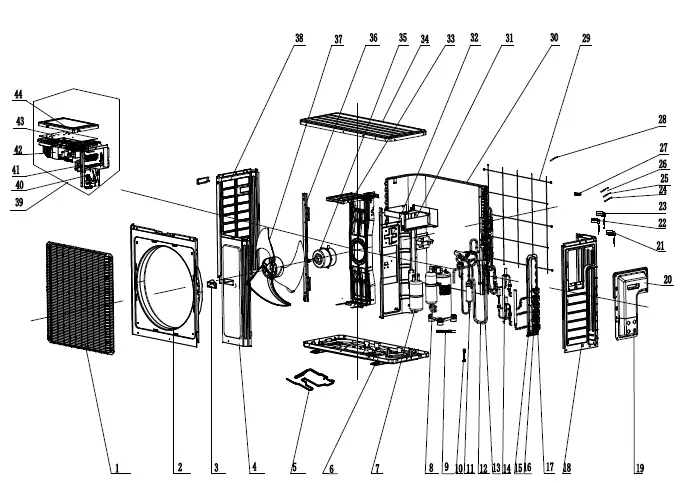

| NO. | Part Description | Qty | Part Code |
| 1 | Front Grill | 1 | 016004000006 |
| 2 | Front Panel Assy | 1 | 00000300017501 |
| 3 | Left Handle | 0 | none |
| 4 | Front Side Plate Sub-Assy | 1 | 017101060007P |
| 5 | Electrical Heater (Chassis) | 1 | 7651000413 |
| 6 | Chassis Sub-assy | 1 | 017000060044P |
| 7 | Gas-liquid Separator | 1 | 07223048 |
| 8 | Compressor and Fittings | 1 | 009001000013 |
| 9 | Electric Heater(Compressor) | 1 | 7651873266 |
| 10 | Tube Connector Sub-assy | 2 | 06643008 |
| 11 | 4-Way Valve Assy | 1 | 030152060055 |
| 12 | Connection Pipe | 0 | none |
| 13 | Magnet Coil | 1 | 4304000446 |
| 14 | Electronic Expansion Valve assy | 1 | 030174060009 |
| 15 | Valve Support Assy | 1 | 030163060001 |
| 16 | Cut off Valve | 1 | 071302391 |
| 17 | Cut off Valve | 1 | 07130239 |
| 18 | Right Side Plate | 1 | 0131410000902P |
| 19 | Wiring Cover Sub-assy | 1 | 01264100034 |
| 20 | Handle Assy | 1 | 02204100008 |
| 21 | Electric Expand Valve Fitting | 1 | 43000344 |
| 22 | Electric Expand Valve Fitting | 1 | 4300034411 |
| 23 | Electric Expand Valve Fitting | 1 | 4300034413 |
| 24 | Temperature Sensor | 1 | 3900030901 |
| 25 | Temperature Sensor | 1 | 3900007204 |
| 26 | Temperature Sensor | 1 | 3900007305 |
| 27 | Wiring Clamp | 1 | 26115004 |
| 28 | Temperature Sensor | 1 | 39000073 |
| 29 | Rear Grill | 1 | 01574100003 |
| 30 | Condenser Assy | 1 | 011002060151_X20047 |
| 31 | Electric Box (Fireproofing) | 1 | 01413426 |
| 32 | Clapboard Sub-Assy | 1 | 017021060037 |
| 33 | Motor Support Sub-Assy | 1 | 017012000017 |
| 34 | Top Cover Sub-Assy | 1 | 000051060049 |
| 35 | Brushless DC Motor | 1 | 15010400000107 |
| 36 | Condenser Support Plate | 1 | 01175092 |
| 37 | Axial Flow Fan Sub-Assy | 1 | 10333017 |
| 38 | Left Side Plate | 1 | 01305043P |
| 39 | Electric Box Assy | 1 | 100002060834 |
| 40 | Terminal Board | 1 | 42200006001301 |
| 41 | Connection Support | 1 | 01703211 |
| 42 | Electric Box | 1 | 20113015 |
| 43 | Main Board | 1 | 300027060170 |
| 44 | Electric Box Cover Sub-Assy | 1 | 02603217 |

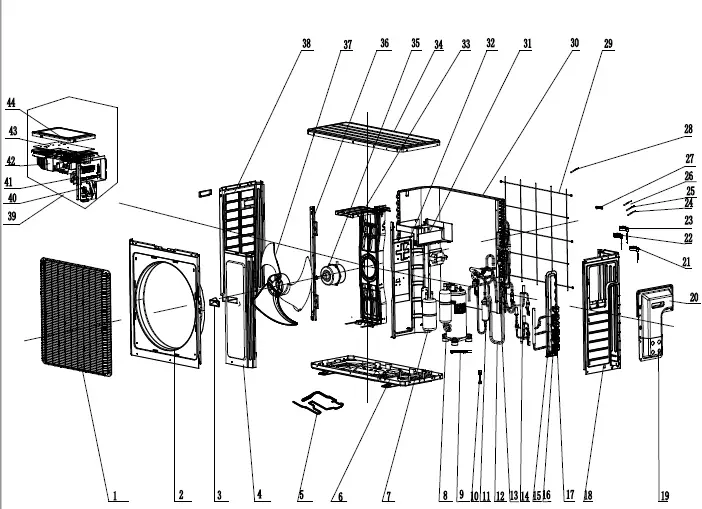

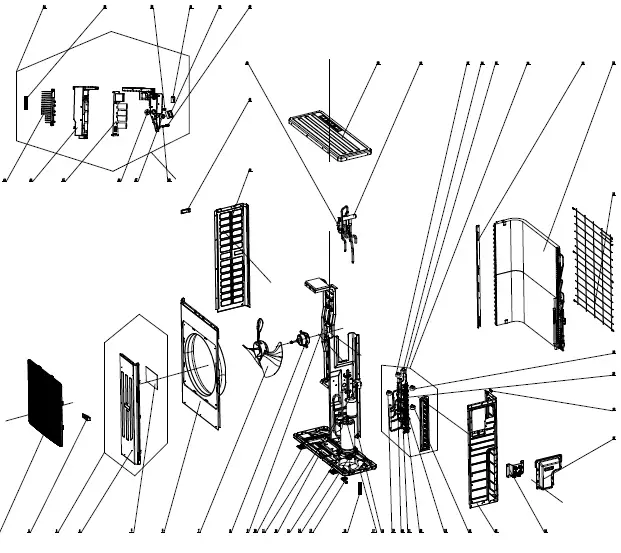

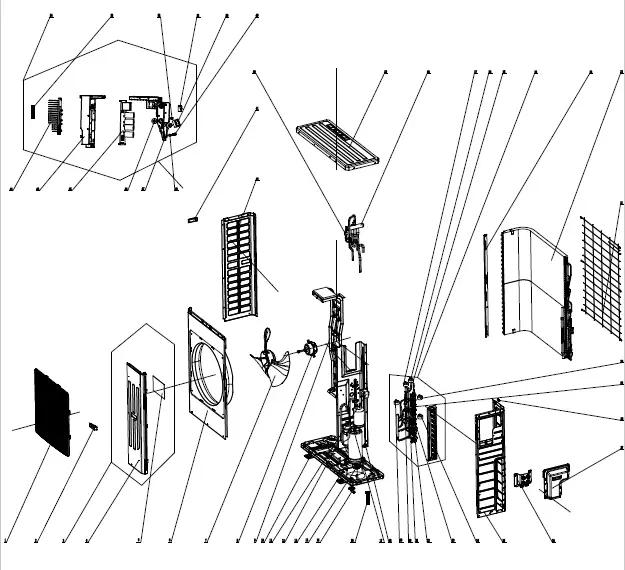

| NO. | Part Description | Qty | Part Code |
| 1 | Front Grill | 1 | 016004000006 |
| 2 | Front Panel Assy | 1 | 00000300017501 |
| 3 | Left Handle | 0 | none |
| 4 | Front Side Plate Sub-Assy | 1 | 017101060007P |
| 5 | Electrical Heater (Chassis) | 1 | 7651000413 |
| 6 | Chassis Sub-assy | 1 | 017000060044P |
| 7 | Gas-liquid Separator | 1 | 07223048 |
| 8 | Compressor and Fittings | 1 | 009001000013 |
| 9 | Electric Heater(Compressor) | 1 | 7651873266 |
| 10 | Tube Connector Sub-assy | 3 | 06643008 |
| 11 | 4-Way Valve Assy | 1 | 030152060055 |
| 12 | Connection Pipe | 0 | none |
| 13 | Magnet Coil | 1 | 4304000446 |
| 14 | Electronic Expansion Valve assy | 1 | 030174060016 |
| 15 | Valve Support Assy | 1 | 030163060003 |
| 16 | Cut off Valve | 1 | 071302391 |
| 17 | Cut off Valve | 1 | 07130239 |
| 18 | Right Side Plate | 1 | 0131410000902P |
| 19 | Wiring Cover Sub-assy | 1 | 01264100034 |
| 20 | Handle Assy | 1 | 02204100008 |
| 21 | Electric Expand Valve Fitting | 1 | 43000344 |
| 22 | Electric Expand Valve Fitting | 1 | 4300034411 |
| 23 | Electric Expand Valve Fitting | 1 | 4300034413 |
| 24 | Temperature Sensor | 1 | 3900030901 |
| 25 | Temperature Sensor | 1 | 3900007204 |
| 26 | Temperature Sensor | 1 | 3900007305 |
| 27 | Wiring Clamp | 1 | 26115004 |
| 28 | Temperature Sensor | 1 | 39000073 |
| 29 | Rear Grill | 1 | 01574100003 |
| 30 | Condenser Assy | 1 | 011002060151_X20047 |
| 31 | Electric Box (Fireproofing) | 1 | 01413426 |
| 32 | Clapboard Sub-Assy | 1 | 017021060037 |
| 33 | Motor Support Sub-Assy | 1 | 017012000017 |
| 34 | Coping | 1 | 01255020P |
| N/A | Top Cover Sub-Assy | 1 | 000051060049 |
| 35 | Brushless DC Motor | 1 | 15010400000107 |
| 36 | Condenser Support Plate | 1 | 01175092 |
| 37 | Axial Flow Fan Sub-Assy | 1 | 10333017 |
| 38 | Left Side Plate | 1 | 01305043P |
| 39 | Electric Box Assy | 1 | 100002060797 |
| 40 | Terminal Board | 1 | 42200006001301 |
| 41 | Connection Support | 1 | 01703211 |
| 42 | Electric Box | 1 | 20113015 |
| 43 | Main Board | 1 | 300027060012 |
| 44 | Electric Box Cover Sub-Assy | 1 | 02603217 |
| NO. | Part Description | Qty | Part Code |
| 1 | Front Grill | 1 | 016004060003 |
| 2 | Handle | 2 | 02113031 |
| 3 | Front Side Plate Sub-Assy | 1 | 0130550801 |
| 4 | Front Side Plate | 1 | 0130506501 |
| 5 | Insulated Board (Cover of Electric Box) | 1 | 20113003 |
| 6 | Cabinet | 1 | 01435007P |
| 7 | Axial Flow Fan | 1 | 10335014 |
| 8 | Brushless DC Motor | 1 | 1570280000409 |
| 9 | Motor Support Sub-Assy | 1 | 017012060043 |
| 10 | Electrical Heater | 1 | 7651000417 |
| 11 | Reactor | 0 | none |
| 12 | Compressor and Fittings | 1 | 00204100030 |
| 13 | Electrical Heater(Compressor) | 1 | 7651521242 |
| 14 | Compressor Gasket | 4 | 009012000013 |
| 15 | Drainage Joint | 1 | 26113009 |
| 16 | Temperature Sensor | 1 | 3900825401G |
| 17 | Compressor Overload Protector(External) | 0 | none |
| 18 | Bolt | 9 | 70210087 |
| 19 | Electric Expand Valve Fitting | 0 | none |
| 20 | Strainer | 4 | 0721304401 |
| 21 | Bidirection Strainer | 0 | none |
| 22 | Cut off Valve | 0 | none |
| 23 | Cut off Valve | 1 | 071302391 |
| 24 | Electric Expand Valve Fitting | 1 | 43000344 |
| 25 | Right Side Plate | 1 | 0131410002702P |
| 26 | Wiring Cover Sub-assy | 1 | 000224060003 |
| 27 | Handle Assy | 1 | 000223000003 |
| 28 | Wiring Clamp | 1 | 26115004 |
| 29 | Cut off Valve | 1 | 07130239 |
| 30 | Electric Expand Valve Fitting | 1 | 43000345 |
| 31 | Rear Grill | 1 | 01574100007 |
| 32 | Condenser Assy | 1 | 011002060110_X20047 |
| 33 | Condenser support plate | 1 | 01895242 |
| 34 | Valve Support Assy | 1 | 030163060005 |
| 35 | Electric Expand Valve Fitting | 1 | 4300034411 |
| 36 | Electronic Expansion Valve | 1 | 43005018 |
| 37 | Electric Expand Valve Fitting | 1 | 4300034412 |
| 38 | 4-way Valve | 1 | 43000338 |
| 39 | Top Cover | 1 | 0125500901P |
| 40 | Pressure Protect Switch | 1 | 4602000603 |
| 41 | Left Handle | 0 | none |
| 42 | Left Side Plate | 1 | 01305064P |
| 43 | Radiator | 1 | 4901800000203 |
| 44 | Electric Box | 1 | 20001306002301 |
| 45 | Main Board | 1 | 300027060190 |
| 46 | Heat Insulator | 1 | 12128748 |
| N/A | Cable Cross Loop | 1 | 76510021 |
| 47 | Magnetic Ring | 1 | 49010109 |
| 48 | Insulation Gasket | 1 | 70410503 |
| N/A | Insulation Gasket | 1 | 70410006 |
| 49 | Wire Clamp | 1 | 71010007 |
| 50 | Terminal Board | 1 | 42200006001201 |
| 51 | Terminal Board | 4 | 422000060015 |
| 52 | Wire Clamp | 4 | 71010003 |
| 53 | Temperature Sensor | 1 | 3900007201 |
| 54 | Electric Box Assy | 1 | 100002060835 |
| NO. | Part Description | Qty | Part Code |
| 1 | Front Grill | 1 | 016004060003 |
| 2 | Handle | 2 | 02113031 |
| 3 | Front Side Plate Sub-Assy | 1 | 0130550801 |
| 4 | Front Side Plate | 1 | 0130506501 |
| 5 | Insulated Board (Cover of Electric Box) | 1 | 20113003 |
| 6 | Cabinet | 1 | 01435007P |
| 7 | Axial Flow Fan | 1 | 10335014 |
| 8 | Brushless DC Motor | 1 | 1570280000409 |
| 9 | Motor Support Sub-Assy | 1 | 017012060043 |
| 10 | Electrical Heater | 1 | 7651000417 |
| 11 | Reactor | 0 | none |
| 12 | Compressor and Fittings | 1 | 00204100030 |
| 13 | Electrical Heater(Compressor) | 1 | 7651521242 |
| 14 | Compressor Gasket | 4 | 009012000013 |
| 15 | Drainage Joint | 1 | 26113009 |
| 16 | Temperature Sensor | 1 | 3900825401G |
| 17 | Compressor Overload Protector(External) | 0 | none |
| 18 | Bolt | 9 | 70210087 |
| 19 | Electric Expand Valve Fitting | 0 | none |
| 20 | Strainer | 5 | 0721304401 |
| 21 | Bidirection Strainer | 0 | none |
| 22 | Cut off Valve | 0 | none |
| 23 | Cut off Valve | 1 | 071302391 |
| 24 | Electric Expand Valve Fitting | 1 | 43000344 |
| 25 | Right Side Plate | 1 | 0131410002702P |
| 26 | Wiring Cover Sub-assy | 1 | 000224060003 |
| 27 | Handle Assy | 1 | 000223000003 |
| 28 | Wiring Clamp | 1 | 26115004 |
| 29 | Cut off Valve | 1 | 07130239 |
| 30 | Electric Expand Valve Fitting | 1 | 43000345 |
| 31 | Rear Grill | 1 | 01574100007 |
| 32 | Condenser Assy | 1 | 011002060110_X20047 |
| 33 | Condenser support plate | 1 | 01895242 |
| 34 | Valve Support Assy | 1 | 030163060002 |
| 35 | Electric Expand Valve Fitting | 1 | 4300034411 |
| 36 | Electronic Expansion Valve | 1 | 43005018 |
| 37 | Electric Expand Valve Fitting | 1 | 4300034412 |
| 38 | 4-way Valve | 1 | 43000338 |
| 39 | Top Cover | 1 | 0125500901P |
| 40 | Pressure Protect Switch | 1 | 4602000603 |
| 41 | Left Handle | 0 | none |
| 42 | Left Side Plate | 1 | 01305064P |
| 43 | Radiator | 1 | 4901800000203 |
| 44 | Electric Box | 1 | 20001306002301 |
| 45 | Main Board | 1 | 300027060011 |
| 46 | Heat Insulator | 1 | 12128748 |
| N/A | Cable Cross Loop | 1 | 76510021 |
| 47 | Magnetic Ring | 1 | 49010109 |
| 48 | Insulation Gasket | 1 | 70410503 |
| N/A | Insulation Gasket | 1 | 70410006 |
| 49 | Wire Clamp | 1 | 71010007 |
| 50 | Terminal Board | 1 | 42200006001201 |
| 51 | Terminal Board | 5 | 422000060015 |
| 52 | Wire Clamp | 5 | 71010003 |
| 53 | Temperature Sensor | 1 | 3900007201 |
| 54 | Electric Box Assy | 1 | 100002060833 |
