GREE MULTI18HP230V1C0 Air Conditioner User Manual
Thank you for choosing our product.
Please read this Parts Manual carefully before operation and retain it for future reference.
If you lose this Manual, please contact your local distributor or visit www.greecomcomfort.com/resources now to download and file the electronic version.

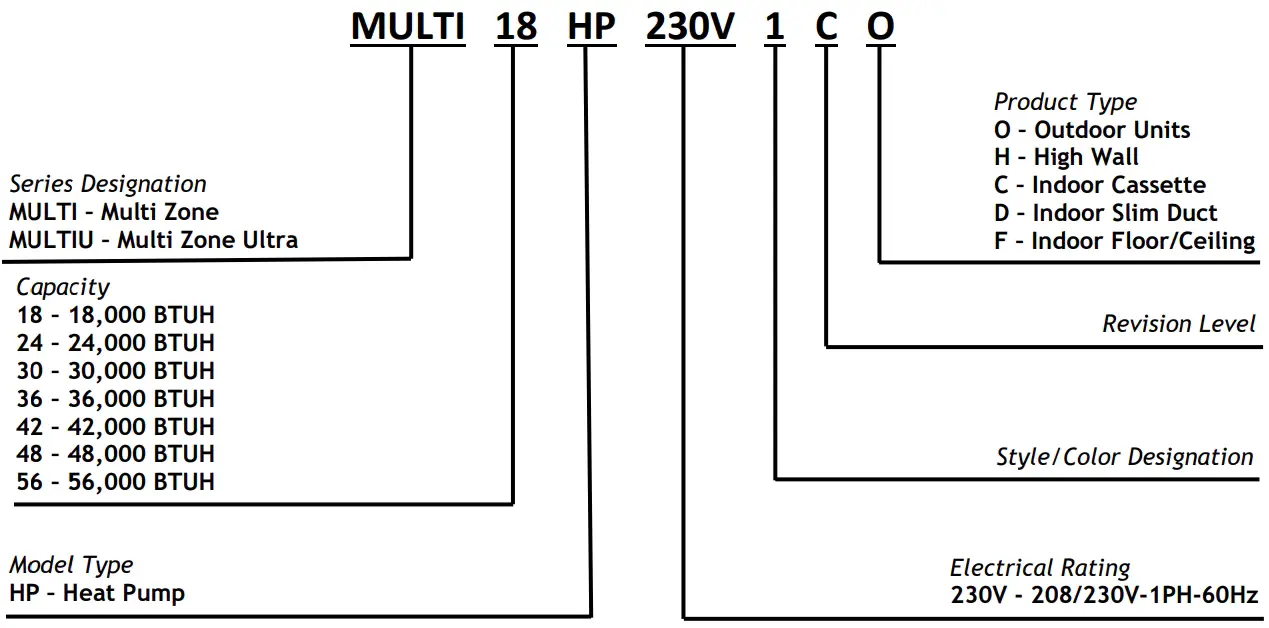

Nomenclature
EXAMPLE: MULTI18HP230V1CO
MULTI18HP230V1CO

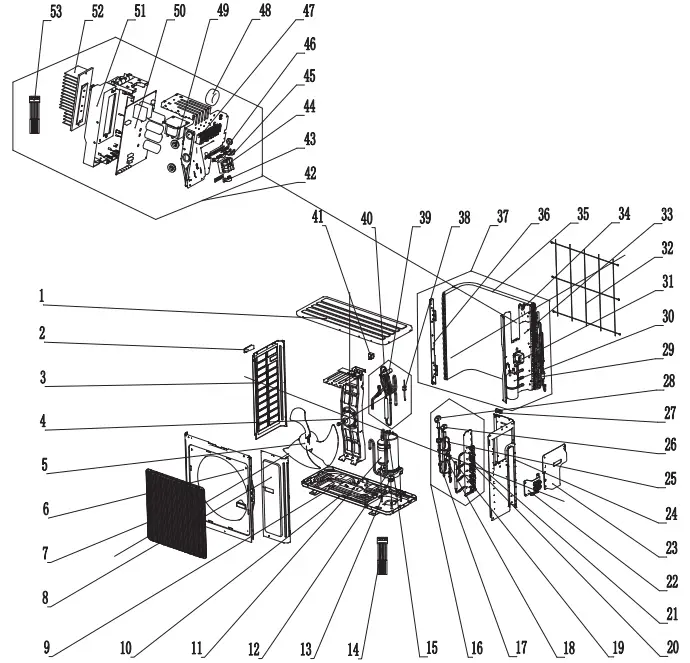

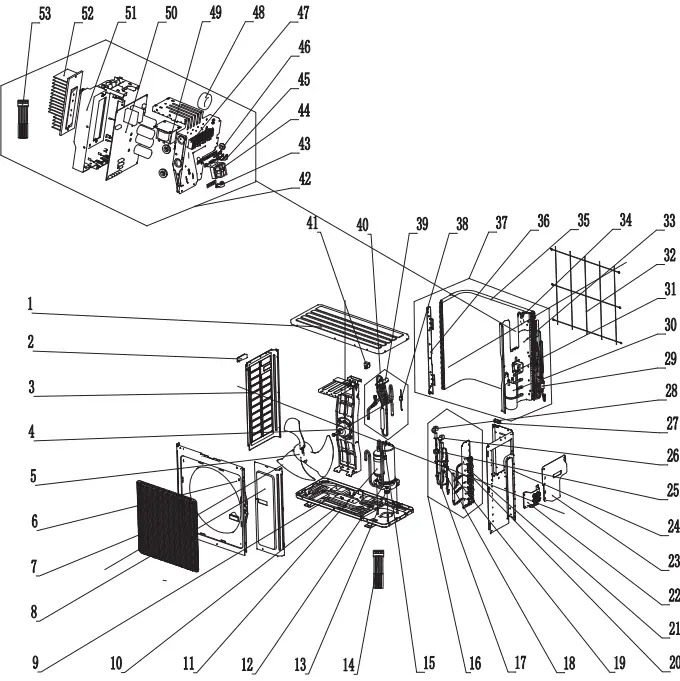

| NO. | Part Description | Qty | Part Code |
| 1 | Front Grill | 1 | 016004000006 |
| 2 | Front Panel Assy | 1 | 000003060055 |
| 3 | Chassis Sub-assy | 1 | 02803263P |
| 4 | Drainage Connecter | 1 | 06123401 |
| 5 | Drainage hole Cap | 1 | 06813401 |
| 6 | Gas-liquid Separator | 1 | 07223048 |
| 7 | Compressor and Fittings | 1 | 00105249G |
| 8 | Electrical Heater | 1 | 7651300403 |
| 9 | Tube Connector Sub-assy | 2 | 06643008 |
| 10 | Magnet Coil | 1 | 4300040045 |
| 11 | 4-Way Valve Assy | 1 | 03073328 |
| 12 | Right Side Plate | 1 | 0130326802P |
| 13 | Valve Support Assy | 1 | 03016300003 |
| 14 | Electronic Expansion Valve assy | 1 | 3017400020 |
| 15 | Valve Support Sub-Assy | 1 | 0171312802P |
| 16 | Cut off Valve | 1 | 071302391 |
| 17 | Cut off Valve | 1 | 07130239 |
| 18 | Valve Cover | 1 | 200087000004 |
| 19 | Electric Expand Valve Fitting | 1 | 07200206002235 |
| 20 | Electric Expand Valve Fitting | 1 | 07200206002236 |
| 21 | Temperature Sensor | 1 | 3900007301 |
| 22 | Temperature Sensor | 1 | 39000073 |
| 23 | Wiring Clamp | 1 | 26115004 |
| 24 | Temperature Sensor | 1 | 3900030901 |
| 25 | Rear Grill | 1 | 01473043 |
| 26 | Condenser Assy | 1 | 011002000279_L62661 |
| 27 | Clapboard Assy | 1 | 0123315301 |
| 28 | Coping Sub-Assy | 1 | 000051000017 |
| 29 | Supporting Board(Condenser) | 1 | 01795010 |
| 30 | Motor Support Sub-Assy | 1 | 01705036 |
| 31 | Fan Motor | 1 | 1501506402 |
| 32 | Left Side Plate | 1 | 01305093P |
| 33 | Axial Flow Fan | 1 | 10335008 |
| 34 | left handle | 0 | none |
| 35 | Connecting Cable | 0 | none |
| 36 | Electric Box Assy | 1 | 10000100023 |
| 37 | Electric Box | 1 | 20113027 |
| 38 | Radiator | 1 | 49010252 |
| 39 | Main Board | 1 | 30138000310 |
| 40 | Wiring Cover Sub-assy | 1 | 01253057 |
| 41 | Handle Assy | 1 | 02113044 |

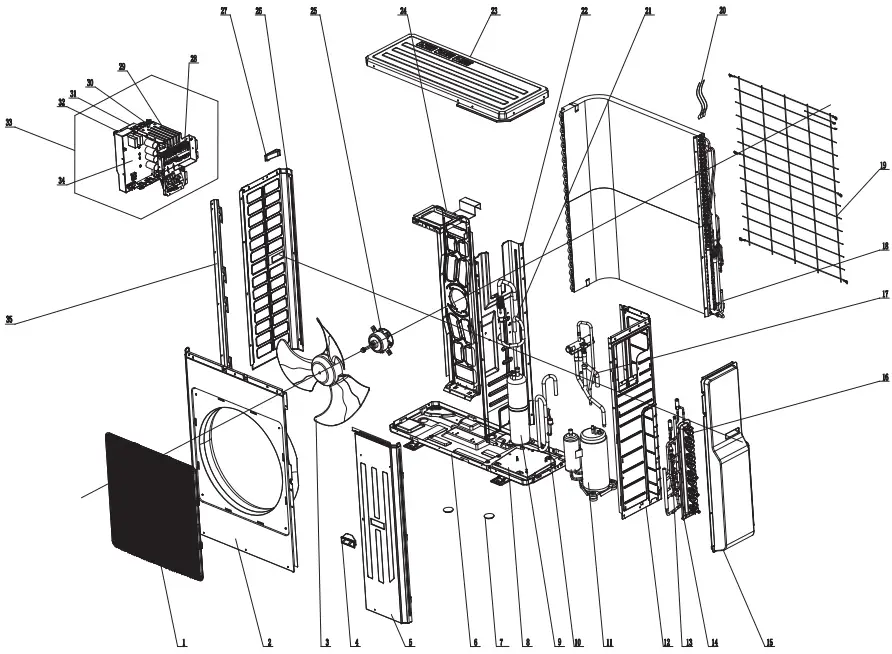

MULTI24HP230V1CO
| NO. | Part Description | Qty | Part Code |
| 1 | Top Cover Sub-Assy | 1 | 000051000024 |
| 2 | Handle | 1 | 26233053 |
| 3 | Left Side Plate | 1 | 01305043P |
| 4 | Motor Support Sub-Assy | 1 | 017012000017 |
| 5 | Axial Flow Fan | 1 | 10335014 |
| 6 | Front Panel Assy | 1 | 0153501405 |
| 7 | Front Grill | 016004060005 | |
| 8 | Front Side Plate Sub-Assy | 1 | 01303249P |
| 9 | Electrical Heater (Chassis) | 1 | 7651000411 |
| 10 | Chassis Sub-assy | 1 | 02803280P |
| 11 | Compressor and Fittings | 1 | 0010524501 |
| 12 | Electric Heater(Compressor) | 1 | 7651873215 |
| 13 | Compressor Gasket | 3 | 76713066 |
| 14 | Temperature Sensor | 1 | 3900007305 |
| 15 | Compressor Overload Protector(External) | 1 | 00180030 |
| 16 | Valve Support Assy | 1 | 0713395401 |
| 17 | Strainer | 2 | 0721304401 |
| 18 | Electronic Expansion Valve assy | 1 | 0713395301 |
| 19 | Electric Expand Valve Fitting | 0 | none |
| 20 | Cut off Valve | 1 | 071302391 |
| 21 | Cut off Valve | 1 | 07130239 |
| 22 | Wiring Cover Sub-assy | 1 | 01264100034 |
| 23 | Handle Assy | 1 | 02204100008 |
| 24 | Right Side Plate | 1 | 0131410000902P |
| 25 | Electric Expand Valve Fitting | 1 | 4300008402 |
| 26 | Electric Expand Valve Fitting | 1 | 4300008401 |
| 27 | Wiring Clamp | 1 | 26115004 |
| 28 | Electric Expand Valve Fitting | 1 | 43000084 |
| 29 | Bidirection Strainer | 0 | none |
| 30 | Gas-liquid Separator | 1 | 07223048 |
| 31 | Reactor | 0 | none |
| 32 | Rear Grill | 1 | 01574100003 |
| 33 | Clapboard Sub-Assy | 1 | 01233190 |
| 34 | Cable Cross Loop | 0 | none |
| 35 | Condenser Assy | 1 | 0116398001_L62661 |
| 36 | Condenser Support Plate | 1 | 01175092 |
| 37 | Condenser Assy | 0 | none |
| 38 | Pressure Protect Switch | 1 | 460200061 |
| 39 | 4-Way Valve | 1 | 430004032 |
| 40 | 4-Way Valve Assy | 1 | 03015200001 |
| 41 | Magnet Coil | 1 | 4300040045 |
| 42 | Electric Box Assy | 1 | 10000100020 |
| 43 | Wire Clamp | 1 | 71010003 |
| 44 | Terminal Board | 1 | 422000060015 |
| 45 | Wire Clamp | 3 | 71010003 |
| 46 | Insulation Gasket | 1 | 70410503 |
| 47 | Terminal Board | 1 | 42200006001301 |
| 48 | Magnetic Ring | 2 | 49010113 |
| 49 | Cable Cross Loop | 1 | 76510021 |
| 50 | Main Board | 1 | 30138000311 |
| 51 | Electric Box | 1 | 20113015 |
| 52 | Radiator | 1 | 49013052 |
| 53 | Temperature Sensor | 1 | 3900007306 |

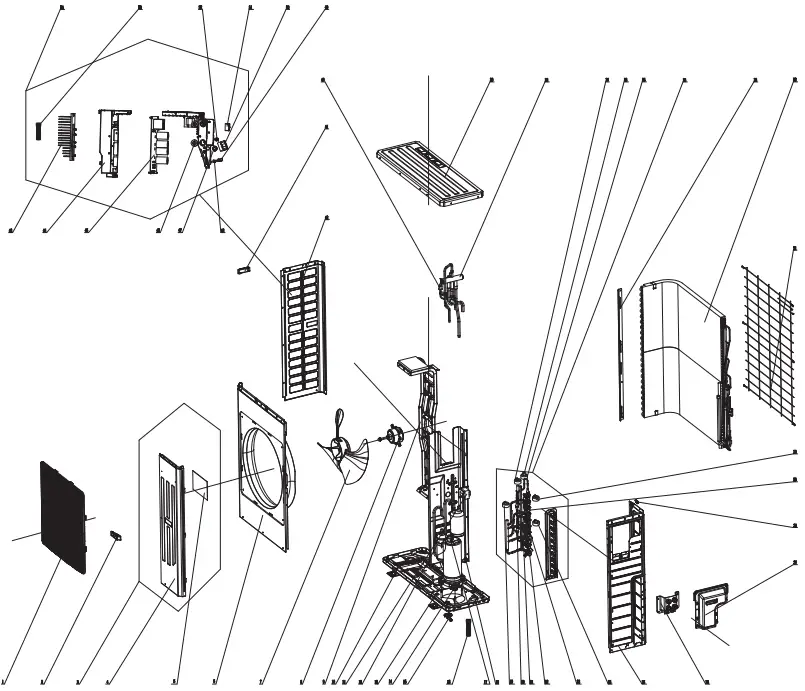

MULTI30HP230V1CO
| NO. | Part Description | Qty | Part Code |
| 1 | Top Cover Sub-Assy | 1 | 000051060013 |
| 2 | Handle | 1 | 26233053 |
| 3 | Left Side Plate | 1 | 01305043P |
| 4 | Motor Support Sub-Assy | 1 | 01703188 |
| 5 | Axial Flow Fan | 1 | 10335014 |
| 6 | Front Panel Assy | 1 | 0153501405 |
| 7 | Front Grill | 016004060005 | |
| 8 | Front Side Plate Sub-Assy | 1 | 01303249P |
| 9 | Electrical Heater | 1 | 765100047 |
| 10 | Chassis Sub-assy | 1 | 01284100112P |
| 11 | Compressor | 1 | 00205200003 |
| 12 | Electric Heater(Compressor) | 1 | 7651873215 |
| 13 | Compressor Gasket | 3 | 76713066 |
| 14 | Sensor Sub-assy | 1 | 39004100005G |
| 15 | Compressor Overload Protector(External) | 1 | 00180030 |
| 16 | Valve Support Assy | 1 | 030163000003 |
| 17 | Strainer A | 2 | 07210022 |
| 18 | Electronic Expansion Valve Assy | 1 | 030174000014 |
| 19 | Electric Expand Valve Fitting | 1 | 4304413222 |
| 20 | Cut off Valve | 1 | 071302391 |
| 21 | Cut off Valve | 1 | 07130239 |
| 22 | Wiring Cover Sub-assy | 1 | 01264100034 |
| 23 | Handle Assy | 1 | 02204100008 |
| 24 | Right Side Plate | 1 | 0131410000902P |
| 25 | Electric Expand Valve Fitting | 1 | 4304413234 |
| 26 | Electric Expand Valve Fitting | 1 | 4304413235 |
| 27 | Wiring Clamp | 1 | 26115004 |
| 28 | Electric Expand Valve Fitting | 1 | 4304413237 |
| 29 | Bidirection Strainer | 1 | 07220016 |
| 30 | Gas-liquid Separator Assy | 1 | 07225017 |
| 31 | Reactor | 1 | 43130186 |
| 32 | Rear Grill | 1 | 01574100003 |
| 33 | Clapboard | 1 | 01244100003 |
| 34 | Cable Cross Loop | 2 | 76512008 |
| 35 | Condenser Assy | 1 | 01124100007_L62661 |
| 36 | Condenser Support Plate | 1 | 01175092 |
| 37 | Condenser Assy | 0 | none |
| 38 | Pressure Protect Switch | 1 | 4602000902 |
| 39 | 4-way Valve | 1 | 4300008201 |
| 40 | 4-Way Valve Assy | 1 | 04045200071 |
| 41 | Magnet Coil | 1 | 4300040072 |
| 42 | Electric Box Assy | 1 | 01395200378 |
| 43 | Insulation Gasket | 1 | 70410503 |
| 44 | Terminal Board | 1 | 42200006001201 |
| 45 | Wire Clamp | 3 | 71010003 |
| 46 | Insulation Gasket | 1 | 70410006 |
| 47 | Terminal Board | 4 | 422000060015 |
| 48 | Magnetic Ring | 2 | 49010109 |
| 49 | Heat Insulator | 1 | 12128748 |
| 50 | Main Board | 1 | 30228000026 |
| 51 | Electric Box | 1 | 26904100013 |
| 52 | Radiator | 1 | 49018000077 |
| 53 | Sensor Sub-assy | 1 | 39008000017G |

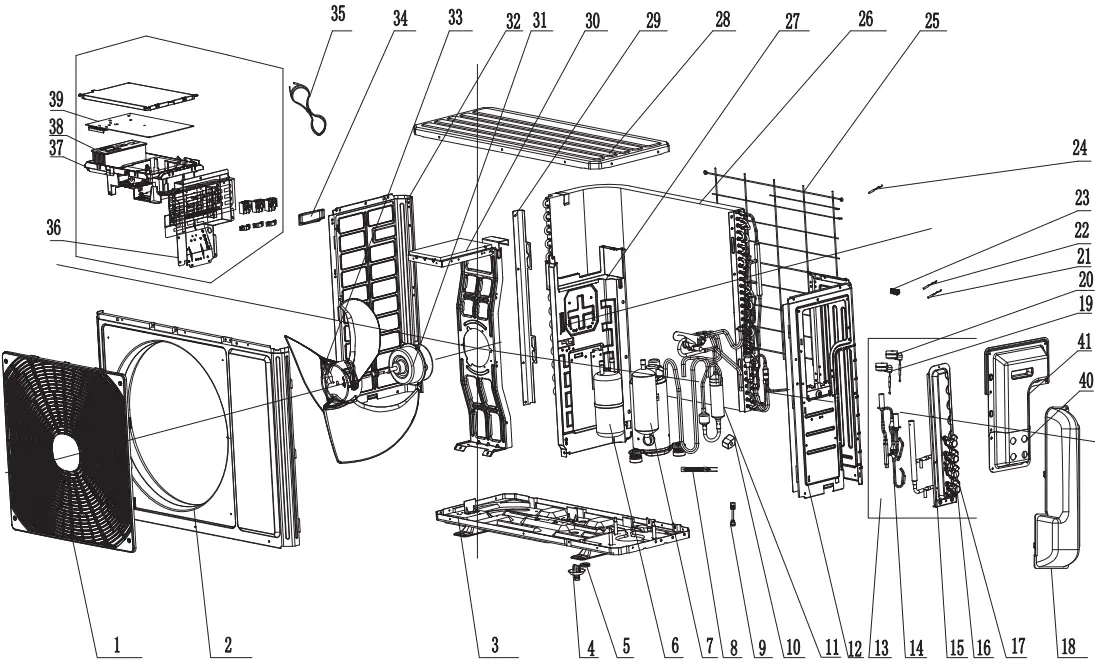

MULTI36HP230V1CO
| NO. | Part Description | Qty | Part Code |
| 1 | Front Grill | 1 | 016004060003 |
| 2 | Handle | 1 | 26235253 |
| 3 | Front Side Plate Sub-Assy | 1 | 01305508 |
| 4 | Front Side Plate | 1 | 01305065P |
| 5 | Insulated Board (Cover of Electric Box) | 1 | 20113003 |
| 6 | Cabinet | 1 | 01435007P |
| 7 | Axial Flow Fan | 1 | 10335010 |
| 8 | Fan Motor | 1 | 1570280201 |
| 9 | Motor Support Assy | 1 | 01805200256 |
| 10 | Electrical Heater | 1 | 765100047 |
| 11 | Reactor | 2 | 43130186 |
| 12 | Compressor | 1 | 00205200003 |
| 13 | Electrical Heater(Compressor) | 1 | 7651873209 |
| 14 | Compressor Gasket | 3 | 76713066 |
| 15 | Drainage Joint | 1 | 26113009 |
| 16 | Sensor Sub-assy | 1 | 39004100007G |
| 17 | Compressor Overload Protector(External) | 1 | 00180030 |
| 18 | Bolt | 2 | 70210051 |
| 19 | Electric Expand Valve Fitting | 1 | 4304413222 |
| 20 | Strainer A | 2 | 07210022 |
| 21 | Bidirection Strainer | 1 | 07220016 |
| 22 | Cut off Valve | 0 | none |
| 23 | Cut off Valve | 1 | 071302391 |
| 24 | Electric Expand Valve Fitting | 1 | 4304413234 |
| 25 | Right Side Plate | 1 | 0131410002702P |
| 26 | Wiring Cover Sub-assy | 1 | 01264100034 |
| 27 | Handle Assy | 1 | 02204100008 |
| 28 | Wiring Clamp | 1 | 26115004 |
| 29 | Cut off Valve | 1 | 07130239 |
| 30 | Electric Expand Valve Fitting | 1 | 4304413235 |
| 31 | Rear Grill | 1 | 01574100007 |
| 32 | Condenser Assy | 1 | 01163780_L62661 |
| 33 | Condenser support plate | 1 | 01895309 |
| 34 | Valve Support Assy | 1 | 030163000008 |
| 35 | Electric Expand Valve Fitting | 1 | 4304413237 |
| 36 | Electronic Expansion Valve | 2 | 07334447 |
| 37 | Electric Expand Valve Fitting | 1 | 4304413208 |
| 38 | 4-way Valve | 1 | 43000338 |
| 39 | Top Cover Sub-Assy | 1 | 01264100028 |
| 40 | Pressure Protect Switch | 1 | 4602000902 |
| 41 | Left Handle | 0 | none |
| 42 | Left Side Plate | 1 | 01305064P |
| 43 | Radiator | 1 | 49018000077 |
| 44 | Electric Box | 1 | 26904100013 |
| 45 | Main Board | 1 | 30228000027 |
| 46 | Heat Insulator | 2 | 12128748 |
| 47 | Magnetic Ring | 4 | 49010109 |
| 48 | Insulation Gasket | 1 | 70410006 |
| 49 | Wire Clamp | 1 | 71010005 |
| 50 | Terminal Board | 1 | 42200006001201 |
| 51 | Terminal Board | 5 | 422000060015 |
| 52 | Wire Clamp | 5 | 71010003 |
| 53 | Sensor Sub-assy | 1 | 39004100006G |
| 54 | Electric Box Assy | 1 | 01395200376 |
MULTI42HP230V1CO
| NO. | Part Description | Qty | Part Code |
| 1 | Front Grill | 1 | 016004060003 |
| 2 | Cabinet | 1 | 01435007P |
| 3 | Axial Flow Fan | 1 | 10335010 |
| 4 | Handle | 1 | 26235253 |
| 5 | Front Side Plate Sub-Assy | 1 | 01305508 |
| 6 | Chassis Sub-assy | 1 | 01284100110P |
| 7 | Drainage hole Cap | 2 | 76715005 |
| 8 | Compressor Mounting Plate Sub-Assy | 1 | 01324100053P |
| 9 | Gas-liquid Separator | 1 | 07424100020 |
| 10 | Inhalation Tube Sub-Assy | 1 | 04555200165 |
| 11 | Compressor | 1 | 00205200003 |
| 12 | Right Side Plate | 1 | 0131410002702P |
| 13 | Electric Expansion Valve Sub-Assy | 2 | 030026000043 |
| 14 | Valve Support Assy | 1 | 030163000008 |
| 15 | Valve Cover | 1 | 200087000005 |
| 16 | Cut off Valve | 1 | 07130239 |
| 17 | 4-way Valve Assy | 1 | 04045200070 |
| 18 | Condenser Assy | 1 | 01163780_L62661 |
| 19 | Rear Grill | 1 | 01574100007 |
| 20 | Sensor Sub-assy | 1 | 39004100007G |
| 21 | Inhalation Tube Sub-Assy | 0 | none |
| 22 | Clapboard | 1 | 01244100009 |
| 23 | Top Cover Sub-Assy | 1 | 01264100028 |
| 24 | Motor Support Assy | 1 | 000046000051 |
| 25 | Fan Motor | 1 | 1570280201 |
| 26 | Left Side Plate | 1 | 01305064P |
| 27 | Left Handle | 0 | none |
| 28 | Terminal Board | 5 | 422000060015 |
| 29 | Terminal Bracket Sub-Assy | 1 | 01804100338 |
| 30 | Reactor | 1 | 43130186 |
| 31 | Radiator | 1 | 49018000077 |
| 32 | Electric Box | 1 | 26904100013 |
| 33 | Electric Box Assy | 1 | 01395200377 |
| 34 | Main Board | 1 | 30228000025 |
| 35 | Condenser support plate | 1 | 01895309 |
