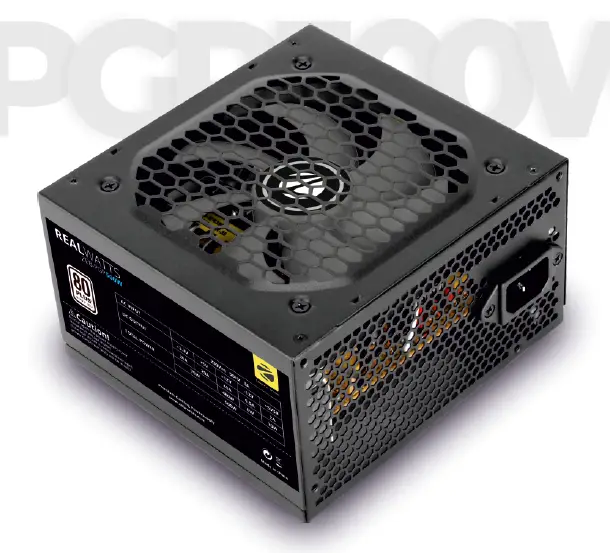

ZEBRONICS ZEB-PGP500W Premium Power Supply
ZEBRONICS ZEB-PGP500W Premium Power Supply
Features
- 80+ EU Power Supply
- High Efficiency
- Dual PCle Connectors
- Single 40A 12V Rail
- Full Protection Built-In
Specifications
- Active PFC : Yes
- Input Voltage: 230V
- Input Current:3A
- Fan Type: Oil Bearing
- Power Good Signal: 300ms
- Hold Up Time: 18ms
- Efficiency:
- 20% loading :::: 82%,
- 50% loading:::: 85%,
- 100% loading :::: 82%
- MTBF: 20000H
- Protections: OVP / OPP / SCP / UVP
- Operating Temp: 45°c
- Product Dimension (W x D x H): 150 x 140 x 85 mm
- Weight: 1.55kg
Package content:
- Power Supply: 1 No.
- Power Cord: 1 No.
- Mounting Screws:4 Nos.
- Cable tie:5 Nos.
Technical Details:

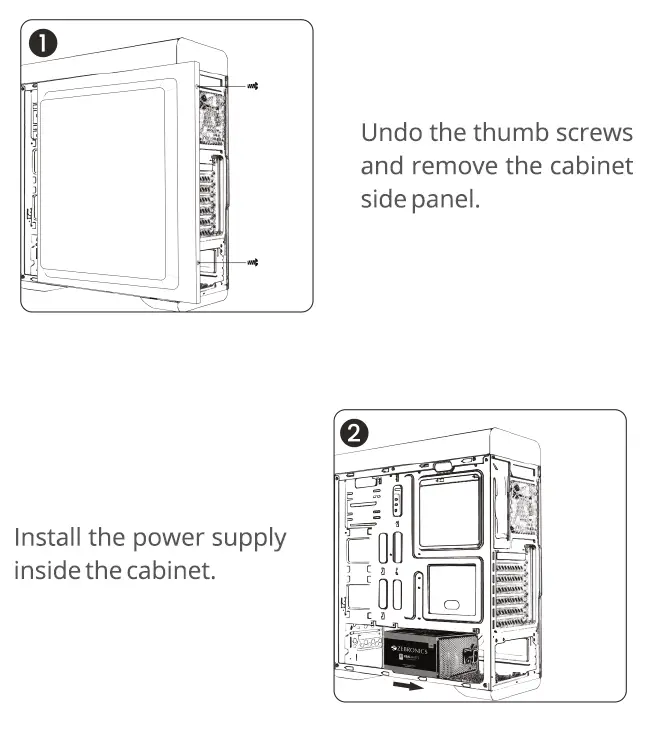

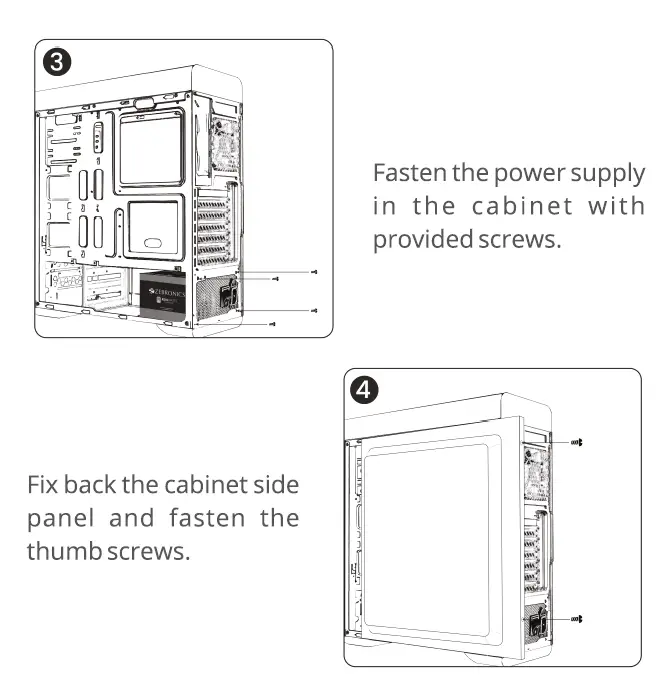

Installation:
Connection Description:

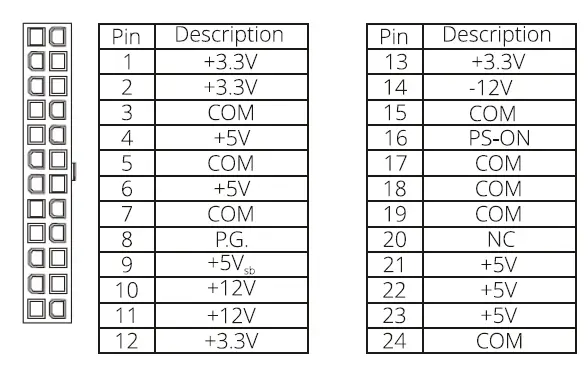

Motherboard 20+4 Pin Connector

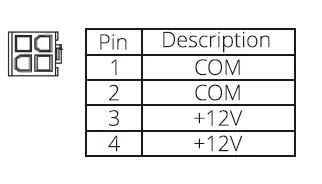

CPU 4+4 Pin Connector

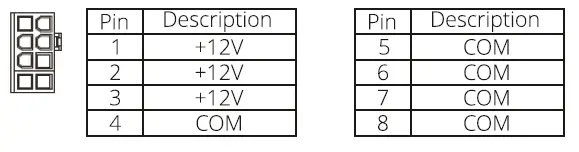

PCl-e 6+2 Pin Connector

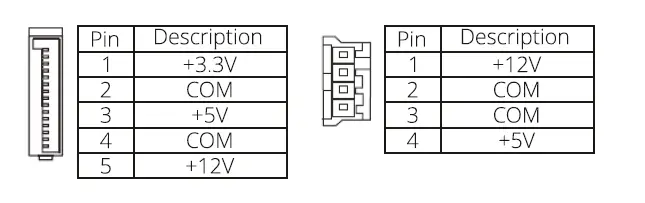

S-ATA Connector

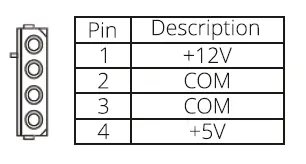

Peripheral 4-Pin Connector
Troubleshooting
If your system does not turn on after installing the power supply, follow the troubleshooting guide as listed below:
- Please make sure the main power is connected on correctly.
- Please make sure the 24pin and 4/8pin connectors are connected correctly to the motherboard.
- If the power supply does not work properly, please contact our service center immediately.
Warranty:
Zebronics guarantees this product to be free of defects in material and workmanship, for more details on warranty duration please visit www.zebronics.com. This product is designed for desktop computer usage only. Using this product in any other application will void the warranty. Please ask for professional assistance for the installation. The warranty is valid only for the power supply unit, accessories are not included. Any abuse, alteration, misuse, negligence, incorrect voltage supply, accidents and natural disasters will make the warranty invalid. Please visit our service center for issue with the product.
ISO 9001:2015 Certified Company
www.zebronics.com
