User Manual
www.zebronics.com

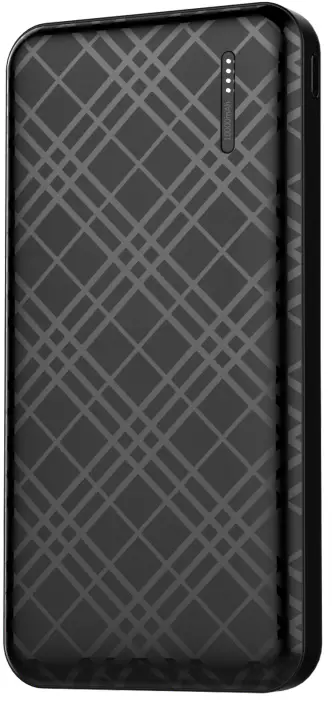

Thank you for purchasing ZEB-MB10000S1 Power bank. Please read this user manual carefully before operation & save this user manual for future reference.
Note:
- Avoid the use of this product at the high-temperature and high humidity environment.
- Avoid self-disassembling of product, as it will result in the failure of warranty.
- Please charge the product with a power adapter output rated DC 5V/2A.
Caution: May explode if disposed off in fire.
Features:
Dual Output
LED Indicator
Mobile/Tablet Compatible
Type C & Micro USB Input
Over Charge Protection
Overload Protection
Short Circuit Protection
Specifications :
| Battery capacity | : 10000mAh |
| Input | : DC 5V/2A |
| Output 1 | : DC 5V/2A |
| Output 2 | : DC 5V/2A (Total 2A Max.) |
| No. of Output port | : 2 |
| Chargingtime | : 5 – 6h |
| Product dimension (Wx D x H) | : 6.9 x1.7 x 13.6 cm |
| Net. weight | : 220g |
Package contents :
| Power Bank | : 1 U |
| Charging Cable | :1U |
| QR Code Guide | : 1 U |

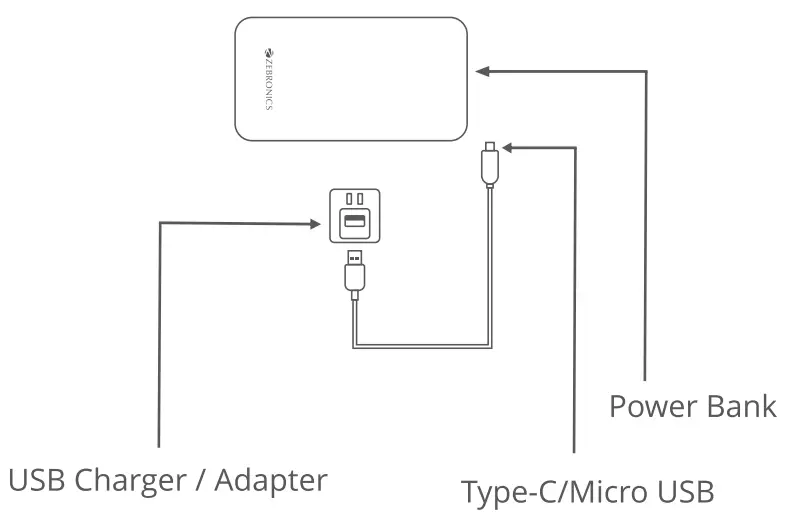

Charging the Power Bank:
Connect the Type C/micro USB end of the charging cable to the power bank and the USB end to the charger / adapter with a DC 5V output.

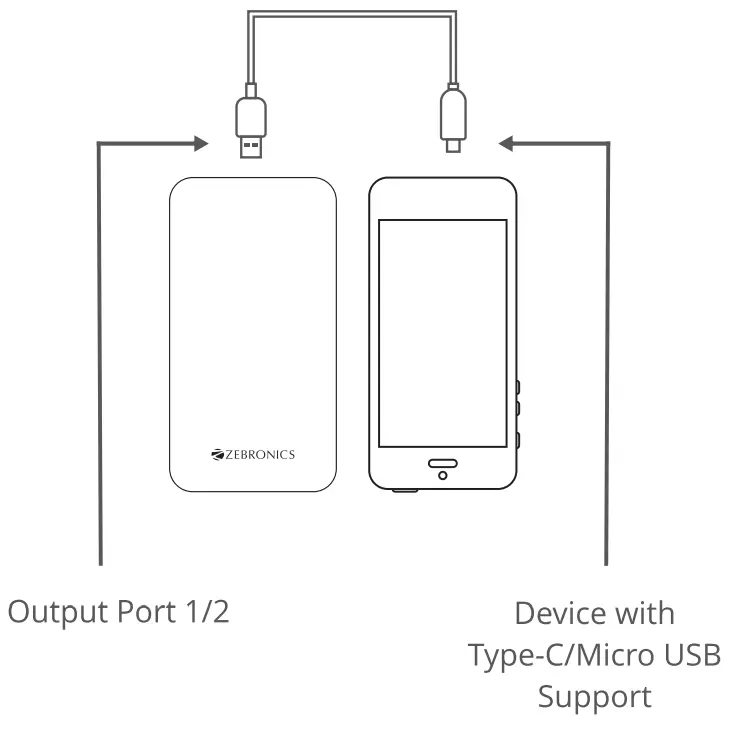

Connect the Type C/micro USB end of the charging cable to the power bank and the USB end to the charger / adapter with a DC 5V output.Chargingyour Device with the Power Bank:
- Connect the Type C/micro USB end of the charging cable to the device and the USB end to the output ports of power bank.
- You may connect two different devices at the same time in order to charge them simultaneously.
ISO 9001:2015 Certified Company
