ZEB
Power Bank
ME20000
User Manual

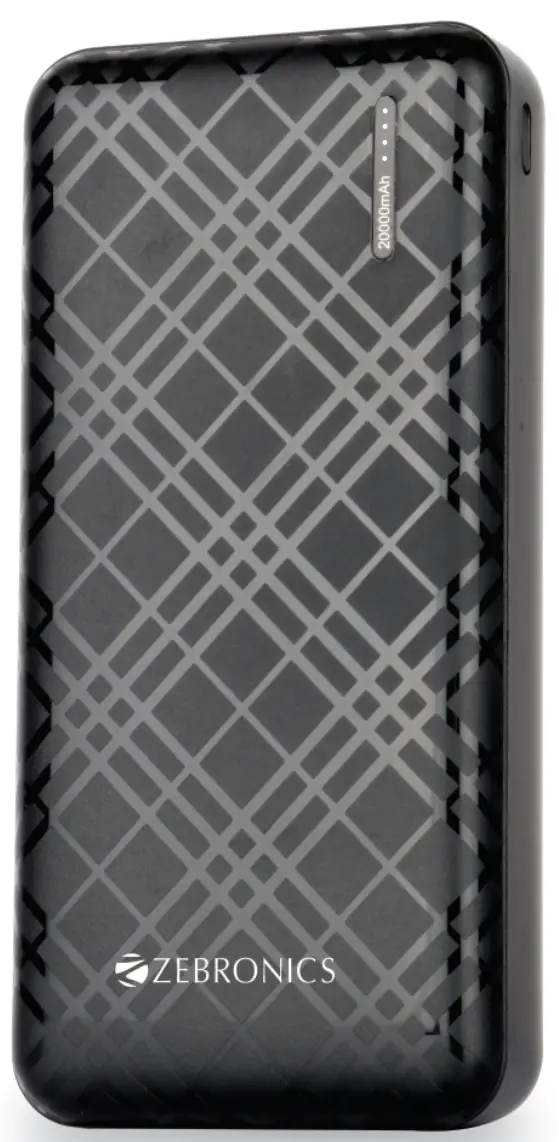

ZEB-ME20000 Dual Output Power Bank
Thank you for purchasing ZEB-ME20000 power bank. Please read this user manual carefully before operation & save this user manual for future reference.
Note:
- Avoid the use of this product at the high- temperature and high humidity environment.
- Avoid self-disassembling of product, a sit will result i n the failure o f warranty.
- Please charge the product with a power adapter output rated DC 5V/2.1A.
Caution:
May explode if disposed off i n fire.
Features:
Dual Output
LED Indicator
Mobile/Tablet Compatible
Type C & Micro USB Input
Over Charge Protection
Overload Protection
Short Circuit Protection
Glossy line texture finish
Specifications :
| Batt. capacity | : 20000mAh |
| Input | :DC 5V/2.1A |
| Output 1 | >DC 5V/2.1A |
| Output 2 | : DC 5V/2.1A (total 2.1A max.) |
| No. o f output port | :2 |
| Charging time | :10-12h |
| Product dimension (WxDxH) | :69x28x141 mm |
| Net. weight | :404g |
Package contents:
| Power bank | :1U |
| Charging cable | :1U |
| QR Code Guide | :1U |

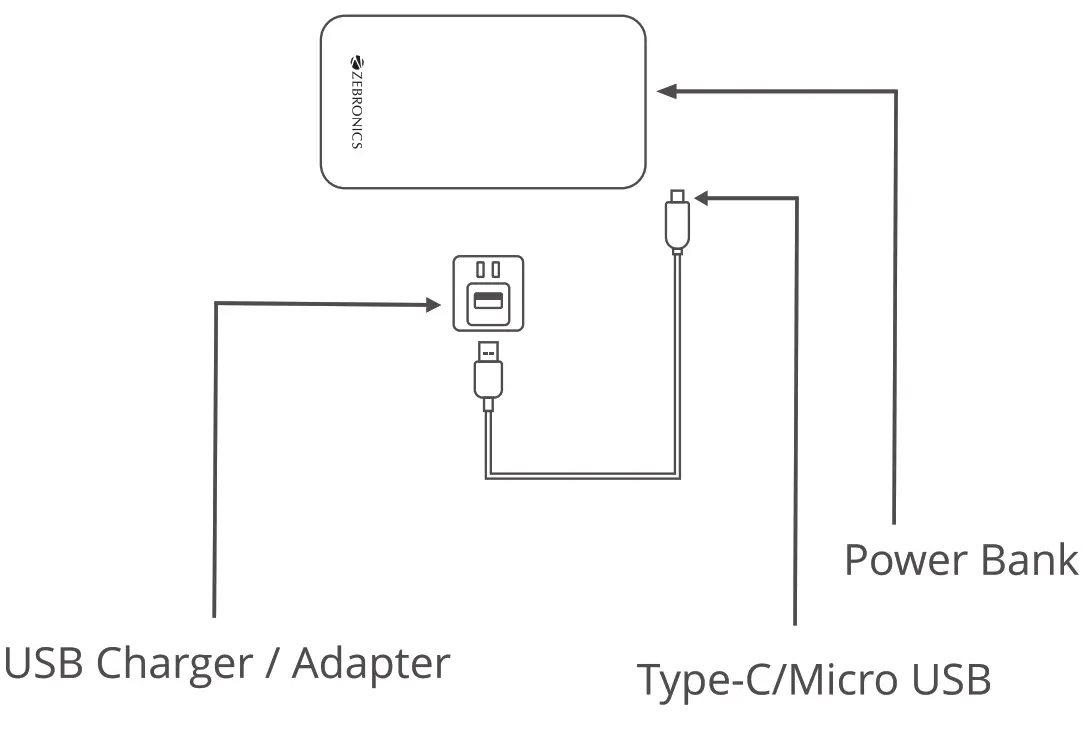

Charging the Power Bank:
* Connect the Type C/micro USB end of the charging cable to the power bank and the USB end to the charger / adapter with a DC 5V output.

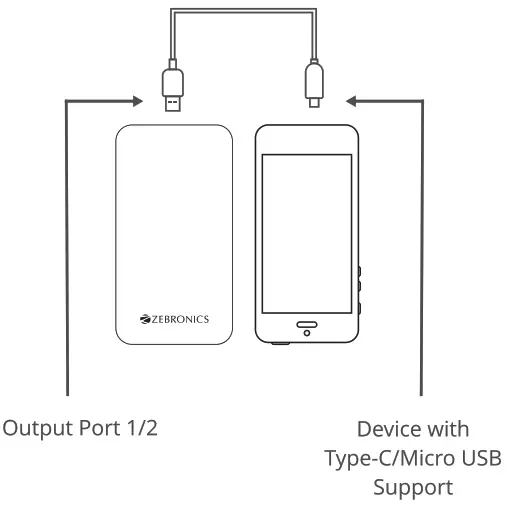

Charging your Device with the Power Bank:
- Connect the Type C/micro USB /Lightning end of the charging cable to the device and the USB end to the output ports of power bank.
- You may connect two different devices at the same time in order to charge them simultaneously.
ISO 9001:2015 Certified Company
www.zebronics.com
