User Manual
www.zebronics.com
ZEB-MB20000R1 Power Bank
Thank you for purchasing ZEB-MB20000R1 power bank. Please read this user manual carefully before operation & save this user manual for future reference.
Note:
- Avoid the use of this product at high temperature and in high humid environment.
- Avoid self-disassembling of product, as it will resulting the failure of warranty.
- Please charge the product with a power adapter output rated DC 5V/2A.
Caution:
May explode if disposed offin fire.
Features
Dual Output
LED Indicator
Mobile/Tablet Compatible
Type C & Micro USB Input
Over Charge Protection
Overload Protection
Short Circuit Protection
Specifications
| Battery capacity | :20000mAh |
| Inputs | :DC5V/2A |
| Output 1 | :DC5V/2A |
| Output 2 | :DC5V/2A (Total 2A Max.) |
| No.of Output ports | : 2 |
| Charging time | :10-11h |
| Product dimensions (WxDxH) | : 6.8×2.8×14.8 cm |
| Net. weight | :410g |
| Package contents | |
| Power bank | :1 U |
| Charging cable | :1 U |
| QR Code guide | : 1 U |

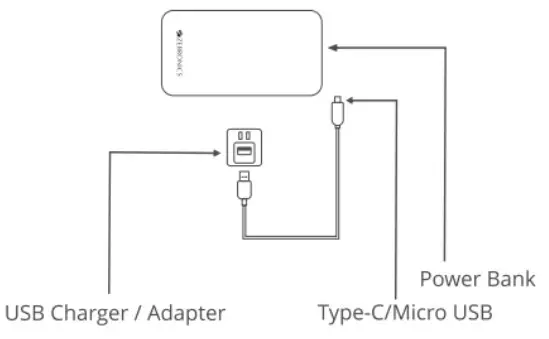

Charging the Power Bank
Connect the Type C/ Micro USB end of the charging cable to the power bank and the USB end to the charger / adapter with a DC5Voutput.

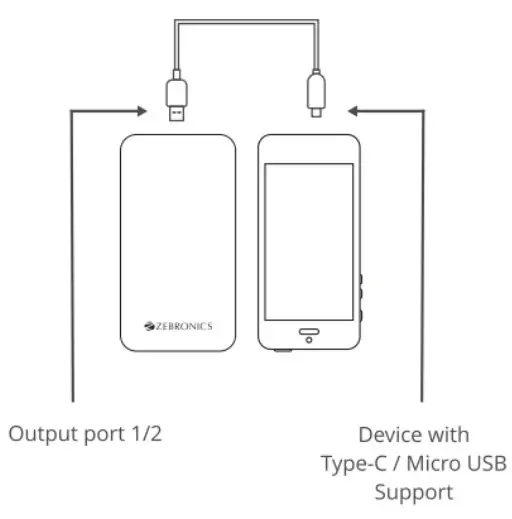

Charging your device with the Power Bank
Connect the Type C/Micro USB end of the charging cable to the device and the USB end to the output ports of power bank.
150 9001:2015 Certified Company
www.zebronics.com
