FenceLab THE MERCURY Aluminium Raking Panel
Raking Aluminium Panel

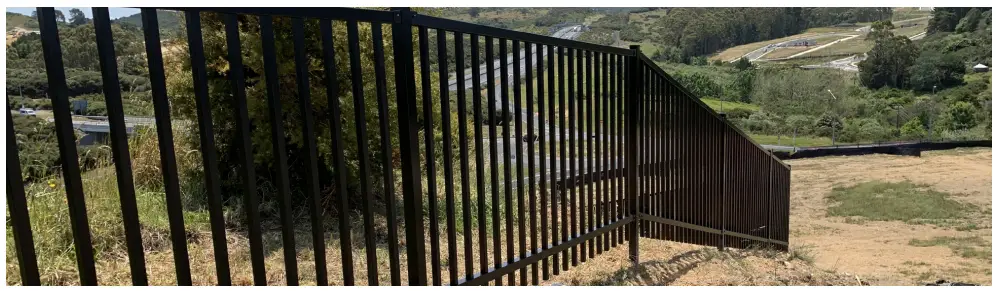

The new FenceLab Mercury Panel ticks all the boxes. It’s a new low-cost aluminium raking panel that is easy to install and won’t ever rust. Three great configurations based around a patented raking mechanism allow the panel to rake up to 30 degrees making this the ultimate versatile fence and balustrade panel.
Chunky 25mm SHS pickets are rigidly fixed to the rails with an innovative and patented mechanism that doesn’t need a large gap in the rail and doesn’t suffer from the popping apart problem that plagues clip-fit type raking panels.

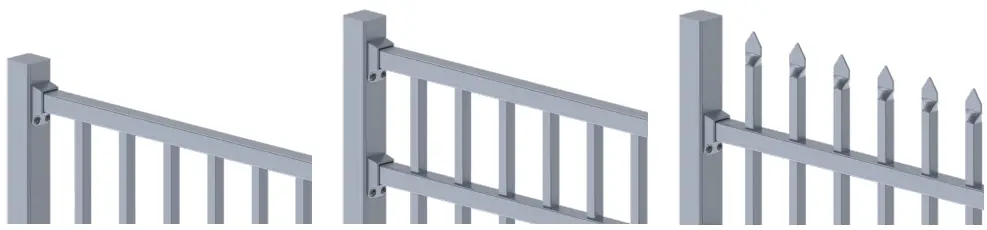

Design Details
- Balustrade and Pool
1.2m high flat top raking aluminium panel. 2.325m wide 2 rail panel with 25mm SHS pickets. Pool compliant to NZS8500. Balustrade compliant sold using 65mm SHS posts to NZS3604. - School
1.5 and 1.8m high flat top raking aluminium fence panel. 2.325m wide 3 rail flat top panels with 25mm SHS pickets. Meet the specifications of Education New Zealand – School Fencing Design Guideline with 65 SHS posts. - Security

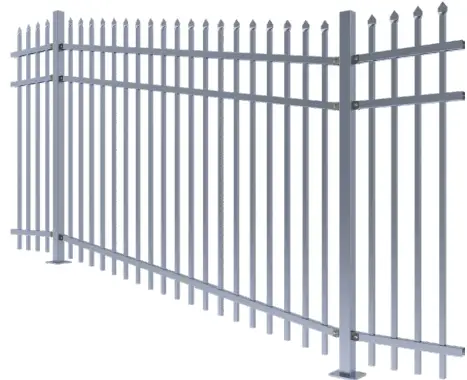

1.8 and 2.1m high spike top raking aluminium fence panel. 2.325m wide 3 rail panels with 25mm SHS pressed spear pickets. Ideal for security fencing across undulating terrain.

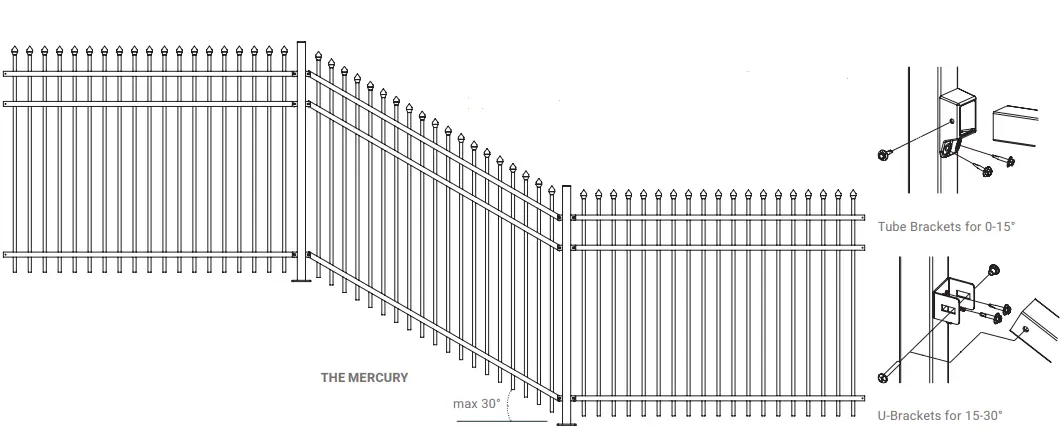

How it works
Reduce total job cost by saving time and complication introduced by stepping of panels.

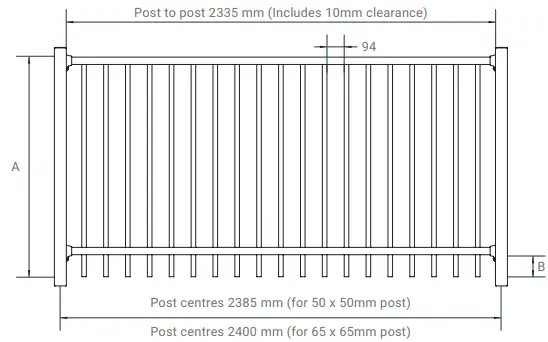

1.0/1.2Mh Flat Top 2 Rail
| Height | A | B |
| 1.0m | 1000mm | 120mm |
| 1.2m | 1200mm | 120mm |

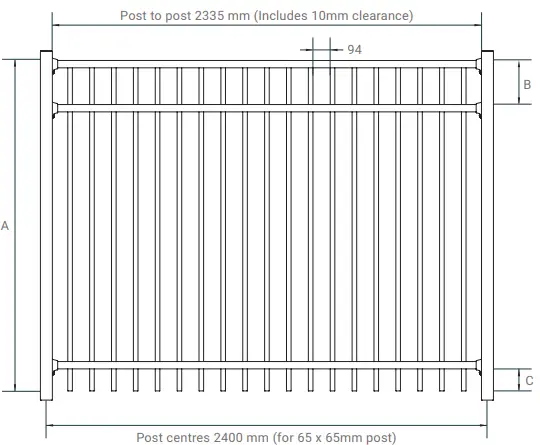

1.5/1.8Mh Flat Top 3 Rail
| Height | A | B | C |
| 1.5m | 1500mm | 240mm | 120mm |
| 1.8m | 1800mm | 240mm | 120mm |

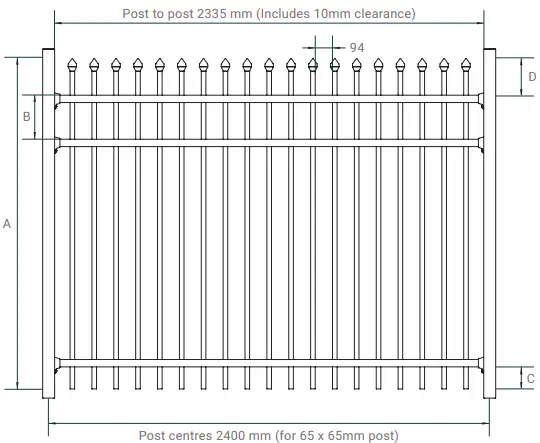

1.8/2.1Mh Spike Top 3 Rail
| Height | A | B | C | D |
| 1.8m | 1800mm | 240mm | 120mm | 180mm |
| 2.1m | 2100mm | 240mm | 120mm | 180mm |
