2connet M930z Wired 1d 2d Qr Handheld Barcode Scanner User Guide

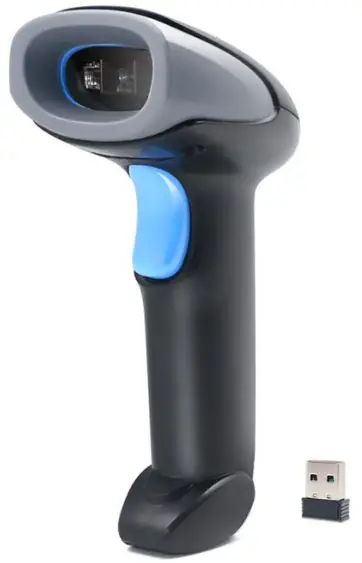

2CONNET M930Z Wired 1D 2D QR Handheld Barcode Scanner

Dear users, thank you for choosing our products. we will provide you with quality products and caring services.

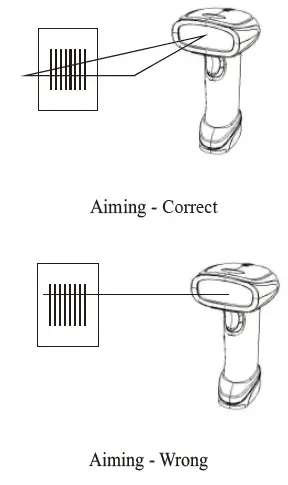

How to use

Maintain a 10-40° bevel angle in the horizontal direction of the scanner and bar code for optimal scanning results.

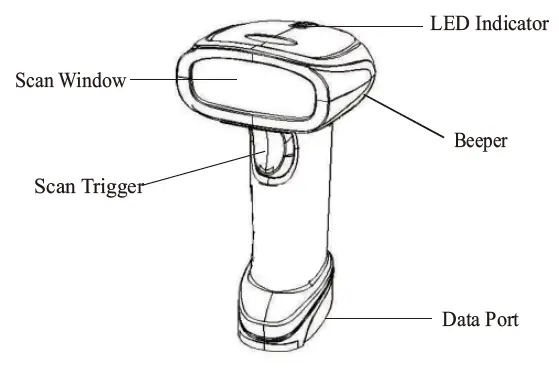

Scanner Features

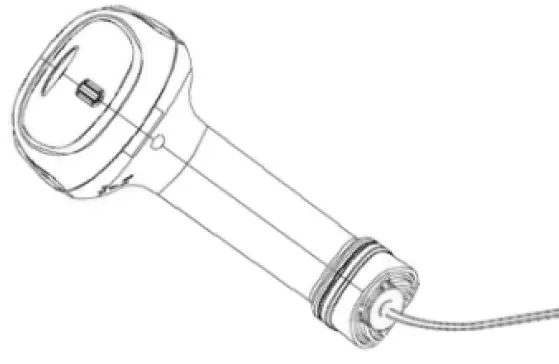

Interface cable’s Installing and Removing

Data cable connection

1. The data cable on the bottom of the scanner is not allowed to be pulled out;
2. Because the data cable is integrated with the scanner interface, the data cable cannot be pulled out.

Packing List

• 1* Scanner.
• 1* Interface Cable.
• 1* Quick Start Guide.

If you need to use the detailed manual, Please contact the bar code scanner vendor.How to use the parameter barcode: scan corresponding bar codes to set up the scanner and the scanner will beep once.

System Setting

1. Reading the “Enable configuration code” barcode enables the barcode scanner to open and configure by reading a specific barcode (configuration code function). After the function is turned on, the parameters of the barcode scanner can be modified by reading one or more configure codes.
2. After reading the “Disable configuration code”, most of the configuration code processing functions will be disabled by the barcode scanner. In this state, only the ” Enable configuration code” code can be read and processed.

Common settings

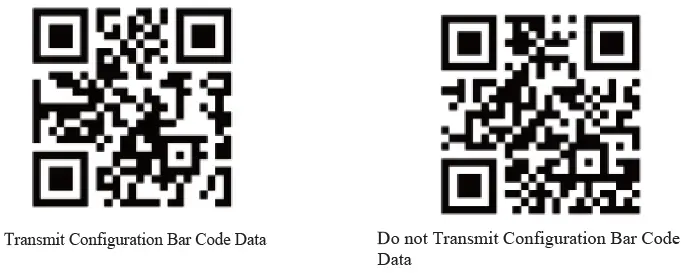

The content of the configuration code can be output. After reading the “output configuration code content” and setting it successfully, the content will be output to the host when reading the configuration code; after reading the “no output configuration code content” and setting successfully, the barcode scanner will no longer output the configuration code content. After the barcode scanner is restarted, no matter what the previous settings are, it will return to the state of “no output of configuration code content”.

Note: please use the “restore factory default” function carefully. After reading this configuration code, you will lose the current parameter setting and replace it with the factory default value.

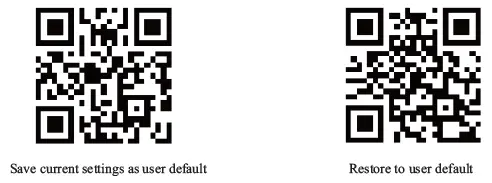

User default settings

1. In addition to the factory default settings, you can save the settings you often use as user default settings.
2. Reading the “save current settings as user default settings” code will save all parameters of the barcode scanner as the user’s default settings. If there is user default configuration information on the barcode scanner, the current configuration information will replace the original user default configuration information after this operation. Reading “restore to user default settings” switches the module to the state of user default settings.

(Note: after restoring the factory default settings, the previously saved user default settings will not be lost.)

Interface setting

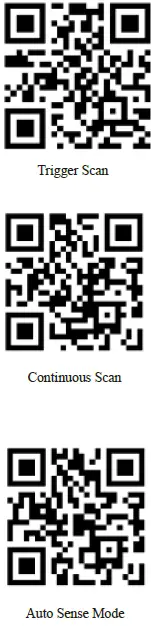

Scan mode

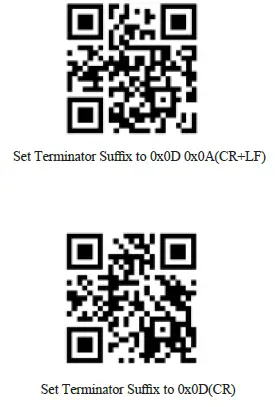

Terminator Suffix

Troubleshooting
