ALBA
ASPIRATORE ELICOIDALE – AXIAL FAN

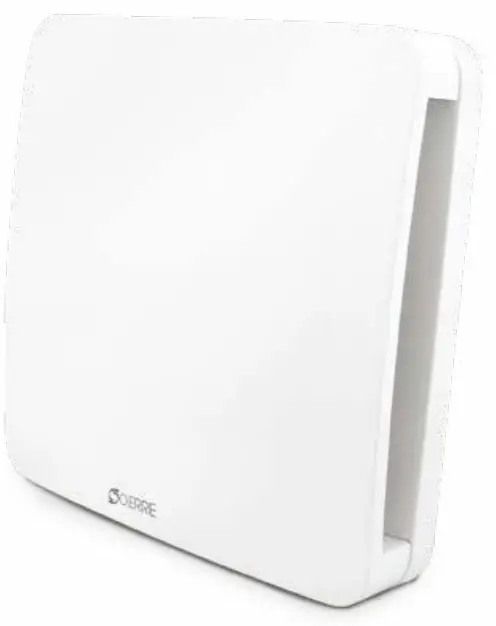

ALBA 10-4 Axial Fan
| MODEL | A | B | C | D | ØE |
| ALBA 10/4” | 160 | 160 | 53 | 40 | 100 |
| ALBA 12/5” | 180 | 180 | 53 | 44 | 120 |
| ALBA 15/6” | 210 | 210 | 66 | 47 | 150 |
Axial fans to extract air directly outside or through short ducting also suitable for glass application with optional glass kit.
- New cover design;
- Operating indicator light on all models;
- Click assembly of the grille and of the cover;
- Axial fans to extract air directly outside or through short ducting;
- Long life ball bearing motor;
- Backdraught shutter;
- Two fixing screws for an easy installation;
- For ducts Ø 100-120-150 mm;
- Versions: Base, Timer, HT;
- High performances, low sound level and low power consumption;
- IPX4 protected (EN 60529);
- 45° C working temperature;
- In accordance with Standard EN 60335-2-80;
- POSITIONING: wall mounting, ceiling mounting.
TECHNICAL DATA
| MODEL | CODE | Ø HOLE (mm) | VOLTAGE (Volt) | FREQUENCY (Hz) |
| ALBA 10/4” | 53110 | 100 | 220-240 | 50 |
| ALBA 10/4” T | 53111 | 100 | 220-240 | 50 |
| ALBA 10/4” HT | 53112 | 100 | 220-240 | 50 |
| ALBA 12/5” | 53210 | 120 | 220-240 | 50 |
| ALBA 12/5” T | 53211 | 120 | 220-240 | 50 |
| ALBA 12/5” HT | 53212 | 120 | 220-240 | 50 |
| ALBA 15/6” | 53310 | 150 | 220-240 | 50 |
| ALBA 15/6” T | 53311 | 150 | 220-240 | 50 |
| ALBA 15/6” HT | 53312 | 150 | 220-240 | 50 |
| FLOW RATE (m 3 /h) | MAX PRESS. (mm H2 O) | MAX PRESS. (Pa) | POWER (W) | NOISE dB(A)3m | WEIGHT (Kg) | |
| CON SERRANDA WITH SHUTTER | SENZA SERRANDA WITHOUT SHUTTER | |||||
| 80 | 95 | 2,8 | 28 | 10 | 34,6 | 0,5 |
| 80 | 95 | 2,8 | 28 | 10 | 34,6 | 0,5 |
| 80 | 95 | 2,8 | 28 | 10 | 34,6 | 0,5 |
| 135 | 150 | 4,6 | 45 | 16 | 37 | 0,7 |
| 135 | 150 | 4,6 | 45 | 16 | 37 | 0,7 |
| 135 | 150 | 4,6 | 45 | 16 | 37 | 0,7 |
| 240 | 260 | 5,9 | 58 | 29 | 41,5 | 0,9 |
| 240 | 260 | 5,9 | 58 | 29 | 41,5 | 0,9 |
| 240 | 260 | 5,9 | 58 | 29 | 41,5 | 0,9 |

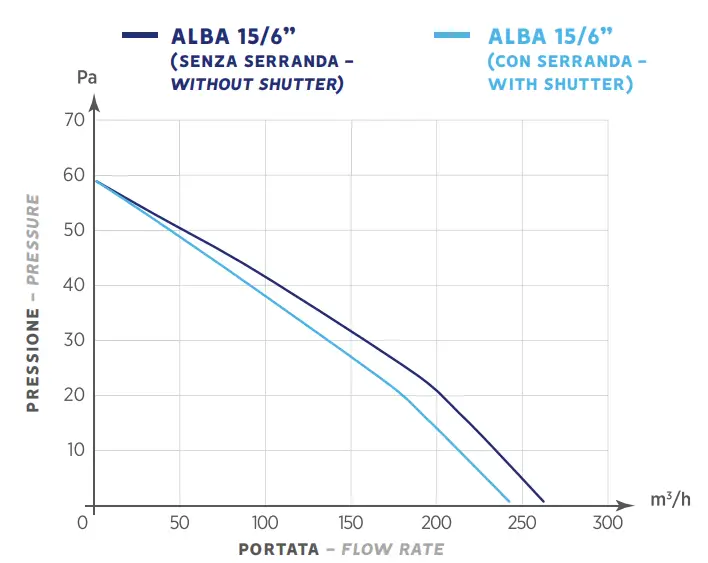

FLOW CHARTS

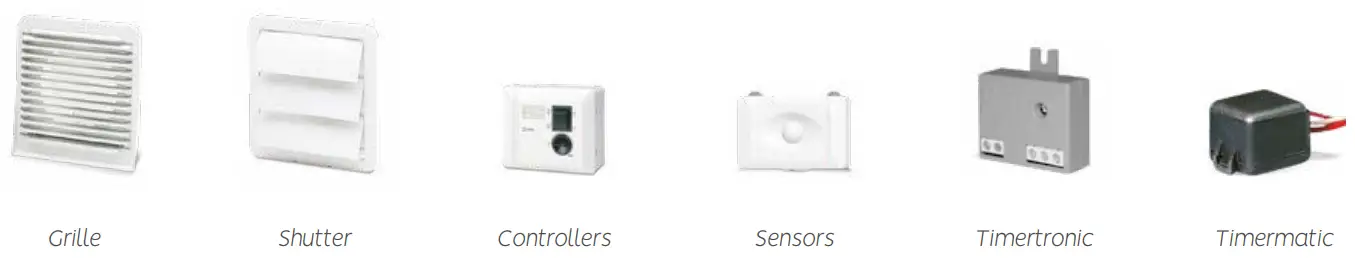

ACCESSORIES (PAGE 70)
