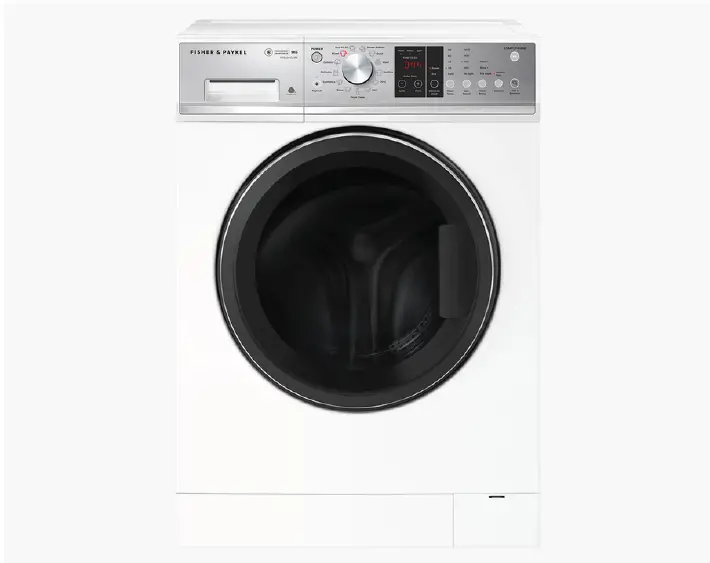

FISHER PAYKEL WM1490P2 9kg Front Loader Washing Machine

With 13 different cycles, this Steam Care front loader has advanced wash functions with SmartDrive™ technology

Refresh, revive, and de-wrinkle garments using the 20-minute Steam Refresh cycle
Save time or maximize energy efficiency and reduce water usage with the Optimise Wash option
Add a Garment function allows you to add items of any size mid cycle
Delivers a quiet, reliable wash with its unique cushion drum design powered by SmartDrive™ technology

DIMENSIONS

Height	850 mm
Width	600 mm
Depth	645 mm

FEATURES & BENEFITS

THE PINNACLE OF FABRIC CARE
With 13 fabric care cycles including Steam Refresh, Quick 30, Bulky and Easy Iron. The specially-designed cushioned drum provides a gentle, effective washing action, protecting clothes while delivering an optimal wash performance.

REFRESH, REVIVE, RESPECT
Bring lightly worn clothes, musty stored garments and even soft furnishings back to life with Steam Refresh. The 20-minute cycle removes odors so clothes can be worn again without the need for a full wash cycle, while steam reduces creases to save you precious time spent ironing.

CUSTOMISE YOUR WASH
Shorten your total wash time with our Speed option, or choose Eco to wash more sustainably. The Quiet mode reduces cycle noise, perfect for late-night washing.

A SMARTER, QUIETER MOTOR
SmartDrive™ technology is a gentle, quiet, and efficient combination of smart electronics and a direct drive motor that senses the load, with less moving parts, to deliver better fabric care.

APPROVED BY WOOLMARK™
Our Wool cycle is an extra gentle warm wash, perfect for machine-washable woolen items. It has a Woolmark™ guarantee so you can wash with confidence, saving time on hand washing.

ADD A GARMENT
Missed an item from your wash? Our Add a Garment function allows you to pause your wash cycle, open the door and add or remove items, then carry on washing.

DESIGNED TO MATCH
The complete package for a beautiful laundry. This washing machine is designed to match the 9kg Heat Pump Condensing Dryer. With outstanding aesthetics and complementary wash and dry cycles, they become the perfect pair to deliver complete fabric care.

SPECIFICATIONS

Capacity

9kg

Annual energy consumption	49 kWh / 100 cycles
Energy rating	A
Water consumption per cycle	44L

Add a garment (immediate	•
Anti-fungal door gasket	•
Auto out of balance correction	•
Automatic water level	•
Cold water inlet	•
Delay start	•
Eco	•
Excess foam detection	•
Flood protection	•
Interior light	•

Keylock	•
Pre Wash	•
Rinse +	•
SmartTouch™ control dial	•
Soak	•
Speed mode	•
Stainless steel drum bowl	•
Time to go	•
Wash +	•
Woolmark certified	•
Wrinkle Free	•

Performance

Load sensing	•
Maximum spin speed	1400rpm
Noise rating (spin)	A
Number of spin speeds	5
SmartDrive™ technology	•
Spin performance	C
Steam refresh	•
Vortex Wash	•

Depth	645 mm
Height	850 mm
Width	600 mm

Parts and labour	5 years
Parts only direct drive motor	10 years

20oC	•
Cottons	•
Delicate	•
Drum Clean	•
Eco 40-60	•
Mixed	•
Number of wash cycles	13
Quick	•
Rinse	•
Sanitise	•
Spin	•
Steam refresh	•
Synthetics	•
Wool	•

TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020 Other product downloads available at fisherpaykel.com
