Fisher Paykel Wm1480p1 Front Loader Washing Machine User Guide

Fisher Paykel Wm1480p1 Front Loader Washing Machine User Guide

FISHER-LOGO

FISHER PAYKEL WM1480P1 Front Loader Washing Machine

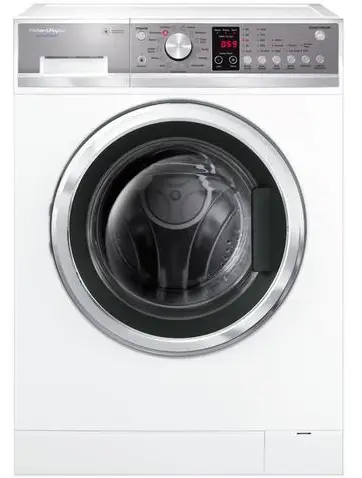

FISHER PAYKEL-WM1480P1-Front-Loader-Washing-Machine-PRODUCT-IMG

This front loader cares for all kinds of fabrics, with a cycle for everything from delicates to bulky items.

  • 14 wash cycles including Allergy, Handwash and a 15 minute Super Quick cycle to cater for busy lives
  • Add a Garment function allows you to add items mid cycle
  • 1400 RPM spin speed means more water is extracted from your wash resulting in a shorter dry cycle

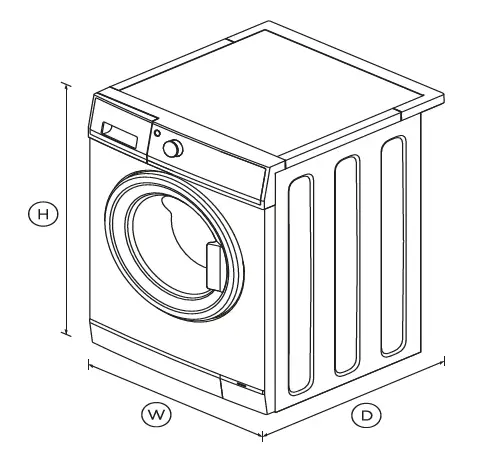

DIMENSIONSFISHER PAYKEL-WM1480P1-Front-Loader-Washing-Machine-FIG-1

  • Height 850mm
  • Width 600mm
  • Depth 570mm

FEATURES & BENEFITS

  • Add a Garment
    Missed an item from your wash? With our Add a Garment function, simply press a button and open the door to add or remove items. Then carry on washing.
  • Quick cycles
    Vortex Wash speeds up the cleaning process so most cycles take less than an hour to complete. During the tumble action, water is forced from the bottom of the drum up through your clothes so detergent and heat reach your fabric faster.
  • Intelligent washing
    Our world-first SmartDrive™ technology uses a motor that constantly provides feedback to a computer which controls the tumble and spin action, resulting in a quicker, quieter and more reliable wash.
  • Quiet performer
    Using a direct drive motor removes the need for belts, pulleys and the traditional block designed to hold down the machine. Without these heavy components, there are less vibrations for a quieter wash.
  • Energy efficient
    Our front loaders can be installed with both hot and cold water inlets allowing for better energy efficiency and quicker wash cycles. Cold water can be heated within the washer or hot water can be drawn directly from your plumbing.
  • Timed dispenser
    A liquid dispenser ensures detergent is distributed at exactly the right time in the cycle to optimize wash performance.
  • Easy to use
    This machine has a cycle to suit every load type including Allergy, Delicate and Handwash. Select a cycle with the easy to use SmartTouch™ control dial.

SPECIFICATIONS

Accessories

  • Stacking kit

Consumption

  • Annual energy consumption 165kWh
  • Annual water consumption 9500L
  • Energy rating B
  • Water consumption per cycle 43L
Features
Add a garment (immediate
Anti-fungal door gasket
Auto out of balance correction
Automatic water level
Choice of cold only or hot and
Delay start
Extra rinse option
Flood protection
Keylock
No spin / Spin Hold
Pre Wash
Progress indicator
SmartTouch™ control dial
Soil levels3
Spin speeds4
Stainless steel drum
Timed liquid detergent
Water supplyHot & Cold
Water temperature controls5
Wrinkle Free
Performance
Maximum spin speed1400 rpm
Noise (spin)68dBA
Noise (wash)50dBA
Number of spin speeds4
Smart Diagnosis of problems
SmartDrive™ technology
  • Spin performance B
  • Vortex Wash

Product dimensions

  • Depth 570mm
  • Height 850mm
  • Width 600mm

Warranty

  • Parts and labour 5 years
  • Parts only SmartDrive™ Motor 10 years

Wash Cycles

  • Allergy •
  • Bulky •
  • Cottons •
  • Customise cycle •
  • Delicate •
  • Drum Clean •
  • Everyday •
  • Handwash •
  • Heavy •
  • Number of wash cycles 14
  • Quick •
  • Rinse •
  • Spin •
  • Super Quick •
  • Synthetics •
  • SKU 98139

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

A PEACE OF MIND SALE 24 Hours 7 Days a Week Customer Support T 08000 886 605 www.fisherpaykel.com
