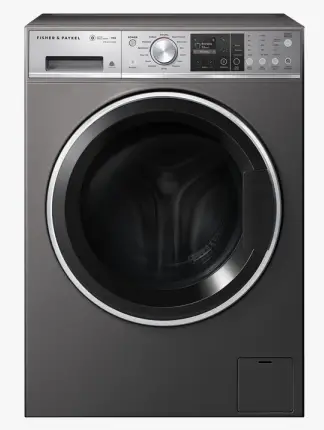

QUICK REFERENCE GUIDE > WH1160FG2
Front Loader Washing
Machine, 11kg,
ActiveIntelligence™, SteamCare
Series 9 | Front Load
Graphite
In a subtle graphite color to match your laundry, this Steam Care front loader has 25 fabric care cycles, with 4.5-star water and energy ratings.
- Refresh, revive, and de-wrinkle garments using the 20-minute Steam Refresh cycle
- ActiveIntelligence™ removes the guesswork by tailoring detergent dose and adjusting wash times to suit each load
- Save time, minimize noise and reduce water usage with Optimize Wash options
- Select from 25 fabric care cycles using an intuitive LCD display
DIMENSIONS
| Height | 850mm |
| Width | 600mm |
| Depth | 675mm |
FEATURES & BENEFITS
The pinnacle of fabric care
Easy to use, the LCD display provides a simple interface to select from 25 fabric care cycles; including Denim, Handwash, and Wool, to deliver optimal wash performance.
Refresh, revive, respect
Bring lightly worn clothes, musty stored garments and even soft furnishings back to life with Steam Refresh. The 20-minute cycle removes odors so clothes can be worn again without the need for a full wash cycle, while steam reduces creases to save you precious time spent ironing.
Health and hygiene
Our Hygiene cycles including Allergy and Sanitise provide extra protection for your clothes. The higher wash temperature and an extra rinse cycle is designed to kill more than 99.9% of bacteria and reduce allergens.
ActiveIntelligence™ auto-sensing
Every wash is unique with ActiveIntelligence™ technology. Intelligent sensors determine load size and soil level before dispensing just the right amount of detergent and adjusting the wash time, for over 1200 possible wash combinations. Available on Cotton, Heavy, every day, Delicate, and Sports cycles.
Less waste with Auto Dose
Prolong the life of your garments with Auto Dose mode. Auto Dose dispenses the exact amount of liquid detergent required based on load size – resulting in less waste, less hassle, and less detergent residue, with the added convenience of not needing to fill the dispenser for every wash.
Customize your wash
Shorten your total wash time with our Speed option, or choose Eco to wash more sustainably. The Quiet mode reduces cycle noise, perfect for late-night washing without waking the house.
Time-saving
When time is short you can select a quick 15-minute wash for freshening up new or lightly soiled garments. In fact, Vortex Wash allows most cycles to take less than one hour to complete. Water is forced from the bottom of the drum, so detergent and heat reach your clothes faster, cleaning quickly and avoiding over-washing.
SPECIFICATIONS
Consumption
| Energy rating | 4.5 star |
| Water rating | 4.5 star (WELS) |
| Water usage (per wash cycle) | 94L |
Features
| Add a garment (immediate | • |
| Adjustable alert beeps | • |
| Anti-fungal door gasket | • |
| Auto out of balance correction | • |
| Automatic water level | • |
| Choice of cold only or hot and | • |
| Delay start | • |
| Detergent dispenser | • |
| Extra rinse option | • |
| Fabric softener dispenser | • |
| Flood protection | • |
| Interior light | • |
| Intuitive LCD screen | • |
| Keylock | • |
| Optimize wash | Speed, Eco, Quiet |
| Pre Wash | • |
| Progress indicator | • |
| Quiet mode | • |
| Regular software updates | • |
| Rinse + | • |
| SmartTouch™ control dial | • |
| Speed mode | • |
| Spin speeds | 5 |
| Stainless steel drum | • |
| Time to go | • |
| Wash + | • |
| Water supply | Hot & Cold |
| Water temperature controls | 5 |
| Wi-Fi capable | • |
| Woolmark certified | • |
| Wrinkle Free | • |
Performance
| ActiveIntelligence™ technology | • |
| Auto-dose | • |
| Maximum spin speed | 1400 rpm |
| Number of spin speeds | 5 |
| Smart Diagnosis of problems | • |
| SmartDrive™ technology | • |
| Spin performance | No Spin, 500, 800, 1100, 1400 |
| Steam refresh | • |
| Vortex Wash | • |
Product dimensions
| Depth | 675mm |
| Height | 850mm |
| Width | 600mm |
Warranty
| Parts and labour | 2 years |
| Parts only SmartDrive™ Motor | 10 years |
Wash Cycles
| Activewear | • |
| Allergy | • |
| Bulky | • |
| Cottons | • |
| Delicate | • |
| Denim | • |
| Drum Clean | • |
| Easy Iron | • |
| Eco | • |
| Everyday | • |
| Favourite | • |
| Handwash | • |
| Heavy | • |
| Number of wash cycles | 25 |
| Quick 15 | • |
| Quick 30 | • |
| Rinse | • |
| Sheets | • |
| Silk | • |
| Sneakers | • |
| Soft toys | • |
| Spin | • |
| Sports | • |
| Steam Refresh | • |
| Synthetics | • |
| Towels | • |
| Wool | • |
| SKU | 93293 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User GuideService & WarrantyInstallation GuidePairing Guide
