WH1160HG1 11kg Front Loader Washing Machine
User Guide
QUICK REFERENCE GUIDE > WH1160HG1
Front Loader Washing Machine, 11kg,
ACTIVE Intelligence™, Steam Care
Series 11 | Front Load Graphite

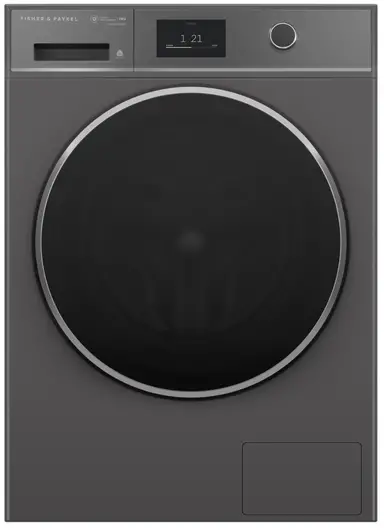

WH1160HG1 11kg Front Loader Washing Machine
Care for every corner of the wardrobe with a connected fabric care ecosystem With 29+ cycles, this Steam Care washer combines with our Heat Pump Dryer and Fabric Care Cabinet to create an ultimate fabric care solution.
- Combine with a Heat Pump Dryer and Fabric Care Cabinet to create an ultimate fabric care ecosystem
- Centralised control – the intuitive touchscreen display can also control a display-free heat pump dryer*
- Refresh, revive and dewrinkle garments using the 20 minute Steam Refresh cycle
- Wi-Fi enabled – connects with the SmartHQ™ app for seamless control

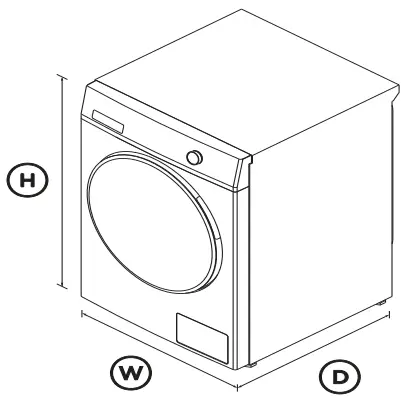

DIMENSIONS
| Height | 850mm |
| Width | 600mm |
| Depth | 675mm |
FEATURES & BENEFITS
ULTIMATE FABRIC CARE SOLUTIONS
Care for every corner of the wardrobe with an ecosystem of fabric care products, including our Front Loader Washing Machine, Heat Pump Dryer, and Fabric Care Cabinet. From precision sensing to autonomous technologies, the fabric care suite removes the guesswork, delivering the perfect balance across each product to ensure optimal care for every garment.
CARE FOR EVERY FABRIC
With 29+ fabric care cycles including Activewear, Denim, Silk and Sanitise. The specially-designed cushioned drum provides a gentle, effective washing action, protecting clothes while delivering an optimal wash performance.
REFRESH, REVIVE, RESPECT
Ideal for lightly-soiled garments, our 20-minute Steam Refresh Cycle leaves clothes fresh, wrinkle free and ready to wear in minutes. By using Steam Refresh, you can save 98% of water compared to a Quick 30 wash cycle.
REMOVE THE GUESSWORK
Every wash is unique with ACTIVE Intelligence™ autosensing. Intelligent sensors determine load size and soil level before automatically dispensing just the right amount of detergent and adjusting the wash time, for over 1200 possible wash combinations. Available on Cotton, Heavy, Mixed, Delicate and Sports cycles.
A CONNECTED SOLUTION
Choose from 29+ fabric care cycles with real-time updates and helpful prompts, thanks to the intuitive touchscreen display and push-to-select dial. Integrate your laundry system to seamlessly program and manage both your washing machine and our display-free heat pump dryer from a single point of control.
5 STAR ENERGY AND WATER
This washing machine uses intelligent sensing, sophisticated wash cycles and an enhances water recirculation system to gently and effectively wash clothes. With a 5 star energy and 5 star water rating, you can clean with confidence.
DESIGNED TO MATCH
Our Steam Care washing machine is designed to match our Heat Pump Dryer and Fabric Care Cabinet, giving you the design freedom to create a cohesive fabric care ecosystem. With multiple configurations from compact to large, this modular solution is designed to work for many spaces within the architecture of the evolving home.
SPECIFICATIONS
| Features | |
| Add a garment (immediate | • |
| Adjustable alert beeps | • |
| Auto out of balance correction | • |
| Automatic water level | • |
| Child/Keylock | • |
| Delay start | • |
| Interior light | • |
| Optimize wash | Quiet, Speed, Eco |
| Pre Wash | • |
| Progress indicator | • |
| Rinse + | • |
| Soak | • |
| Stainless steel drum | • |
| Time to go | • |
| Water supply | Hot & Cold |
| Wi-Fi capable | • |
| Woolmark certified | • |
| Wrinkle Free | • |
| Performance | |
| ACTIVE Intelligence™ technology | • |
| Auto soil sensing | • |
| Auto-dose | • |
| Load sensing | • |
| Smart Drive™ technology | • |
| Steam Care | • |
| Vortex Wash | • |
| Product dimensions | |
| Depth | 675mm |
| Height | 850mm |
| Width | 600mm |
| Wash By Sensing | |
| Cotton | • |
| Delicate | • |
| Heavy | • |
| Mixed | • |
| Number of cycles | 5 |
| Sports | • |
| Wash Cycles | |
| Activewear | • |
| Allergy | • |
| Bulky | • |
| Cottons | • |
| Delicate | • |
| Denim | • |
| Drum Clean | • |
| Easy Iron | • |
| Handwasher | • |
| Heavy | • |
| Mixed | • |
| Quick 15 | • |
| Quick 30 | • |
| Rinse | • |
| Sanitise | • |
| Sheets | • |
| Silk | • |
| Sneakers | • |
| Soft toys | • |
| Spin | • |
| Sports | • |
| Steam Refresh | • |
| Synthetics | • |
| Towels | • |
| Wool | • |
| SKU | 92297 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
