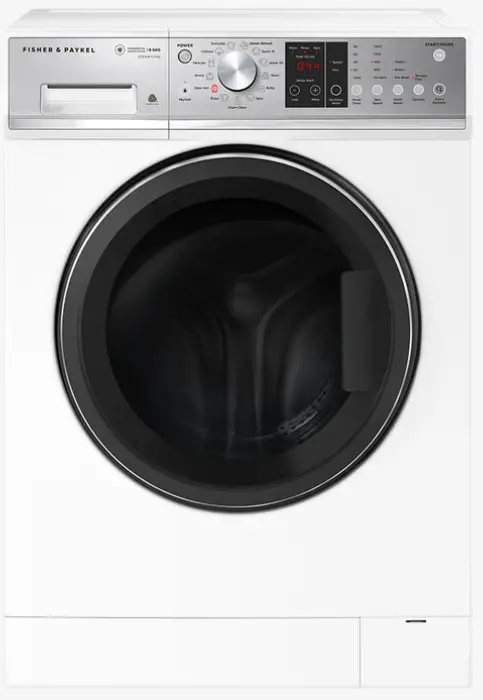

WH8560P3 5kg Front Loader Washing Machine
User Guide
WH8560P3 5kg Front Loader Washing Machine
Series 5 Front Load White
This Fisher & Paykel 8.5kg washing machine has 13 different fabric care cycles to cater for every type of load.
- Reduce odours, refresh and de-wrinkle clothes with no need for a full wash cycle, using Steam Refresh
- Save time or maximise energy efficiency and reduce water usage with the Optimise Wash option
- Quickly and easily add or remove any item from the machine during the wash cycle with the Add a Garment function
- Delivers a quiet, reliable wash with its unique cushion drum design powered by SmartDrive™ technology
DIMENSIONS
| Height | 850 mm |
| Width | 600 mm |
| Depth | 645 mm |
FEATURES & BENEFITS
13 Fabric care cycles
13 fabric care cycles including Steam Refresh, Quick 30, Bulky and Easy Iron. A gentle, effective wash action protects clothes while delivering an optimal wash performance.
Quick steam refresh
Steam Refresh is perfect for occasions where clothes have been worn once and need freshening up. The 20 minute cycle will reduce odours and de-wrinkle clothes, making them ready to wear again without the need for a full wash cycle.
Customise your wash
Select “Speed” to shorten wash and rinse times or choose “Eco” to wash more sustainably with lower temperatures and less water usage.
A smarter, quieter motor
SmartDrive™ Technology is a gentle, quiet, and efficient combination of smart electronics and a direct drive motor that senses the load to deliver better fabric care.
Approved by Woolmark™
Our Wool cycle is an extra gentle warm wash, perfect for machine washable woollen items. It has a Woolmark™ guarantee so you can wash with confidence, saving time on hand washing.
Add a Garment
The Add a Garment feature allows you to quickly add or remove any size garment mid cycle. Simply press the Add a Garment button and the door will unlock. If the drum water is too high, just enough will be drained out before the door is unlocked.
Designed to Match
The complete package for a beautiful laundry. The 8.5kg washing machine is designed to match our 8kg Heat Pump Condensing Dryer or the 8kg Condensing Dryer. With outstanding aesthetics and complimentary wash and dry cycles, they become the perfect pair to deliver complete fabric care.
SPECIFICATIONS
Capacity
| Capacity | 8.5kg |
Consumption
| Energy rating | 4.5 stars |
| Water star rating | 4.5 stars |
| Water usage (per wash cycle) | 73 litres per wash |
Features
| Add a garment (immediate | • |
| Anti-fungal door gasket | • |
| Auto out of balance correction | • |
| Automatic water level | • |
| Cold water inlet | • |
| Customise cycle | • |
| Delay start | • |
| Eco | • |
| Excess foam detection | • |
| Extra rinse option | • |
| Flood protection | • |
| Interior light | • |
| Keylock | • |
| Optimise wash (Speed and | • |
| Pre Wash | • |
| Rinse + | • |
| SmartTouch™ control dial | • |
| Spin speeds | No Spin, 500, 800, 1100, 1400 |
| Stainless steel drum bowl | • |
| Time to go | • |
| Wash + | • |
| Water temperature controls | 5 |
| Woolmark certified | • |
| Wrinkle Free | • |
Performance
| Load sensing | • |
| Maximum spin speed | 1400rpm |
| Number of spin speeds | 5 |
| SmartDrive™ technology | • |
| Steam refresh | • |
| Vortex Wash | • |
| Wash profiles | 13 |
Product dimensions
| Depth | 645 mm |
| Height | 850 mm |
| Width | 600 mm |
Warranty
| Parts and labour | 2 years |
| Parts only direct drive motor | 10 years |
Wash Cycles
| Bulky | • |
| Cottons | • |
| Delicate | • |
| Drum Clean | • |
| Easy Iron | • |
| Everyday | • |
| Heavy | • |
| Number of wash cycles | 13 |
| Quick | • |
| Quick 30 | • |
| Rinse | • |
| Spin | • |
| Steam refresh | • |
| Super Quick | • |
| Wool | • |
| SKU | 92288 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
