Wireless expansion
ER3000-RF
Instruction Manual

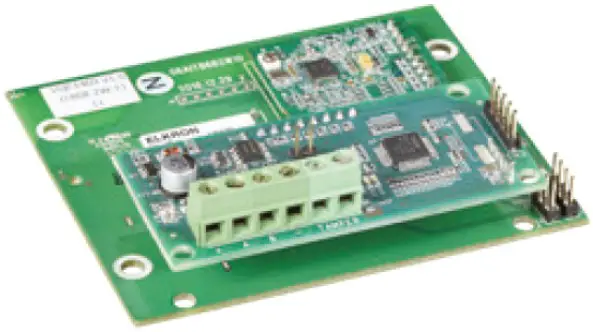

ER3000-RF Bus Radio Expansion Card
Complete manual
http://qrcode.urmet.com/default.aspx?sito=Elkron&prodElkron=146498&lingua=it
LEGEND

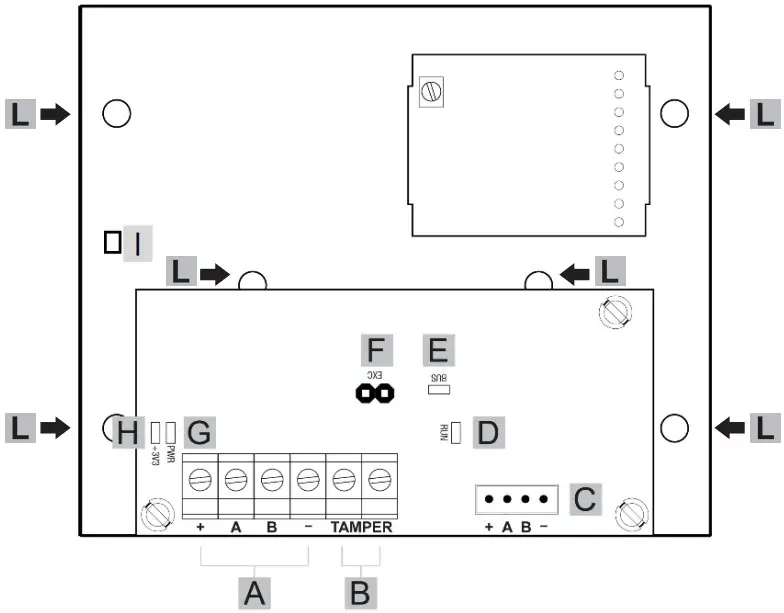

| • LEGEND | ||
| A | + | • Power positive (13,8 V ) |
| A / B | • BUS Data transmission/reception NB | |
| – | • Power negative (Gnd) | |
| B | TAMPER | • Tamper input |
| C | + A B – | • BUS connection via cable to connectors |
| D | RUN | • Wireless board communication LED |
| E | BUS | • BUS interface LED |
| F | EXC | • Expansion module tamper bypass (jumper inserted = tamper bypassed) |
| G | PWR | • BUS power present LED (+13,8 V) |
| H | +3V3 | • Logic power present LED (+3,3 V) |
| I | • Radio module operation signaling LED | |
| L | • Holes for fixing in generic boxes | |
| SYMBOL KEY | |
| Direct current power voltage | |
  | See the installation manual of the device |
● Possible housings inside the control unit
| • TECHNICAL FEATURES | ||
| • Nominal supply voltage | 13.8 V | |
| • Operating voltage | 10 + 14,5 V | |
| • Consumption | 58 mA (13,8 V) | |
| •Manageable RF devices | • Detectors | 28 max |
| • Sirens | 4 max | |
| • Keypads | 4 max | |
| •Remote controls | 8 max | |
| • Dimensions (L x A x P) | 89 x 75 x 26 mm | |
| • Maximum bus length | 2×0,75 mm2+ 2×0,22mm2 | 500 m |
| • Communication technology | •Bidirectional radio frequency | |
| • Radio communication mode | FSK | |
| • Output power (max) | 10 dBm ERP | |
| • Operating frequency | 868.6-868.7 MHz | |
| • Number of radio channels | 1 | |
| • Receiver category | 2 | |
This document contains only essential information about the product. Refer to the manuals of the MP3000 panel for more information.
GENERAL DESCRIPTION
The ER3000-RF is an expansion module that can be used to add 868 MHz Elkton wireless devices to the system. The module is connected to the control panel via BUS
ASSEMBLY

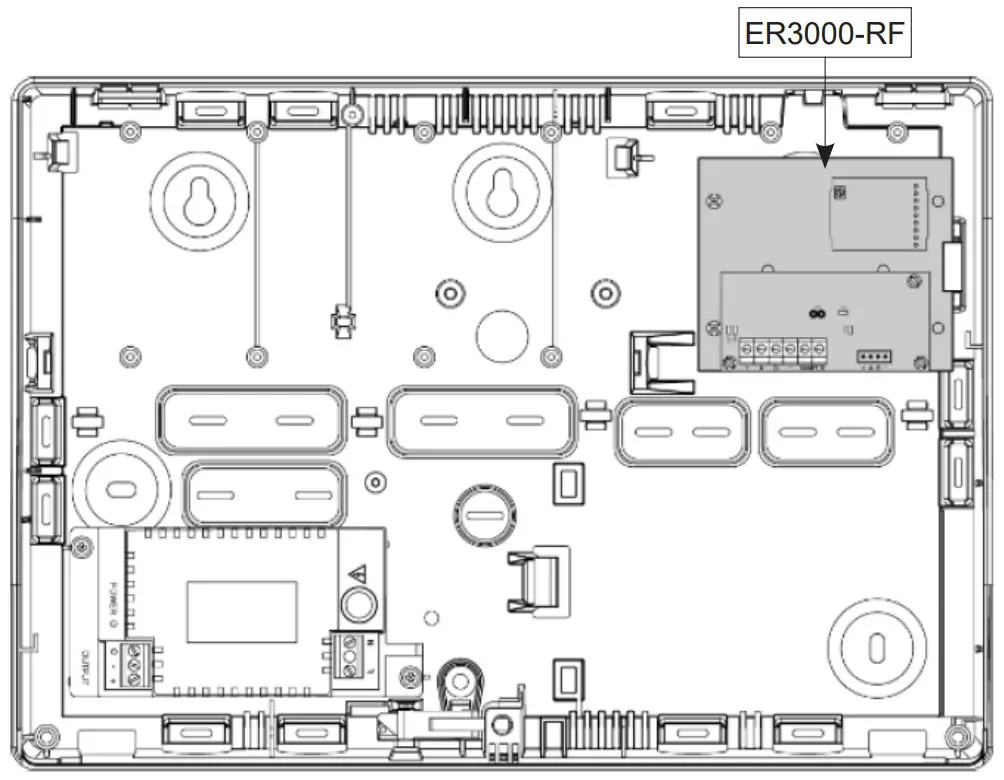

The expansion module can be fitted inside the control panel or in CP/EXP wall boxes, with the tamper switch connected to the TAMPER input. It can be installed inside distribution boxes or similar containers, adequately protected by tamper-proof devices.
The module is a wireless transceiver and the expansion module must be installed adopting all the typical installation precautions of devices of this type. Position the expansion module in a low-traffic, indoor location, not subject to excessive temperature fluctuations and protected by the intrusion alarm system and away from strong electromagnetic fields.
BUS CONNECTION
The expansion module can be connected on the bus in cascade, in either star or mixed mode. The position along the bus is irrelevant.
The total length of the bus must not exceed 500 meters (cable cross-section area 2×0.75 mm²
power + 2×0.22 mm² data). Connect the expansion module to the bus, using terminals +, A, B and ─.
If the expansion is mounted in the control panel, the bus connection can also be made with the special cable (included) connected to the dedicated connector (see item C in the figure).
EXPANSION MODULE ACQUISITION
Acquisition is carried out automatically using the peripheral device search function of the control panel. See the MP3000 control panel programming manual for more details.
SIMPLIFIED EU DECLARATION OF CONFORMITY
The manufacturer, Unmet S.p.A., hereby declares that the wireless device: RF 868MHz wireless expansion module Mod. ER3000-RF complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available at the following link: www.elkron.com
