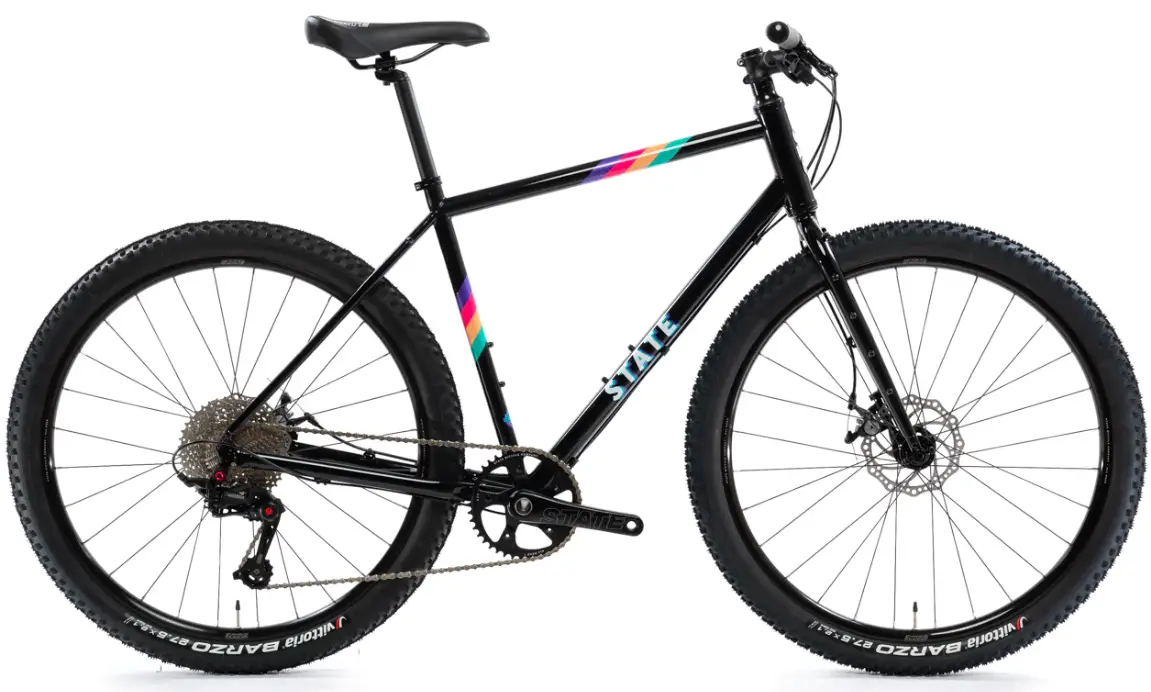

STATE BICYCLE 4130 All Road Flat Bars
Product Information
4130 All Road
SIZING AND SPECS
LAST UPDATED: MAY 9, 2023
PAGE 1
| Component | Specification |
|---|---|
| Threaded 68mm bottom bracket | |
| State Bicycle Co. All-Road Hydraulic Disc Brakes (mineral oil based) w/ 160mm Rotors (6-Bolt) | |
| SBC 11-42T 11-Speed w/ SBC All-Road 1 Shifters | |
| YBN 11-Speed | |
| SBC All-Road 1 Forged 7075 Al XS/S: 165mm M:170mm L:175mm | |
| 4130 Chromoly Steel | |
| Sealed-Bearing Thru Axle F: 12×100 R: 12×142 6-Bolt | |
| State All-Road Saddle Polyurethane w/ Steel Rails | |
| Alloy 27.2mm, 350mm length | |
| Alloy 3D Forged 31.8mm Clamp Length:60mm | |
| 700c: Vittoria Terreno Zero 38c (Tubeless) 650b: Vittoria Barzo 2.1 | |
| 700c or 650b Aluminum Rim Depth: 24mm Width: 19mm int., 25mm ext. |
Product Usage Instructions
- Make sure the threaded 68mm bottom bracket is properly installed.
- Ensure the State Bicycle Co. All-Road Hydraulic Disc Brakes with mineral oil-based fluid are properly connected and aligned with the 160mm rotors (6-Bolt).
- Use the SBC 11-42T 11-Speed cassette and SBC All-Road 1 shifters for smooth gear shifting.
- Ensure the YBN 11-Speed chain is properly installed and lubricated.
- Adjust the SBC All-Road 1 Forged 7075 Al crankset according to the frame size: XS/S: 165mm, M:170mm, L:175mm.
- Ride on the sturdy and durable 4130 Chromoly Steel frame.
- Make sure the sealed-bearing thru axle is properly installed on the front (F: 12×100) and rear (R: 12×142) with a 6-Bolt connection.
- Enjoy the comfort of the State All-Road Saddle made of polyurethane with steel rails.
- Adjust the seat post clamp to fit the 27.2mm diameter seat post.
- Install the Alloy 3D Forged 31.8mm clamp handlebars with a length of 60mm.
- Choose between 700c or 650b wheels and install the appropriate Vittoria tires (700c: Terreno Zero 38c Tubeless, 650b: Barzo 2.1).
- Ensure the aluminum rims have a depth of 24mm and a width of 19mm internally and 25mm externally.
RISER BAR VERSION – 2023
COMPONENTS
| 1 BB | Threaded 68mm bottom bracket |
| 2 Brakes | State Bicycle Co. All-Road Hydraulic Disc Brakes (mineral oil based) w/ 160mm Rotors (6-Bolt) |
| 3 Cassette | SBC 11-42T 11-Speed w/ SBC All-Road 1 Shifters |
| 4 Chain | YBN 11-Speed |
| 5 Crankset | SBC All-Road 1 Forged 7075 Al XS/S: 165mm M:170mm L:175mm |
| 6 Fork | 4130 Chromoly Steel 1¹/8” threadless steerer |
| 7 Frame | 4130 Chromoly Steel |
| 8 Handlebars | SBC 6061BL Riser Bars, Aluminum 18° Flare, W500/420mm, 31.8mm Shifter: SBC All-Road 1 – 11spd Trigger |
| 9 Headset | FSA ZS-4D 1¹/8” Threadless |
| 10 Hubs | Sealed-Bearing Thru Axle F: 12×100 R: 12×142 6-Bolt |
| 11 Saddle | State All-Road Saddle Polyurethane w/ Steel Rails |
| 12 Seatpost | Alloy 27.2mm, 350mm length |
| 13 Stem | Alloy 3D Forged 31.8mm Clamp Length:60mm |
| 14 Tires | 700c: Vittoria Terreno Zero 38c (Tubeless) 650b: Vittoria Barzo 2.1” |
| 15 Wheels | 700c or 650b Aluminum Rim Depth: 24mm Width: 19mm int., 25mm ext. |

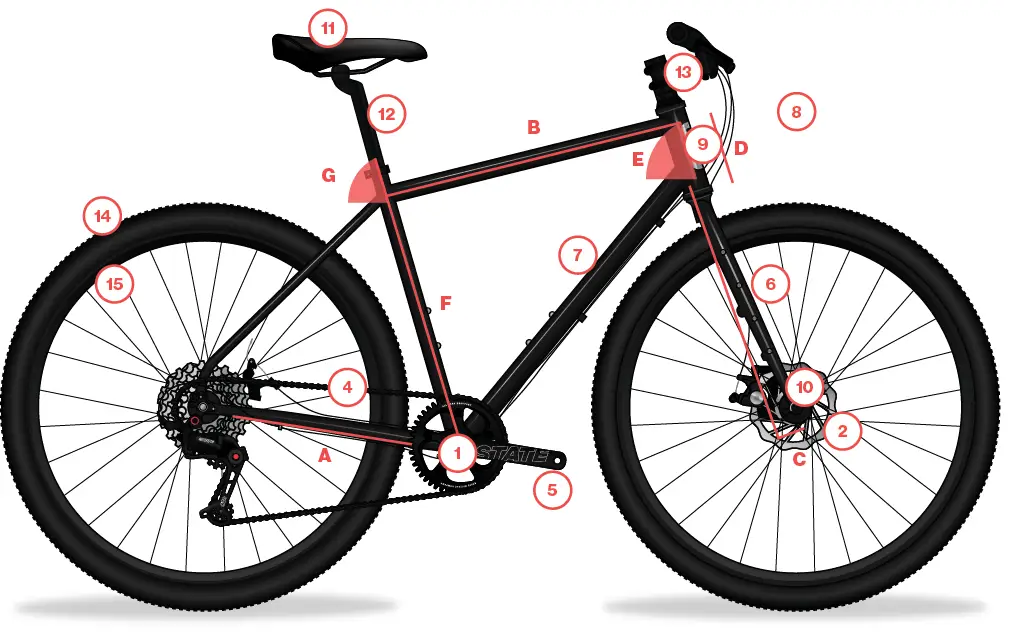

BICYCLE SIZING AND GEOMETRY
| A | B | C | D | E | F | G | |||
| INSEAM (IN.) | HEIGHT (IN.) | FRAME SIZE (CM) | CHAIN STAY (CM) | EFFECTIVE TOP TUBE (CM) | FORK OFFSET (CM) | HEAD TUBE (CM) | HEAD TUBE ANGLE | SEAT TUBE (CM) | SEAT TUBE ANGLE |
| 28”–30” | 5’1”–5’6” | 43 (XS) | 45 | 51 | 5 | 12.5 | 70.5° | 43 | 75° |
| 31”–32” | 5’5”–5’10” | 47 (S) | 45 | 53.5 | 5 | 14.5 | 71° | 47 | 74.5° |
| 32–33” | 5’9”–6’2” | 51 (M) | 45 | 55 | 5 | 16.5 | 71.5° | 51 | 73.5° |
| 33”–34” | 6’1”–6’5” | 55 (L) | 45 | 57.5 | 5 | 18.5 | 71.5° | 55 | 73° |
DETAILED SIZING AND SPEC GUIDE
| XS | S | M | L | ||
| HEIGHT RECOMMENDATIONS | 5’1” to 5’6” | 5’5” to 5’10” | 5’9” to 6’2” | 6’1” to 6’5” | |
| ACTUAL TOP TUBE LENGTH | 496mm | 517.3mm | 528.9mm | 553.1mm | |
| BB DROP | 75mm | 75mm | 75mm | 75mm | |
| BB HEIGHT | 268mm | 268mm | 268mm | 268mm | |
| CHAIN STAY LENGTH | 450mm | 450mm | 450mm | 450mm | |
| COMPLETE BIKE WEIGHT (650) | 27lbs 5oz | 27lbs 6oz | 27lbs 12oz | 27lbs 14oz | *no pedals |
| COMPLETE BIKE WEIGHT (700) | 25lbs 15oz | 26lbs 0oz | 26lbs 6oz | 26lbs 8oz | *no pedals |
| CRANK ARM LENGTH | 165mm | 165mm | 170mm | 175mm | |
| EFFECTIVE TOP TUBE LENGTH | 510mm | 535mm | 550mm | 575mm | |
| FORK LENGTH | 405mm | 405mm | 405mm | 405mm | |
| FORK OFFSET | 50mm | 50mm | 50mm | 50mm | |
| HEAD TUBE ANGLE | 70.50 | 71.00 | 71.50 | 71.50 | |
| HEAD TUBE LENGTH | 125.00 | 145mm | 165mm | 185mm | |
| REACH | 359.8mm | 373.7mm | 371.5mm | 385mm | |
| SEAT TUBE | 430mm | 470mm | 510mm | 550mm | |
| SEAT TUBE ANGLE | 75.00 | 74.50 | 73.50 | 73.00 | |
| STACK | 560.7mm | 581.6mm | 602.5mm | 621.5mm | |
| STANDOVER HEIGHT (700 / 650) | 743mm / 735mm | 772mm / 764mm | 798mm / 790mm | 827mm / 819 mm | |
| WHEEL BASE | 997.1mm | 1013.1mm | 1054.1mm | 1062.9mm | |
DETAILED SIZING AND SPEC GUIDE
BRAKES
State Bicycle Co. All-Road Hydrau-lic Disc Brakes (mineral oil based) w/ 160mm Rotors (6-Bolt)
CRANK
State Bicycle Co. All-Road 1
Forged 7075 Aluminum
Crank Arm Length:
XS & Small – 165mm
Medium – 170mm
Large – 175mm
FORK
4130 Chromoly Steel
1¹/8” threadless steerer
FRAME
4130 Chromoly Steel
HANDLEBARS
State Bicycle Co. – All Road Drop Bars Aluminum 18 DEGREE
W500/420MM
OS31.8 Stem Black
Riser Version: State Bicycle Co. – 6061 Black Label Riser Bars
HEADSET
FSA ZS-4D 1¹/8” threadless
HUBS
Sealed Bearing
Front: 12*100 THRU-AXLE
Rear: 12*142 THRU-AXLE
6- Bolt
MISC
Tire Clearance Frame (650 / 700) : 53c / 45c M12 Thread Pitch
Tire Clearance Rim (650 / 700): 47-53c / 28-52c
PEDALS
Platform Pedal
SADDLE
State All-Road
Polyurethane
Steel Rails
SEAT POST CLAMP
Aluminum
Diameter: 29.5mm
SHIFTER/RD
State Bicycle Co. All-Road 1 1×11
Rear Derailleur Version 2.0 with internally adjustable clutch
(Trigger on Riser Version)
SPOKES
14G Stainless Steel
STEM
Alloy 3D Forged
Clamp Diameter: 31.8mm
Length: XS/S: 90mm, M: 100mm, L: 110mm Riser Version: 60mm
Rise: +/- 7 degree
THRU-AXLE
M12 Thread Pitch
125mm front / 162mm rear
TIRES
700c: Vittoria Terreno Zero 38c (Tubeless) 650b: Vittoria Barzo 2.1”
WHEELS
Aluminum Wheel Set (650b / 700c)
Rim Depth: 24mm
Rim Width: 19mm (internal) / 24mm (external)
TUBELESS CAPABLE 28H DOUBLE WALL
PARTS WEIGHTS
Bars 15.1 oz / 429g
BB 3.7oz / 105g
Crank 1lb 13oz / 839g
Pedals 470g
Saddle 11.6oz / 328g
Wheels 650 Front: 1lb 14oz / Back: 2lbs 8oz
Wheels 700 Front: 2lb / Back: 2lb 9oz
Frame Set Weights (all sizes)
Size Frame Fork
XS 5lb 4oz 2lb 13oz
S 5lb 5oz 2lb 13oz
M 5lb 10oz 2lb 14oz
L 5lb 12oz 2lb 14oz
