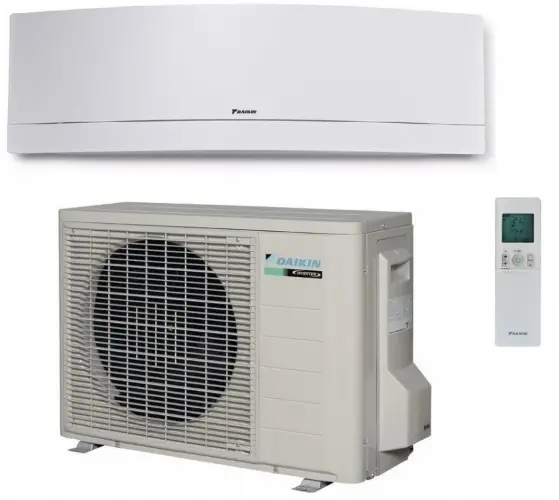

Daikin Quaternity Series Mini-Splits User Manual
EXPERTISE AND INNOVATION
Daikin’s Quaternity system incorporates technological innovations that deliver features and benefits superior to traditional mini‐split systems. Equipped with built‐in intelligence and extensive features in a high-efficiency system, Quaternity provides a comfortable and refreshing indoor environment with advanced filtration and climate control. All Quaternity systems qualify for the Energy Tax Extenders of The American Taxpayers Relief Act of 2012.
ENERGY EFFICIENCY
Integrated with an inverter “variable speed” compressor, systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by 30% compared to traditional fixed speed systems. This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort with maximum energy savings.
INDIVIDUAL COMFORT CONTROL
Individual temperature control provides comfort for the entire space. With effective cooling and heating coverage at quiet operating sounds as low as 26 dBA for indoor units and 46 dBA for outdoor units, these systems combine superior comfort control with lifestyle convenience all at the touch of a button.
BUILT‐IN RELIABILITY
All major components are engineered and manufactured by Daikin, ensuring maximum performance, reliability, and efficiency. The standard warranty provides a solid level of protection on the Quaternity system. Systems installed by an authorized Daikin Dealer who has completed Daikin’s advanced training can take advantage of Warranty Plus –the best warranty in the industry. Find a Daikin Dealer near you at www.daikinac.com.
ADVANCED FEATURES

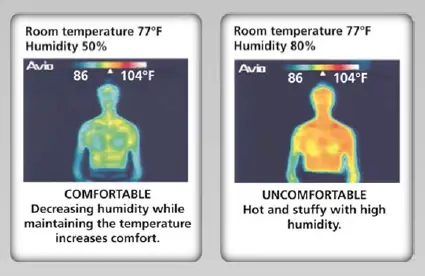

Feel the Difference
Utilizing intelligent indoor heat exchanger technology, dehumidification can be achieved by maintaining room temperature and controlling humidity in a relative setting. Whether dehumidifying is needed on a hot summer day or a warm rainy night, Quaternity can provide a refreshingly cool experience while maintaining year-round comfort.
Breathe the Difference

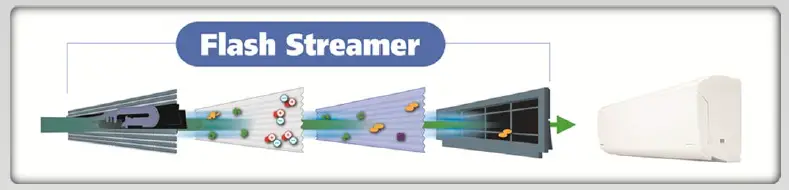

Equipped with multistage filtration and flash streamer air purification, this advanced system can purify 1,000 times faster than conventional plasma-type systems. Discharging high energy electrons from the streamer unit, allergens, odors, and unwanted chemicals are analyzed, decomposed, and removed from the air in a timely manner—creating cleaner air.
FEATURES
LEADING TECHNICAL PERFORMANCE
| Quaternity Premium Efficiency System Performance | |||||
| Indoor Model | FTXG09HVJU | FTXG12HVJU | FTXG15HVJU | ||
| Outdoor Model | RXG09HVJU | RXG12HVJU | RXG15HVJU | ||
| Cooling Capacity (Rated) | Btu/h | 9,000 | 12,000 | 15,000 | |
| Cooling Capacity (Min – Max) | Btu/h | 5,300 – 12,300 | 5,300 – 15,700 | 5,300 – 18,000 | |
| Heating Capacity (Rated) | Btu/h | 12,000 | 16,000 | 18,000 | |
| Heating Capacity (Min – Max) | Btu/h | 4,400 – 18,000 | 4,400 – 19,100 | 4,400 – 21,200 | |
| SEER | 26.1 | 24.2 | 21.0 | ||
| EER | 15.8 | 14.0 | 12.9 | ||
| HSPF | 11.0 | 10.6 | 10.0 | ||
| Power Supply | Single phase 60Hz 208/230V | ||||
| Minimum Circuit Amps | A | 14.5 | 14.5 | 14.5 | |
| Maximum Overcurrent Protection | A | 15.0 | 15.0 | 15.0 | |
| Power Consumption – Cooling | W | 250 – 900 | 260 – 1,300 | 260 – 1,930 | |
| Power Consumption – Heating | W | 220 – 1,900 | 220 – 2,100 | 230 – 2,120 | |
| Operating Current – Cooling | A | 3.1 | 4.3 | 5.64 | |
| Operating Current – Heating | A | 4.04 | 5.64 | 6.36 | |
| Indoor Units – FTXG_HVJU Wall Mounted Units | |||||
| Model Name | FTXG09HVJU | FTXG12HVJU | FTXG15HVJU | ||
| Moisture Removal | gal/h | 3.3 | 4.1 | 4.8 | |
| Airflow-Wet (H/M/L) | CFM | 420/325/230 | 459/346/240 | 487/371/258 | |
| Airflow-Dry (H/M/L) | CFM | 438/346/258 | 470/367/272 | 494/392/293 | |
| Sound Pressure – Cooling (H/M/L) | dB(A) | 42/33/26 | 43/35/27 | 45/37/29 | |
| Sound Pressure – Heating (H/M/L) | dB(A) | 42/35/28 | 43/36/29 | 44/38/31 | |
| Piping Connections | Liquid (O.D.) | in. | Ø 1/4 | Ø 1/4 | Ø 1/4 |
| Gas (O.D.) | in. | Ø 3/8 | Ø 3/8 | Ø 3/8 | |
| Condensate Drain | in. | Ø 11/16 | Ø 11/16 | Ø 11/16 | |
| Dimensions (H x W x D) | in. | 12 x 35-1/32 x 8-7/32 | |||
| Outdoor Units – RXG_HVJU Heat Pump | |||||
| Model Name | RXG09HVJU | RXG12HVJU | RXG15HVJU | ||
| Sound Pressure Level – Cooling/Heating | dB(A) | 46/46 | 49/48 | 50/50 | |
| Operating Range – Cooling | °F DB | 14 – 109 | 14 – 109 | 14 – 109 | |
| Operating Range – Heating | °F DB | -4 – 75 | -4 – 75 | -4 – 75 | |
| Max. Piping Length | ft. | 32 | 32 | 32 | |
| Max. Piping Height | ft. | 26 | 26 | 26 | |
| Dimensions (H x W x D) | in. | 22-3/8 x 31-9/32 x 11-7/32 | |||
| Net Weight | lbs. | 99 | 99 | 99 | |
TIME-SAVING INSTALLATION AND EASE
Connected by a pair of refrigerant lines, few electrical connections, and little to no ductwork, indoor and outdoor units can be easily installed in existing spaces with minor disruption and often in a single day’s work. The compact and lightweight designs combined with flexible piping and minimal wiring allow installation with minimal time and costs.
For FTXG09/12/15HVJU, RXG09/12/15HVJU

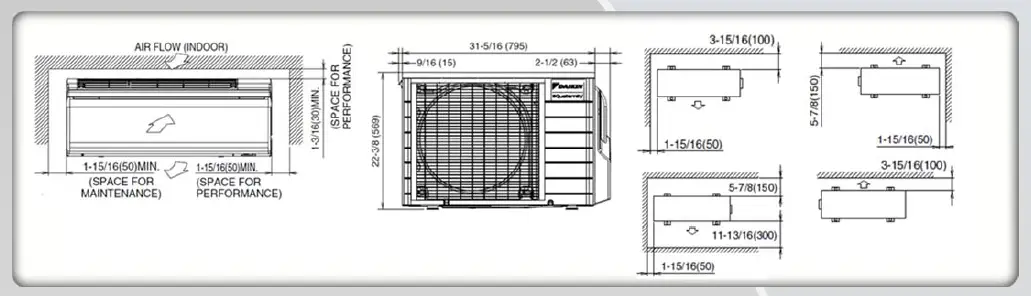

Space required for installation (in.)
Wall height on air outlet side = Less than 47-1/4”
Residential
- Quaternity Series Mini-Splits
- Product Flyer 2013/8
- 0.75 to 1.5 TON
WARNINGS:
- Always use a licensed installer or contractor to install this product. Do not try to install the product yourself. Improper installation can result in water or refrigerant leakage, electrical shock, fire, or explosion.
- Use only those parts and accessories supplied or specified by Daikin. Ask a licensed contractor to install those parts and accessories. Use of unauthorized parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire, or explosion.
- Read the User’s Manual carefully before using this product. The User’s Manual provides important safety instructions and warnings. Be sure to follow these instructions and warnings.
For any inquiries, contact your local Daikin sales office.
Use of the AHRI Certified™ mark indicates a manufacturer’s participation in the certification program. For verification of certification for individual products, go to www.ahridirectory.orgDaikin, Absolute Comfort, and its design, VRV, REFNET, Quaternity, and Daikin Altherma are trademarks of Daikin Industries, LTD.
