Minn Kota Mkr-21 On-board Charger Power Port Installation Guide

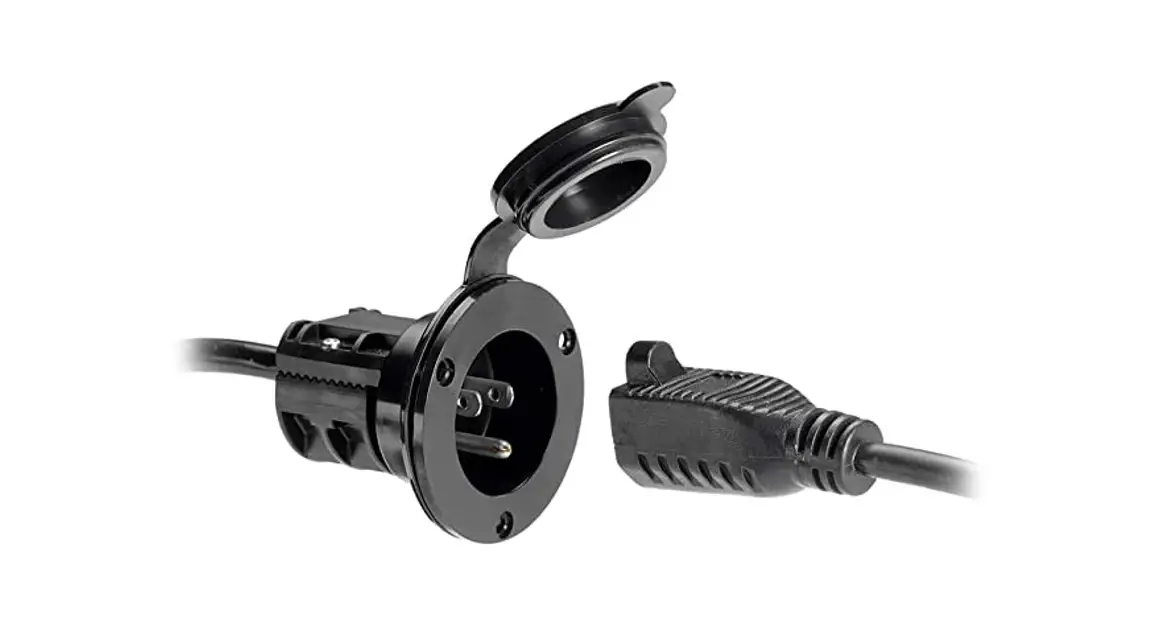

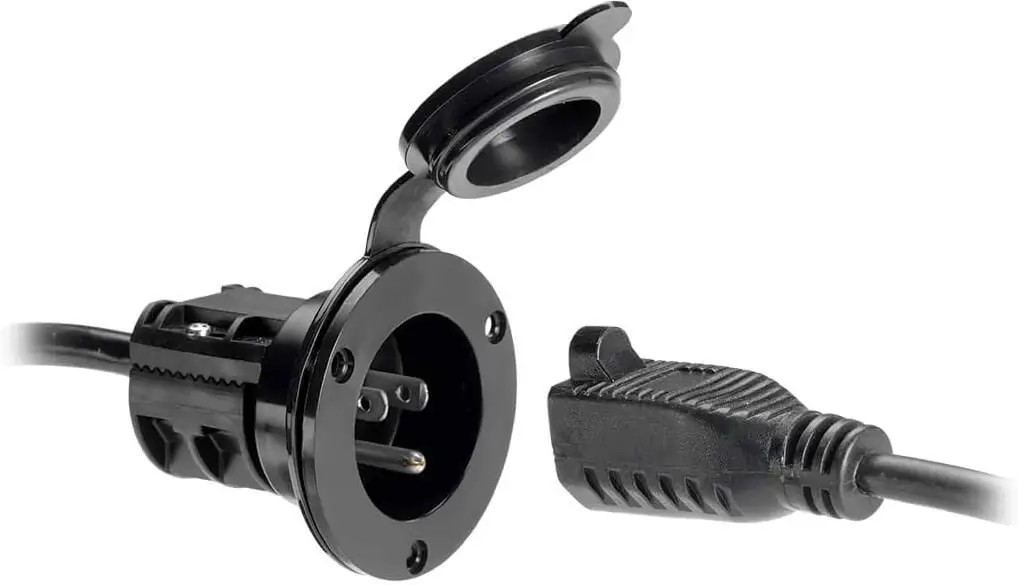

MINN KOTA MKR-21 ON-BOARD CHARGER POWER PORT

Convenient adapter that allows quick thru-hull connections to an AC extension cord – with no cutting or splicing of wires required – using the AC plug from any Minn Kota charger. The splash resistant cover and gasket prevent corrosion on the AC plug when not in use.

TOOLS AND RESOURCES REQUIRED

• Drill
• Pen or similar marking tool
• 1/8″ drill bit
• 9/64″ drill bit
• 1-7/8″ hole saw
• Screwdriver

INSTALLATION

1. Select a location on the boat that is at least 21″ away from all batteries and fuel fill lines.

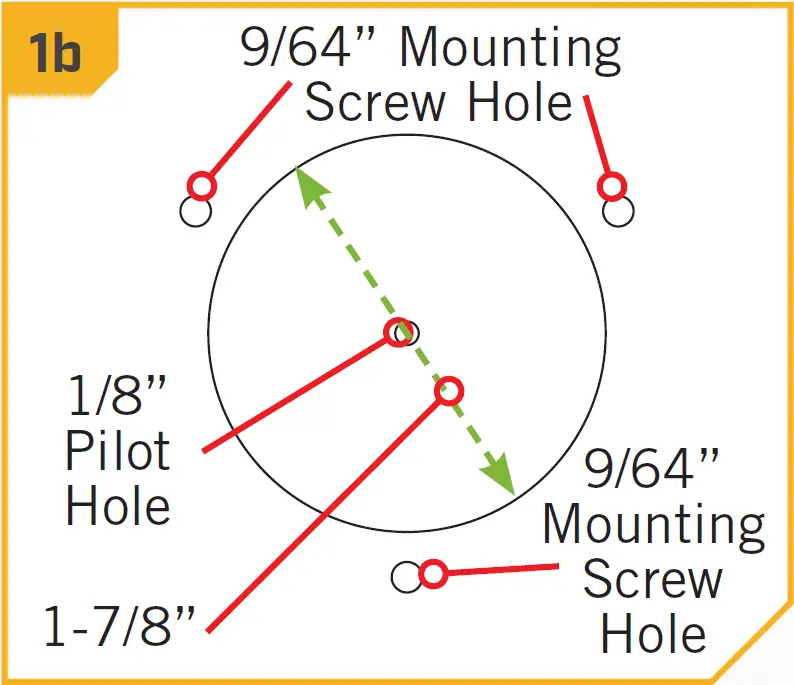

2. Drill a 1/8” pilot hole in the center of the selected location.
3. Using the pilot hole, align a 1-7/8” hole saw to cut the mounting hole.
4. Place the AC Power Port in the 1-7/8” hole to mark and drill holes for the 3 mounting screws.

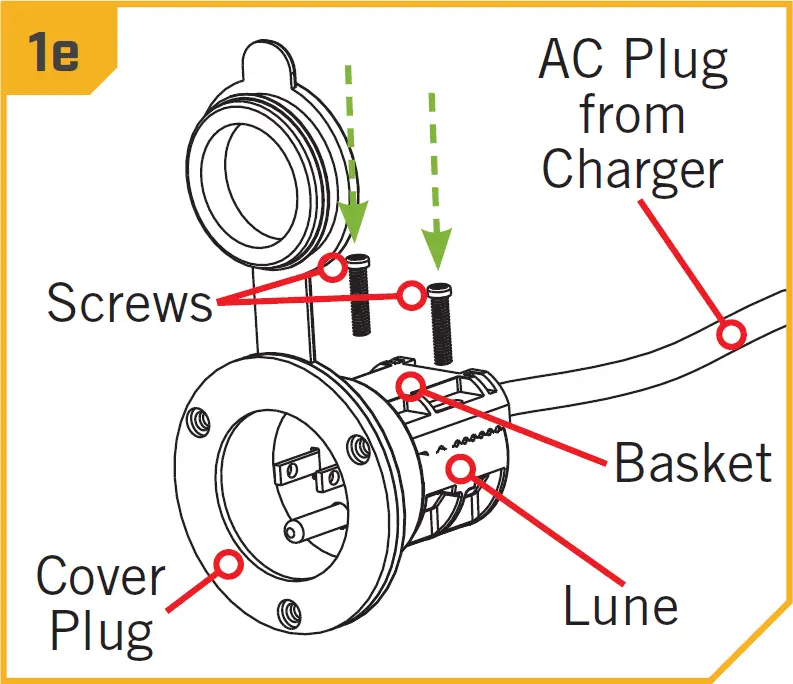

5. Put the AC cord through the 1-7/8” hole from the inside the boat and place the AC plug into the AC Power Port and tighten the 2 screws (Item #10).

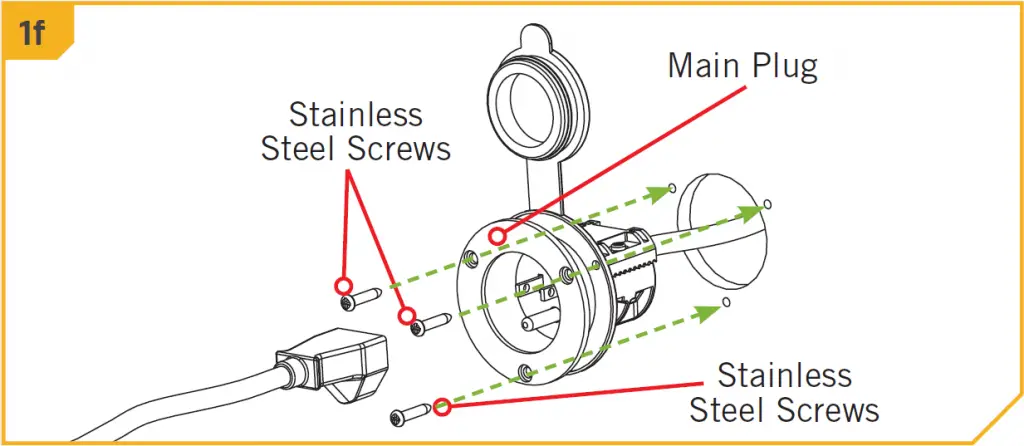

6. Mount the AC Power Port in place with the 3 Stainless Screws (Items #12) provided. Your new AC Power Port is now ready for use.

WARNING

Avoid serious injury or death from fire, explosion, or electrical shock. This device must be connected to a Ground Fault Circuit Interrupt (GFCI) protected AC outlet. When using an extension cord, connect the AC charger before connecting to the GFCI protected AC outlet. Make connection in a secure manner that will avoid contact with the water. TAG ONLY TO BE REMOVED BY CONSUMER.

Minn Kota Consumer & Technical Service
Johnson Outdoors Marine Electronics, Inc.
P.O. Box 8129 Mankato, MN 56001

121 Power Drive Mankato, MN 56001
Phone (800) 227-6433
Fax (800) 527-4464
