Innocn 29c1f 29 Inches Ultrawide Monitor User Guide

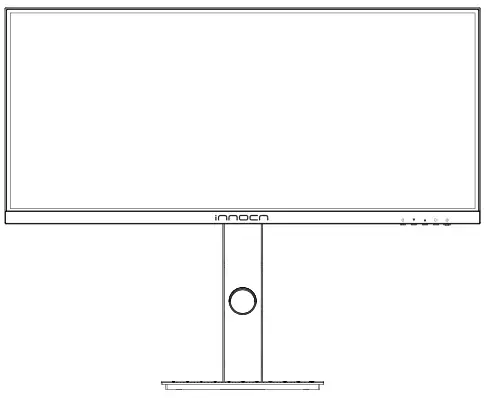

innocn 29C1F 29 Inches Ultrawide Monitor

Precautions

Before using this product, please read this User Manual carefully and keep it well

• Keep the monitor away from water sources or damp places, such as bathrooms, kitchens, basements and swimming pools.
• Make sure the monitor is placed on a flat surface. If the monitor falls down, it may cause human injury or device damage.
• Store and use the monitor in a cool, dry and well-ventilated place, and keep it away from emission and heat sources.
• Do not cover or block the vent hole in the rear casing, and do not use the product on a bed, sofa, blanket or similar objects.
• The range of the supply voltage of the monitor is printed on the label on the rear casing.
• If it is impossible to determine the supply voltage, please consult the distributor or local power company.
• If the monitor will not be used for a long period, please cut off the power supply to avoid electric shock in rainy days and damage due to abnormal supply voltage.
• Please use a reliable grounded socket, Do not overload the socket, or it may cause fire or electric shock.
• Do not put foreign matters into the monitor, or it may cause short circuits resulting fire or electric shock.
• Do not disassemble or repair this product by self to avoid electric shock. If faults occur, please contact the after-sales service directly.
• Do not pull or twist the power cable forcedly.
• There is a polarizer layer (not a protective film) on the surface of the screen. Do not peel it off, or the product may be damaged and the warranty will be invalid.

Package Content

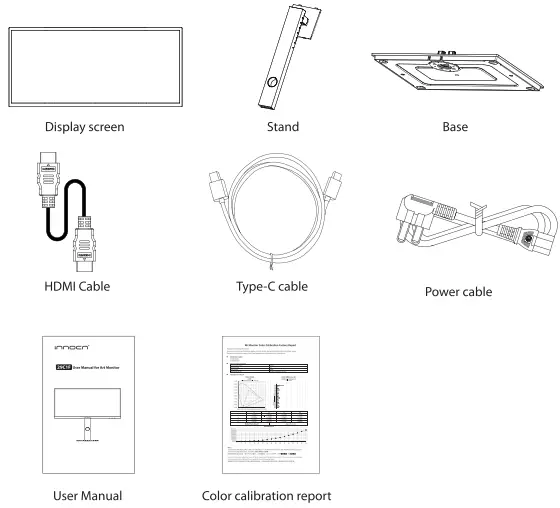

Packing list

• Please check that the package of the monitor contains all parts. If any part is lost, please contact the distributor.
• The color and shape of parts may vary with models. Figures in this User Manual are for reference only.
• Cables supplied may vary with purchased products. Figures in this User Manual are for reference only



installation

installation of base

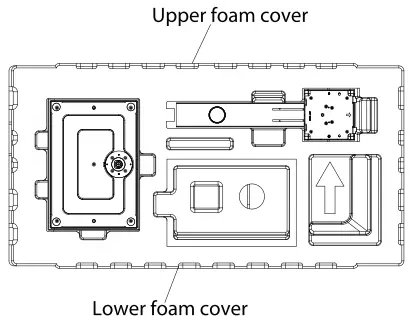

1. Open the carton package, take out the upper and lower foam covers and put them flat on the table top.

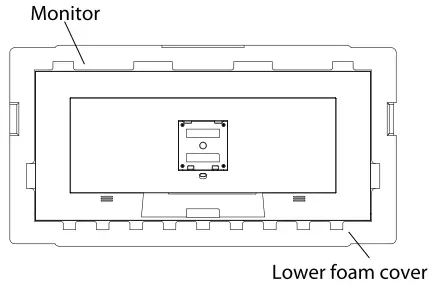

2. Take off the top cover of Polylong, take out the body bag and put the body back into the original bottom cover of Baolong.

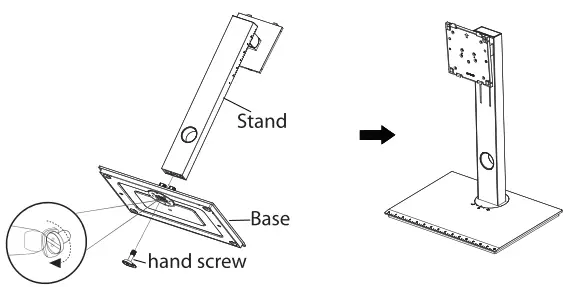

3. Take out the bracket and base, and tighten the manual screws on the base after assembly

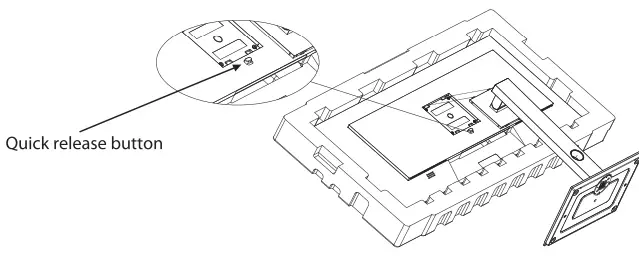

4. Insert the hook at the front end of the shaft of the lifting bracket into the bayonet of the rear shell obliquely, and gently press the tail end perpendicular to the surface of the rear shell, so that the lock of the lifting bracket can be buckled on the quick release button of the rear shell, and the quick release button has a return. The snap action indicates that the tail end has also been snapped into place

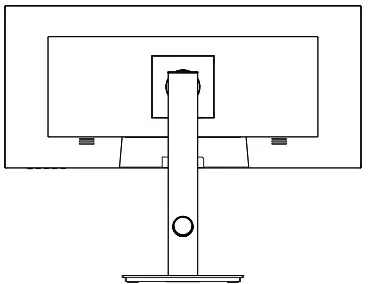

5. Simply hold the stand with hand to stand the monitor upright

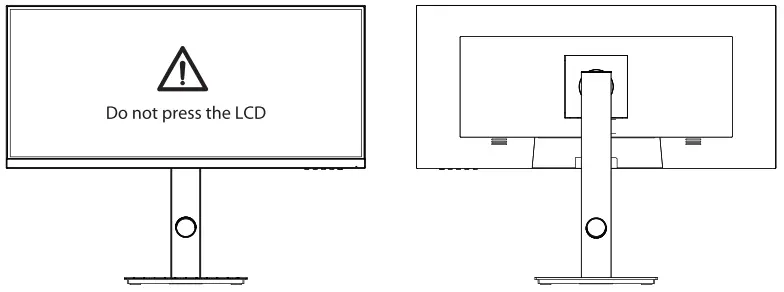

   Note: During standing of the monitor, do not take out the monitor from foams, and do not pinch the liquid crystal screen with hand to avoid damage to the screen

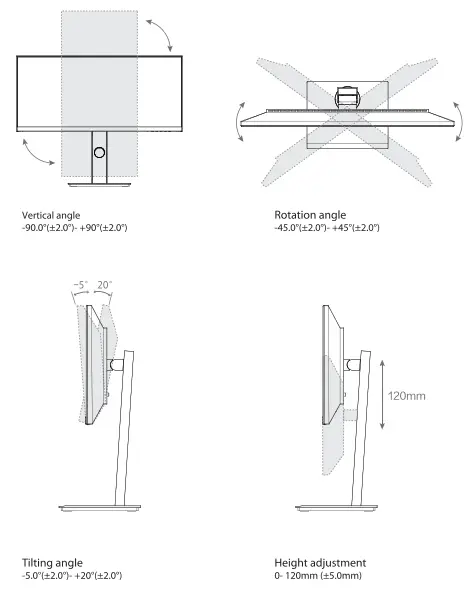

Adjustment of monitor

Instruction for use

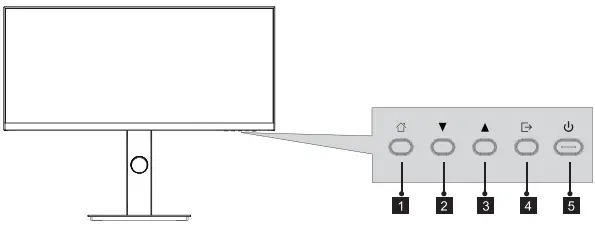

Description of button

Explanation of indicator light

Indicator light: Steady blue light indicates the power is on and the monitor runs normally. red light indicates no video signal detected or low voltage. Please make sure that your computer is turned on and all video cables are fully plugged in and/or connected.

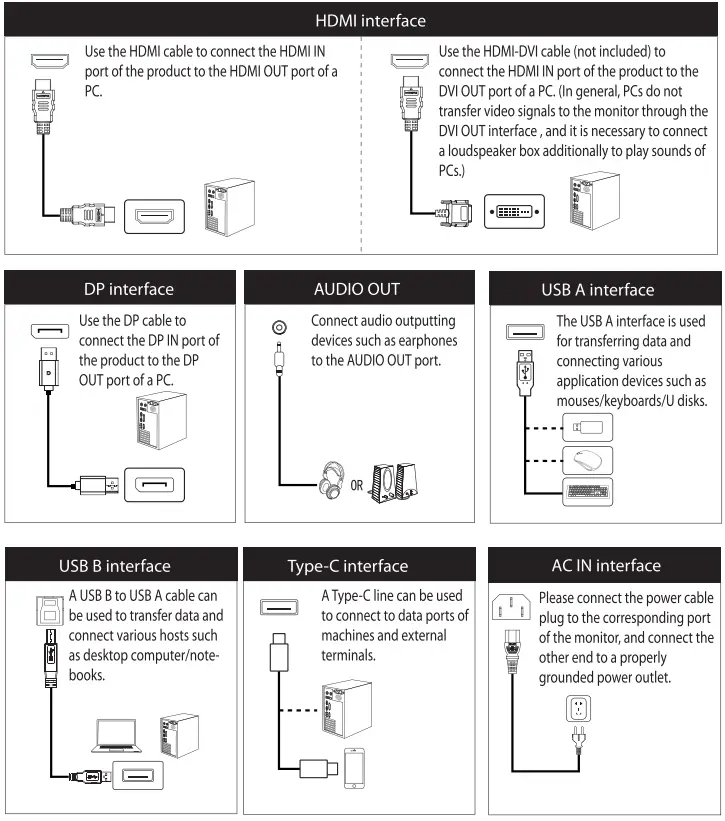

Cable connection

• HDMI interface
• DP interface
• AUDIO OUT
• USB A interface
• USB B interface
• Type-C interface
• AC IN interface

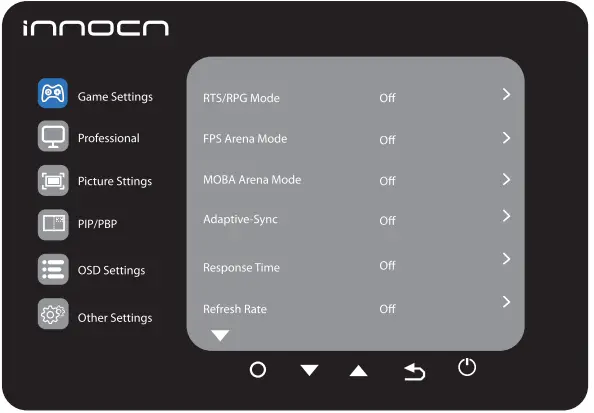

OSD menu

When booting for the first time, you need to set the default language of the monitor menu. Press buttons() to select the language to be set, and press the OK button() to confirm.

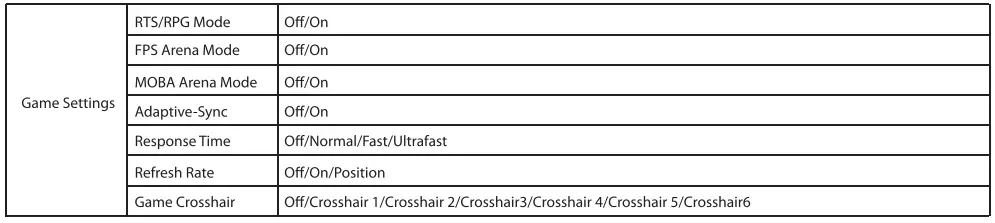

Menu description

• The color and shape of the OSD menu of the actual computer may be slightly different from them shown in the figure.
• Specifications of the OSD menu may change with improvements of functions without prior notice. The screen display (OSD) menu can be used to adjust settings of the monitor and is shown on the screen after the monitor is powered on and thebutton is pressed.

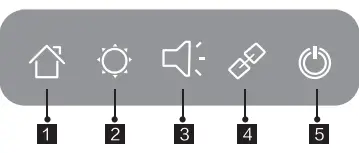

1. Press one of the buttons () to activate the browser screen.



   1	Enter the main menu
   2	Adjust the brightness
   3	Adjust the volume
   4	Switch port input signal
   5	Power ON/OFF



2. Press to enter the 05D screen.



3. Press to scroll through the functions.
   • Select the desired function, and press to enter the sub-menu.
   • Press Tor to scroll through sub-menus, and press key to select and confirm the desired function.
   • Press Tor to select one option, and press Oto confirm settings and exit from the current menu.
4. Press to exit from the menu screen

Functions of the monitor vary with models, and the functions in this manual are for reference only

Specification

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
(2) this device must accept any interference received, including interference that may cause undesired operation.
CAN ICES-3 (B)/NMB-3(8)

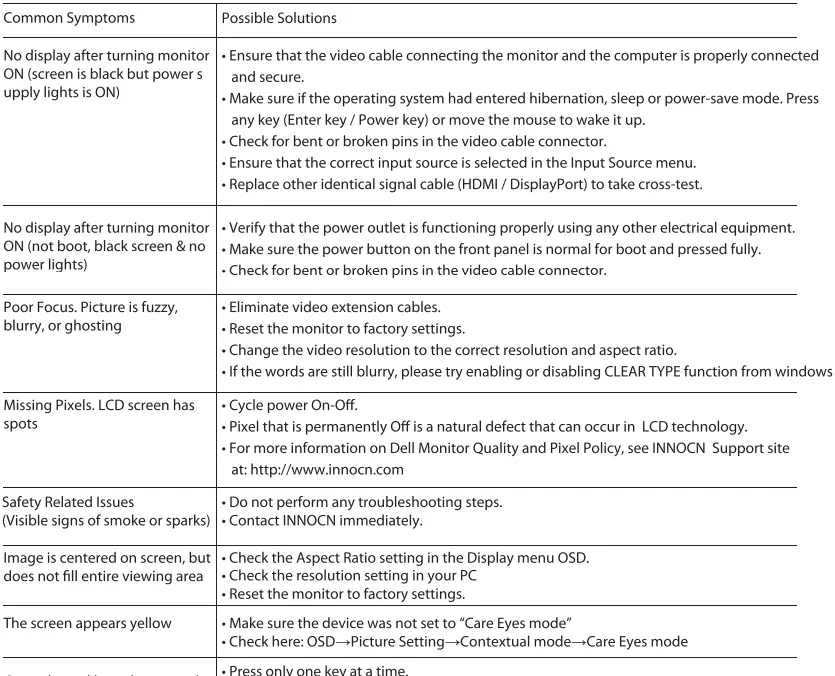

Common troubleshooting

The following table contains general information about common monitor problems you might encounter and the possible solutions.

Supported Resolution and Refresh Rate

Warranty Information

What is covered in your warranty?

• item
  Warranty term
• monitor
  1 Years

Contact us

• Service Email: [email protected]
• Service Website: http://www.innocn.com
• Members only
  Signing up to become our members, to exchange new one without repair in one year.
• Register website: https://www.innocn.com/user/register
• QR code



This Warranty is not applicable:

1. The product is not purchased from an Authorized lnnocn dealer.
2. The product is not used according to instructions given in the instruction manual.
3. Defects caused by improper use as determined by company personnel.
4. Modification or alteration of any nature is made in the electrical circuitry / or physical construction of the set.
5. S.lnstallation / repair work is carried out by persons / agency other than authorized by the company.
6. The original serial number is removed, obliterated or altered from the machine or cabinet.
7. Accidents, Acts of God, lightning, water, fire, public disturbances, improper ventilation, voltage fluctuations or any cause beyond the control of lnnocn.

German Rhine TOV Low Blue Light Certification

Blue light may cause eye fatigue and discomfort. Joint Innovation now offers the screen that passes German Rhine TOV Low Blue Light certification to ensure the comfort and health of users’ eyes. Please follow the instructions below operate the screen to reduce symptoms caused by prolonged exposure to blue light on the screen.

www.tuv.com
ID 0217008683

1. Place the screen 20-28 inches (50-70 cm) away from the eyes, with the center of the screen slightly below the line of sight.
2. When you need to use the screen for a long time, blinking consciously from time to time will help reduce eye fatigue.
3. Take a 20-minute break every 2 hours.
4. Take your eyes away from the screen when you rest and stare at distant objects for at least 20 seconds.
5. Stretch moderately during rest to relieve physical fatigue or pain.
6. Turning on Low Blue Light after factory setting is in line with TUV Rhein land’s low blue light certification.

Contact us

Thank you for choosing lnnocn· !
We hope the lnnocn· product you purchased will serve you well. To ensure safety and trouble-free operation of your device, please read the user guide carefully and keep it for future needs.
Please email us for customer service & technical support at [email protected].
We recommend you go on line to our homepage for the most up-to-date guidance for your product. registering lnnocn membership; refering to warranty information.
http://www.innocn.com
