INSTRUCTION MANUAL

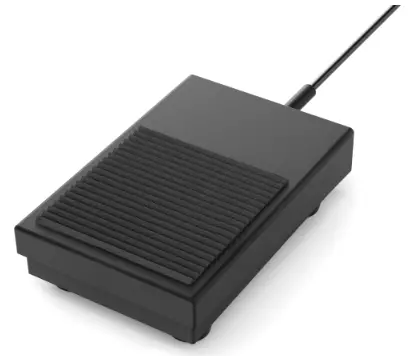

P405
Pedal

This manual corresponds to the following references:
P-405

Packing List

The following items are included:

Pedal ……………………………………………………..1 unit

Manual ……………………………………………. 1 unit
Ref. 0028917

Connections

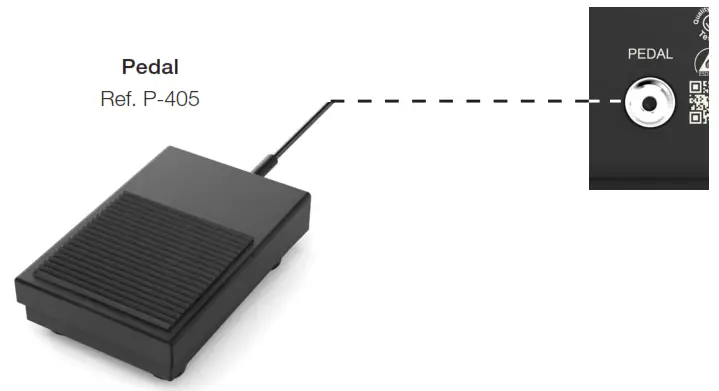

Connect the pedal to the JBC station or peripherals. The connector is identified by the designation “ P E D A L”.

Pedal Compatibility

P405 is compatible with JBC devices as shown in the table in the highlighted column.
P305* and P005* is also shown in the table below.
Marked with  means pedal P405 cannot be connected directly to JBCs control unit. A module must be used (See next page “Pedal Set-Up”). 100 mm

		Pedals
		P405	P305*	P005*
Control Unit	DIU
	DDU
	DMU
	HDU
	JNAU
	JTU
	WSU
	ALU
	NAU
Station	AL
Module	MSE
	MVE
	MNE
Preheater	PHNK
	PHSK
	PHBK
	PHXK
Fume Extractor	FAE1
	FAE2

* not included, sold separately

Pedal Set Up for:
– DDU, HDU, NAU, JNAU, JTU, ALU (control units)
– PHNK, PHSK, PHBK, PHXK (preheaters)

Note: Peripheral modules – MSE, MVE, or MNE – are needed to connect the pedal to DDU y HDU.

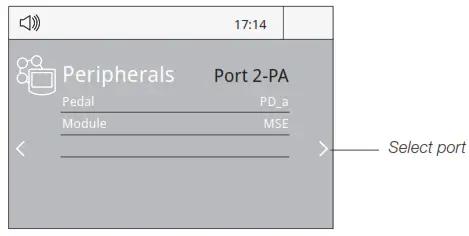

1.  Enter the Peripherals Menu and select the port which you want to join to the pedal.
2. Select the pedal from the list.

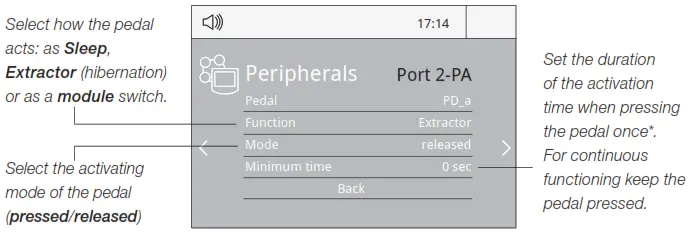

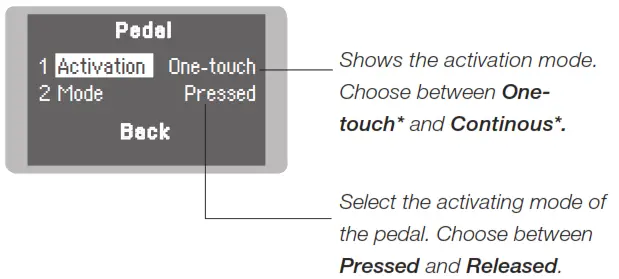

3. Set the pedal function according to your work needs:

*NB: The same can be applied inversely by continually pressing the pedal and releasing to activate.

Pedal Set Up for FAE1, FAE2 (fume extractors)

1. Enter the Main Menu and select Port.

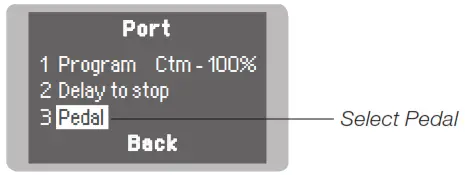

2. At the Port Menu select Pedal.
3. Set the pedal function according to your work needs:* One-touch activates the pedal funtion until pressed twice. Continous activates the pedal function while pressing the pedal.

Pedal Set Up for DMU (control unit)

Note: Peripheral modules – MSE, MVE, or MNE – are needed to connect the pedal to DMU.

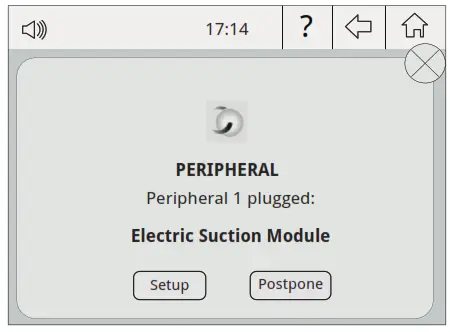

After connecting one of the mentioned modules to the station a popup window opens.

1.  To configure the module MSE/MVE/MNE press Setup in the popup window.

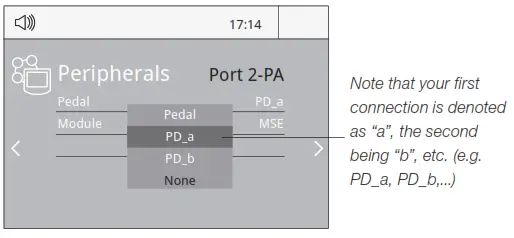

2. Select the module from the list of peripheral connections. Remember your first connection is denoted as “a”, the second is “b”, etc. (e.g. MS_a, MS_b,…). Do the same with the pedal (e.g. PD_a,…)

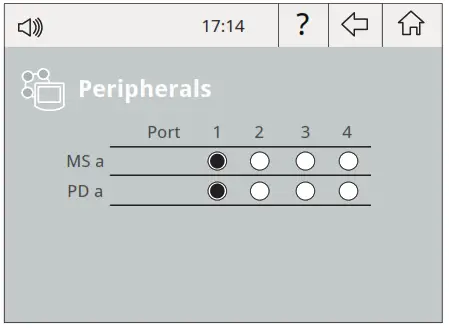

3. Select the port of the tool you want to link to the peripheral.
4. Press Menu or Back to save changes.
   Once set up, the module settings can be changed by entering the Peripherals Menu.

Example:
Chip Components Rework Process using Tweezers and Pedal
The Pedal is frequently used to rework components with tweezers.

AN115 JBCs adjustable nanotweezers are the most effective tool for desoldering chip components but also it facilitates its rapid placement and soldering by using the P405 pedal connected to JBC´s NAS  station.

Connections

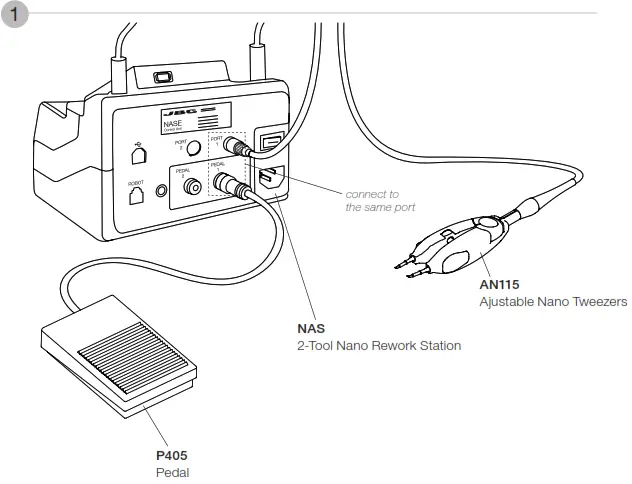

Connect pedal P405 to the same port where AN115 nanotweezers are connected.
In the peripherals menu for the “Pedal Activation Mode” choose between “pressed” and “released”.

* “Press Mode” previously selected

Desoldering*

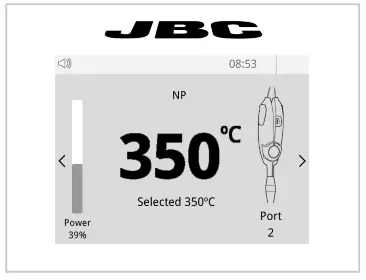

Lift the tool from the holder, press and hold the pedal to activate the tool, and desolder the component.

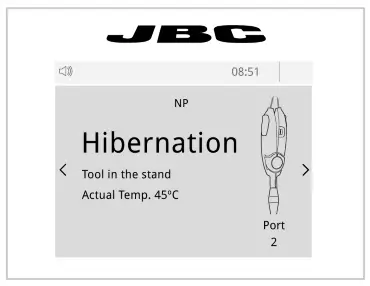

Once the pedal is released the tool enters hibernation mode and cools down.

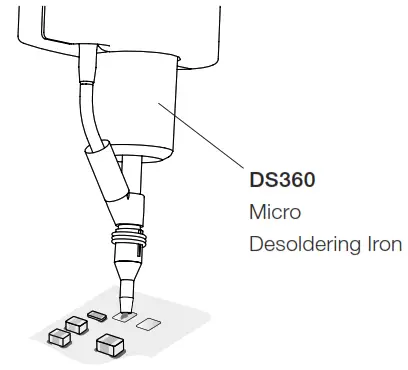

Pad Cleaning
Clean the pads with JBC´s desoldering tool DS360.
For this operation JBC´s desoldering station DSS is needed.

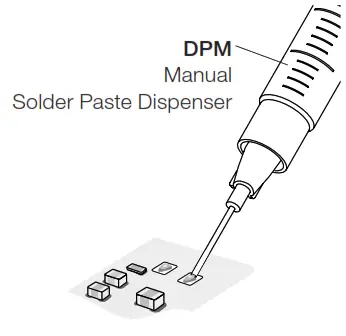

Solder Paste Dispensing
Apply the solder paste amount needed to solder the new chip component.
The use of JBC´s DPM solder paste dispenser is recommended.

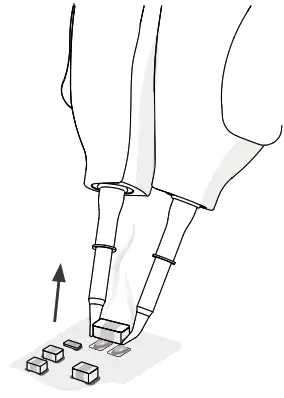

Placing
Do not press the pedal.

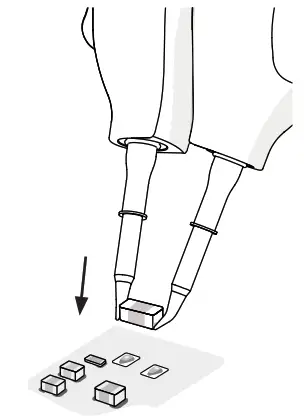

Use the tool to position the component on the previously tinned pad.
Note: The inactive tool prevents the component from heating up prematurely.

Soldering

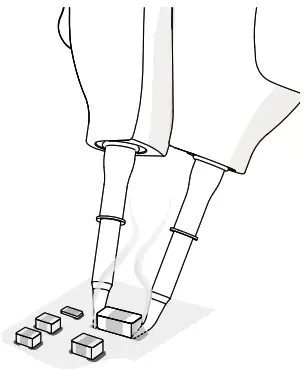

Once in position press and hold the pedal to activate the tool and perform the soldering.

Notes ————————————————————————————————————————————————————

Specifications

P405
Pedal
Ref. P-405
– Cable length: 1.9 m / 74.80 in
– Total Net weight: 232 g / 0.51 lb
– Total Package Dimension / Weight: 155 x 85 x 55 mm / 255 g
(L x W x H) 6.10 x 3.35 x 2.17 in / 0.56 lb
Complies with CE standards
ESD safe

Warranty
JBC’s 2-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor.
The warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility. a manuales – color gris
