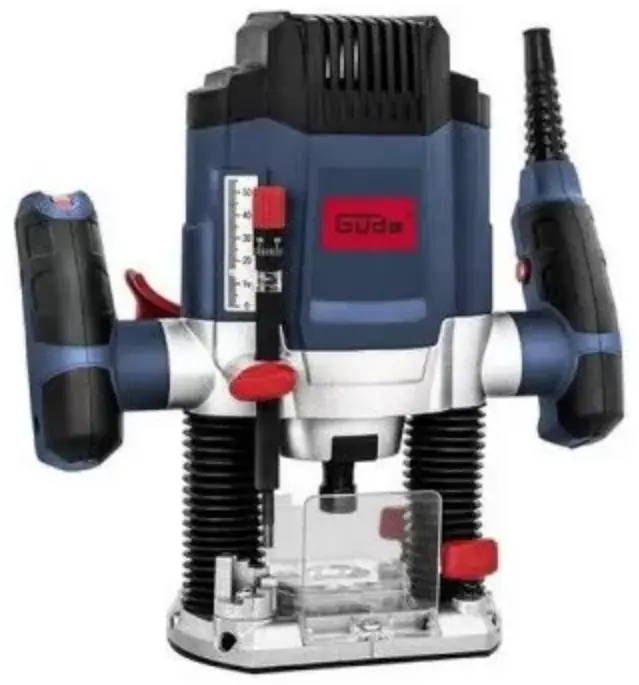

GUDE OF 1200 E Router Instructions

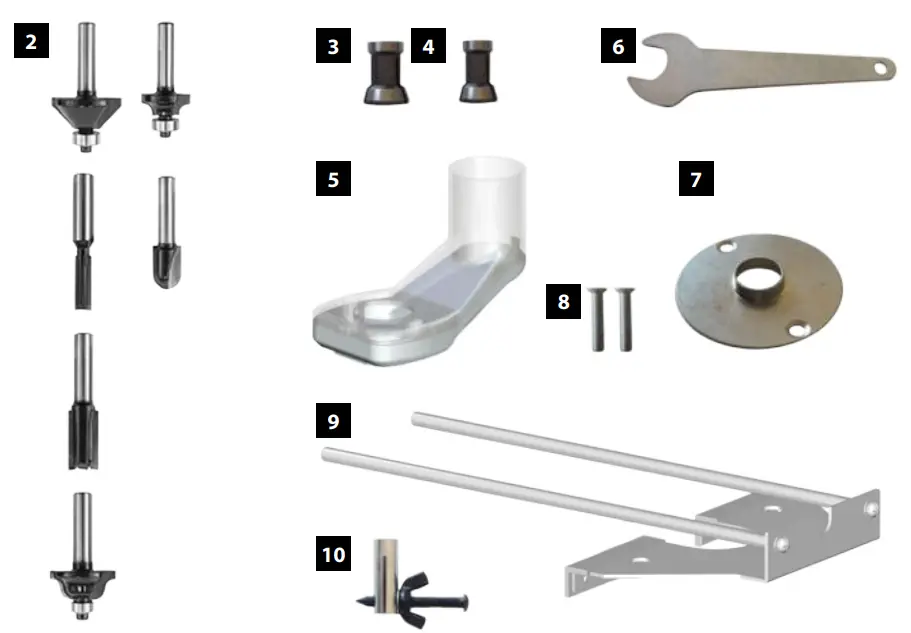

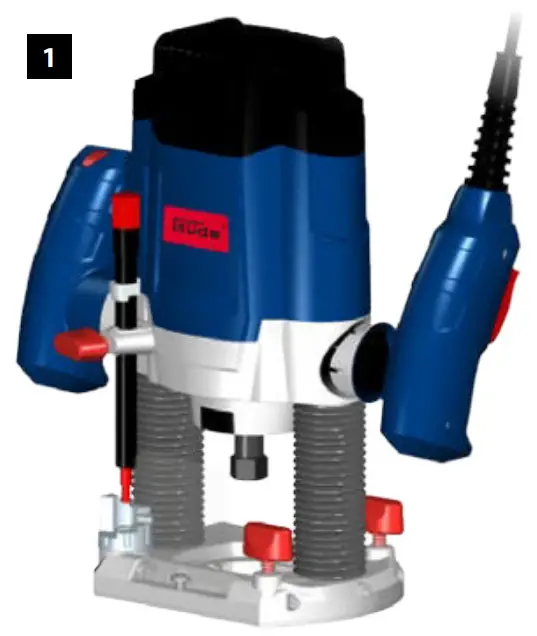

DELIVERED ITEMS

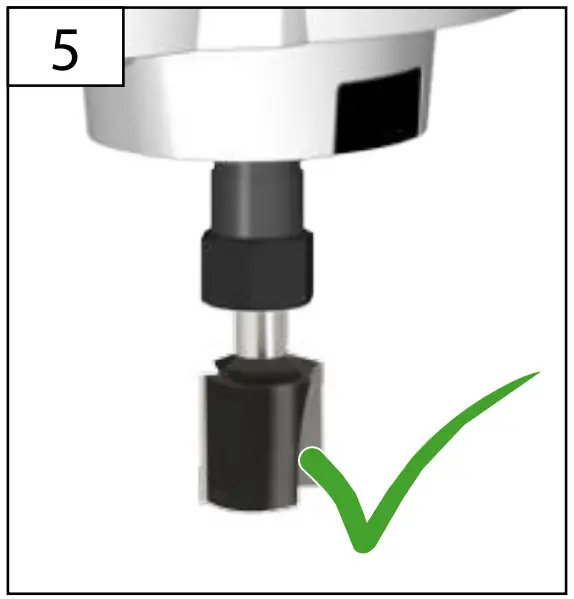

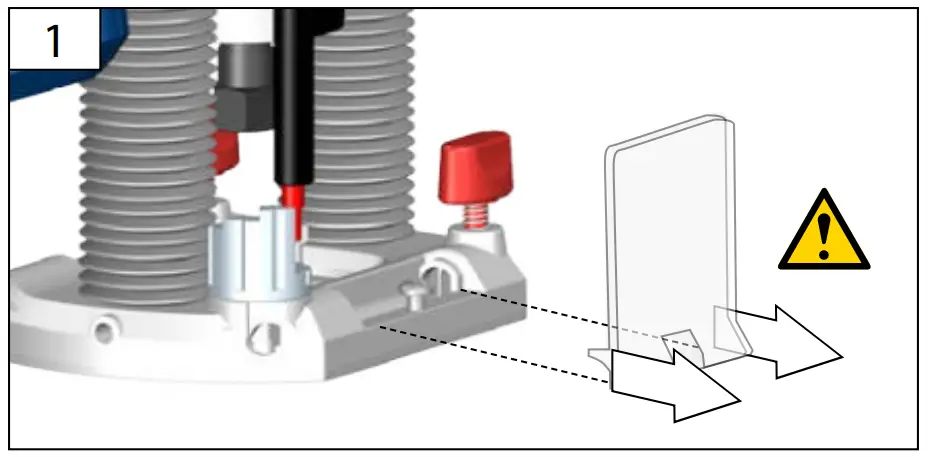

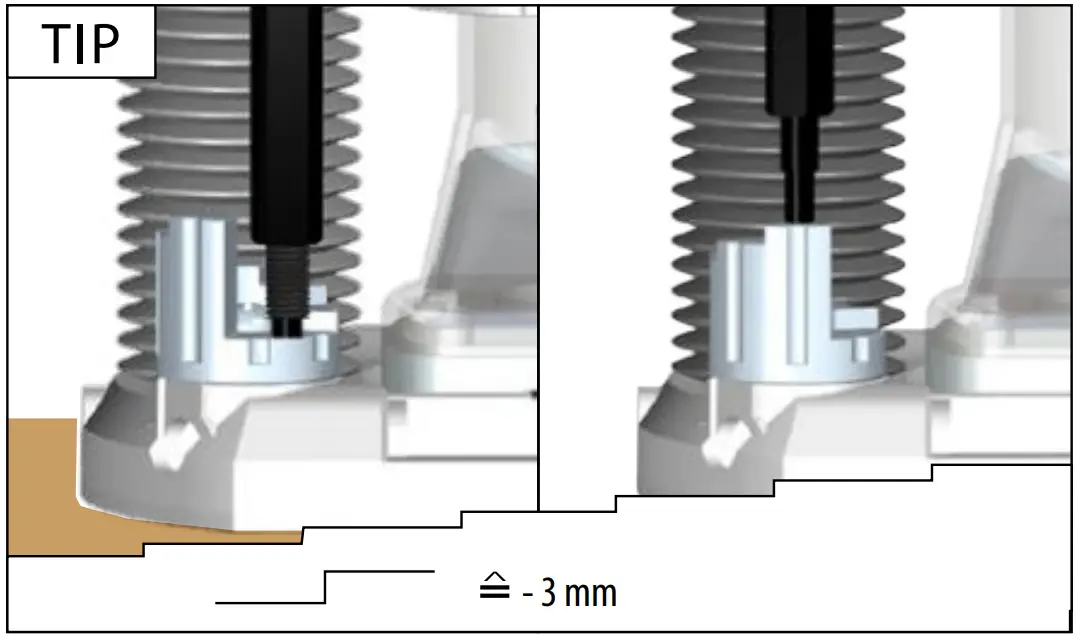

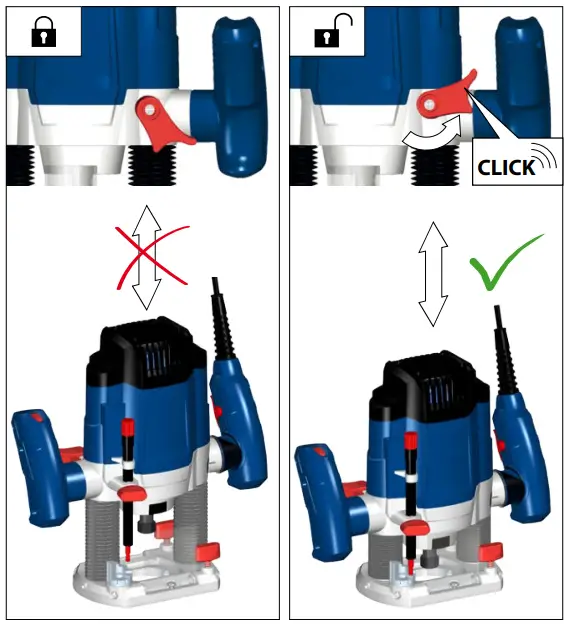

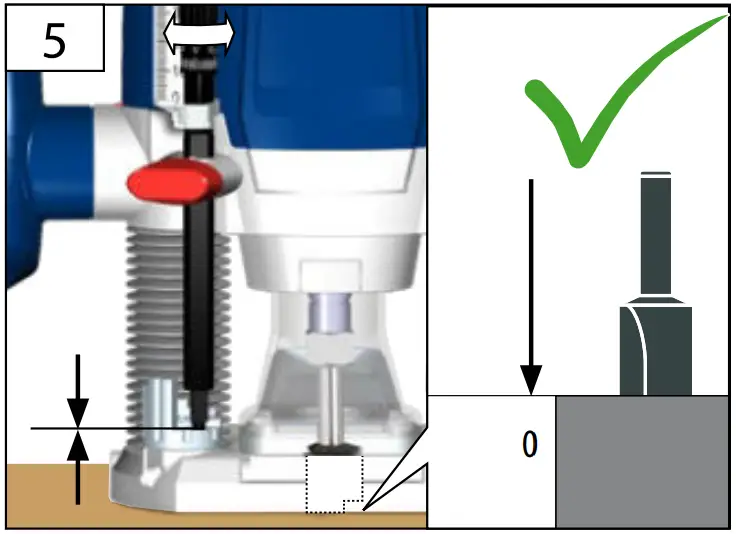

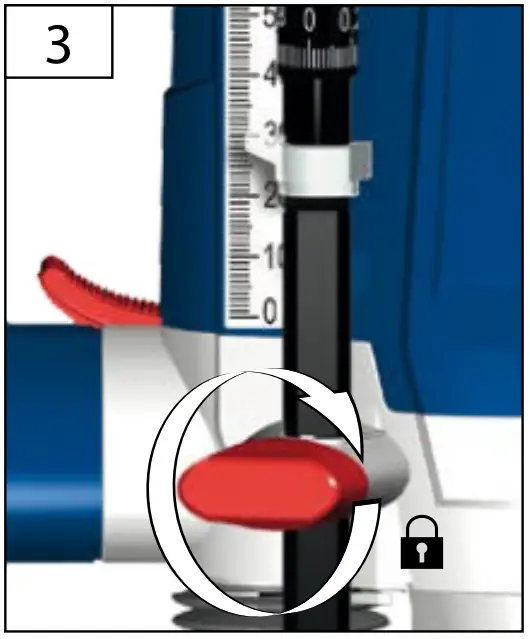

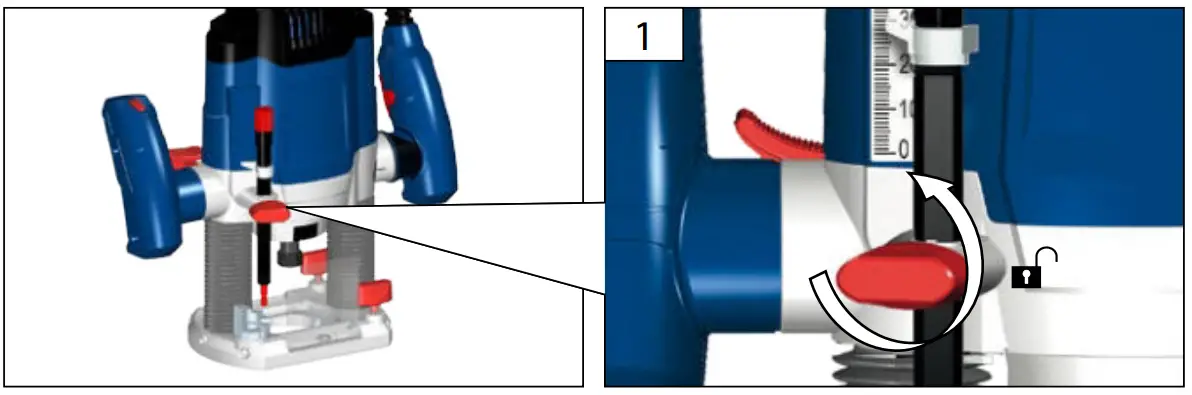

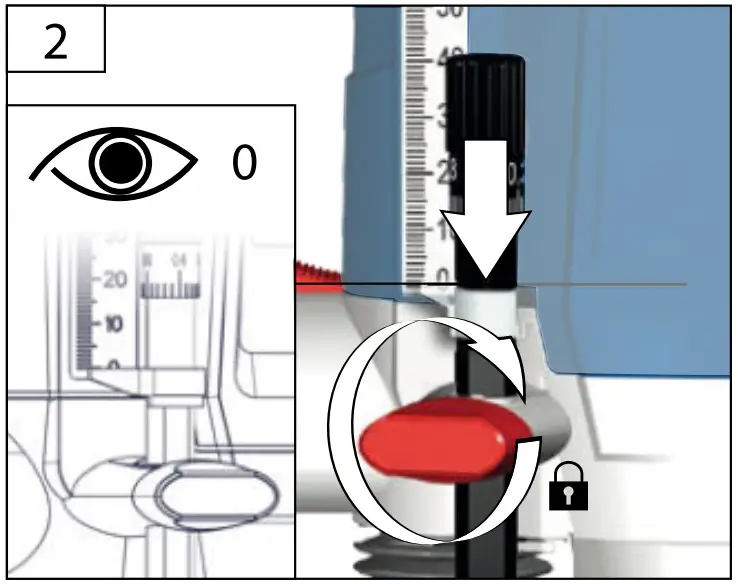

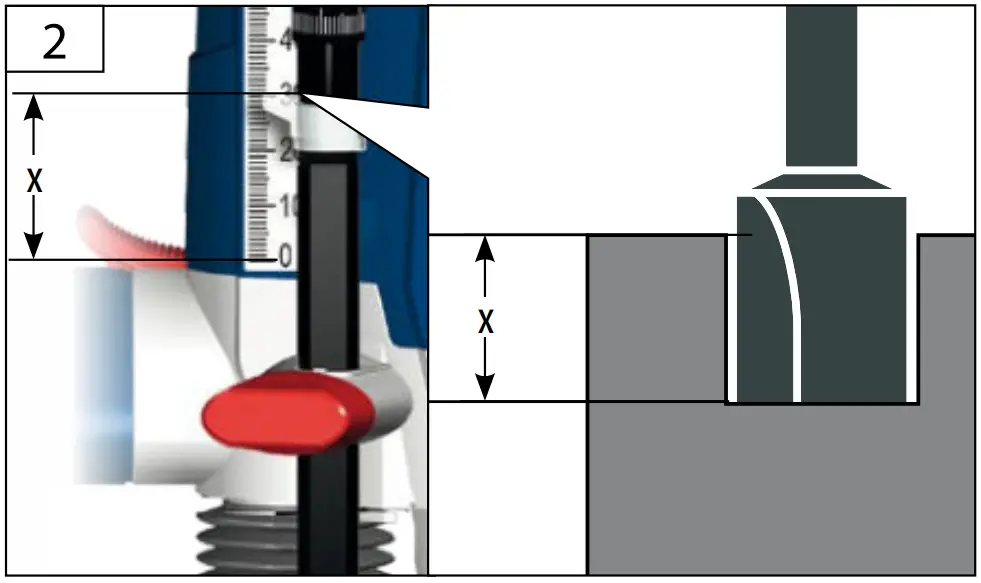

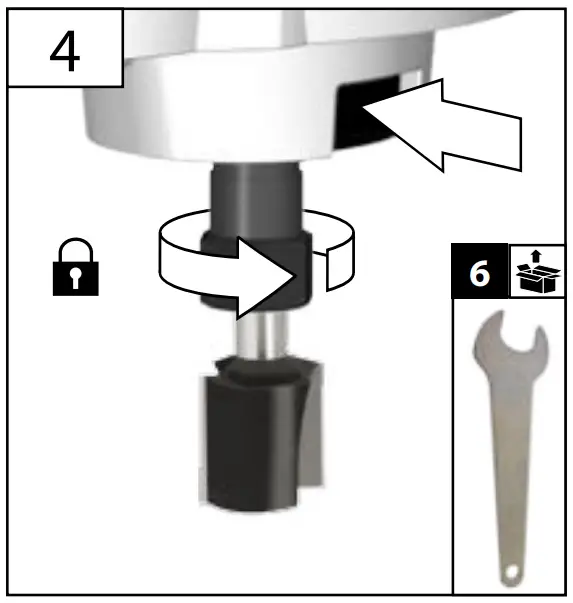

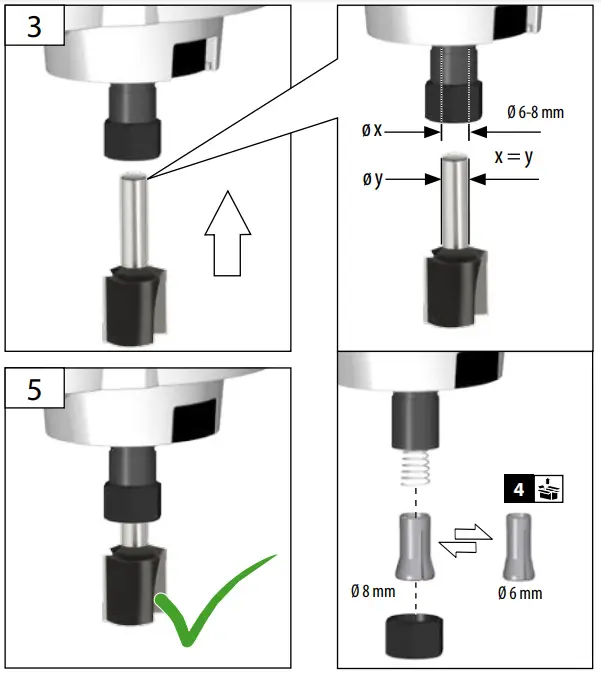

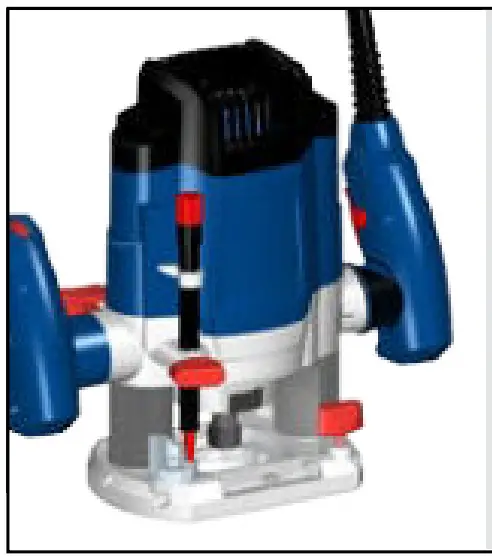

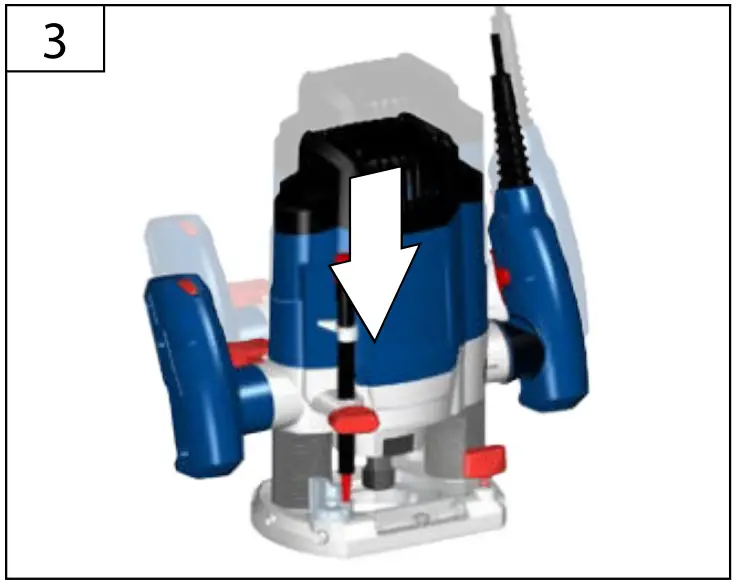

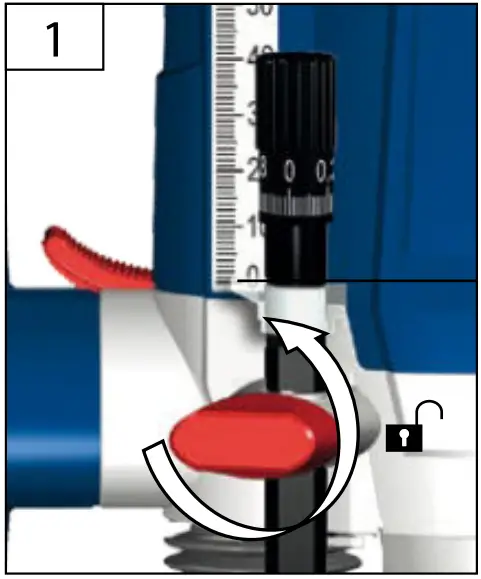

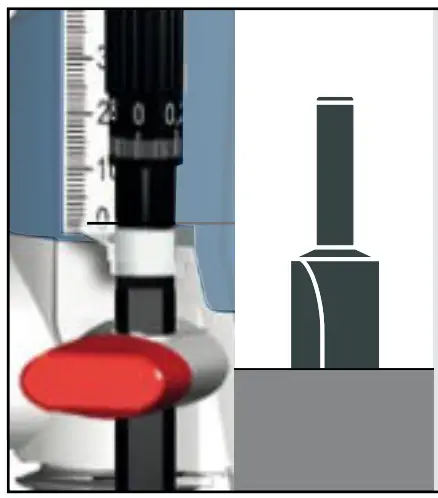

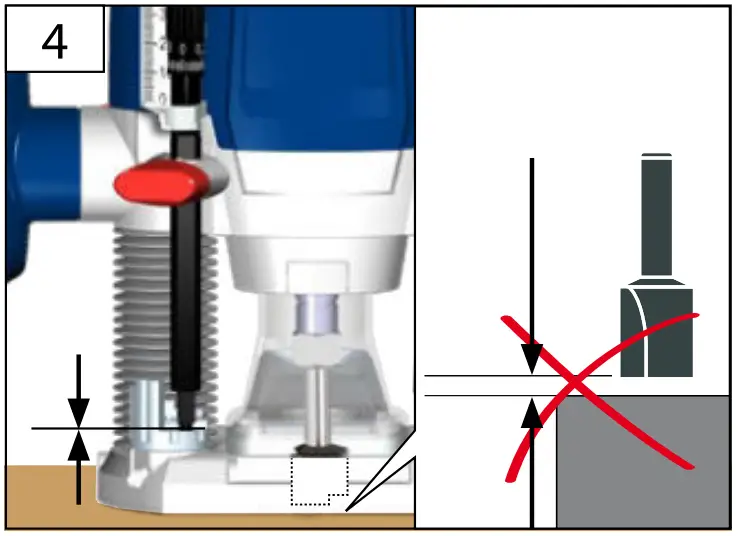

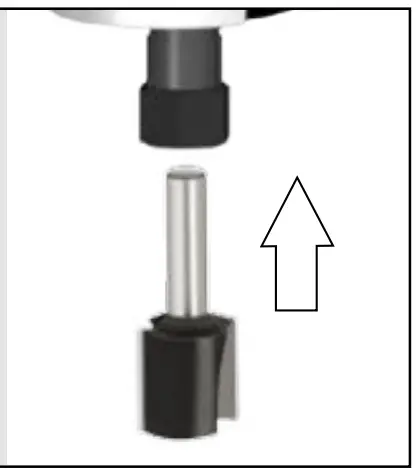

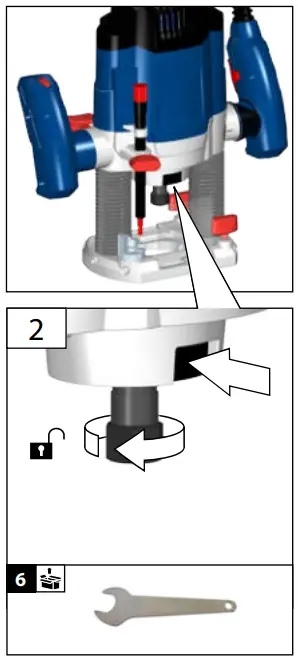

Starting-up the machine

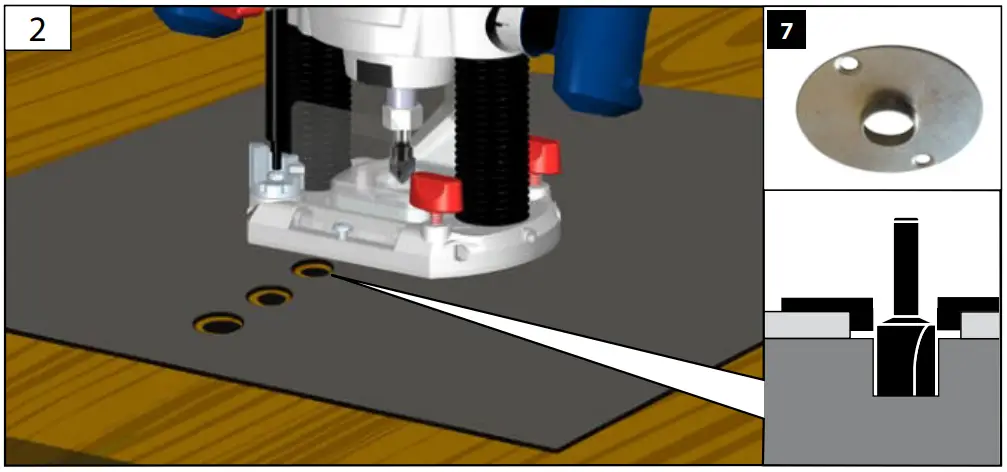

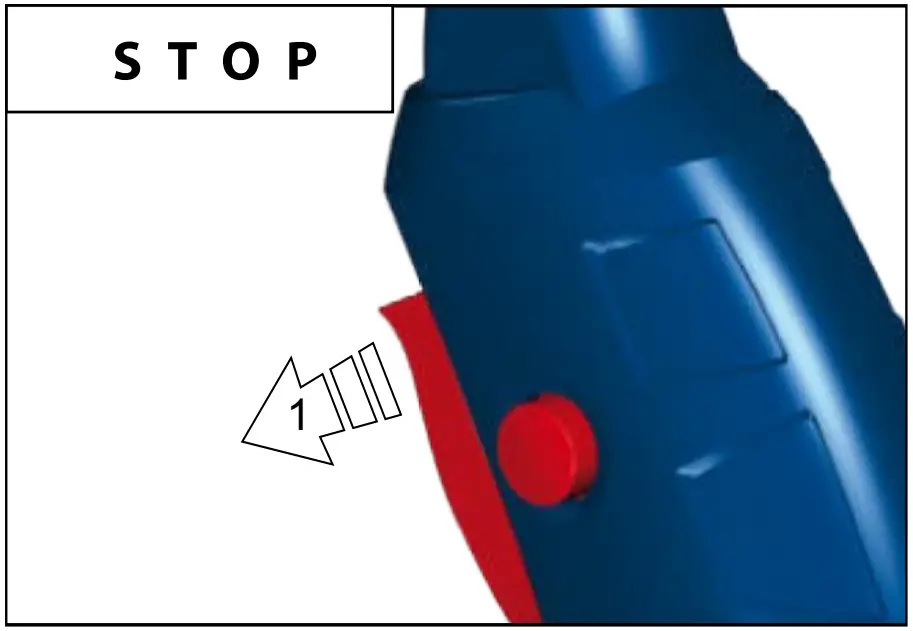

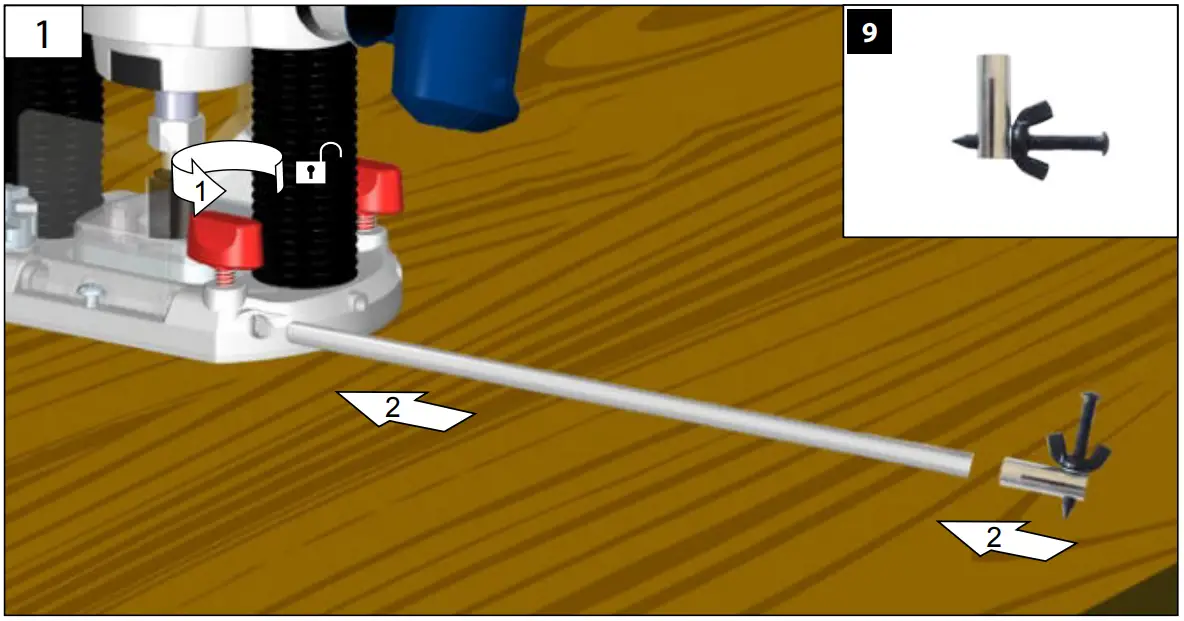

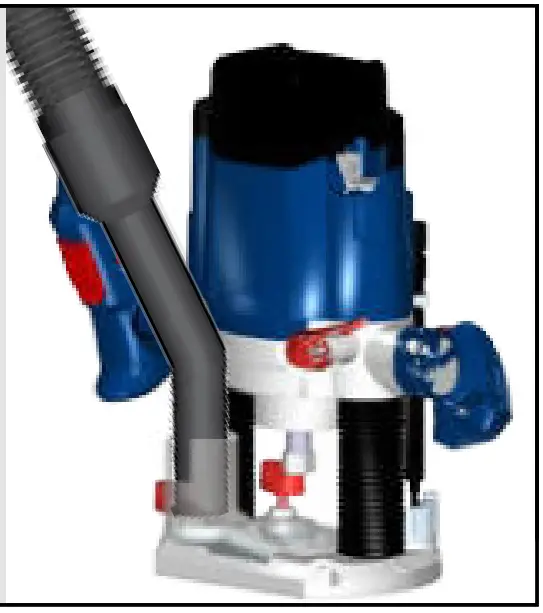

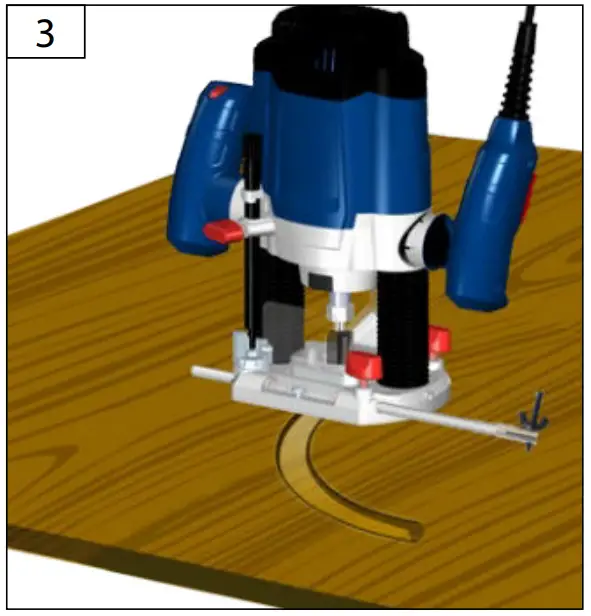

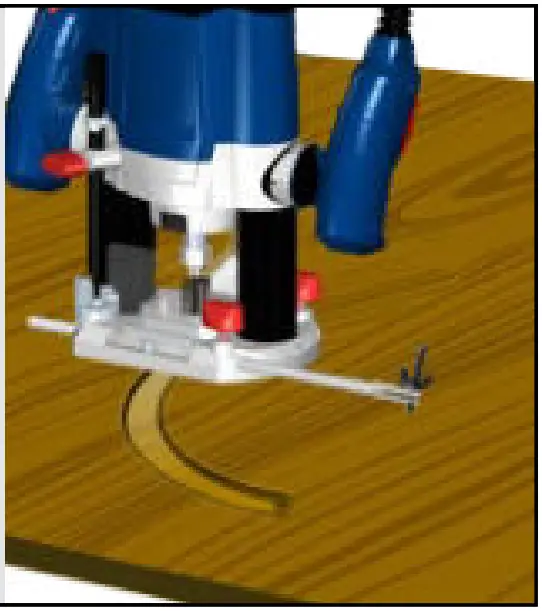

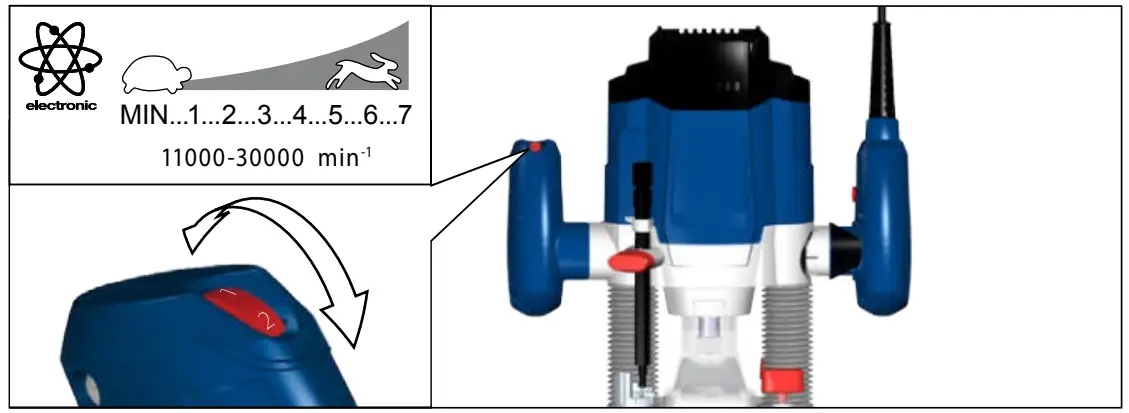

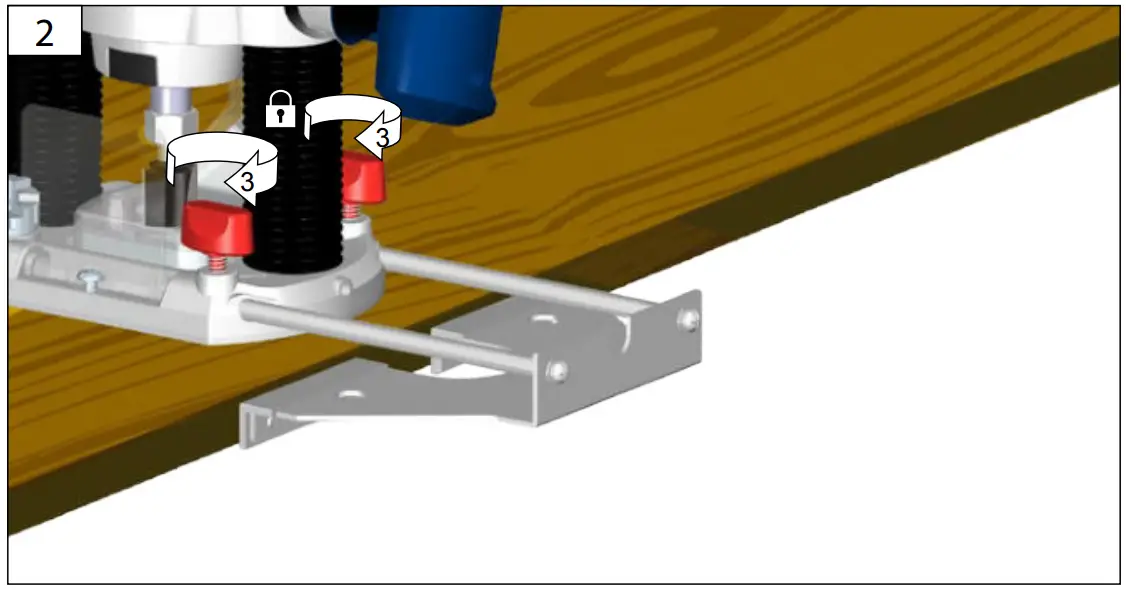

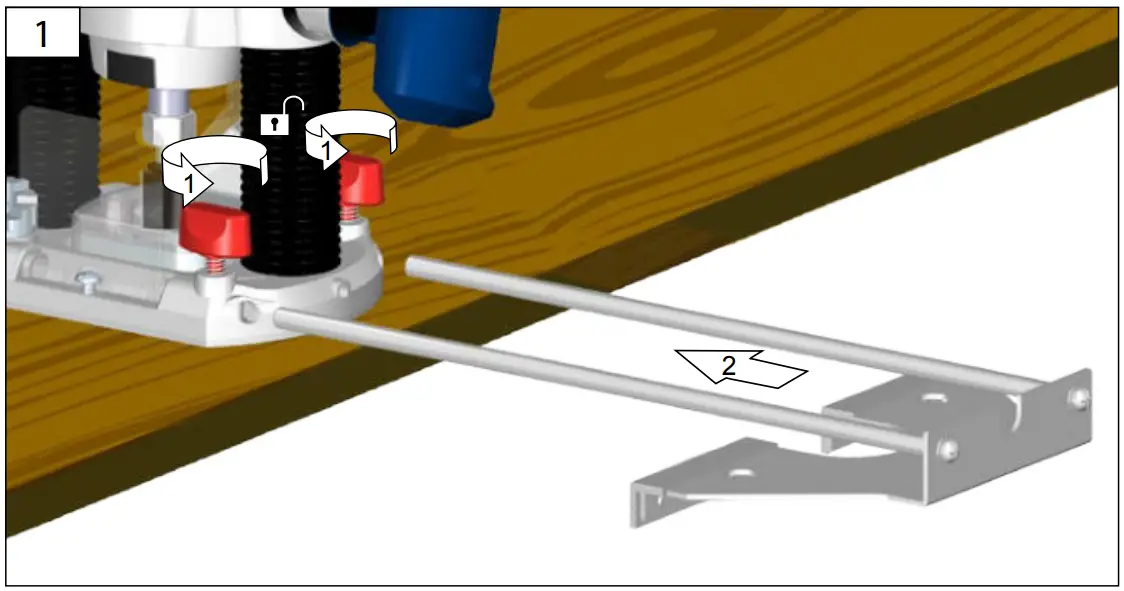

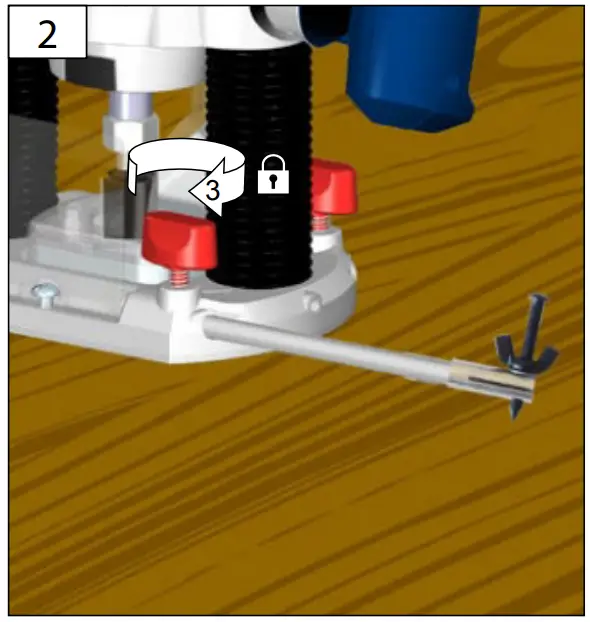

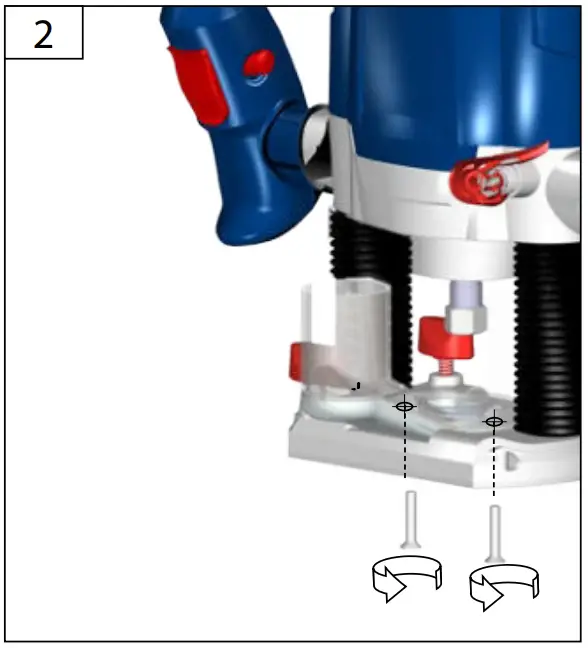

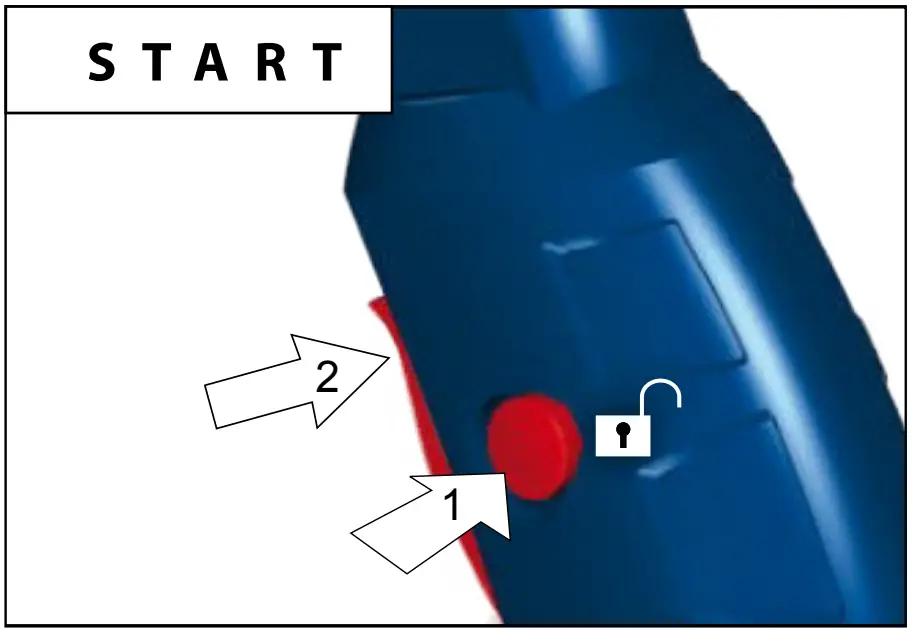

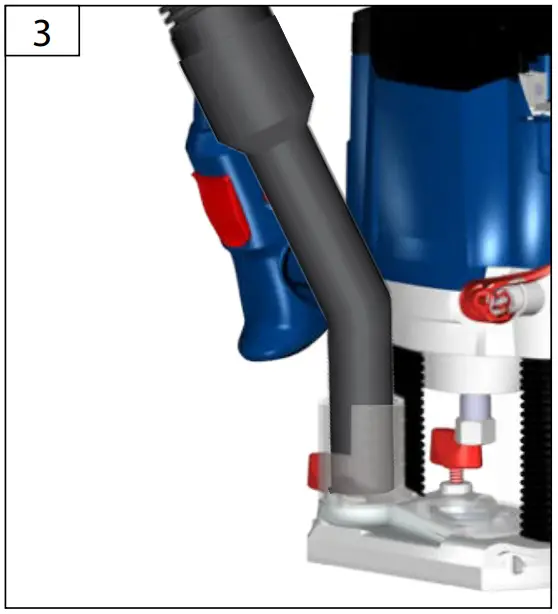

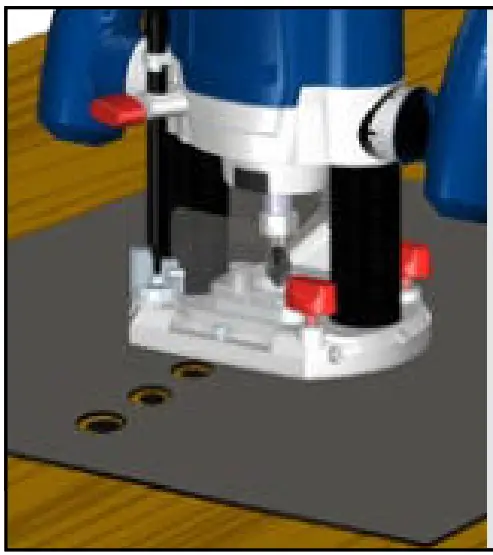

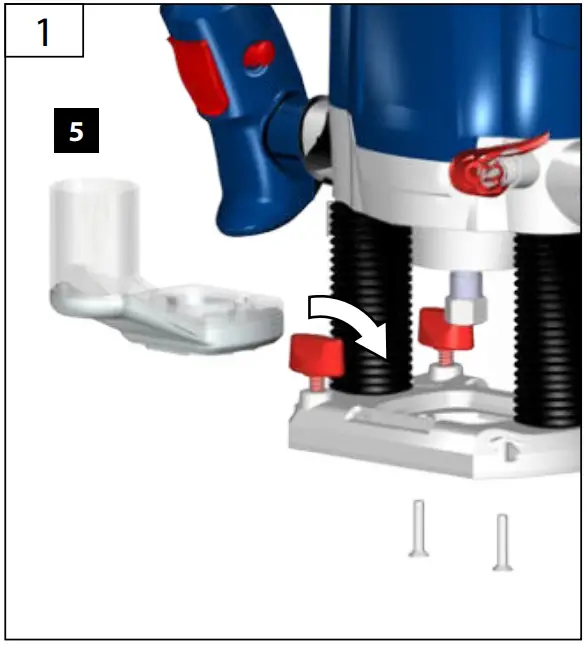

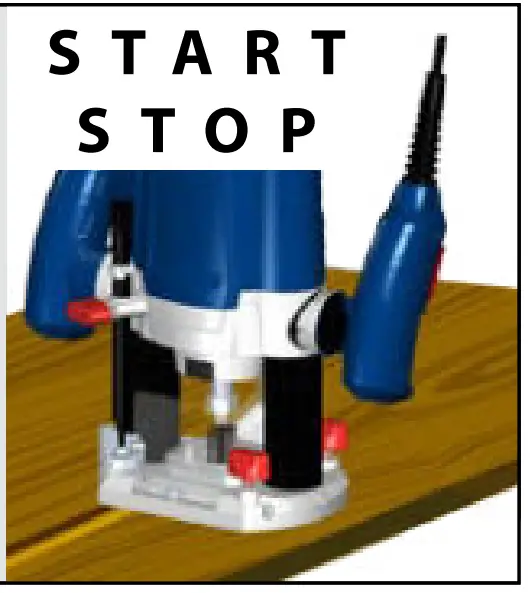

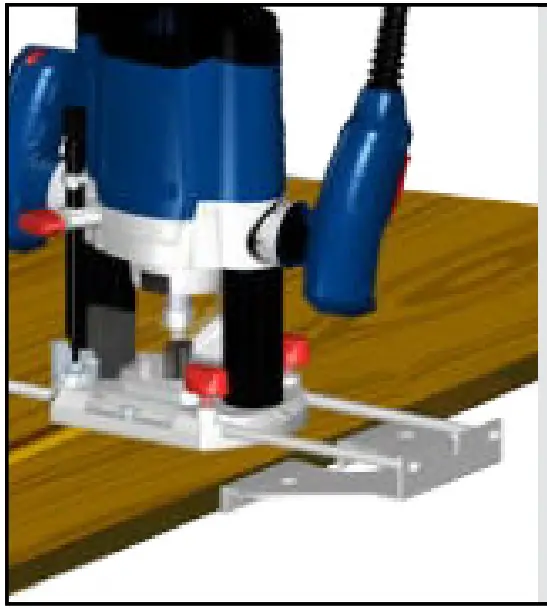

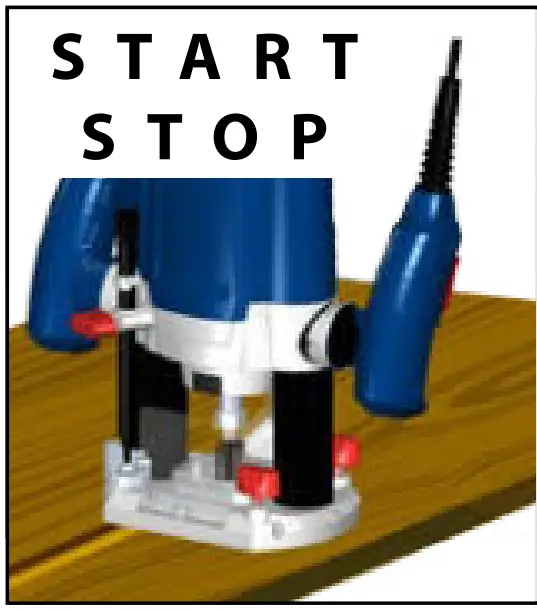

OPERATION
 |  |  soft wood |  hard wood |  plastics |  aluminium |
| 3-6 mm | HSS | 23000 min -1 | 20400 min -1 | 15200 min -1 | 15200 min -1 |
| 6-8 mm | HSS | 20400 min -1 | 17800 min -1 | 15200 min -1 | 12600 min -1 |
| 8-10 mm | HM | 17800 min -1 | 15200 min -1 | 12600 min -1 | 10000 min -1 |
| 10-12 mm | HM | 17800 min -1 | 12600 min -1 | 10000 min -1 | 10000 min -1 |
| 12-20 mm | HM | 15200 min -1 | 12600 min -1 | 10000 min -1 | 10000 min -1 |
| 20-25 mm | HM | 15200 min -1 | 12600 min -1 | 10000 min -1 | 10000 min -1 |
| 25-40 mm | HM | 15200 min -1 | 12600 min -1 | 10000 min -1 | 10000 min -1 |

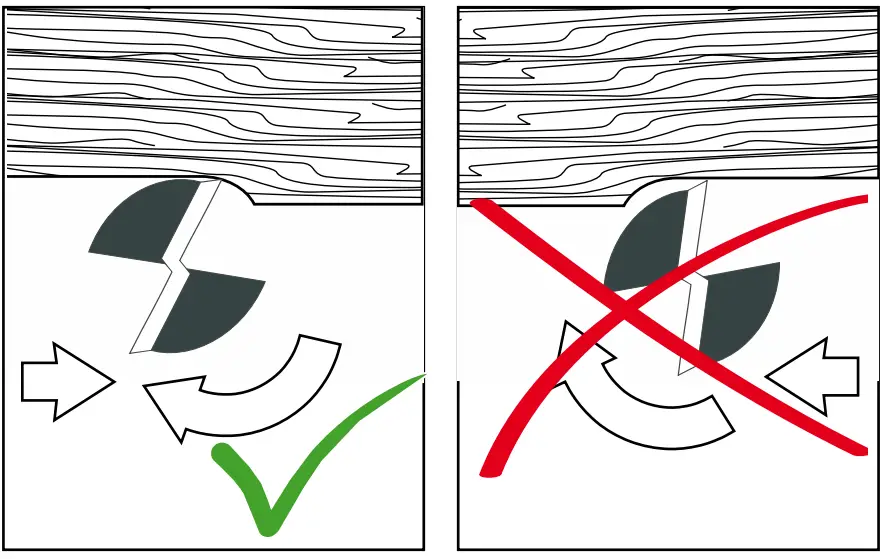

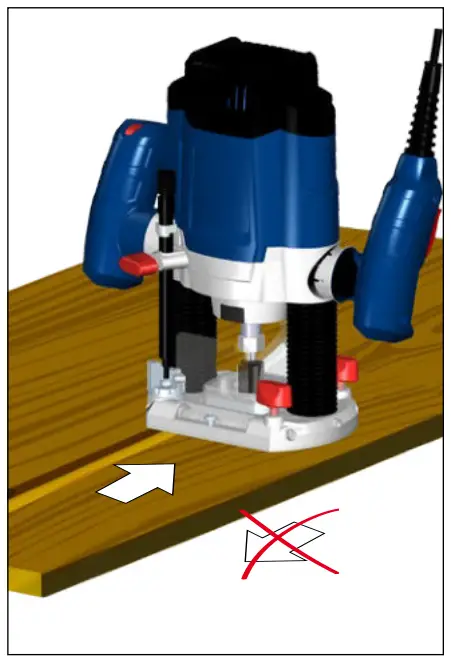

Only work oppositely oriented!
Technical Data
| Router | OF 1200 E |
| Art. No | 58117 |
| Service connection | 230 V ~ 50 Hz |
| Rated input | 1200 W |
| No-load speed | 11000-30000 min-1 |
| Cage stroke | 30 mm |
| Collet diameter | 55 mm |
| Router diameter max. | 6-8 mm |
| Weight | 3,6 kg |
| Noise details | |
| Sound pressure level LpA | 88 dB (A) |
| Sound power level LWA | 99 dB (A) |
| Measured according to EN 60745; Uncertainty K = 3 dB (A) | |
| Wear ear protectors! | |
| Vibration details | |
| Vibration total values (triaxial vector sum) deter- mined according to EN 60745: | |
| Vibration emission value ah | 7,20 m/s² |
| Uncertainty K = 1,5 m/s2 | |
WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.
The vibration emission level may be used to compare one tool with another.
It may be used for a preliminary assessment of exposure.
An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties
The operator is responsible for accidents or risks to third parties.
Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
In case of any doubts about connection and operation refer please to our customer center
Specified Conditions Of Use
The router can be used for rabbeting, rounding off, chamfering, routing of edges, as well as pitting in wood and plastic.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information:
- Accident site,
- Accident type,
- Number of injured persons,
- Injury type(s)
Symbols
| WARNING / Caution! |
| Read the operating instructions to reduce the risk of injury. |
 | Wear eye protective goggles ! Wear ear protectors! |
 | Unplug the machine before any work on it. |
 | Class II tool. |
 | CE marking |
 | Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres. |
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Router safety warnings
Wear ear protectors. Exposure to noise can cause hearing loss.
Hold power tool by insulated gripping surfaces only, because the milling cutter may contact its own cord. Cutting accessory contacting a „live“ wire may make exposed metal parts of the power tool „live“ and could give the operator an electric shock.
Use clamps or another practical way to secure and support the workpiece to a stable platform.
Holding the work by your hand or against the body leaves it unstable and may lead to loss of control
Additional Safety and Working Instructions
Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear and ear defenders.
Always use the protective shields on the machine.
Never reach into the danger area of the machine when it is running.
Chips and splinters must not be removed while the machine is running.
Only use tools whose permitted speed is at least as high as the highest no-load speed of the machine.
Only use professionally grinded router cutters.
Only use router cutter with correct shank diameter.
Put the router back to original position after usage (loosen clamping lever to secure cage).
Only move the workpiece in counter rotation to cutter (only work oppositely oriented)! For security, use devices such as safety- and pressure device, guide slide, rip fence, etc.
The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleane
Mains Connection
Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).
Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.
Only plug-in when machine is switched off.
Maintenance
Unplug the machine before any work on it.
Repairs and works specified in these Instructions may only be performed by qualified authorised staff.
Use only original accessories and original spare parts.
Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!
Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.
Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guede.com.
