3-INCH DISK
ITEM NUMBER OPC513
UPC
827518009123
CHIPPER SHREDDER
DESCRIPTION

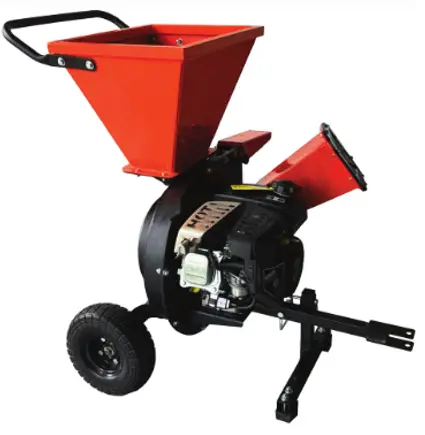

The ATV-towable 3-inch direct drive OPC513 chipper shredder is powered by a KOHLER® 2000 Series RH265 6.5HP 196cc engine, and comes equipped with double edge cutting blades made with high strength steel so they stay sharp longer.
Featuring direct shaft drive centrifugal force that deteriorates trees, branches, leaves, and garden composting with ease and has a 4-stage cyclonic air filter system in the KOHLER® engine, auto-blade feeding, and 4.10/3.50-4 tires for off-road towing.
SPECIFICATION
| ENGINE | KOHLER® 2000 Series RH265 6.5HP 196cc |
| GEARBOX | Direct drive 10.7 ft/lb (14.5 Nm) gross torque |
| WHEELS & TIRES | 4.10/3.50-4 Ø10.2” (Ø26 cm) O.D. x 3.9” (10 cm) airless |
| WHEELBASE | 21.7” (55 cm) |
| CHIPPING CAPACITY | Ø3” (Ø7.6 cm) (side feed chute) Ø3/8” (Ø0.95 cm) (top-loading hopper) |
| CUTTERS | Double edge chipper blades and hammer shredders |
| CHIPPER SHREDDER | Leaves, brush, garden compost |
| EXPULSION CHUTE | Adjustable |
| COUPLER | Adjustable |
| DIMENSIONS | 41.7” (L) x 34.3” (W) x 37.4” (H) 106 cm (L) x 87 cm (W) x 95 cm (H) |
| WEIGHT | 141.1 lb (64 kg) |
| SHIPPING DIMENSIONS | 31.5” (L) x 22” (W) x 20.9” (H) 80 cm (L) x 56 cm (W) x 53 cm (H) |
| SHIPPING WEIGHT | 163.1 lb (74 kg) |
| WARRANTY | 2-year KOHLER® engine 1-year DK2 chassis |
FEATURES
- Powered by a KOHLER® 2000 Series RH265 6.5HP 196cc engine 1
- Direct drive combo chipper shredder with double edge chip and hammer shredders
- Perfect for trees up to 3” (7.6 cm) in diameter, and twigs, leaves and garden composting up to 3/8” (0.95 cm) in diameter
- Extra large feed chutes 2
- Drop stand and handy removable tow bar 3
- 4.10/3.50-4 Ø10.2” (Ø26 cm) O.D. x 3.9” (10 cm) airless tires 4
- Includes 2-year KOHLER® engine and 1-year DK2 chassis warranty
- OFF-ROAD ONLY AND MAX SPEED 15MPH (24KM/H)
