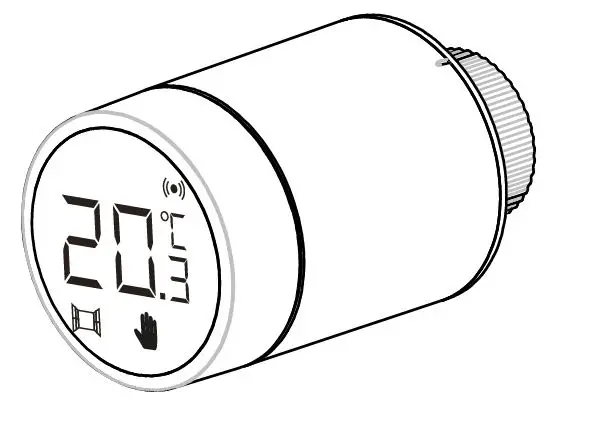

Alecto SMART-HEAT10 Smart Zigbee Thermostat
This device can only be linked on to a previously linked Zigbee bridge. We guarantee correct operation on the Alecto SMART-BRIDGE10

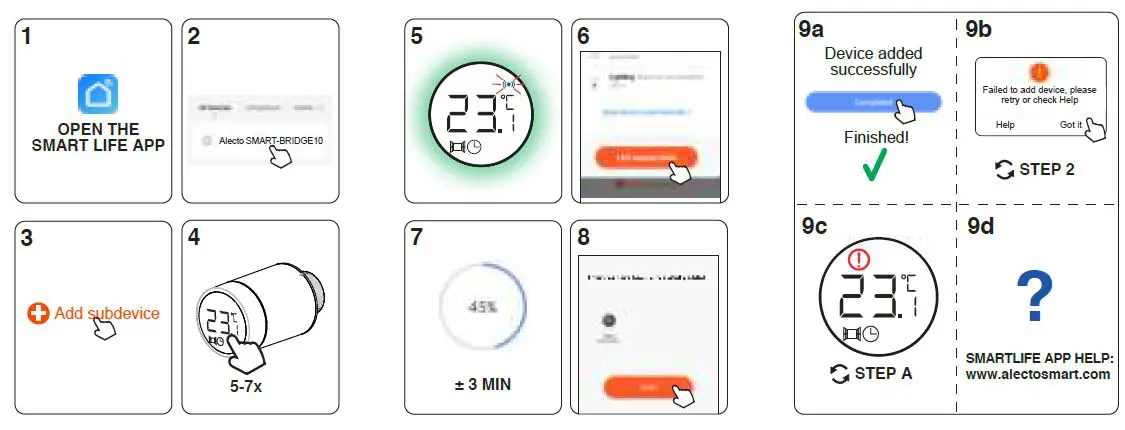

INSTALLATION INSTRUCTIONS
- Transport protocol: Zigbe
- Wireless frequency: 2.4 GHz
- Working voltage: 2.4-3.3 V
- Max. working current: <800 mA
- Standby current: <100 uA
- Lifespan: Up to 12 months
- Operating system: Android 4.4+ or iOS 9.0+
- Battery: 2x AA Alkaline
- Working temperature: -20°C ~ 65°C
- Relative humidity: 0% – 95%
- Dimensions: 89xØ57 mm
- Environment of use: Only indoor!
- Measurement intervals: Every 2 min
- Valve stroke: Max. 6mm
- Weight: 192g inc. batteries 5-30°C
- Temperature setting range 5-30°C
- Automatic mode: 5-15 °C
DECLARATION OF CONFORMITY
Hereby, Hesdo declares that the radio equipment type Alecto SMART-HEAT10 is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://DOC.hesdo.com/SMART-HEAT10-DOC.pdf
ATTENTION
- Make sure that the SMART-HEAT10 is within range of the SMART-BRIDGE10 during the registration process.
- Auto-calibration after installation takes up to 24hrs
- Keep away from liquids and humidity
- The SMART-HEAT10 must be placed horizontally to ensure proper operation. Use a coupling to replace a vertical radiator valve.
