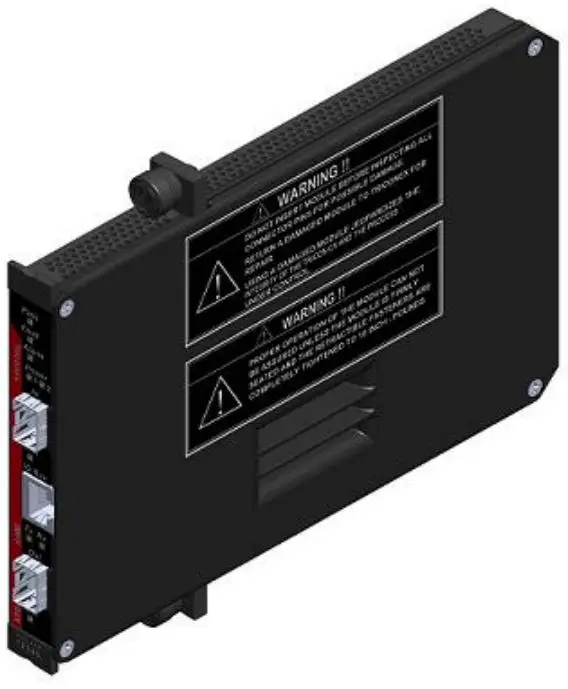

Schneider Electric 4703X IMFF Module
Potential disassembly risks
The Circularity profile provides information about preparation for re-use and treatment. It identifies the relevant EEE components and materials as well as their location. Safety instructions for product dismantling and de-pollution are provided in the User manual or maintenance guide.
End-of-Life Instructions
| Recommendation | Number on drawing | Component / Material | Weight (ing) | Comment |
| To be depolluted | 1 | Electronic Board (Communication) > 10cm² | 148 | |
| Other | 2 | Plastics and Other parts | 232 | |
| To be dismantled | 3 | Metals and semimetals | 56 | IMFF Shell and other stainless steel parts should be dismantled at end of life. |
Product Description
| Manufacturer identification | Triconex (Schneider Electric) |
| Brand name | Triconex |
| Product function | IMFF Module is part of the Tricon CX safety system which act as an interface to provide communication between the main processor and I/O modules. |
| Product reference | 4703X |
| Additional similar product references | 4701X |
| Total representative product mass | 436 g |
| Representative product dimensions | 202mm x 153.4mm x 19.6mm |
| Accessories | Yes accessories needed (I/O Chassis Backplane along with the screws are needed) |
| Date of information release | 08/2021 |
Additional Information
|
Legal information | This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The product family must be disposed of according to the legislation of the country. This document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic information to assure an appropriate end-of-life treatment for the components and materials of the product. | |
| In case of special transportation: transportation method | No special transportation | |
| Recyclability potential | 22% | Based on the “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME). |
