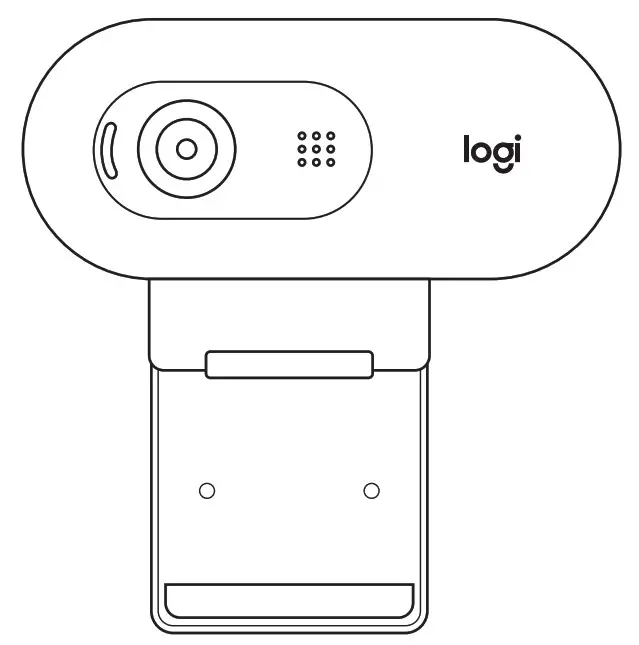

C505e HD WEBCAM
Complete Setup Guide

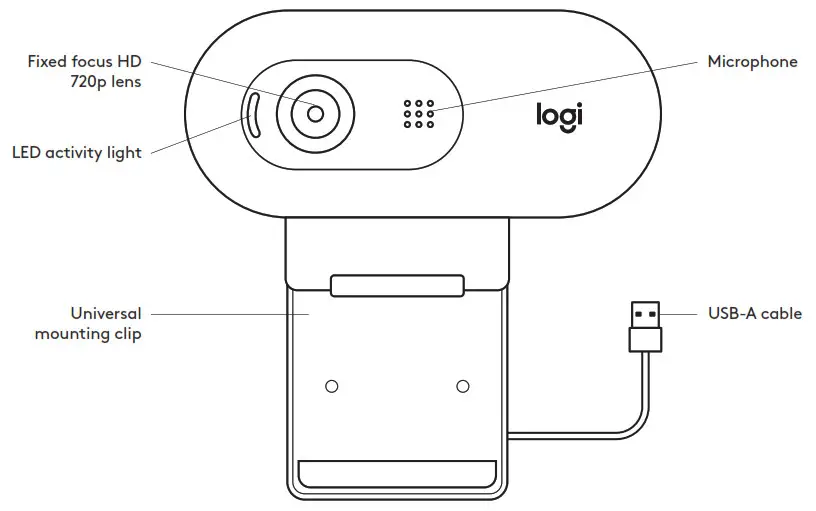

KNOW YOUR PRODUCT
WHAT’S IN THE BOX
- Webcam with 7 ft (2 m) attached USB-A cable
- User documentation
SETTING UP THE WEBCAM
| 1. Place your webcam on a computer, laptop or monitor at a position or angle you desire |  |
| 2. Adjust the webcam to make sure the end on the universal mounting clip is flush with the back of your device |  |
| 3. Manually adjust the webcam up/down to the best position to frame yourself |  |
| CONNECTING THE WEBCAM VIA USB-A Plug the USB-A connector into the USB-A port on your computer |  |

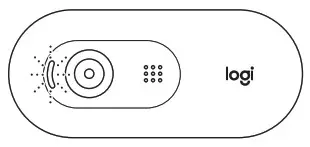

| SUCCESSFUL CONNECTION LED activity light will light up when the webcam is in use by an application |  |
DIMENSIONS
INCLUDING FIXED MOUNTING CLIP:
Height x Width x Depth: 1 26in (31 91mm) x 2 87in (72 91mm) x 2 62in (66 64mm)
Weight: 2 65oz (75g)
www.logitech.com/support/C505e
© 2020 Logitech, Logi and the Logitech Logo are trademarks or registered trademarks of Logitech Europe S A and/or its affiliates in the U S and other countries Logitech assumes no responsibility for any errors that may appear in this manual Information contained herein is subject to change without notice
WEB-621-001798 002
