Logitech C922 Pro Hd Stream Webcam User Manual

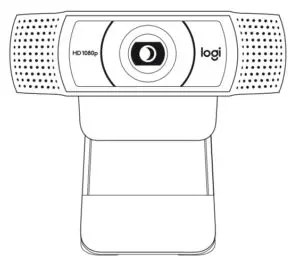

C922 PRO HD STREAM WEBCAM

Complete Setup Guide
Guide d’installation complet

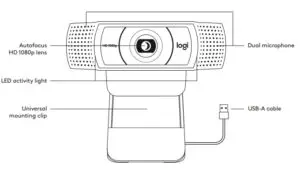

KNOW YOUR PRODUCT

WHAT’S IN THE BOX

1. Webcam with 5 ft (1.5 m) attached USB-A cable
2. User documentation

SETTING UP THE WEBCAM

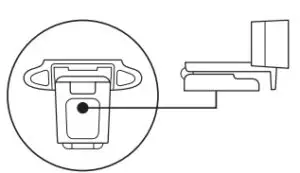

For placement on a monitor

1. Place your webcam on a computer, laptop or monitor at a position or angle you desire.

2. Adjust the webcam to make sure the foot on the universal mounting clip is flush with the back of your device.

3. Manually adjust the webcam up/down to the best position to frame yourself.


For placement on a tripod*

1. Locate the ¼ inch tripod thread on the bottom of the universal mounting clip.

2. Secure the webcam on your tripod by twisting it into the ¼ inch thread.
3. Place your webcam with the tripod anywhere you desire to the best position to frame yourself.

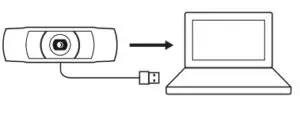

CONNECTING THE WEBCAM VIA USB-A

Plug the USB-A connector into the USB-A port on your computer.

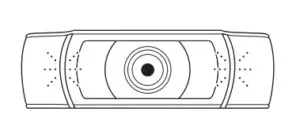

SUCCESSFUL CONNECTION

LED activity light will light up when the webcam is in use by an application.

DIMENSIONS

INCLUDING FIXED MOUNTING CLIP:

Height x Width x Depth: 1.73 in (44 mm) x 3.74 in (95 mm) x 2.80 in (71 mm)
Cable Length: 5 ft (1.5 m)
Weight: 5.71 oz (162 g)
