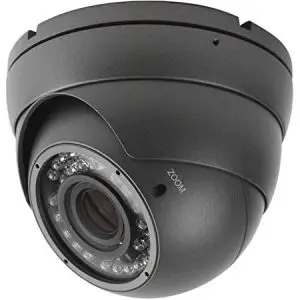

WIZARD 4-1 4K Dome Camera with fix lens Instructions
Specification
| Model NO. | ON-AD104EV-8M |
| Video Output Mode | AHD: 8M@15fps, 2M@30fps; TVI/CVI: 8M@15fps/12.5fps, 2M@30fps |
| Solution | Eyenix EN781+OS08A10(Omnivision) 4K |
| Camera | |
| Image Sensor | 1/1.8” OmniVision CMOS sensor |
| Image Resolution | 8M:3840*2160 2M:1920*1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | AUTO / MANUAL |
| Scanning System | Progressive Scan |
| Lens | |
| Focus Length | 4mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Night Vision | |
| IR Cut Filter | YES |
| Infrared LED | 14µ x 18PCS |
| Infrared Distance | 20M |
| IR Power On / Off | Smart IR control |
| Camera Features | |
| Starlight | / |
| Day/Night | YES |
| OSD Menu | YES |
| WDR | YES |
| UTC | YES |
| Noise Reduction | 3DNR |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| General | |
| Housing | Metal, IP66 |
| Bracket | NO |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 550mA |
| Dimension | ￠89 x 76(H) mm |
| Weight | 450g |
