XPS 13 7390
Setup and Specifications

Regulatory Model: P82G
Regulatory Type: P82G003
May 2020
Rev. A03

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Set up your XPS 13 7390

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

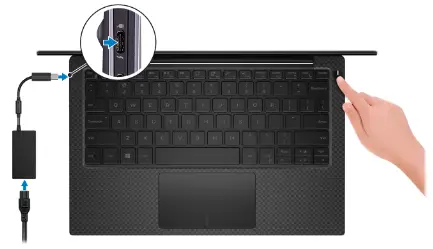

Connect the power adapter to the primary Thunderbolt 3 (USB Type-C) port with Power Delivery (the USB Type-C port adjacent to the power-adapter port) and press the power button.
NOTE: To conserve battery power, the battery might enter power-saving mode. Connect the power adapter and press the power button to turn on the computer.
Finish operating system setup.
For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see the knowledge base articles SLN151664 and SLN151748 at www.dell.com/support.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
• Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
• If connected to the internet, sign in with or create a Microsoft account. If not connected to the internet, create an offline account.
• On the Support and Protection screen, enter your contact details.
Locate and use Dell apps from the Windows Start menu—Recommended

Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.

Resources	Description
	SupportAssist Proactively checks the health of your computer’s hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty
	Dell Update Updates your computer with critical fixes and the latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/support.

Views of XPS 13 7390

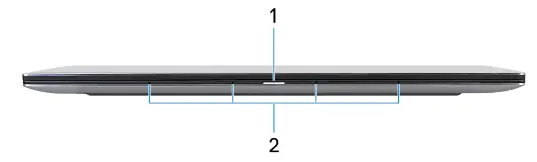

Front

Power and battery status light
Indicates the power state and battery state of the computer. Solid white—Power adapter is connected and the battery is charging. Solid amber—Battery charge is low or critical. Off—Battery is fully charged.
NOTE: On certain computer models, the power and battery-status light is also used for system diagnostics. For more information, see the Troubleshooting section in your computer’s Service Manual.
Microphones (4)
Provide digital sound input for audio recording, voice calls, and so on.

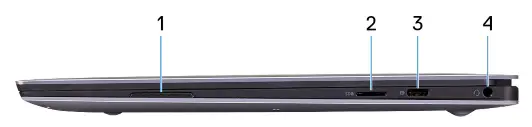

Right

Right speaker
Provides audio output.
microSD-card slot
Reads from and writes to the microSD card. The computer supports the following card types:
• micro secure Digital (SD)
• micro secure Digital High Capacity (SDHC)
• micro secure Digital Extended Capacity (SDXC)
USB 3.1 Gen 2 (Type-C) port with Power Delivery/DisplayPort
Connect peripherals such as external storage devices, printers, and external displays.
Supports Power Delivery that enables two-way power supply between devices. Provides up to 7.5 W power output that enables faster charging.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Headset port
Connect headphones or a headset (headphone and microphone combo).

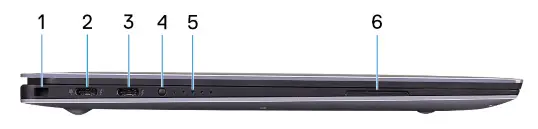

Left

Security-cable slot (wedge-shaped)
Connect a security cable to prevent unauthorized movement of your computer.
Thunderbolt 3 (USB Type-C) port with Power Delivery (Primary)
Supports USB 3.1 Gen 2 Type-C, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3. Supports Power Delivery that enables a two-way power supply between devices. Provides up to 5 V/3 A power output that enables faster charging.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect to a DisplayPort device.
NOTE: This is the primary port for the power supply. Connect the power adapter to this Thunderbolt 3 (USB Type-C) port with Power Delivery.
Thunderbolt 3 (USB Type-C) port with Power Delivery
Supports USB 3.1 Gen 2 Type-C, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display adapter. Provides data transfer rates up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3. Supports Power Delivery that enables two-way power supply between devices. Provides up to 5 V/3 A power output that enables faster charging.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Battery-charge status button
Press to check the charge remaining in the battery.
Battery-charge status lights (5)
Turns on when the battery-charge status button is pressed. Each light indicates approximately 20% charge.
Left speaker
Provides audio output.

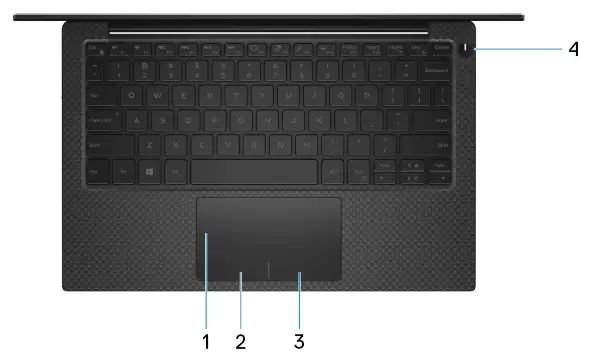

Base

Touchpad
Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two-finger tap to right-click.
Left-click area
Press to left-click.
Right-click area
Press to right-click.
Power button with optional fingerprint reader
Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut down the computer.
Press and hold power button over 25 seconds to reset RTC battery if encounter no post issue.
If the power button has a fingerprint reader, place your finger on the power button to log in.
NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.
NOTE: The power-status light on the power button is available only on computers without the fingerprint reader. Computers shipped with the fingerprint reader integrated on the power button will not have the power-status light on the power button.

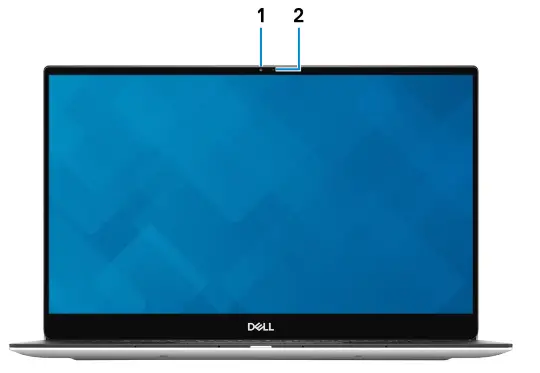

Display

Camera
Enables you to video chat, capture photos, and record videos.
Camera-status light
Turns on when the camera is in use.

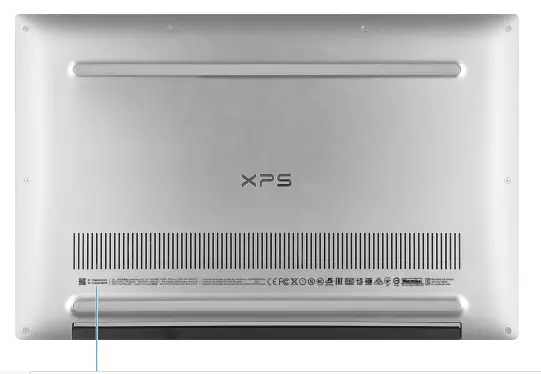

Bottom

Service Tag
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

Specifications of XPS 13 7390

Dimensions and weight
Table 2. Dimensions and weight

Description	Values
Height:
Front	7.80 mm (0.31 in.)
Rear	11.63 mm (0.46 in.)
Width	301.76 mm (11.88 in.)
Depth	199.24 mm (7.84 in.)
Weight (maximum)	1.29 kg (2.84 lb) NOTE: The weight of your computer depends on the configuration ordered and the manufacturing variability.

Processors
Table 3. Processors

Description	Values
Processors	10th Generation Intel Core i3-10110U	10th Generation Intel Core i5-10210U	10th Generation Intel Core i7-10510U	10th Generation Intel Core i7-10710U
Wattage	15 W	15 W	15 W	15 W
Core count	2	4	4	6
Thread count	4	8	8	12
Speed	Up to 4.1 GHz	Up to 4.2 GHz	Up to 4.9 GHz	Up to 4.7 GHz
Cache	4 MB	6 MB	8 MB	12 MB
Integrated graphics	Intel UHD Graphics	Intel UHD Graphics	Intel UHD Graphics	Intel UHD Graphics

Chipset
Table 4. Chipset

Description	Values
Chipset	Integrated in the processor
Processor	10 Generation Intel Core i3/i5/i7

Description	Values
DRAM bus width	64-bit
Flash EPROM	Values
PCIe bus	Up to Gen3.0

Operating system

Windows 10 Home (64-bit)
Windows 10 Professional (64-bit)
Ubuntu

Memory
Table 5. Memory specifications

Description	Values
Values	Onboard memory NOTE: The memory modules are integrated on the system board. If the memory modules are malfunctioning and need to be replaced, a replacement of the system board is necessary.
Type	Dual-channel LPDDR3
Speed	2133 MHz
Maximum memory	16 GB
Minimum memory	4 GB
Configurations supported	• 4 GB LPDDR3 at 2133 MHz • 8 GB LPDDR3 at 2133 MHz • 16 GB LPDDR3 at 2133 MHz

Ports and connectors

Table 6. External ports and connectors

External:
USB	• Two USB Thunderbolt 3 (Type-C) ports with Power Delivery • One USB 3.1 Gen 2 (Type-C) port with Power Delivery/ DisplayPort
Audio	One headset (headphone and microphone combo) port
Video	DisplayPort (DP) 1.2 support through a USB Type-C connector
Media card reader	One microSD-card slot
Docking port	Not applicable

Table 6. External ports and connectors(continued)

External:
Power adapter port	DC-IN through a USB Type-C connector
Security	One security-cable slot (wedge-shaped)

Table 7. Internal ports and connectors

Internal:
M.2	One M.2 2230/2280 slot for solid-state drive NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626.

Communications

Wireless module
Table 8. Wireless module specifications

Description	Values
Model number	Rivet Killer AX1650W
Transfer rate	Up to 2400 Mbps
Frequency bands supported	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz
Wireless standards	• WiFi 802.11a/b/g • Wi-Fi 4 (WiFi 802.11n) • Wi-Fi 5 (WiFi 802.11ac) • Wi-Fi 6 (WiFi 802.11ax)
Encryption	• 64-bit/128-bit WEP • AES-CCMP • TKIP
Bluetooth	Bluetooth 5 (Windows 10 supports Bluetooth 5 with the latest Windows update)

Audio

Table 9. Audio specifications

Description	Values
Controller	Realtek ALC3271-CG with Waves MaxxAudio Pro
Stereo conversion	Supported
Internal interface	High Definition Audio
External interface	7.1 channel output, universal audio jack supports microphone-in, stereo headphones, and headset combo

Description	Values
Speakers	Two
Internal speaker amplifier	Supported (audio codec built-in amplifier)
External volume controls	Keyboard shortcut controls
Speaker output:
Average	2 W
Peak	2.5 W
Subwoofer output	Not supported
Microphone	Dual-array microphones

Storage

Your computer supports one M.2 2230/2280 solid-state drive (either PCIe/NVMe or SATA).
NOTE: The M.2 2230 and M.2 2280 solid-state drives each has a unique thermal plate. The thermal plates cannot be interchanged.
Table 10. Storage specifications

Storage type	Interface type	Capacity
M.2 2230 solid-state drive	PCIe NVMe Gen3 x2 NVMe, up to 32 Gbps	Up to 256 GB
M.2 2280 solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps	Up to 2 TB

Media-card reader

Table 11. Media-card reader specifications

Description	Values
Type	One microSD-card slot
Cards supported	Micro Secure Digital (mSD) Micro Secure Digital High Capacity (mSDHC) Micro Secure Digital Extended Capacity (mSDXC)

Keyboard

Table 12. Keyboard specifications

Description	Values
Type	Backlit keyboard
Layout	QWERTY
Number of keys	• United States and Canada: 82 keys

Description	Values
	• United Kingdom: 83 keys • Japan: 86 keys
Size	X=19.05 mm key pitch Y=18.05 mm key pitch

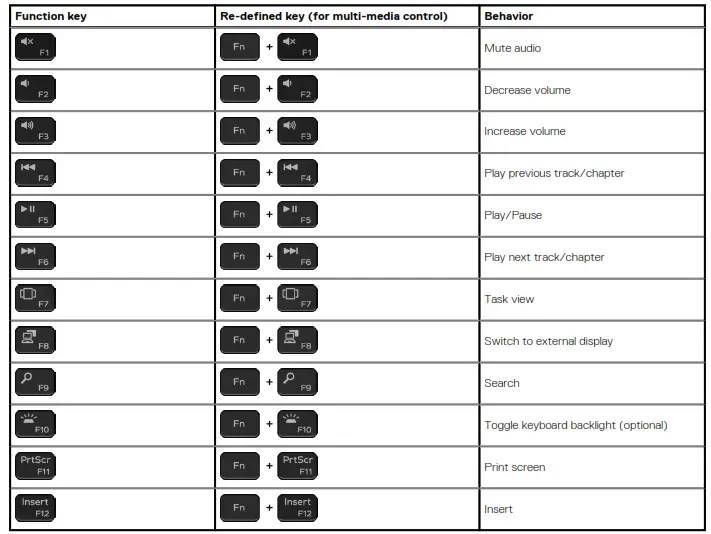

Shortcut keys	Some keys on your keyboard have two symbols on them. These keys can be used to ype alternate characters or to perform secondary functions. To type the alternate character, press Shift And the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program. See Keyboard shortcuts

Camera

Table 13. Camera specifications

Description	Values
Number of cameras	One
Type	Fixed-focus lens
Location	Top-mount front camera
Sensor type	Top-mount front camera
Sensor type	CMOS sensor technology
Resolution:
Still image	0.9 megapixel (HD)
Video	1280 x 720 (HD) at 30 fps
Diagonal viewing angle	78 degrees

Touchpad

Table 14. Touchpad specifications

Description	Values
Resolution:
Horizontal	305
Vertical	305
Dimensions:
Horizontal	105 mm (4.13 in.)
Vertical	65 mm (2.56 in.)

Touchpad gestures

For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com.

Power adapter

Table 15. Power adapter specifications

Description	Values
Type	SFF 45 W (USB Type-C)
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.30 A
Output current (continuous)	• 20 VDC/2.25A • 15 VDC/3 A • 9 VDC/3 A • 5 VDC/3 A
Rated output voltage	20 VDC/15 VDC/9 VDC/5 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)

Battery

Table 16. Battery specifications

Description	Values
Type	4-cell “smart” lithium-ion (52 WHr)
Voltage	7.60 VDC
Weight (maximum)	0.22 kg (0.49 lb)
Dimensions:
Height	257.60 mm (10.14 in.)
Width	98.60 mm (3.88 in.)
Depth	4.30 mm (0.17 in.)
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 65°C (-40°F to 149°F)
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Description	Values
Charging time (approximate)	4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on https://www.dell.com/
Life span (approximate)	300 discharge/charge cycles
Coin-cell battery	ML1220
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Display

Table 17. Display specifications

Description		Values
Type	Full High Definition (FHD)	Full High Definition (FHD)	Ultra High Definition (UHD)
Panel technology	Wide Viewing Angle (WVA	Wide Viewing Angle (WVA)	Wide Viewing Angle (WVA)
Luminance (typical)	400 nits	400 nits	400 nits
Dimensions (active area):
Height	165.24 mm (6.51 in.)	165.24 mm (6.51 in.)	165.24 mm (6.51 in.)
Width	293.76 mm (11.57 in.)	293.76 mm (11.57 in.)	293.76 mm (11.57 in.)
Diagonal	337.82 mm (13.30 in.)	337.82 mm (13.30 in.)	337.82 mm (13.30 in.)
Native resolution	1920 x 1080	1920 x 1080	3840 x 2160
Megapixels	2.07	2.07	8.29
Pixels per inch (PPI)	166	166	331
Contrast ratio (min)	1000:01:00	1000:01:00	1000:01:00
Response time (max)	30 ms	30 ms	30 ms
Refresh rate	60 Hz	60 Hz	60 Hz
Horizontal view angle	89	89	89
Vertical view angl	89	89	89
Pixel pitch	0.15 mm	0.15 mm	0.08 mm
Power consumption (maximum)	2.9 W	2.9 W	5.41 W
Anti-glare vs Anti-reflective	Anti-reflective	Anti-glare	Anti-reflective
Touch options	Yes	No	Yes

Fingerprint reader (optional)

Table 18. Fingerprint reader specifications

Description	Values
Sensor technology	Touch
Sensor resolution 500 dpi
Sensor area	5.5 mm x 4.5 mm
Sensor pixel size	108 x 88

Video

Table 19. Discrete graphics specifications

Discrete graphics
Controller	External display support	Memory size	Memory type
Not supported	Not supported	Not supported	Not supported

Table 20. Integrated graphics specifications

Integrated graphics
Controller	External display support	Memory size	Processor
Intel UHD Graphics	DisplayPort (DP) 1.2 support through a USB Type-C connector	Shared system memory	th 10 Generation Intel Core i3/i5/i7

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 21. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum) *	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude (maximum)	5.2 m to 3048 m (4.64 ft to 5518.4 ft	10% to 90% (non-condensing)

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.
Table 22. List of keyboard shortcuts

Table 23. List of keyboard shortcuts

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 24. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows www.dell.com/support/linux
Troubleshooting information, user manuals, set up instructions, product specifications, technical help blogs, drivers, software updates, and so on.	www.dell.com/support
Dell knowledge base articles for a variety of computer concern	1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.
Learn and know the following information about your product: • Product specifications • Operating system • Setting up and using your product • Data backup • Troubleshooting and diagnostics • Factory and system restore • BIOS information	See Me and My Dell at www.dell.com/support/manuals. To locate the Me and My Dell relevant to your product, identify your product through one of the following: • Select Detect Product. • Locate your product through the drop-down menu under View Products. • Enter the Service Tag number or Product ID in the search bar.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
