ETB Series
Model: ETBF2

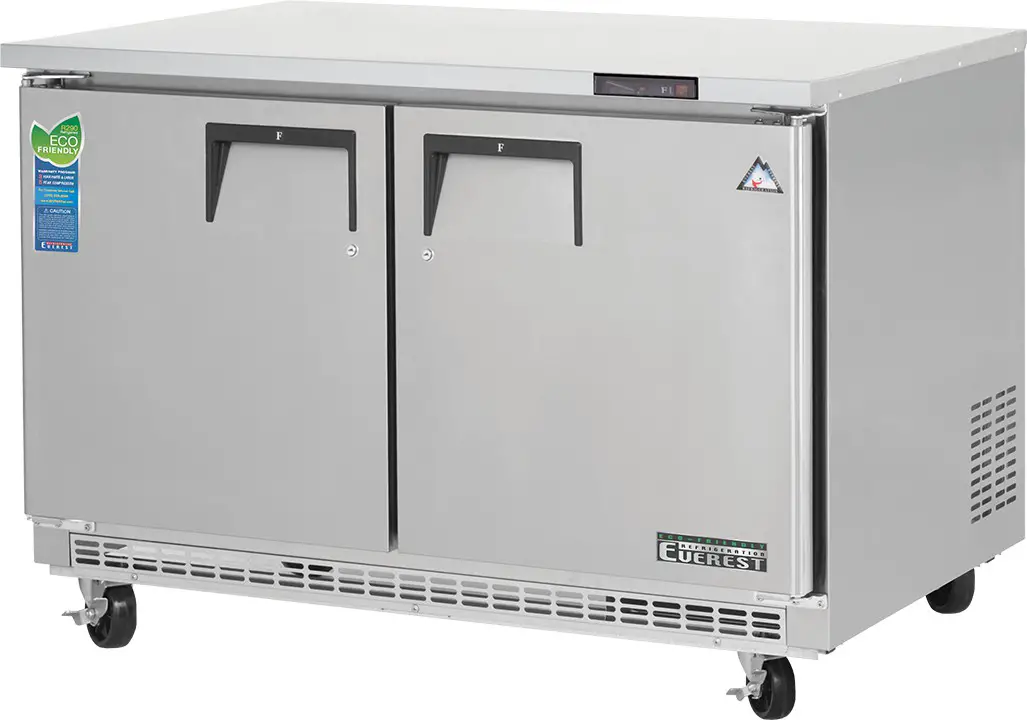

BACK MOUNT UNDERCOUNTER FREEZER
BACK MOUNTED CONDENSING UNIT
Project Name:___________
Project Location:________
Model #:_______________
Quantity:_______________
Available Warehouse:______
Refrigeration System
- Bottom mounted, the self-contained and retractable condensing unit uses environmentally-friendly R404A* refrigerant with zero (0) Ozone Depletion Potential (ODP) and EPA compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). R290 condensing units are replaceable and require o on-site brazing. *Ask about alternative refrigerants.
- Front air breathing for flexibility in installation.
- PSC evaporator fan motors for R404A models. Electronically commutated (ECM) fan motors for R290 models.
- R290 models include a full-length air duct system.
- Time-initiated and temperature-terminated defrost cycle with defrost heater.
- Large capacity, corrosion-resistant condenser, and evaporator coils.
- A self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
- High-performance condenser fan motors ensure efficient compressor ventilation. R290 models use autoreverse condenser fan motors which also support condenser coil cleaning. Refer to the owner’s manual for full maintenance instructions.
- Pressure relief devices allow smooth access to the cabinet interior when reopening doors.
- Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
Cabinet Construction
- Heavy-duty stainless steel interior/exterior with rounded corners for a hazard-free workspace.
- Open spaced interior with no walls between compartments.
- 16 gauge, high-quality stainless steel worktop.
- Galvanized steel bottom and rear.
- 2.5″ thick high-density polyurethane insulation.
- Four 5″ swivel casters with locks on the front set.
Doors
- Heavy-duty stainless steel interior/exterior.
- 2.5″ thick high-density polyurethane insulation.
- Frame heaters prevent exterior moisture build-up.
- Self-closing with adjustable torsion system for a positive seal.
- Snap-in magnetic door gasket makes cleaning and replacement an easy process.
- High strength, recessed door handles.
- Pre-installed door locks keep your items safe from theft.
Shelving
- Two epoxy-coated, steel wire shelves per section.
- Height adjustable stainless steel clips.
Temperature Control
- Multi-function digital controller with easy-to-read LED display.
- Factory preset temperature, -4°F. Temperature settings range from -10°F to 54°F.
- R290 models include audible overheat protection alarm for compressor and condenser coil.
Options
- 4” high stainless steel backsplash for worktop application.
- Additional shelving.
- 3” swivel casters with locks.
- 3.5” – 6” height-adjustable and interchangeable legs.
- NSF Certified Stainless Steel Double Overshelf.
| Ref/ Frz/Dual | Doors | Capacity Cu. Ft. | Shelves | Refrigerant R-290 | HP | Power V-Hz-Ph | Amps | Crated | Exterior Dimensions | ||
| FRZ | 2 | 14 | 4 | R-290 | 1/3 | 115-60-1 | 3 | Weight | L | D | H* |
| 269 lbs (122kg) | 47.5″ (1207mm) | 31.5″ (800mm) | 30.25″ (768mm | ||||||||
DIMENSIONAL DATA
| External Dimensions | L 47.5″ (1207mm) |
| D 31.5″ (800mm) | |
| H* 30.25″ (768mm) | |
| Crated Weight | 269 lbs. (122kg) |
| Doors/Drawers/Lids | 2 |
| Max Weight Support (LBS) | – |
STORAGE DATA
Net Capacity Cu.  | 14 |
| Shelves | 4 |
| Barrels | – |
| 20 oz. Bottles | – |
| 12 oz. Bottles | – |
| 12 oz. Cans | – |
| 8″ Mugs | – |
| # of Pans (Top) | 14 |
| # of Pans (Drawer) | 4 |
| Dividers | – |
| Trays | – |
ELECTRICAL DATA
| Voltage | 115-60-1 |
| Full Load Amperage | 3A |
| Feed Wires with Ground | 3 |
| Cord Length | 9ft |
| NEMA Plug Type |  NEMA 5-15P |
REFRIGERATION DATA
| Compressor Mounting | Back |
| Refrigerant | R-290 |
| Compressor HP | 1/3 |
| BTU/HR | 1360 |
| D | Door | R | Refrigerator |
| L | Lid | REF | Refrigerator |
| H | Half Door | F | Freezer |
| FD | Full Door | FRZ | Freezer |
| SD | Solid Door | DUAL | REF/FRZ Combo |
| GD | Glass Door | DR | Drawer |
KEY
 | Elevation | Right | Plan | 3D | Back |

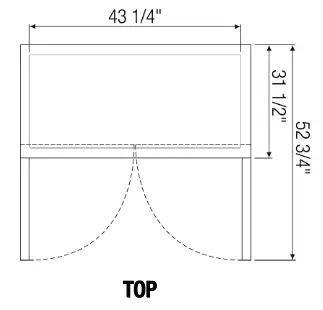

PLAN VIEW
ACCESSORIES & OPTIONS
| Part Number | Description |
| Additional Shelving | Contact Everest Refrigeration for more information. |
| AJL03-00 | Interchangeable Leg for Caster |
| BKSPL02-00 | 4″ High (47-1/2″ Long) Backsplash |
| CASA3-01 | 3″ Overall Height Caster Assembly – (2) Front (2) Rear |
| OS02-00 | Standard Double Overshelf 12″ Depth x 48″ Length |
Please visit our website for updated Energy information
(
)Based on the evaporating temperature of 23ºF (-5ºC) & condensing temperature of 131ºF (55ºC). ( ) Product capacity is calculated based on standard industry figures. (* ) Reference plan view for clarification on caster/unit height. If dimensions and capacity are critical, please contact Everest Refrigeration. Blizzard R290 replacement is at the sole discretion of Everest Refrigeration. Specifications are subject to change without notice.
VER. 8/6/2019
201 W. Artesia Blvd., Compton, CA 90220
T. (310) 323-6586
F. (310) 323-7524
