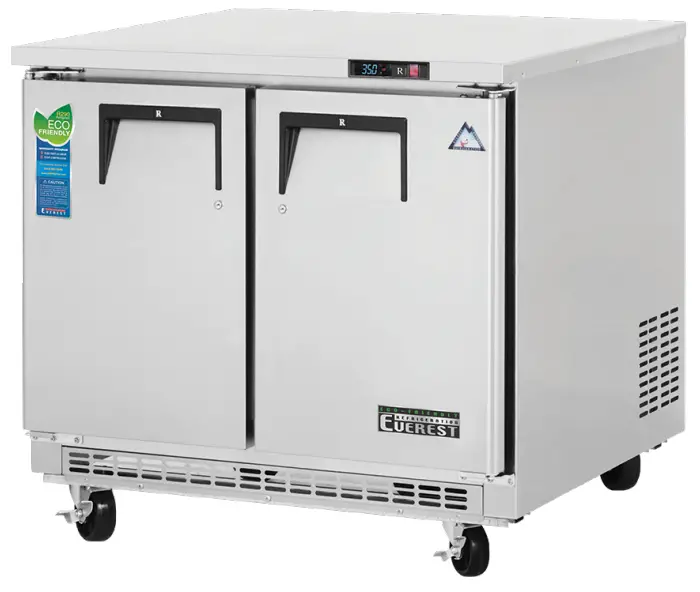

BACK MOUNT UNDERCOUNTER REFRIGERATOR
BACK-MOUNTED CONDENSING UNIT
ETB Series
Model: ETBSR2
Project Name:___________
Project Location:________
Model #:______________
Quantity:______________
Available Warehouse:_____
Refrigeration System
- Back-mounted, self-contained, and fully detachable Blizzard R290 condensing unit uses environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.
- Front air breathing for flexibility in installation.
- Electronically commutated (ECM) fan motors achieve rapid cooling with less energy consumption.
- A full-length air duct system ensures optimal circulation of cold air.
- Time-initiated and temperature-terminated auto-defrost cycle for seamless operation.
- Large capacity, corrosion-resistant condenser, and evaporator coils.
- A self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
- High-performance, auto-reverse condenser fan motor supports compressor ventilation and condenser coil cleaning. Refer to the owner’s manual for full maintenance instructions.
- Pressure relief devices allow smooth access to the cabinet interior when reopening doors.
- Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
Cabinet Construction
- Heavy-duty stainless steel interior/exterior with rounded corners for a hazard-free workspace.
- Open spaced interior with no walls between compartments.
- 16 gauge, high-quality stainless steel worktop.
- Galvanized steel bottom and rear.
- 2.5″ thick high-density polyurethane insulation.
- Four 5″ swivel casters with locks on the front set.
Doors
- Heavy-duty stainless steel interior/exterior.
- 2.5″ thick high-density polyurethane insulation.
- Frame heaters prevent exterior moisture build-up.
- Self-closing with adjustable torsion system for a positive seal.
- Snap-in magnetic door gasket makes cleaning and replacement an easy process.
- High strength, recessed door handles.
- Pre-installed door locks keep your items safe from theft.
Shelving
- Two one epoxy coated, steel wire shelves per section.
- Height adjustable stainless steel clips.
Temperature Control
- Multi-function digital controller with easy-to-read LED display.
- Factory preset temperature, 35°F. Temperature settings range from 33°F to 54°F.
- Audible overheat protection alarm for compressor and condenser coil.
Options
- 4” high stainless steel backsplash for worktop application.
- Additional shelving.
- 3” swivel casters with locks.
- 3.5” – 6” height-adjustable and interchangeable legs.
- NSF Certified Stainless Steel Double Overshelf.
DIMENSIONAL DATA
| External Dimensions | L 35.625″ (905mm) |
| D 31.5″ (800mm) | |
| H* 30.25″ (768mm) | |
| Crated Weight | 216 lbs. (98kg) |
| Doors/Drawers/Lids | 2 |
| Max Weight Support (LBS) | – |
STORAGE DATA
Net Capacity Cu.  . | 10 |
| Shelves | 4 |
| Barrels | – |
| 20 oz. Bottles | – |
| 12 oz. Bottles | – |
| 12 oz. Cans | – |
| 8″ Mugs | – |
| # of Pans (Top) | 10 |
| # of Pans (Drawer) | 4 |
| Dividers | – |
| Trays | – |
ELECTRICAL DATA
| Voltage | 115-60-1 |
| Full Load Amperage | 2.7A |
| Feed Wires with Ground | 3 |
| Cord Length | 9ft |
| NEMA Plug Type |  NEMA 5-15P |
REFRIGERATION DATA
| Compressor Mounting | Back |
| Refrigerant | R-290 |
| Compressor HP | 1/5 |
BTU/HR  | 1655 |
KEY
| D | Door | R | Refrigerator |
| L | Lid | REF | Refrigerator |
| H | Half Door | F | Freezer |
| FD | Full Door | FRZ | Freezer |
| SD | Solid Door | DUAL | REF/FRZ Combo |
| GD | Glass Door | DR | Drawer |

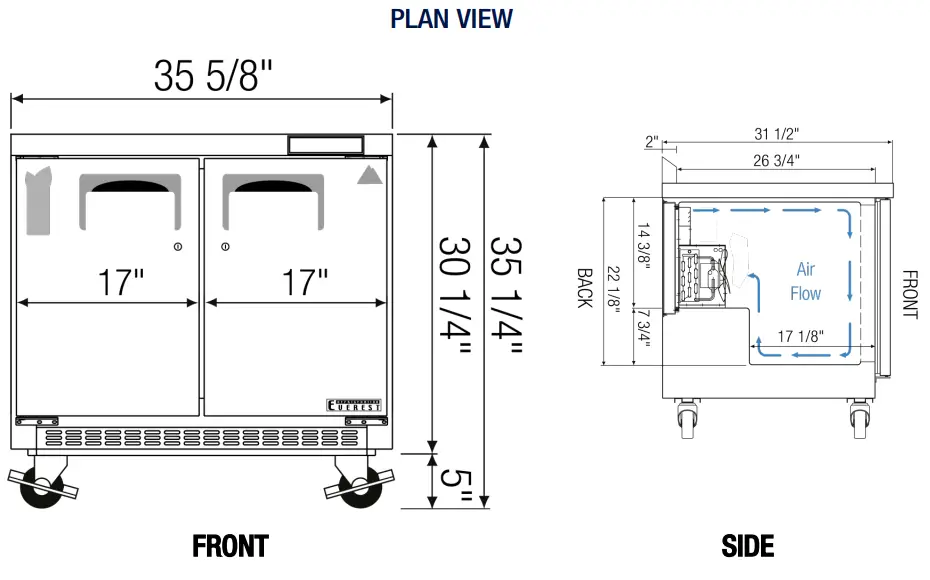

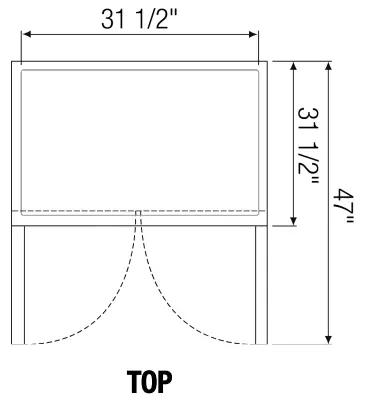

 | Elevation | Right | Plan | 3D | Back |
ACCESSORIES & OPTIONS
| Part Number | Description |
| Additional Shelving | Contact Everest Refrigeration for more information. |
| AJL03-00 | Interchangeable Leg for Caster |
| BKSPL01-00 | 4″ High (35-1/2″ Long) Backsplash |
| CASA3-01 | 3″ Overall Height Caster Assembly – (2) Front (2) Rear |
| OS01-00 | Standard Double Overshelf 12″ Depth x 36″ Length |
| Ref/ Frz/Dual | Doors | Capacity Cu. Ft. | Shelves | Refrigerant | HP | Power V-Hz-Ph | Amps | Crated Weight | Exterior Dimensions | ||
| L | D | H* | |||||||||
| REF | 2 | 10 | 4 | R-290 | 1/5 | 115-60-1 | 2.7 | 216 lbs (98kg) | 35.625″ (905mm) | 31.5″ (800mm) | 30.25″ (768mm) |
( )Based on the evaporating temperature of 23ºF (-5ºC) & condensing temperature of 131ºF (55ºC). ( ) Product capacity is calculated based on standard industry figures. (* ) Reference plan view for clarification on caster/unit height. If dimensions and capacity are critical, please contact Everest Refrigeration. Blizzard R290 replacement is at the sole discretion of Everest Refrigeration. Specifications are subject to change without notice.
VER. 8/6/2019
