Universal MINy
HD Backup Camera

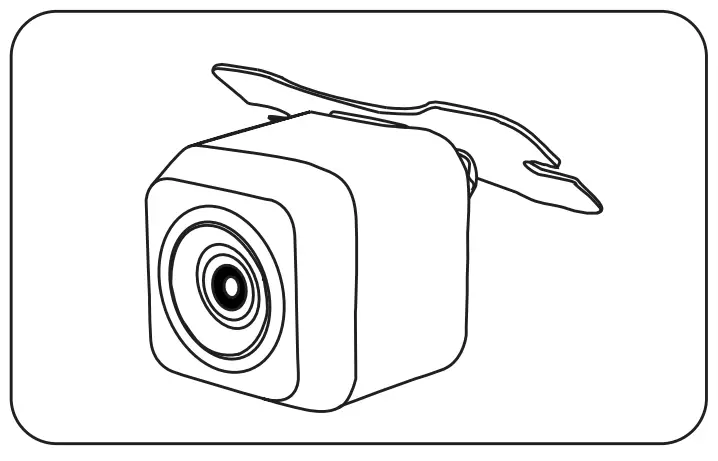

Model No.: CM-HD4
Embedded Type CMOS Camera
Specification
| Sensor | CMOS |
| Resolution | 960*576 |
| TV Line | 960 |
| Min Illumination | 0.1 Lux-0.01 Lux |
| Angle | 170 |
| Voltage & Max Current | 9-16V, 100mA |
| Video System | NTSC(Color) |
| Image | Mirror Image(default) |
| Parking Line | Parking ON(default) |
| Body Color | Black(B) |
| Water Proof | IP67-1P68 |
| Operation Temp | -30°C – +70°C |
| Storage Temp | -40°C – +105°C |
Product Features
- MINy Camera with CMOS Sensor
- Mirror/ standard Image Selectable
- Parking Line ON/OFF Selectable
- Wider view angle up to 170 degrees
- Waterproof: IP67-IP68 approved
- High Quality Image Output(HD)
Precautious
- Remove Protective lens covering prior to use.
- Be cautious when mounting camera and wiring near fuel tank.
- System is designed for +12 volt DC systems only.

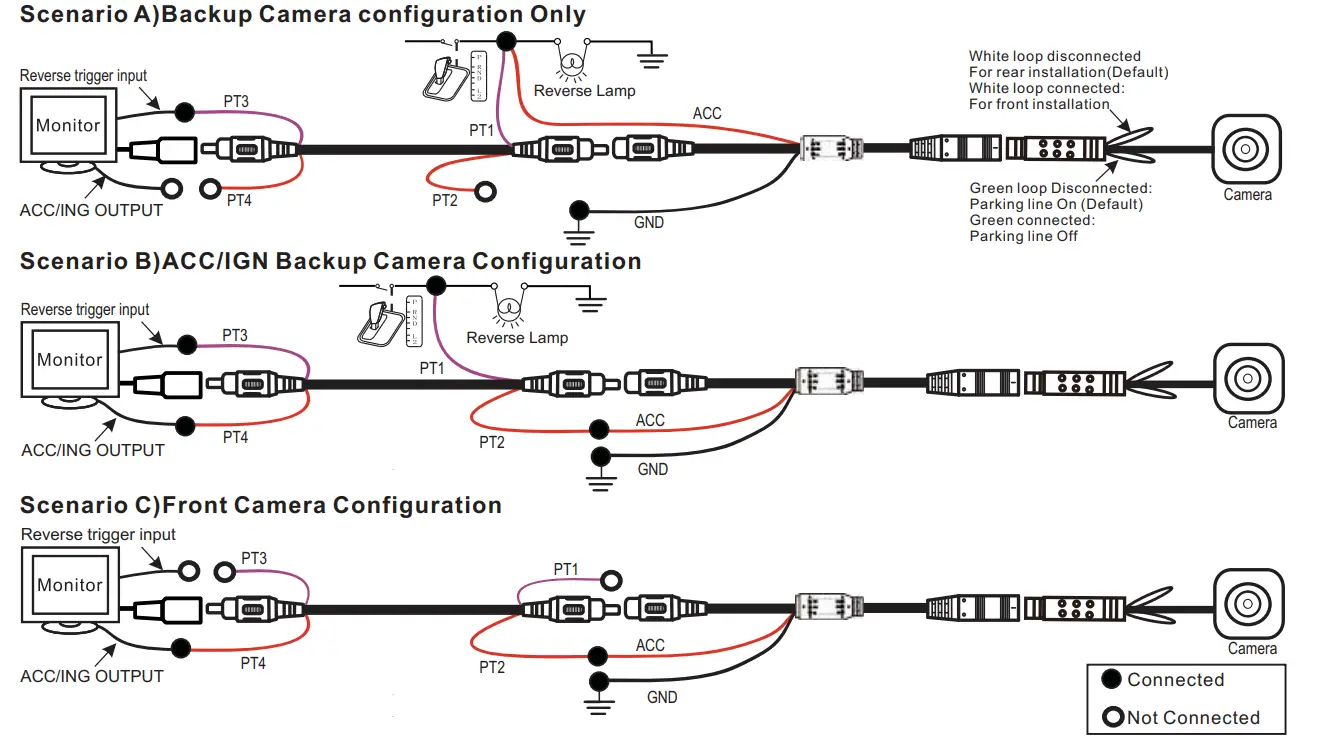

Electrical Connection
Camera Installation Position Options:

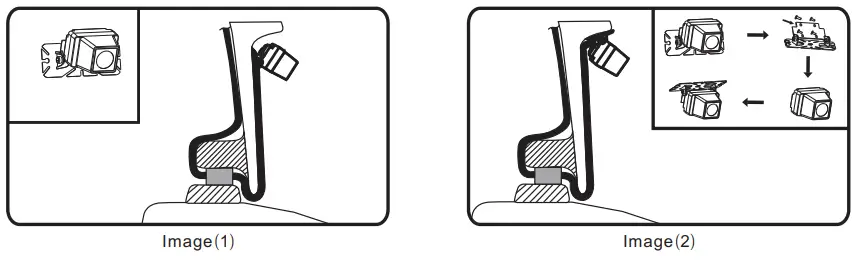

- The camera can be positioned either on the bottom side of the trunk lid or the face side of the rear trunk lid.
- Camera can be mounted using either double sided adhesive tape or by drilling into deck lid with short sheet metal screws.
- See Images(1) and (2).
- Note: Disassembly of the camera mounting bracket may be necessary depending on mounting.
Angle adjustment:

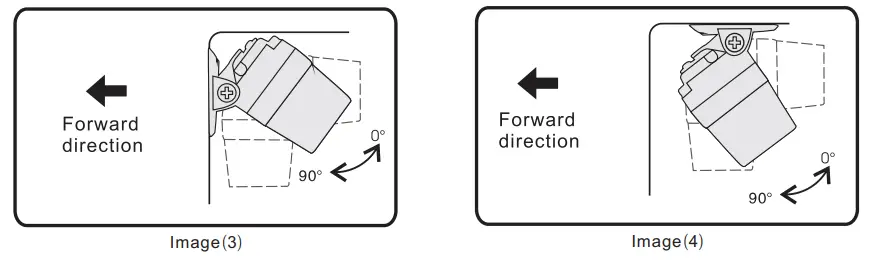

- Once camera has been mounted you will need to adjust camera for best results.Secure parking brake, shift vehicle into reverse and adjust camera as noted in images(3) and (4).
- Once desired angle is set tighten bolt on camera.
Technical Support Contact Info:
If you have other questions about RYDEEN Camera products, please contact your retailer or Technical Support:
- Telephone: 1-877-777-8811(within USA only)
- Email: [email protected]
- Web address: www.rydeenmobile.com
- For more detail instructions please visit: www.rydeenmobile.com/camerahelp
Rydeen Mobile Electronics
