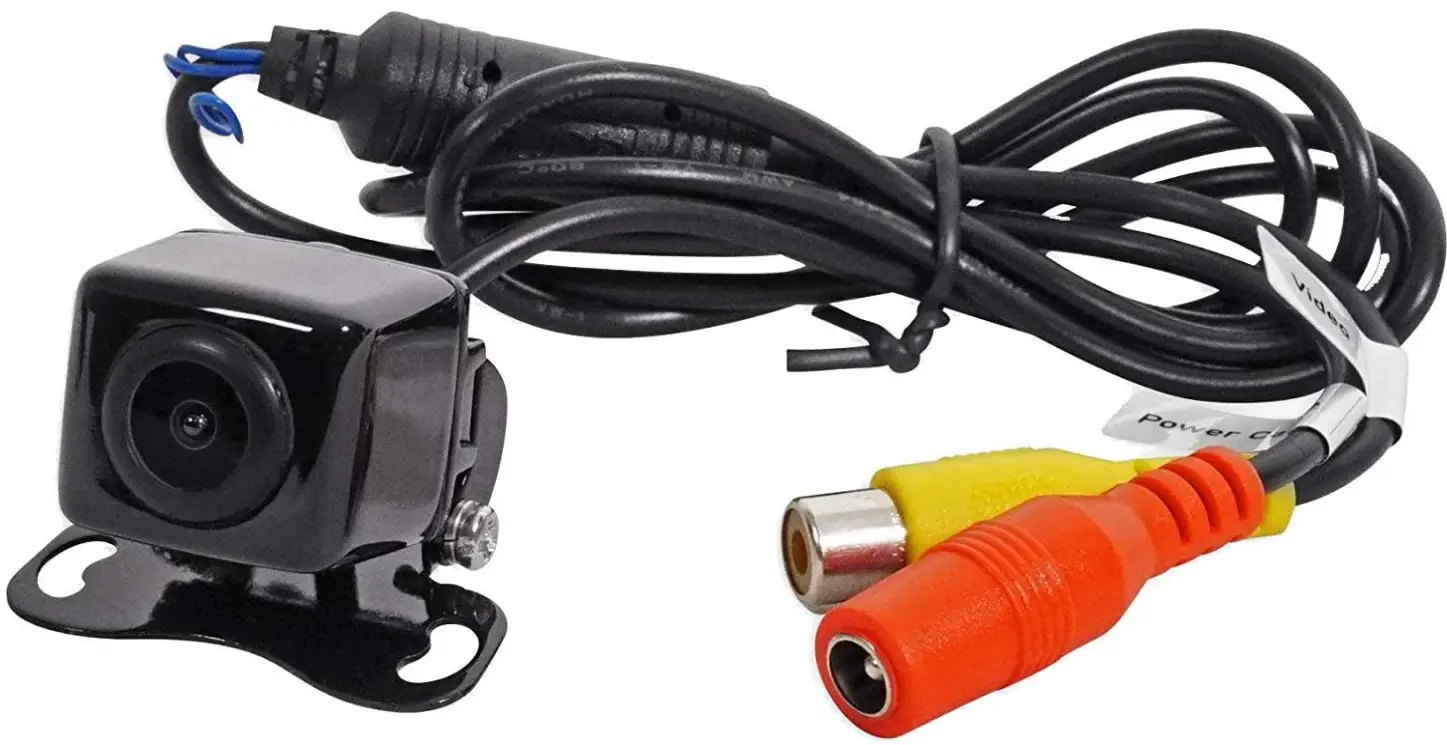

Dual Electronics BUCAM200 Universal Backup Camera

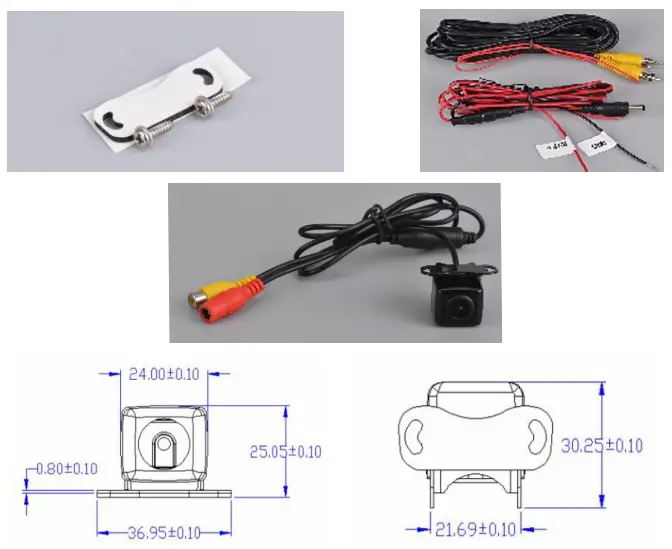

WHAT’S INSIDE THE BOX
- Product Sheet
- BUCAM200 Camera w/ Adjustable Mount
- Power Cable w/ Fuse, Video Cable, 2 Mounting Screws and Foam Rubber Mounting Pad.
MEASUREMENTS ARE IN MILLIMETERS (MM)

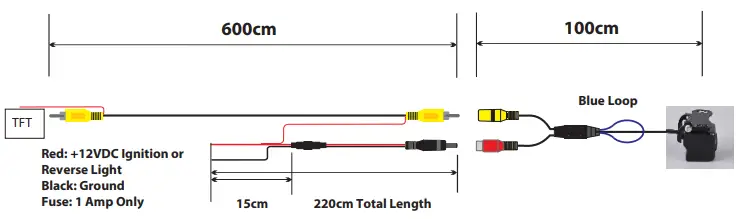

Note: Video cable has a built-in power wire (2 red wires on either end) for ease of installation. Only 1 cable has to be routed during installation.
Camera Specifications
- IMAGE SENSOR: CMOS, PC7070
- POWER: 12VDC, Negative Ground
- POWER CONSUMPTION: <1 Watt
- EFFECTIVE PIXELS: 640×480
- Video Format NTSC
- LUX: <0.5
- WHITE BALANCE: Auto
- VIEWING ANGLE: 170 Degrees
- IP RATING: IP67
- OPERATING TEMPERATURE: -15F ~ 160F
- CAMERA BODY: Zinc Alloy
LIMITED ONE YEAR WARRANTY
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of 1(one) year from the date of the original purchase.
Dual Electronics Corp. agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent replacement products are warranted for the balance of the original warranty period.
Who is covered? This warranty is extended to the original retail purchaser for products purchased from an authorized Jensen / Dual or Axxera dealer and used in the U.S.A.
What is covered? This warranty covers all defects in material and workmanship in this product. The following are not covered: software, installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modification, improper installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied with the product, or damage occurring during return shipment of the product. Specific license conditions and copyright notices for the software can be found via www.dualav.com.
What to do?
- Before you call for service, check the troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save you a service call.
- If you require service during the warranty period, you must carefully pack the product
- (preferably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.
- Please describe your problem in writing and include your name, a return UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment.
- For more information and for the location of the nearest authorized service center please contact us by one of the following methods:
- Call us toll-free at 1-866-382-5476
- E-mail us at [email protected]
EXCLUSION OF CERTAIN DAMAGES
This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company’s negligence, actual or imputed. No person or representative is authorized to assume, for the company, any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.
FAQs
Yes, you can simply plug it in.
In order to add a backup camera to that vehicle’s OEM screen, you will require an integration harness.
Yes! It all depends on how the 12V power cord is connected. Running lights, licence plate illumination lamps, run lines directly to the battery, the ignition switch, or any other 12V source on the vehicle can be connected to 12V for continuous operation.
This item is a universal backup camera, and you may pick between a front or rear mount for it. The camera is simple to mount anyplace on your car, such as on the bumper or close to the licence plate.
When you put your car in reverse, a backup camera activates. Rear-view cameras let you see what’s behind your car at any moment by turning them on.
Only-camera setups. If your dash already has a stock screen, you can add these to your car. Integrated systems. These come with mountable displays and cameras that you can put in your car. Individual screens and cameras. Both mirror displays and cameras.
yes! Even though the battery will gradually be drained at a low level, it will nonetheless drain it.
Backup Camera has an IP69K rating, making it entirely waterproof. The camera will function well in any weather thanks to its highest IP rating.
The centre of the car is the ideal location for a reversing camera. It will have a better field of view whether it is installed lower down, or high up looking downwards. For instance, the back bumper is perfect, but on other cars, the area over the rear doors can also work.
The optimum range is between 140 and 150 degrees. The instructions are quite useful with all of these devices for identifying objects in the backup camera and assessing whether they are blocking the view.
A camera will need 1-2 amps. A monitor consumes 4-5 amps.
Your camera needs a grounded power supply that is grounded to your chassis as well as a wired source of power. It also needs to know when to switch on and off.
Back-up cameras only offer a limited perspective of what is happening behind and around the vehicle, despite the image quality and size of the screens in the car. In actuality, the majority of cameras only offer an 80-degree field of view from behind the car.
According to the Insurance Information Institute’s analysis of crash data from 22 states, backup cameras can cut collisions by 16%.
Supply of constant power. The camera can be connected to a continuous power source and left on all the time, connected to Ignition. Another option is to link the camera or camera system to the ignition of the car. Automatic Switching
