Eae Knx Mona Series Dnd/mur Instruction Manual

EAE KNX Mona Series DND/MUR Instruction

Product Information

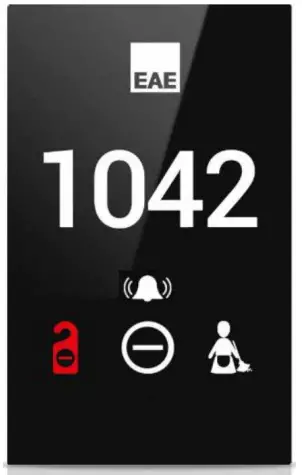

The Mona DND/MUR display is a part of the Mona series, which allows users to easily see whether their guests are in the room. The display consists of a glass touch screen and includes room numbers, hotel logos, DND (Do Not Disturb) and Make Up indicators, and doorbell buttons. The device is connected to a KNX bus and has a physical address programming button and LED. It operates on a voltage between 21V and 30V DC via the KNX bus and has a safety class rating of II.

Product Usage Instructions

To use the Mona DND/MUR display:

1. Connect the device to a KNX bus.
2. Use the physical address programming button and LED to set the device’s physical address.
3. Ensure that the device is connected to a power source with a voltage between 21V and 30V DC via the KNX bus.
4. Use the touch screen to view room numbers, hotel logos, DND and Make Up indicators, and doorbell buttons.
5. Use the communication object table to monitor device status and control room states.
6. Adjust the parameters for In Operation (Device Alive) and Function as necessary.

General

The Mona series DND MUR display, where you can easily see whether your guests are in the room, consists of a glass touch screen and includes room number, hotel logo, DND, Make Up indicators and doorbell buttons.

Device Technology

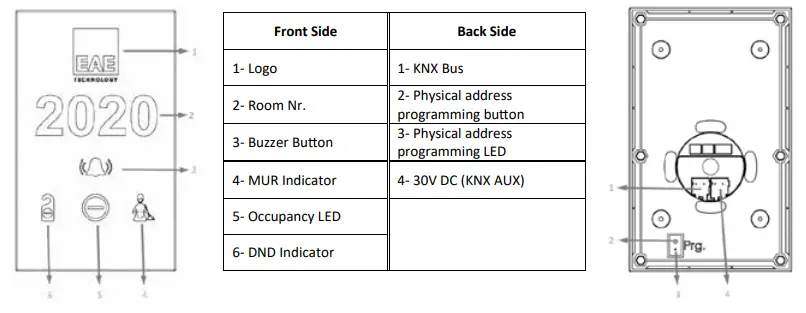

Button Definitions

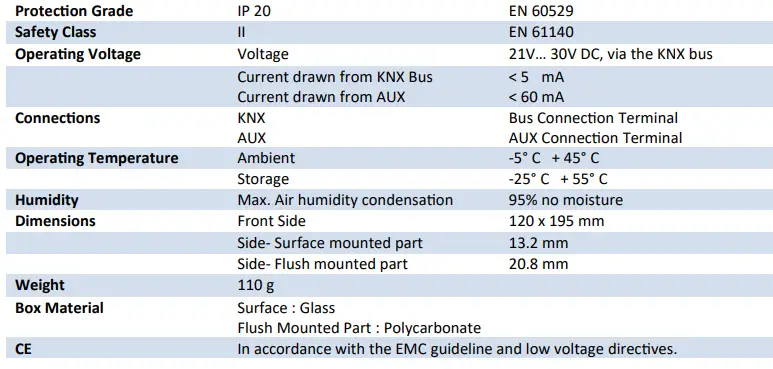

Technical Data

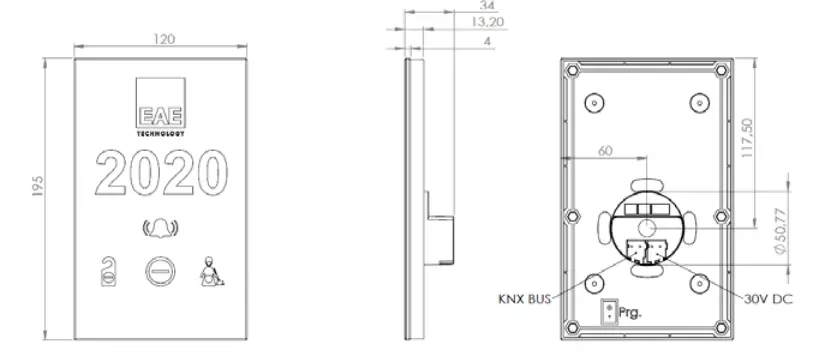

Technical Drawings

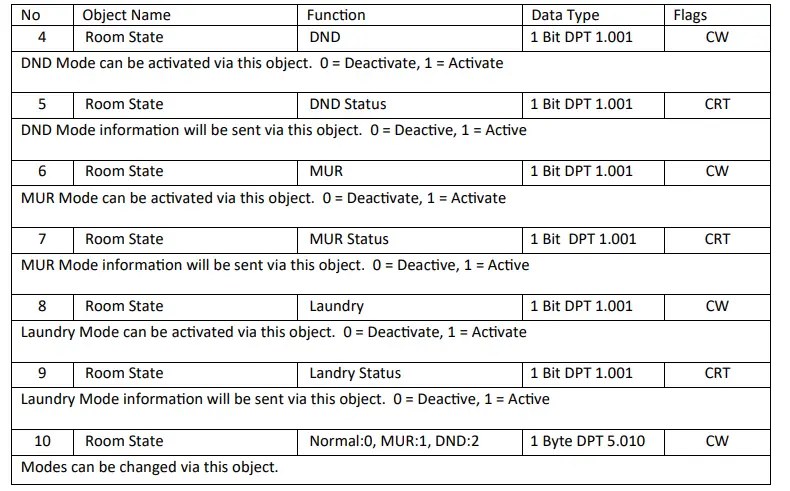

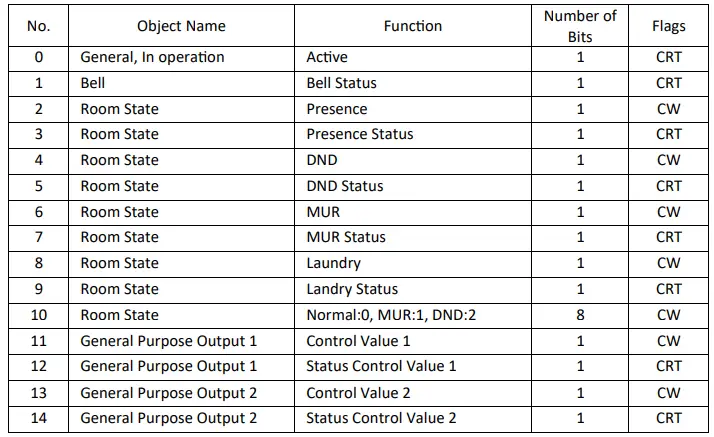

Communication Object Table

Parameters and Communication Objects

General
General parameter includes;

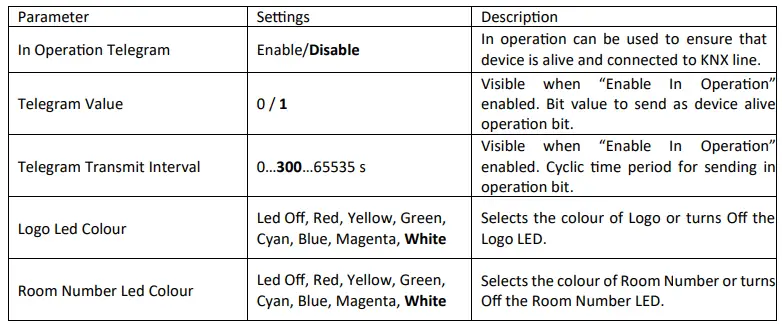

In Operation (Device Alive) Function

Parameters

Communication Objects

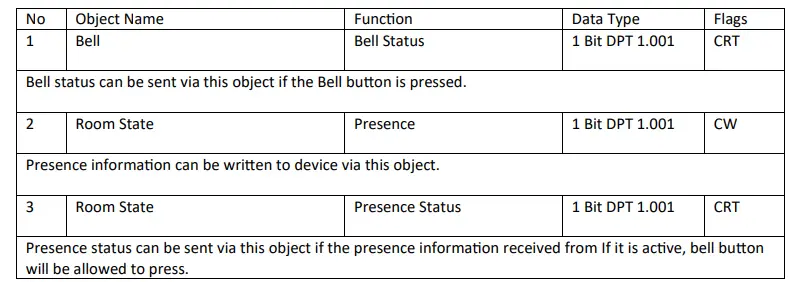

Bell

Parameters

Communication Objects

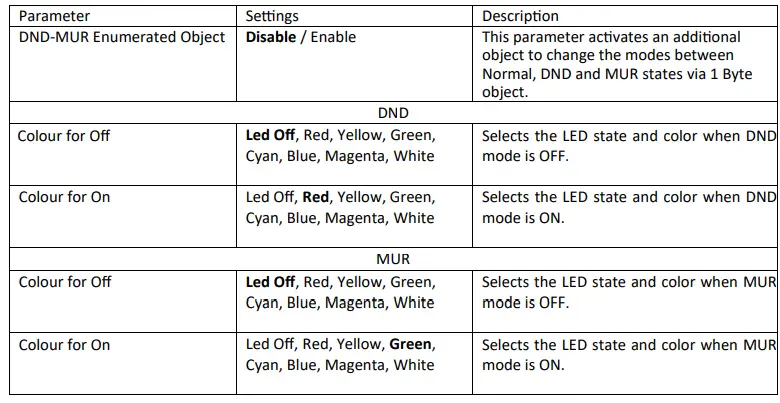

DND-MUR
Parameters

Communication Objects

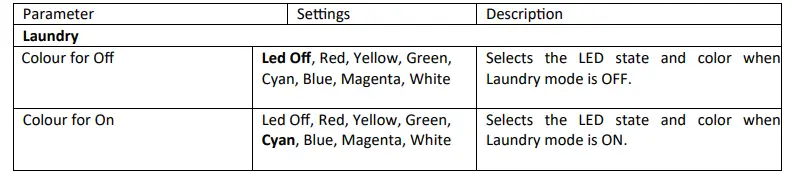

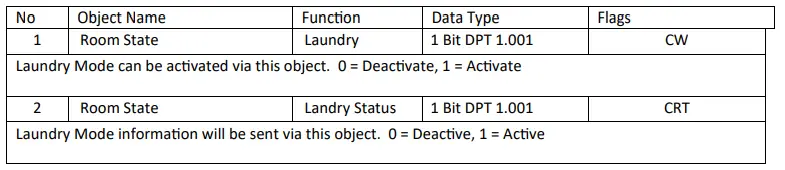

Laundry
Parameters

Communication Objects

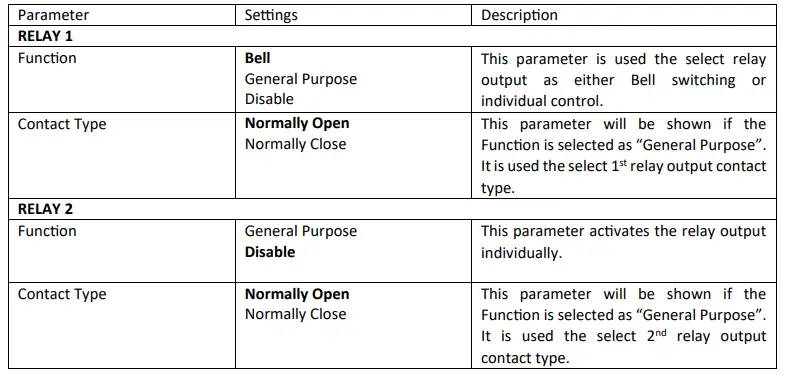

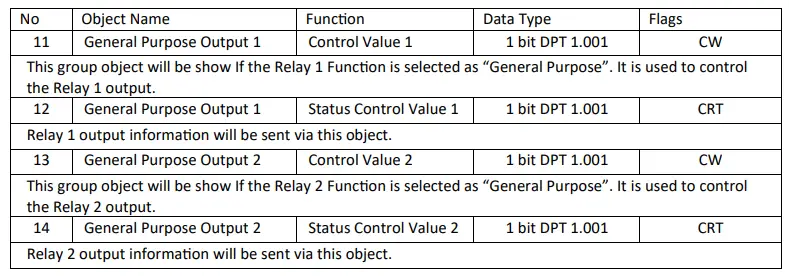

Relay

Communication Objects

©EAE Technology www.eaetechnology.com
