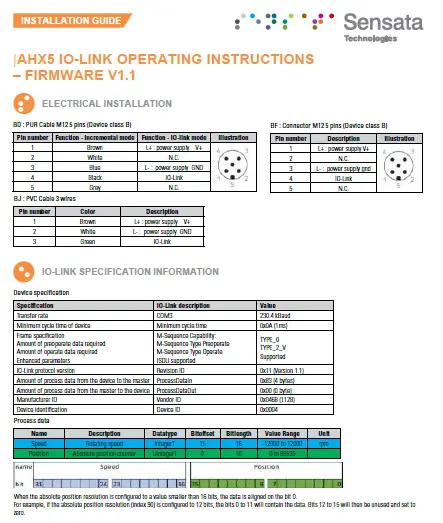

Sensata AHX5 IO-LINK Firmware V1.1
ELECTRICAL INSTALLATION
BD : PUR Cable M12 5 pins (Device class B)
| Pin number | Function – Incremental mode | Function – IO-link mode | Illustration |
| 1 | Brown | L+ : power supply V+ |  |
| 2 | White | N.C. | |
| 3 | Blue | L- : power supply GND | |
| 4 | Black | IO-Link | |
| 5 | Grey | N.C. |
BF : Connector M12 5 pins (Device class B)
| Pin number | Description | Illustration |
| 1 | L+ : power supply V+ |  |
| 2 | N.C. | |
| 3 | L- : power supply gnd | |
| 4 | IO-Link | |
| 5 | N.C. |
BJ : PVC Cable 3 wires
| Pin number | Color | Description |
| 1 | Brown | L+ : power supply V+ |
| 2 | White | L- : power supply GND |
| 3 | Green | IO-Link |
IO-LINK SPECIFICATION INFORMATION
Device specification
| Specification | IO-Link description | Value |
| Transfer rate | COM3 | 230.4 kBaud |
| Minimum cycle time of device | Minimum cycle time | 0x0A (1ms) |
| Frame specification Amount of operoperate data required Amount of operate data required Enhanced parameters | M-Sequence Capability: M-Sequence Type Operoperate M-Sequence Type Operate ISDU supported | TYPE_0 TYPE_2_V Supported |
| IO-Link protocol version | Revision ID | 0x11 (Version 1.1) |
| Amount of process data from the device to the master | Process Data In | 0x83 (4 bytes) |
| Amount of process data from the master to the device | Process Data Out | 0x00 (0 byte) |
| Manufacturer ID | Vendor ID | 0x0468 (1128) |
| Device identification | Device ID | 0x0004 |
Process data
| Name | Description | Datatype | Bitoffset | Bitlength | Value Range | Unit |
| Speed | Rotating speed | IntegerT | 15 | 16 | -12000 to 12000 | rpm |
| Position | Absolute position counter | UInteger T | 0 | 16 | 0 to 65535 |
When the absolute position resolution is configured to a value smaller than 16 bits, the data is aligned on the bit 0.
For example, if the absolute position resolution (index 90) is configured to 12 bits, the bits 0 to 11 will contain the data. Bits 12 to 15 will then be unused and set to zero.
Standard Identification data
| Index (hex) | Sub index | Name | Data type | Access | Contents |
| 16 (0x10) | 0 | Vendor Name | StringT | RO | BEI Sensors |
| 17 (0x11) | 0 | Vendor Text | StringT | RO | Sensata Technologies Inc. |
| 18 (0x12) | 0 | Product Name | StringT | RO | AHx5-ZIO |
| 19 (0x13) | 0 | Product ID | StringT | RO | Detailed reference |
| 20 (0x14) | 0 | Product Text | StringT | RO | Absolute single-turn IO-Link encoder |
| 21 (0x15) | 0 | Serial Number | StringT | RO | Unique number |
| 22 (0x16) | 0 | Hardware Version | StringT | RO | 284v6 |
| 23 (0x17) | 0 | Firmware Version | StringT | RO | V1.1 |
| 24 (0x18) | 0 | Application Specific Tag | StringT | RW | *** |
System command
| Index (hex) | Subindex | Name | Data type | Access | Value range |
| 2 (0x02) | 0 | System-Command | UIntegerT 8 | WO | 130 (0x82) : Restore factory settings |
| 131 (0x83) : Back-to-Box command |
Observation parameters
| Index (hex) | Subindex | Name | Data type | Access | Value range | Comment |
|
40 (0x28) | 0 | Process Data Input | Record | RO | Get last Process Data Input value | |
| 1 | Speed | IntegerT 16 | NA | -12000 to 12000 | Speed value. | |
| 2 | Position | UIntegerT 16 | NA | 0 to 65535 | Absolute position |
Diagnosis parameters
| Index (hex) | Subindex | Name | Data type | Access | Value range | Comment |
|
36 (0x24) |
0 |
Device Status |
UIntegerT 8 |
RO |
0 to 4 | Device status : Device is OK [0] Maintenance required [1] Out of specification [2] Functional check [3] Failure [4] |
| 110 (0x6E) | 0 | Operating hours | UIntegerT 32 | RO | 0 to 4294967295 | Number of hours with device on |
Sensata specific parameters, Observer and Maintenance access
| Index | Subindex | Name | Data type | Access | Value range | Comment |
| 65 (0x41) | 0 | Set Position Preset | Button | WO | Set position to the preset value | |
| 67 (0x43) | 0 | Position Preset value | UIntegerT 16 | RW | 0 to 65535 | Value of the position preset |
| 72 (0x48) | 0 | Rotation direction | BooleanT | RW | False : CW True : CCW | Set the rotation direction |
| 80 (0x50) | 0 | Speed calculation window | UIntegerT 8 | RW | 0 : 20 ms 1 : 200 ms 2 : 600 ms | Time between each speed data update |
| 90 (0x5A) | 0 | Absolute Position Resolution | UIntegerT 8 | RW | 1 to 16 Number of bits | Default value: 16 bits |
Sensata specific parameters, Specialist access
| Index | Subindex | Name | Data format | Access | Value range | Comment |
| 75 (0x4B) | 0 | Enter in Factory setup mode | BooleanT | RW | 0: Encoder mode 1: Factory mode | Do not use |
| 252 (0xFC) | 0 | Test parameter 252 | UIntegerT 8 | RW | 0 : A appears 1 : A disappears 2 : B appears 3 : B disappears | Do not use For IO-link test purpose. |
Factory settings parameters
| Name | Index | Factory Setting | Comment |
| Position Preset value | 65 | 0 | Value of the position preset |
| Rotation direction | 72 | false : CW | Set the rotation direction |
| Enter in Factory setup mode | 75 | 0: Encoder mode | Do not use |
| Speed calculation window | 80 | 1 : 200ms | Time between each speed data update |
| Absolute Position Resolution | 90 | 16 | Resolution of the turn counter (in bits) |
| Operating-hours | 110 | 0 | Number of hours with device on |
Events
| Code | Name | Type | Comment |
| 16912 (0x4210) | Temperature issue | Warning | event appears when temperature exceeds specifications. |
| 4096 (0x1000) | General malfunction | Error | Global error on the device |
| 35840 (0x8C00) | Tech Specific app fault | Error | Technology specific application fault – Reset Device |
| 35841 (0x8C01) | Simulation active | Warning | Device in setup mode, the process data are not representing encoder position. Check operational mode |
| 35888 (0x8C30) | Process variable range under-run | Warning | Process Data uncertain. The process data send is not reliable. Do not use device process data! |
| 36000 (0x8CA0) | Sensor start error | Error | Communication error with the sensing part. Power Reset the device |
| 36001 (0x8CA1) | Download from NVM error | Error | Error while reading from permanent memory Warning parameters load error |
| 36002 (0x8CA2) | Upload to NVM error | Error | Error while writing to permanent memory Warning parameters save error |
| 35888 (0x8C30) | Test Event A | Error | Event appears by setting index 252 to value 1, Event disappears by setting index 252 to value 2 |
| 36351 (0x8DFF) | Test Event B | Error | Event appears by setting index 252 to value 3, Event disappears by setting index 252 to value 4 |
