Date: 26.05.2022 > 1
QUICK REFERENCE GUIDE > OR36SDG4X1
Gas Range, 36″, 5 Burners
Series 7 | Contemporary
Make your range a focal point. With a large capacity oven and five burners, this is the perfect way to cook for a crowd.
- Five burner gas cooktop, including one dual ring and two triple ring wok burners
- Gas oven with large 4.9 cu ft total capacity and three functions

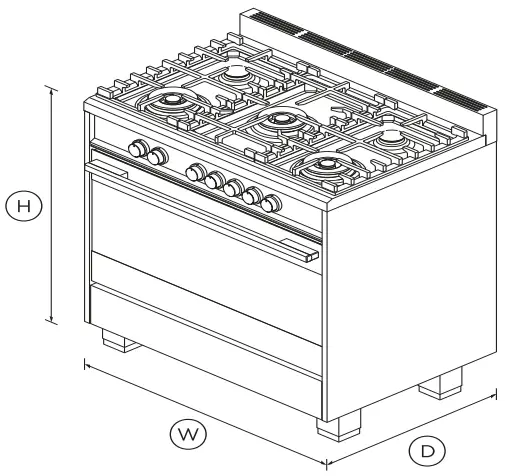

DIMENSIONS
Height 35 3/4 – 37 1/4″
Width 35 7/8″
Depth 25 1/4″
FEATURES & BENEFITS
Performance power
Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.
Design quality
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop grates and machined stainless dials all add up to an exceptional, premium range.
Large capacity
The large 4.9 cu ft capacity for this range gives you plenty of space to cook multiple dishes at the same time.
Easy cleaning
With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.
SPECIFICATIONS
Accessories
2-pc grill system (Broil pan and •
Broil pan •
Broil rack •
Chromed shelf runners 1 set
Full Extension Telescopic 2 sets (part 578744)
Kick strip, stainless steel Part 81659
Small pot support 1 (part 533981 cast)
Burner ratings
Dual wok burner inner/outer 1000 – 18000BTU
Dual wok burner inner/outer 1000 – 18000BTU
Maximum burner power 18000 BTU
Semi-rapid burner (LPG) 1500 – 7600BTU
Semi-rapid burner (natural 8000BTU
Total cooktop power 62000 BTU
Triple ring wok burner (LPG) 6100 – 12000BTU
Triple ring wok burner (natural 6100 – 14000BTU
Capacity
Shelf positions 7
Cleaning
Acid resistant graphite enamel •
Removable oven door •
Removable shelf runners •
Controls
Laser etched graphics •
Gas Requirements
Supply Pressure (LPG) 11″ W.C.P
Supply Pressure (natural gas) 4″ W.C.P
Oven features
Auto re-ignition system •
Concealed element •
Electronic ignition •
Full extension telescopic •
Internal light 4 x 25W halogen (2 side & 2
Soft open/close door •
Storage drawer •
True convection •
Oven functions
Bake •
Broil •
Convection bake •
Number of functions 3
True convection •
Oven performance
CoolTouch door Quadruple glazed
Power requirements
Amperage 1A
Supply frequency 60Hz
Product dimensions
Depth 25 1/4″
Height 35 3/4 – 37 1/4″
Width 35 7/8″
Rangetop features
LPG/Natural gas compatible •
Sealed range top •
Rangetop Performance
Number of burners 5
Safety
ADA compliant •
Advanced cooling system •
Anti-tilt bracket •
Balanced oven door •
Full extension telescopic 2 sets (part 578744)
Full extension telescopic •
Non-tip shelves •
Spill containment 5/8 gallon
SKU 81700
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 Wwww.fisherpaykel.com
